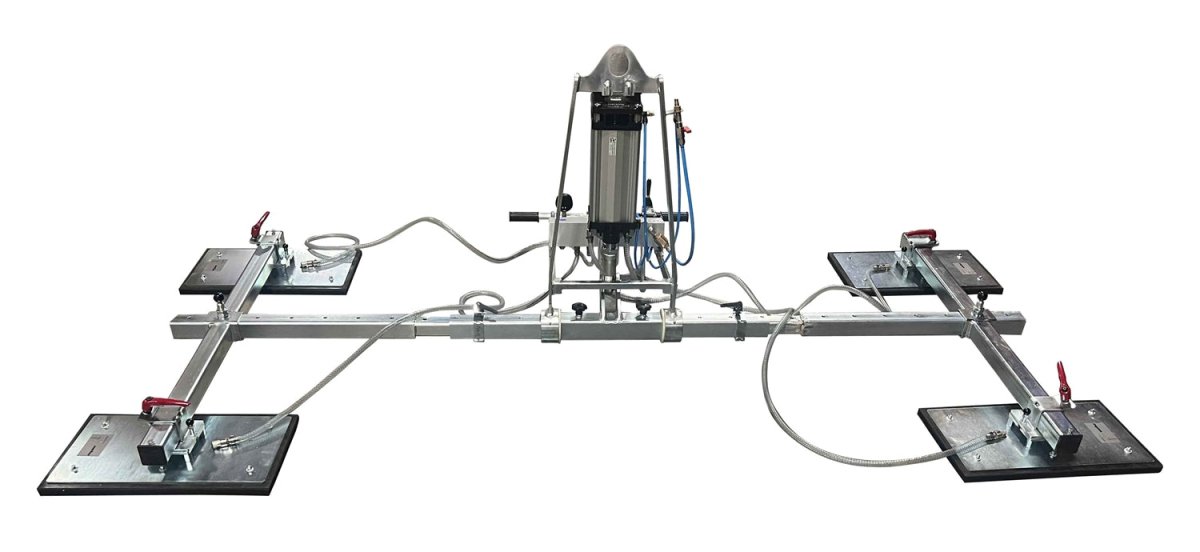

WehaA 1500 4 Pad Vacuum Lifter Pneumatic

4 piece suction plates:12 1/2" x 22 1/2"

2 Pad: 2 pads on the base or add the extension bars and spread them out up to 104" wide.
The 2 pad option gives the vacuum lifter a weight capacity of 600lbs

3 Pad: 3 Pad can be attached to the base only or add the 2 extension bars and spread them out linear up to 104" wide.
The 3 pad option gives the vacuum lifter a weight capacity of 900lbs

4 Pad:
Option 1: With the extension bars run the 4 pads linear up to 104" wide
Option 2:Add cross bars to the extension bar and spread them out up to 104" wide x 48" Spread.

Swivel Vacuum Pads:
Each vacuum lifter pad is mounted on a swivel that allows it to spin on 90 degree locks. the pad can be in vertical position and then turned to a horizontal position. The vacuum pads can also be placed in 45 degree angle positions.
The ability to swivel and move the vacuum pads give greater flexibility in placing the pads on the stone. L shaped pieces, going around sinks, etc are controlled much easier by swiveling the pads.

Weight Capacity:
The Weha A 1500 4 Pad Vacuum Lifter with all 4 vacuum pads has a capacity of 1500 lbs in both vertical and horizontal positions. This capacity will handle the largest granite slab to date, with extra safety room.
Each individual vacuum pad is rated for 375 lbs. Even when using less cups for smaller pieces, the weight capacity per pad is greater than other vacuum lifters on the market.

Minimum and Maximum Pad Spread:
The Weha A1500 Vacuum lifter with 4 pads spread out as far as it can go on the extension bar as well as the crossbar will have a maximum spread of 108" x 58".
The minimum spread with the 4 pads close together is 36" x 39"

Galvanized Frame:
The entire frame and extensions of the Weha A1500 Vacuum Lifter is hot dipped galvanized. The Weha A1500 Vacuum Lifter will last for 20+ years without any worry of rusting or metal fatigue.

Made by Weha:
The Weha A1500 Vacuum Lifter is made by Weha in their own manufacturing plant. Every detail is controlled by us. And Weha only uses the absolute best parts, pistons, hoses, gauges, and vacuum pads to build this structural sound and solid vacuum lifter.

4 Shut Off Valves:
Every vacuum cup has its own dedicated shut off valve. These red on/off valves are set directly in front of the operator to easily control which pads the operator wants to use

Quick Disconnect lines:
Changing from 1 pad to 3 pads, to 4 pads is extremely easy. Simply quick disconnect the air line from the on/off valve and slide the vacuum cup with its hose off of the lifter. Quick and easily.

Automatic Power Tilt for Vertical and Horizontal Movement:
The Weha A1500 Vacuum Lifter comes standard with power tilt. This allows horizontal to vertical (and vice versa) movement with a simple control lever next to the hand of the operator.

The Weha A1500 Vacuum Lifter has been redesigned specifically to accommodate the demands of stone fabrication. Its features, functions, and weight capacities give fabricators the best choice and options for moving stone with a vacuum lifter.

Weha A1500 Vacuum Lifter Specifications:
Load Capacity Horizontal: 1200lbs
Load Capacity Vertical: 1200 lbs
Height with power tilt: 39"
4 Suction Pads Each: 12 1/2" x 22 1/2"
Length of Base without extension: 36"
Length of Lifter with Extension Bars installed: 94"
Length of Operating Cross Bars: 48"
Weight: 325 lbs

The Weha A1500 Pnuematic Air Vacuum Lifter is an air venturi vacuum lifter.
Requires a minimum of 58 PSI at 4 CFM or 4 bar 4
Vacuum Cup weight capacity each: 300 lbs
Power vertical/horizontal tilt from 0-90 degrees
Large pressure gauge directly in front of operator to continually monitor air pressure at all times.

The Weha A1500 Vacuum Lifter comes complete with:
A1500 Base Vacuum Lifter
2 Extension Bars
2 Cross Bars
4 Vacuum Pads
