Weha Yellow Forklift Boom
SKU# 123661
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
Weha Yellow Forklift Boom
Weha Yellow Forklift Boom for natural and engineered stone slabs.
All Sales final on Forklift Booms.

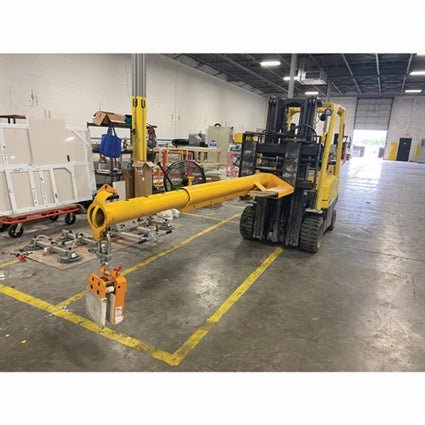

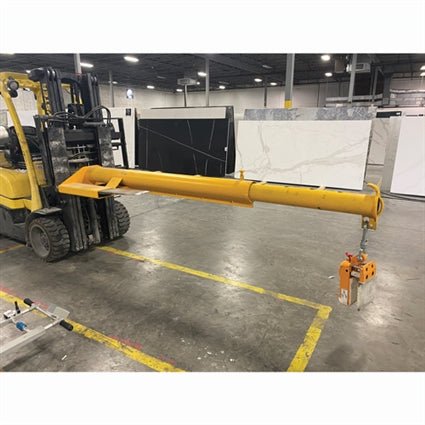

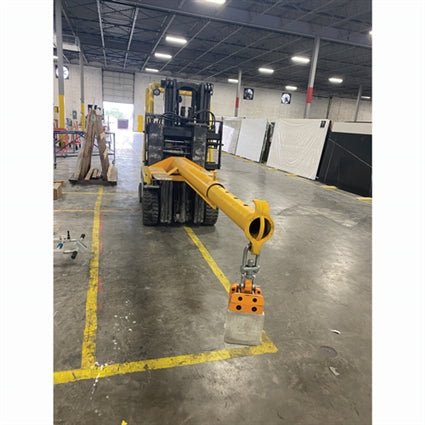

The Weha Yellow Telescopic Forklift Boom for natural and engineered stone slabs will work with all forklifts used in granite shops across North America.
This Granite Forklift Boom Telescopes from 80"-144"
The Weha Telescopic Forklift Boom is fabricated from structural steel that is extremely strong, durable and last for years.
The Weha Forklift Boom meets all material handling safety requirements.
The Telescopic section of the Weha Forklift Boom is secured in place with an adjustable locking screw.

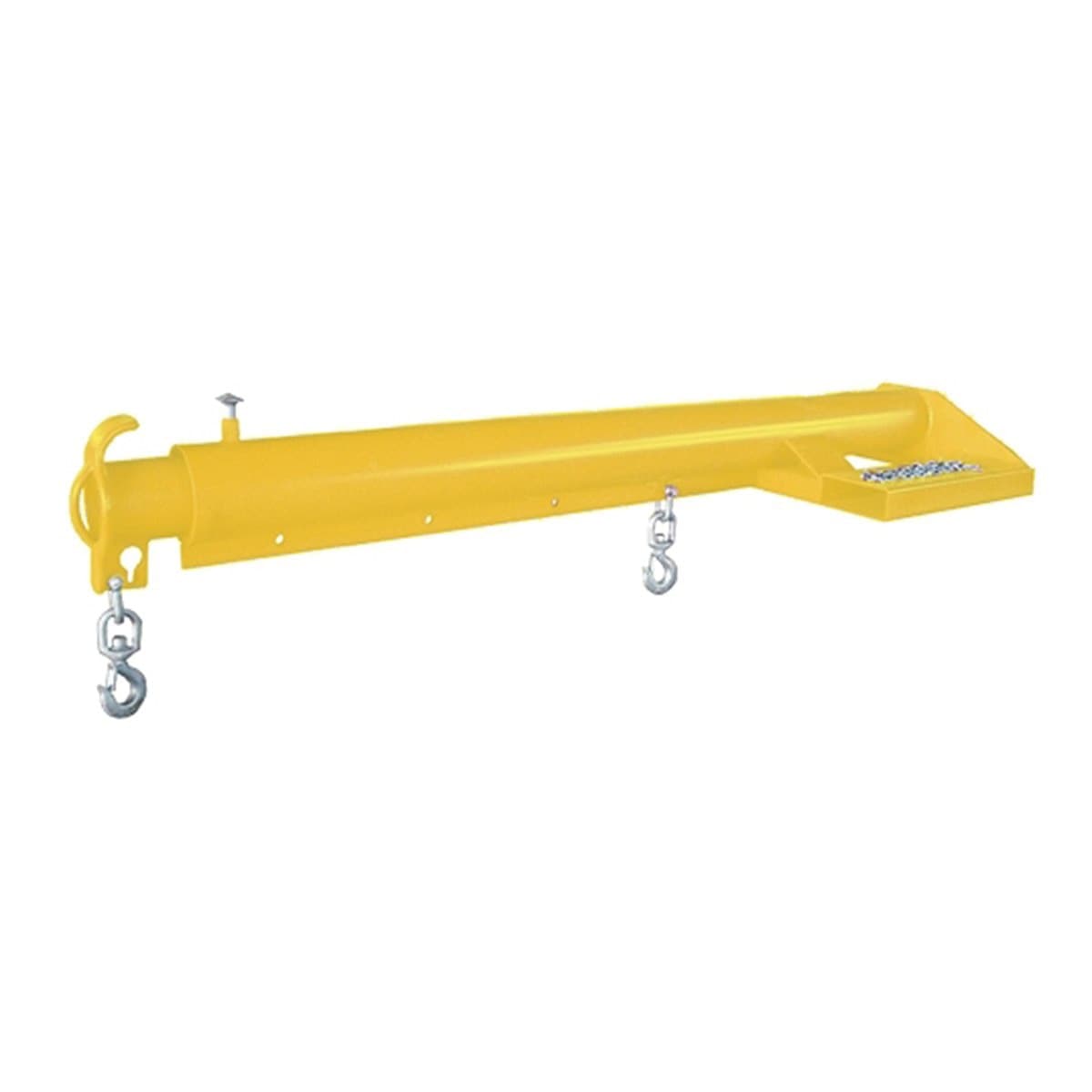

The Weha Yellow Forklift Boom comes with 2 Swivel Hooks, 36" safety chain that secures the boom to the fork truck for safety operation.

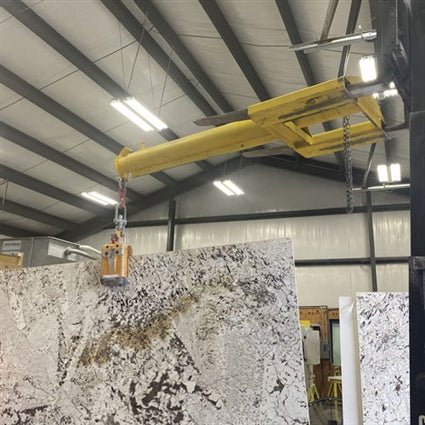

Excellent for moving individual slabs and bundles of granite, marble, quartz, engineered stone of all shapes and sizes.
The telescoping extension has stops every 7 1/2" for complete extension control.
Maximum Single Hook Boom Capacities (lbs)
Hook Position
- 144" - 1750 lbs.
- 132" - 2000 lbs.
- 120" - 2250 lbs.
- 108" - 2500 lbs.
- 96" - 2750 lbs.
- 84" - 3000 lb.
Specifications
- Load Capacity: 4000 lbs
- Telescoping Length: 80" to 144"
- Fork Pockets: 24" on centers
- Usable Fork Pocket Height: 2 1/2"
- Usable Fork Pocket Width: 7 1/2"
- Finish: Painted Yellow
! Warning!
This boom should not be used on uneven ground. Consult your fork truck manufacturer to verify that your truck meets or exceeds the following table which is based on a load height not exceeding 60 inches. Consult fork truck manufacturer for forklift specifications over 60 inches. Operator rigging training recommended prior to use.
Capacity
6 ft. / 183 cm
590 lb. / 268 kg
925 lb. / 420 kg 1400 lb. / 635 kg 1725 lb. / 782 kg 2125 lb. / 964 kg 2565 lb. / 1163 kg 3000 lb. / 1360 kg 3350 lb. / 1530 kg
Capacity
8 ft. / 244 cm
500 lb. / 227 kg
800 lb. / 362 kg 1200 lb. / 544 kg 1500 lb. / 680 kg 1850 lb. / 839 kg 2225 lb. / 1009 kg 2600 lb. / 1179 kg 2900 lb. / 1315 kg
Capacity 10 ft. / 305 cm
410 lb. / 186 kg
675 lb. / 306 kg 1000 lb. / 453 kg 1275 lb. / 578 kg 1575 lb. / 714 kg 1885 lb. / 855 kg 2200 lb. / 998 kg 2450 lb. / 1111 kg
