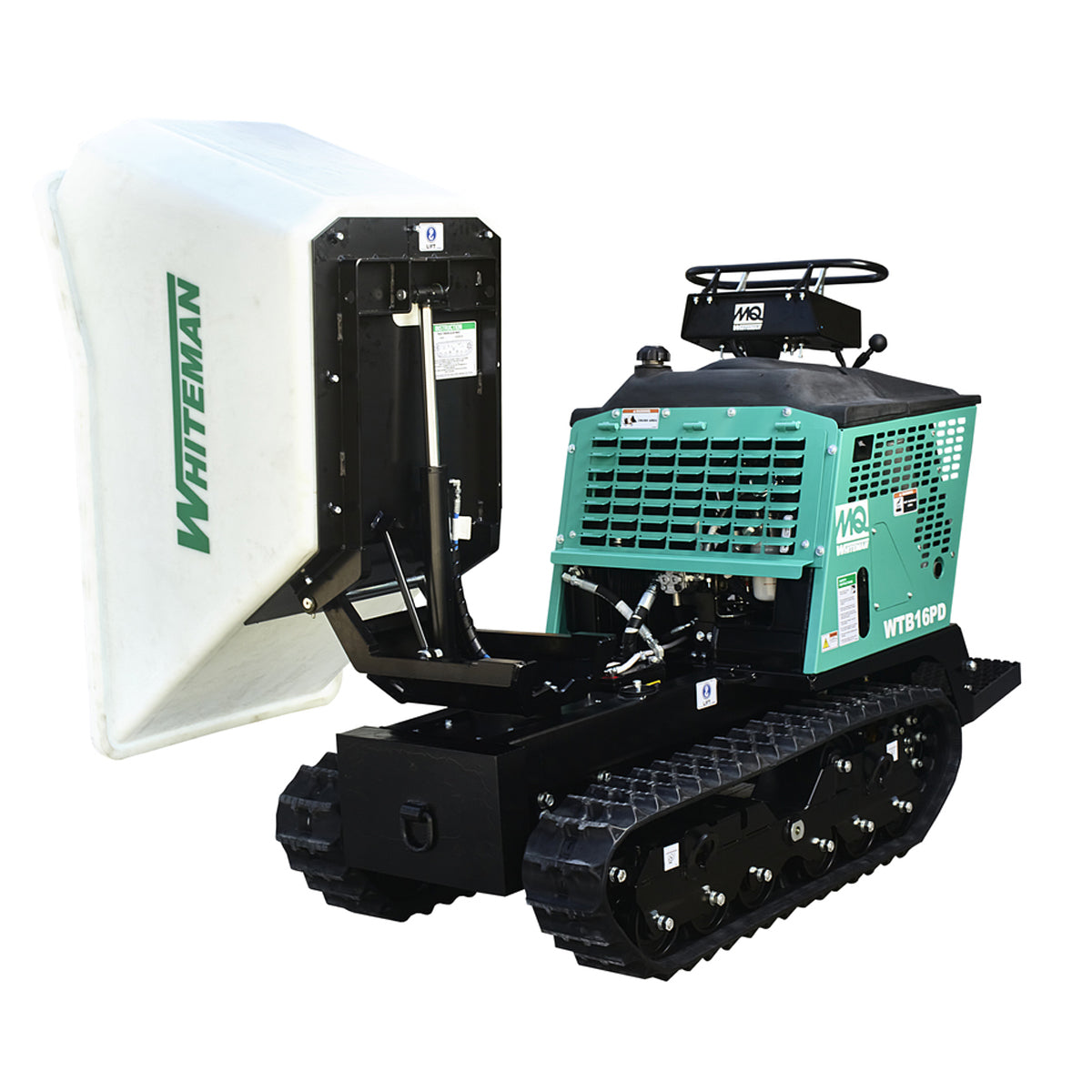

Track-Drive, 16 cu. ft, 35.5 in. Wide, 180° Pivot Dump

The WTB-16PD features an aggressive track pattern enabling the buggy to travel effortlessly through soft soils and muddy site conditions. The WTB-16PD is engineered with top quality components and built with the attention to detail that has made MQ Whiteman the leader in motorized buggies.

  • Tub pivots up to 180 degrees (Features both hand & foot levers to control rotation)
  • Rotation system features hydraulic cylinder to rack & pinion
  • Pivot system features idler wheel to maintain hydraulic hose tension and prevent chaffing
  • Optimal traction and durability assured by a steel imbedded ladder track design
  • Rugged undercarriage guide wheels are ductile cast iron
  • Low maintenance hydraulic design eliminates wear parts such as belt-drives and drive couplers
  • High torque drive motors propel the buggy through tough conditions and offer fail-safe braking
  • Versatile tub offers 16 ft.³ (2,500 LB.) capacity and polyethylene construction for easy cleaning
  • Narrow width allows the buggy to pass through doorways or confined areas
  • Easy steering dual control levers allow the operator to control the unit while minimizing fatigue
Unit Specifications
Drive System Hydraulic Powered Track-Drive
Tub Material Polyethylene
Tub Capacity 16 cu. f
Pivot Range 180° arc
Travel Speed (loaded) 4.7 mph 7.56 kph
Fuel Tank Capacity 5 gal
Engine 22 HP Honda GX690
Dimensions & Weights
Overall Length 100 254 cm
Overall Width 35.6 in. 90.4 cm
Overall Height 56.5 in 143.5 cm
Operating Weight 2,138 lb 970 kg
Notice: Features and equipment specifications are subject to change without notice.
