Concrete Grinding Tools: A Complete Buying Guide for Contractors

Concrete work rarely stays within one tool's ideal range. A contractor may need to remove coatings across a large slab, clean up edges around walls. And leave the surface ready for a coating or polished finish, often on the same project. The right setup combines the grinder, diamond tooling, and dust control method with the size and condition of the work area.

Start by comparing what each grinder type is built to do, then match power, tooling, speed, and access requirements to the surface preparation or polishing work ahead.

Understanding the Different Types of Concrete Grinding Tools

Concrete grinding jobs vary from broad slab preparation to detail work around walls, columns, and penetrations. The right equipment depends on the area, access, coating, power availability, and finish required. Matching the machine to the work helps control production time and prevents using a precision tool where a high-output grinder is needed.

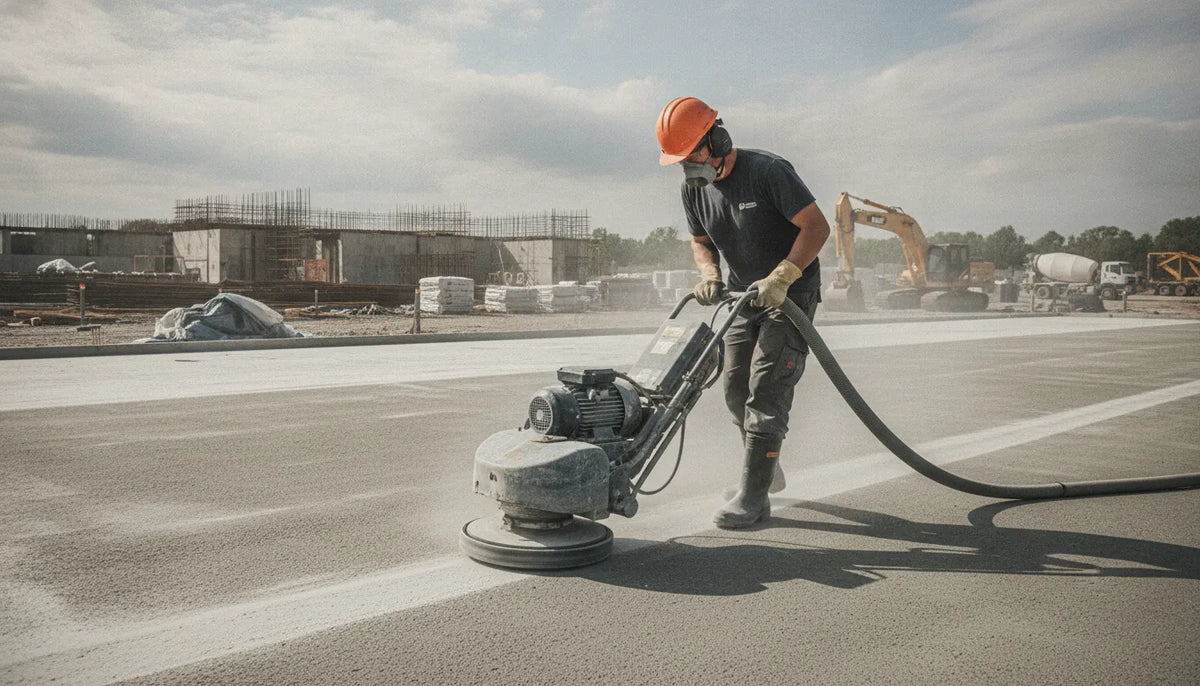

Floor Grinders for Large Surface Areas

Floor grinders are built for large-area surface preparation, epoxy removal, and concrete polishing. Walk-behind models give the operator direct control and are practical for most indoor slabs. While ride-on models make more sense when the project has substantial open floor area and production rate is the priority. Electric grinders suit indoor or corded applications where power is accessible. Propane models provide greater mobility for large outdoor spaces, but require appropriate ventilation and fuel handling.

Hand Grinders for Edges and Tight Spots

Hand grinders are the practical complement to a floor grinder. They reach edges, corners, small areas, and other locations a walk-behind machine cannot cover. Fit them with a diamond cup wheel when the job calls for aggressive concrete surface preparation, smoothing, or leveling. Hand equipment offers precision, but it also transfers more of the work to the operator, so dust control, correct handling, and sensible pass depth matter.

Specialized Diamond Tooling for the Material and Finish

The grinder is only part of the system. Diamond segments, cup wheels, and other tooling determine how efficiently the equipment cuts the surface. Variable-speed controls can help operators adapt to different materials and applications. Before mounting any tool, verify that the grinder RPM does not exceed the tool's maximum rated speed. Review diamond tools for concrete by application, machine compatibility, and intended finish rather than selecting by appearance alone.

Choosing the Right Floor Grinder for Surface Preparation

Start with the slab, the area you need to cover, and the finish required after grinding. A machine that works well for removing a coating in an open warehouse may be inefficient around walls, columns, and door thresholds. Floor grinders are built for large-area surface preparation, epoxy removal, and concrete polishing, with options ranging from walk-behind units to ride-on machines. The right choice balances removal rate, control, transport, and the available power source.

Match the grinder configuration to the job

Single-head grinders are often a practical choice for smaller rooms, targeted correction, and work where maneuverability matters. They can concentrate grinding action on uneven areas, but the operator may need more passes to produce a uniform result across a large slab. Planetary grinders use multiple rotating heads to distribute the tooling contact over a wider path. That configuration is typically better suited to broad floor areas where consistent scratch patterns and efficient coverage matter.

Compare expected coverage rates under actual job conditions, not only the number in a product listing. Concrete hardness, coating thickness, tooling, operator movement, dust collection, and the number of passes can all change production. If the work includes both open-floor grinding and detail work. Plan to pair a walk-behind or planetary machine with a hand grinder rather than forcing one machine to handle every surface.

Choose electric or propane power

Electric grinders are generally preferred indoors or wherever dependable power is readily accessible. They avoid exhaust in enclosed spaces, but cords, circuit capacity, and outlet placement become part of the setup. Propane grinders provide greater mobility and are suited to large outdoor areas, where access to electrical power may limit production. They require appropriate ventilation and fuel planning, so confirm the site conditions before choosing them for a project.

Use pressure and speed as control settings

Grinding head pressure affects both leveling and the speed at which aggregate becomes exposed. Additional weight can help a machine cut consistently, but excessive pressure can overload the tooling or make the grinder harder to control. Adjust pressure to the concrete condition and the desired removal rate instead of treating maximum weight as the fastest setting.

Variable-speed controls are valuable when the material or diamond tooling changes. Lower or higher speeds can provide finer control across different concrete hardnesses, coatings, and finishing stages. For a practical starting point, review Diamond Tool Store's professional concrete floor grinders, then compare the machine's head configuration, power requirements, pressure adjustment, and tooling compatibility. For more detail on where each machine fits, see these floor grinder applications for surface prep.

Hand Grinders and Cup Wheels for Detail Work

Walk-behind grinders cover open floor efficiently, but they cannot reach every part of a slab. Hand grinders are the practical choice for edges, corners, narrow strips, and small areas around walls, posts, drains, or fixtures. They give the operator more control when the job calls for careful feathering rather than broad material removal. With the right diamond cup wheel, a handheld setup can remove surface irregularities and coatings while following the contours that larger equipment must leave behind.

Match the wheel to the concrete and the task

Diamond cup wheels are designed for aggressive surface preparation, smoothing, and leveling of concrete. Start by identifying the material you need to remove and the finish you need to leave. Concrete hardness and the desired finish determine the appropriate grit, so a wheel selected for rapid stock removal may not be the best choice for final refinement. Bond selection matters as well: soft bonds are generally used on hard concrete, while hard bonds are used on softer concrete. Medium bonds provide a middle option when the slab falls between those conditions. These relationships are summarized in Diamond Tool Store's guidance on choosing the right concrete grinding discs. That article focuses on disc selection specifically, while this guide addresses the complete grinding setup, including the grinder, cup wheel, dust control, and work area.

Coatings can change the selection again. Specialized diamond bonds are available for removing tough coatings such as epoxy or urethane, so do not assume a general-purpose concrete wheel will perform well on every surface. For dense or cured concrete, a premium cup wheel with better heat dissipation can help maintain cutting performance. Heat management in the diamond matrix is important during heavy grinding because excessive heat can dull the tool prematurely. Use controlled passes instead of forcing the wheel into the slab, particularly when working in a confined corner where heat and dust can build quickly.

Verify RPM before putting the grinder under load

RPM matching is a critical safety check. Confirm that the hand grinder's operating speed does not exceed the maximum rated speed of the cup wheel or other diamond tool. The wheel, arbor, guard, and grinder must also be compatible before work begins. A speed mismatch is not a performance tradeoff; it can create an unsafe condition. Inspect the wheel for cracks, missing segments, or unusual wear before each shift, and replace damaged tooling rather than trying to finish one more area.

For edge and corner work, choose a balanced wheel and maintain a stable two-handed grip where the equipment allows it. Balanced diamond tools reduce vibration and operator fatigue over long grinding shifts. Pair the grinder with a compatible dust shroud and an effective vacuum, then use deliberate overlapping passes to keep the edge consistent. The result is cleaner detail work without asking a walk-behind machine to do a job it was not designed to reach.

Dust Control: Why Every Grinder Needs a Shroud and Vacuum

Concrete grinding can generate respirable crystalline silica, so dust control is part of the equipment setup, not an optional add-on. In a NIOSH study, workers grinding poured concrete without effective controls encountered silica dust levels 35 to 55 times the NIOSH recommended exposure limit. A properly configured local exhaust ventilation (LEV) system, consisting of a grinder shroud and vacuum, significantly reduces that exposure. See the CDC and NIOSH guidance on concrete grinding controls for the underlying research.

The shroud only works when it fits and seals

The shroud surrounds the grinding wheel and captures dust at its source. It must be compatible with the specific grinder model, wheel diameter, and working position. A loose or poorly matched shroud can leave gaps around the tool, interfere with movement, or leak dust before it reaches the extraction hose. Just as important, a shroud without active suction does not provide meaningful containment. Inspect the connection and skirt before starting, then keep the shroud in contact with the surface as the grinder moves.

Choose the vacuum and hose as a system

Vacuum capacity needs to match the amount of dust the grinder produces. NIOSH recommends a vacuum that draws at least 10 amps and provides enough airflow to capture dust and transport it to the collection point. Use a 1.5- or 2-inch hose with a smooth interior and keep it to 15 feet or less. Longer hoses, restrictive bends, and clogged passages reduce airflow at the shroud, even when the vacuum motor appears powerful.

The vacuum should use a HEPA filter so captured silica dust is not released back into the work area. Add a pre-filter or cyclone when the application produces heavy dust. This separates larger particles before they reach the HEPA filter and extends the primary filter's service life. Check filters, bags, seals, and hose connections regularly. A full bag or loaded filter can reduce suction enough to compromise capture.

Use extraction with the rest of the control plan

Local extraction is the primary control for dry grinding, but it does not replace appropriate work practices, general ventilation, or personal protective equipment. Keep bystanders out of the dust path and use a NIOSH-approved respirator when the task assessment requires one. Wet grinding can suppress airborne dust, but it creates slurry that must be collected and managed. For dry work, build the setup around a properly fitted shroud, adequate airflow, and a HEPA-equipped vacuum before choosing among the concrete grinding tools at Diamond Tool Store.

Diamond Grit, Bond Selection, and Tool Maintenance

Tooling choice determines whether a grinding pass cuts cleanly or spends the shift glazing, overheating, and wearing unevenly. Match the diamond segment to the slab and the finish you need, then inspect the setup before it goes to work.

Match grit to the concrete and finish

Diamond grit selection depends on concrete hardness, the existing surface condition, and the finish required. Coarser grit is generally used when the job calls for faster stock removal or coating breakdown, while finer grit supports a smoother transition into polishing. Do not choose grit by number alone. Consider whether the slab is hard and dense, soft and abrasive, patched, coated, or already partially finished. The correct sequence removes material without forcing a finishing tool to do aggressive prep work.

For a broader look at component selection, see this guide to choosing concrete grinding discs and cup wheels. The same principle applies across the system: select tooling for the material in front of the machine, not simply for the grinder model.

Use the bond to control cutting performance

Bond hardness should move in the opposite direction of concrete hardness:

• Soft bond: Best suited to hard concrete. The abrasive slab wears the bond more quickly, exposing fresh diamond and helping the segment continue cutting.
• Medium bond: A practical starting point for medium-hard concrete when the slab and finish requirements are not yet fully known.
• Hard bond: Better suited to soft or abrasive concrete, where a soft bond could wear too quickly.

Coatings can require a different approach. Specialized bonds are available for removing tough materials such as epoxy and urethane. If the segment is polishing instead of cutting, the bond may be too hard for the slab. The grit may be too fine for the task, or the machine may be moving too quickly. Adjust one variable at a time so the wear pattern tells you what changed.

Maintain the tool and protect the operator

Inspect every tool daily for cracks, damaged components, and segment wear before mounting it. A balanced tool matters as well. Proper balance reduces machine vibration, operator fatigue, and premature wear during long shifts. Keep the grinder, tooling, and extraction equipment clean, and replace worn segments rather than automatically replacing the entire plate. Many professional systems allow diamond segments to be refurbished or replaced independently, extending the useful life of the plate.

Finally, verify that the grinder RPM does not exceed the tool's rated speed. A short inspection and the right bond can prevent poor cutting, excess vibration, and an avoidable tooling failure. Browse diamond tools for concrete by application and choose the combination that fits the slab and the work stage.

Safety Considerations When Grinding Concrete

Concrete grinding is routine surface-preparation work, but the dust and rotating tooling demand a deliberate setup. Respirable crystalline silica is a known carcinogen. And a NIOSH study found that workers smoothing poured concrete could encounter airborne dust concentrations 35 to 55 times the NIOSH recommended exposure limit. Review the applicable site requirements and use both engineering controls and personal protective equipment before starting.

Use this pre-operation checklist before energizing the grinder:

1. Inspect the grinder and diamond tool. Look for cracks, loose hardware, damaged guards, missing segments, and excessive segment wear. Daily inspection of tool damage is necessary for operator safety. Replace defective components rather than trying to grind through the problem. See the available diamond tools for concrete for compatible replacement options.
2. Verify the speed rating. Check the grinder RPM and confirm it does not exceed the diamond tool's maximum rated speed. RPM mismatch can create a serious tooling failure, so verify the rating whenever the wheel, cup wheel, or machine changes.
3. Install compatible dust control. Fit a shroud designed for the specific grinder model, then connect it to a HEPA-equipped vacuum. Use the correct hose, keep it as short as practical, and check that connections are sealed. NIOSH guidance specifies a relatively smooth 1.5- or 2-inch hose no longer than 15 feet for adequate airflow. A shroud without effective suction will not contain dust and can disperse it into the work area.
4. Confirm ventilation and extraction performance. Open or arrange suitable general ventilation to supplement local exhaust controls. Confirm the vacuum is operating, the filter and collection system are not overloaded, and airflow matches the dust generated by the task. NIOSH recommends a vacuum drawing at least 10 amps for this type of control. Along with a HEPA filter to reduce the chance of releasing silica dust back into the worksite.
5. Put on the required PPE. Wear a NIOSH-approved respirator along with eye protection, hearing protection, safety footwear, gloves where appropriate, and work clothing suited to the operation. PPE supplements, but does not replace, dust extraction and other controls.

Wet grinding can suppress airborne dust, but it creates slurry that must be collected and managed according to applicable local requirements. Keep slurry away from drains and walking paths, and control slip hazards as the work progresses. Whether the setup is wet or dry, stop if dust escapes the shroud, ventilation fails, tooling becomes unstable, or the machine develops unusual vibration.

For the CDC's engineering-control guidance on silica exposure from concrete grinding, see NIOSH recommendations for grinder dust controls and its silica guidance for grinders.

Frequently Asked Questions

Which grinder should I use for a large concrete floor?

Use a walk-behind floor grinder for broad slabs, coating removal, leveling, or polishing because its grinding head covers more area consistently than a hand grinder. Choose an electric model for indoor work or sites with accessible power, and consider propane when mobility and outdoor operation matter. Use a hand grinder to finish edges, corners, steps, and other areas the larger machine cannot reach.

How do I choose the right diamond cup wheel?

Start with the job: diamond cup wheels are suited to aggressive concrete surface preparation, smoothing, and leveling. Then match the wheel to the grinder's rated RPM, concrete condition, and removal target. Dense or cured concrete may benefit from a premium matrix designed to manage heat. While coating removal may require a bond formulated for epoxy or urethane rather than a general-purpose wheel.

Do I need a dust shroud and vacuum when grinding concrete?

Yes, dry grinding should use a compatible shroud connected to effective dust extraction. NIOSH reports that handheld concrete grinding can expose workers to airborne silica dust at 35 to 55 times its recommended exposure limit. So dust control is not optional jobsite housekeeping. Use a HEPA-filtered vacuum and match its airflow to the grinder. A shroud without suction will not contain dust. NIOSH concrete-grinding guidance provides the supporting control recommendations.

Is wet grinding better than dry grinding?

Wet grinding can suppress airborne dust effectively, but it produces slurry that must be collected, managed, and disposed of according to applicable local requirements. Dry grinding is often easier to contain and clean when paired with a properly fitted shroud and vacuum. Select the method based on the surface, finish, site conditions, cleanup capacity, and dust-control plan rather than treating one method as universally better.

What diamond grit should I use for concrete polishing?

Choose grit based on the concrete's hardness, current surface condition, and desired finish. Coarser tooling is generally used for more aggressive correction or removal, while progressively finer grits refine the surface for polishing. Test a small area when the slab's hardness or finish is uncertain, and adjust the tooling sequence based on the actual scratch pattern and surface response.

Ready to Choose Your Concrete Grinding Tools?

The right combination of grinder, diamond tooling, and dust-control equipment can help you match surface preparation methods to the job. Browse the complete selection of concrete grinding tools at Diamond Tool Store, then compare options by application, equipment type, and jobsite needs.
