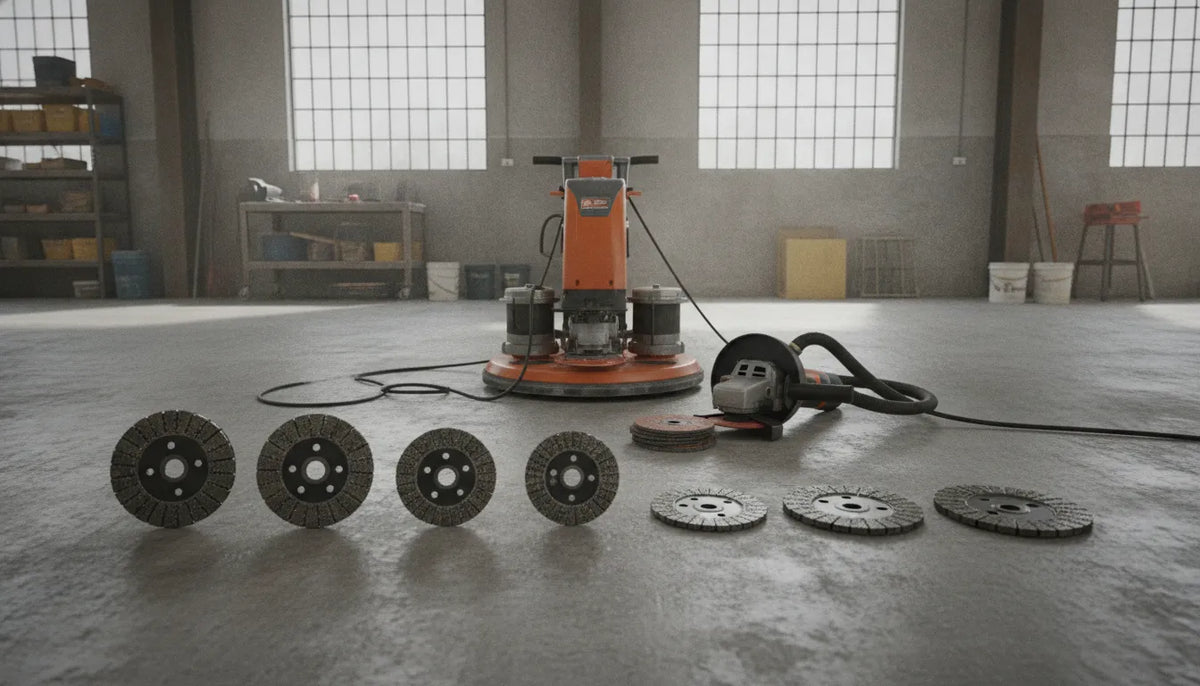

Concrete grinding tools include a range of gear like handheld angle grinders and large walk-behind floor machines. These tools use industrial diamonds in a metal or resin bond to plane concrete surfaces. They remove old epoxy coatings and smooth out trowel marks or high spots. Professionals select gear based on project size. Planetary grinders offer a flat finish for large floors. Direct-drive units provide fast cutting for smaller areas. Diamond Tool Store has supplied trade pros with these concrete grinding tools since 1994. Our stock includes over 150 industry brands. Proper use requires matching the diamond bond to the concrete slab. Operators must also maintain strict dust control with HEPA vacuums to follow OSHA silica rules. Using the right tools ensures a clean surface ready for new coatings or polishing.

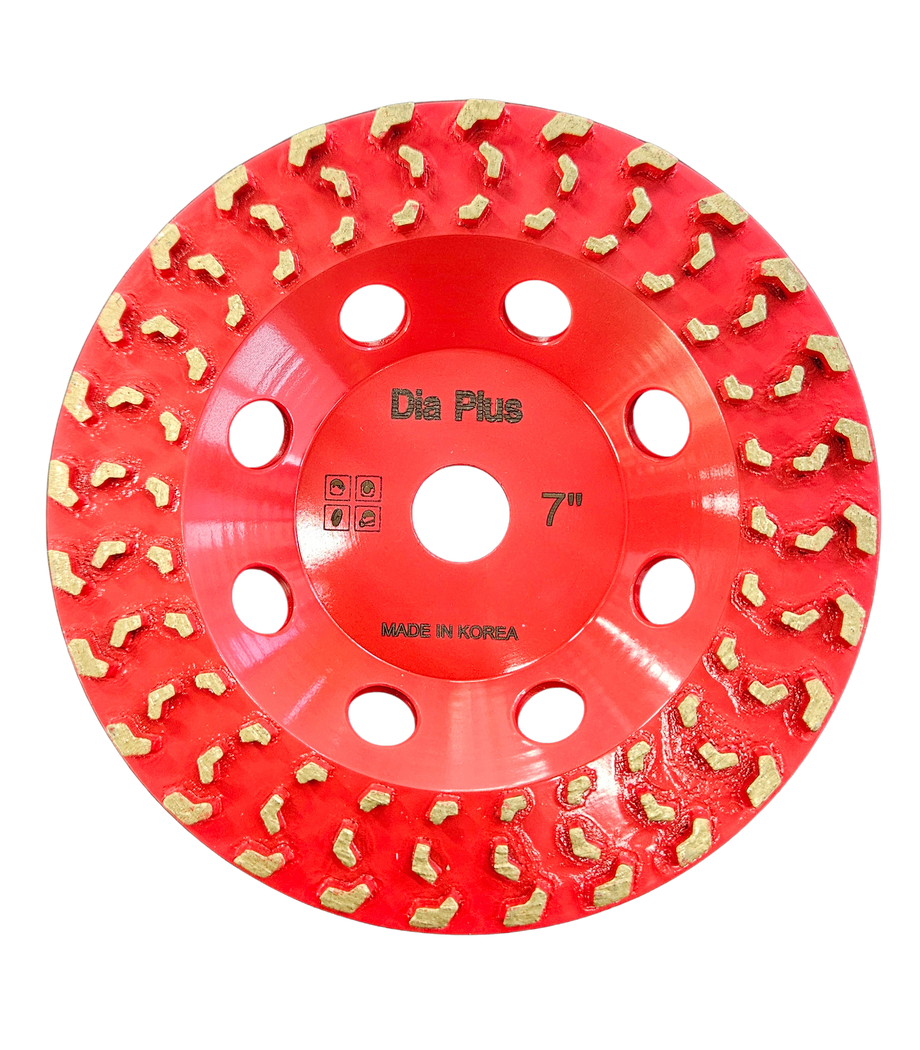

Diamond Cup Wheels: The Go-To Tool for Handheld Grinding
For most edge work and spot prep, concrete grinding tools like diamond cup wheels are the best choice. These tools attach to standard 4.5 inch or 5 inch angle grinders to level uneven slabs or smooth out high spots. Since they are handheld, they let you reach tight corners and vertical surfaces that large floor machines cannot touch. Pros often use these for cleaning up joints, removing tough epoxy, or prepping stairs for a new finish.
Match Segment Design to the Job
The layout of the diamond segments on the wheel face sets how fast the tool cuts and how smooth the final surface will be. Single-row wheels have fewer segments, which puts more pressure on each point for faster stock removal. Double-row wheels add more segments for a balanced cut that lasts longer and leaves fewer gouges. If you need a very smooth finish with few swirls, a turbo cup wheel uses a continuous rim of segments to gently plane the concrete surface.
| Wheel Type | Cutting Speed | Finish Quality | Best Use Case |
|---|---|---|---|
| Single Row. | Fastest. | Rough. | Fast stock removal and leveling. |
| Double Row. | Moderate. | Medium. | General grinding and long life. |
| Turbo. | Fast. | Smoothest. | Final prep and swirl-free finishing. |
Pick the Right Bond Hardness
One common mistake in concrete grinding is using the wrong bond matrix for the slab. You must match the hardness of the metal bond to the hardness of the floor you are working on. For hard concrete, you need a soft bond that wears away to expose new, sharp diamonds. If you use a hard bond on hard concrete, the tool will glaze over and stop cutting. But soft concrete needs a hard bond to keep the tool from wearing out too fast.
Focus on Safety and Dust Control
Grinding concrete creates fine silica dust that is very dangerous to breathe. To stay safe and follow OSHA silica rules, you should always use a dust shroud on your angle grinder. These shrouds connect to a HEPA vacuum to pull dust away before it enters the air. Using a shroud keeps your jobsite clean and protects your health while helping you see the work surface clearly as you grind. At Diamond Tool Store, we supply the pro tools you need to get the job done right.
Walk-Behind Floor Grinders for Large-Area Surface Prep
For big projects like garage floors or warehouse slabs, handheld tools are not enough. You need walk-behind floor grinders to get the job done right. These heavy upright machines save your back and cover more ground fast. They are the best concrete grinding tools for leveling large surfaces. Since 1994, pros have relied on these machines to prep floors for new coatings.
Planetary vs Direct-Drive Grinders
When you pick a floor grinder, you usually choose between planetary and direct-drive models. Planetary grinders are the standard for high-end work. They use three small heads that spin while the main plate rotates. This design covers a wide path and creates a very smooth, flat finish. They are great for fine polishing and removing deep scratches from the slab.
Direct-drive grinders have a motor that sits right over the grinding disc. These machines are often lighter and smaller than planetary units. They work well for small jobs or home rooms. Because they are more compact, they are also better for work near walls. Many pros keep a direct-drive unit for prep work and a planetary unit for fine polishing.
Choosing the Right Grinder Size
Grinders come in many sizes to fit many tasks. Small edgers work on tight spots where big machines cannot reach. Mid-size walk-behind units are the common choice for basements and garage floors. For large factory floors, workers often use ride-on grinders. These large machines allow you to finish thousands of square feet in a single shift.
At Diamond Tool Store, we carry over 150 industry brands to help you find the right fit. Top names like Lavina, DiamaPro Systems, and Terrco offer the power needed for tough slabs. You can find these and other DTS concrete grinding selection items in our shop. Choosing a trusted brand ensures you have the torque needed to cut through thick epoxy or old resin.
Matching Tools to the Concrete
The quality of your grind rests on the segments you use. Diamond segments come in some bond types. A soft bond is best for hard concrete, while a hard bond works for soft concrete. If you use the wrong bond, your tools will wear out fast or fail to cut. Matching the tool to the floor is key to a fast job.
You also need to pick the right grit size. Lower grit numbers are for aggressive grinding and removing thick coatings. Higher grit numbers are for smooth finishes and polishing. Most floor prep starts with a 30-grit or 40-grit segment to open the concrete. For a full list of options, browse the diamond tooling at DTS.
Safe Prep for Large Spaces
Using a walk-behind grinder is the best way to prep a floor for new paint. These tools strip away glue, thin-set, and old trowel marks. They also open up the pores of the concrete. This step helps new coatings bond to the floor. Without a good grind, new paint or epoxy may peel off within months.
Safety is just as vital as the grind itself. Grinding makes a lot of dust that is bad for your lungs. The OSHA silica dust rules require you to use dust control on every job. You must use a dust shroud and a HEPA vacuum to keep the air clear. A good vacuum should give enough airflow for your machine's size. Keeping the site clean helps you see your work and stay healthy.

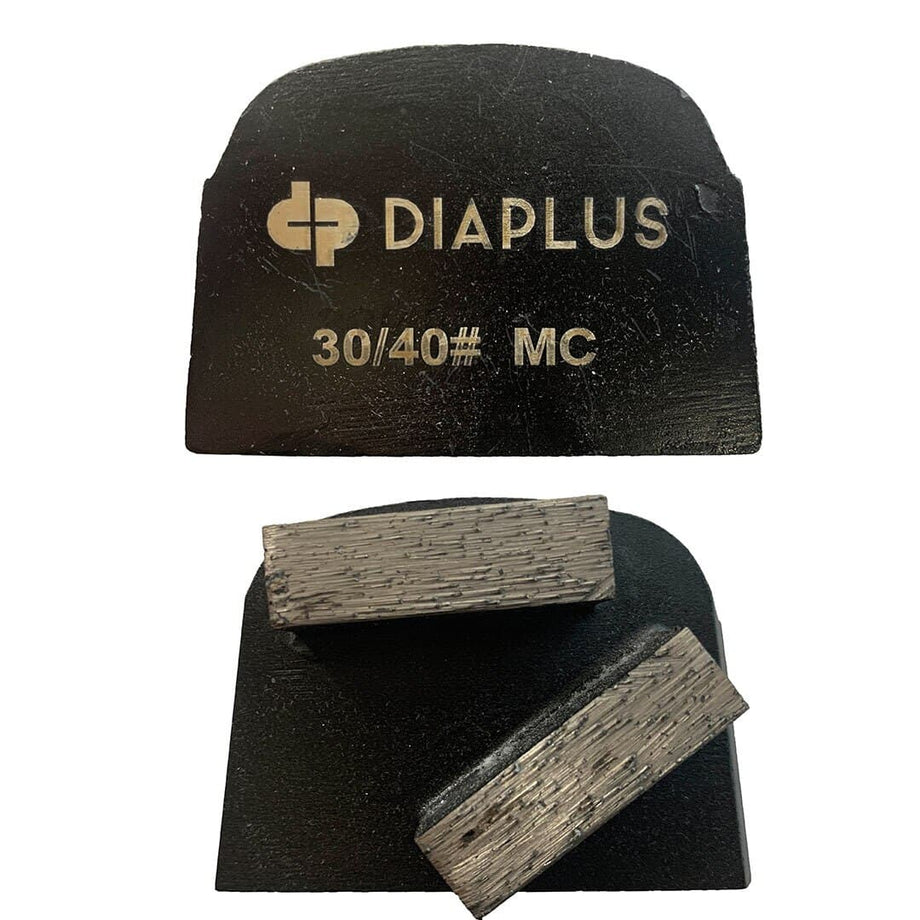

Concrete Grinding Pads and Floor Segments
Large floor grinding jobs need more than just a hand tool. For big slabs, pros use walk-behind machines with concrete grinding pads and segments. These tools mount to the bottom of the machine to level the floor or prep it for a coating. Since 1994, Diamond Tool Store has helped crews pick the right diamonds for every slab hardness.
Metal bond versus resin bond segments
The first step in floor work is often metal bond segments. These tools use a metal matrix to hold the diamonds in place. They are very tough and work best for heavy removal or leveling. For the final finish, pros switch to resin bond pads. These pads use a plastic-like base to hold finer diamonds. This change helps you get a smooth, shiny surface on the concrete.
Matching the tool to the slab is key. Hard concrete needs a soft metal bond to keep the diamonds sharp. If the concrete is soft, you should use a hard bond to prevent the tool from wearing out too fast. Proper matching ensures your concrete grinding tools last as long as possible. The CDC notes that using the right tool also reduces dust and risk at the job site.
Grit sequence for floor prep
Grinding concrete is a step-by-step process. You start with a coarse grit, like 16 or 30, to strip away old glue or level high spots. As the floor gets flatter, you move to medium grits like 70 or 120. Each step removes the scratches from the grit before it. This sequence is vital for a clean look.
For a high-gloss finish, you continue up to 3000 grit. Most prep jobs for epoxy coatings stop at 30 or 70 grit to leave a rough profile. This profile helps the coating stick to the slab. Diamond Tool Store carries a wide range of shapes, including trapezoid and rectangular segments, to fit most major machine brands.
How to Choose the Right Concrete Grinding Tool for Your Project
Picking the best tool starts with looking at your job site. You must match the machine to the area size and the work you need to do. Small spots and edges need different gear than large open floors. Since 1994, professionals have turned to Diamond Tool Store to find the right tools for these tasks.
Check the Project Size
For small areas or edges, a hand-held angle grinder is the top choice. These 4.5" to 5" tools use diamond cup wheels to reach tight spots and corners. For big rooms like a garage or basement, use a walk-behind floor grinder. These heavy machines save your back and cover more ground in less time. Large jobs often need a planetary grinder for a flat, smooth finish on the concrete slab.
Match the Tool to the Floor
The state of your floor helps you pick the right tool. If you have thick epoxy or glue, you need an aggressive walk-behind unit to plane the slab. Direct-drive grinders are smaller and lighter. This makes them good for home jobs. If you just need to fix high spots or trowel marks, a hand-held edger works well. Always check the hardness of the concrete to choose a tool with the right bond type.
Select Your Diamond Tools
Picking the right diamond segment is key for a good cut. Hard concrete needs a soft bond to keep the diamonds sharp. For soft concrete, use a hard bond so the tool lasts longer. You also need to pick the right grit level. Start with a low grit for rough grinding and move to a higher grit for a smooth finish. You can browse a full concrete grinding tools collection to find these segments and pads.
- Find the total area size and find any tight edges or corners that need special tools.
- Check the floor for old coatings, high spots, or cracks that you must remove.
- Pick between a hand-held angle grinder, an edger, or a large walk-behind floor machine.
- Match your diamond segment type and bond hardness to the concrete on your job.
- Set up a dust shroud and a HEPA vacuum to meet OSHA silica rules and keep the air clean.
Surface Preparation: Removing Coatings and Leveling Slabs
Proper surface prep is the most vital step before you apply a new floor finish. If the slab is not clean, new coats will not stick. You must clear away old layers and fix high spots to get the best result. Using the correct concrete grinding tools makes this tough task much faster for any crew. For over 30 years, Diamond Tool Store has been a trusted source for trade gear.
Clearing old coatings and residue
Many old concrete floors are covered in epoxy, glue, or paint. These thick layers can clog up fine pads and slow down your work. You may also find curing compounds or glue scrap left behind from old tile. To start, you should use coarse metal-bond segments. These tools can rip through tough epoxy and resin without getting too hot. This first step reaches the bare slab so the new finish can bond well.
Clearing a thick mess often needs a very strong tool. If you have deep glue or thin-set, a coarse grit works best. It cuts deep and leaves a profile that new coats can grip. Most workers start with a 16-grit or 30-grit segment for this stage. This clears the way for a smooth job later on. It also saves time by clearing more scrap in each pass.
Leveling and planing uneven slabs
New slabs may have high spots or marks from a trowel. Older floors can shift and become uneven over time. To fix these flaws, a walk-behind floor grinder is your best choice. These machines are the most strong option for planing a concrete slab. They use weight and power to grind down peaks and make the floor flat. This is key for a pro-level look in a garage or basement.
Planetary grinders are great for large rooms because they cover a wide space. They leave a flat finish that is ready for a clear coat or polish. For edges and corners, a hand-held grinder with a cup wheel works well. Having the right tools ensures you have the power to level any slab and prevent thin spots in your new coating.
Picking the right grit and bond
The grit size you pick depends on the task. Low grit numbers are for fast, rough work. They remove a lot of mess quickly but leave deep marks. High grit numbers are for smoothing the floor and prepping it for a polish. Common grit choices for prep include:
- 16-grit segments for heavy coating removal and strong grinding.
- 30-grit segments for clearing thinner glue and leveling minor high spots.
- 70-grit segments for smoothing the surface before applying a new seal.
You also need to match the tool bond to the concrete hardness. If the concrete is very hard, you need a soft bond. This helps the diamonds stay sharp as they work. If the bond is too hard, the tool will glaze over and stop cutting. Most pros keep a range of concrete grinding pads and segments on hand for every job. Matching tools to the task keeps costs low and speed high.
Essential Safety Gear for Concrete Grinding
Concrete grinding creates fine silica dust that is hazardous to breathe. OSHA standard 29 CFR 1926.1153 requires employers to protect workers from respirable crystalline silica. Using proper safety gear is not optional for concrete grinding jobs.
Respiratory Protection
An N95 respirator is the minimum for short grinding work. For full-day jobs or enclosed spaces, use a half-face or full-face respirator with P100 filters. The respirator must seal tight against your face. A dust mask does not provide enough protection against silica dust.
Dust Collection Systems
Every angle grinder used on concrete needs a dust shroud connected to a HEPA vacuum. The vacuum must provide at least 25 CFM per inch of shroud diameter. Walk-behind floor grinders typically come with integrated dust collection ports. Wet grinding is another option for dust control, but it creates slurry that must be managed and disposed of properly.
Additional PPE
Safety glasses or goggles protect against flying debris. Hearing protection is needed because concrete grinders produce 90-110 decibels. Steel-toe boots protect feet from falling tools or heavy floor machines. Long sleeves and gloves guard against skin contact with concrete dust, which can cause irritation. Diamond Tool Store carries a full range of dust collection equipment to help you stay compliant and safe on every job.
Frequently Asked Questions About Concrete Grinding Tools
What is the best tool to grind concrete with?
The best tool depends on your project. For edges, corners, and small areas, a 4.5-inch or 5-inch angle grinder with a diamond cup wheel works best. For large rooms or entire slabs, a walk-behind floor grinder is the right choice. Planetary grinders provide the smoothest finish for polishing. Direct-drive grinders work well for smaller jobs and edge work.
Should I wet concrete while grinding?
Wet grinding controls dust but creates slurry that must be collected and disposed of properly. Dry grinding with a HEPA vacuum and dust shroud is more common for indoor work. Wet grinding works well for outdoor jobs where slurry can run off safely. Most walk-behind grinders can operate dry or wet depending on the diamond tooling used.
Can you grind your own concrete?
Yes, homeowners can rent or buy concrete grinding tools for DIY projects. For small areas like a garage floor patch, a hand-held angle grinder with a diamond cup wheel works well. For larger areas, walk-behind grinders are available to rent. However, concrete grinding produces hazardous silica dust and requires proper safety gear. For large or complex jobs, hiring a professional is recommended.
What grit should I use for concrete grinding?
Start with a coarse grit like 16 or 30 for aggressive material removal and leveling. Move to 70 or 120 grit for smoothing. For polished concrete, continue through 200, 400, 800, and up to 3000 grit. For surface prep before epoxy coatings, stop at 30 to 70 grit to leave a rough profile for adhesion.
What is a diamond cup wheel used for?
A diamond cup wheel attaches to an angle grinder and uses industrial diamond segments to grind concrete. It is used for removing coatings, leveling high spots, smoothing trowel marks, and prepping edges or small areas. Cup wheels come in single-row, double-row, and turbo designs for different cutting speeds and finish quality.
Get the Right Concrete Grinding Tools for Your Next Job
Choosing the right concrete grinding tools makes the difference between a fast, clean job and a frustrating day on the slab. At Diamond Tool Store, you will find cup wheels, floor segments, grinding pads, and dust collection gear from over 150 industry brands. Whether you need a single cup wheel for a repair or a full set of segments for a large floor project. We have the tools to get it done right.
