Diamond blade materials, as documented in industrial patent data, consist of diamond abrasive grains fixed to a base plate along its outer edge. The quality and composition of these core elements directly determine cutting speed, blade life, and material compatibility. Understanding how these metallurgical materials interact with aggregate stone helps you pick the right tool for your shop. Inside the segment, a metal matrix called a segment bond holds the diamond grit in place until it wears down, exposing fresh cutting edges. Our diamond blades collection features hardened steel cores with different edge profiles to handle specific stone and concrete cutting projects. Choosing the proper bond hardness and core design prevents premature tool wear, ensuring high cutting speed and operator safety on the job.
What Are Diamond Blade Materials? Understanding Blade Construction
Professional crews rely on diamond tools for tough cutting jobs. When choosing the right tool, you must understand how these tools are made. The term diamond blade can be confusing because the blade is not made of pure diamond. Instead, a standard diamond blades collection uses industrial diamond crystals mixed with metals. Knowing how these parts work helps you find the right tool for your specific job.
Selecting the right blade starts with selecting high-quality diamond blade materials. These tools cut by grinding through tough stone and concrete. The design has two main parts: the steel base and the cutting rim. Let us look at how these parts fit together to form a complete blade.

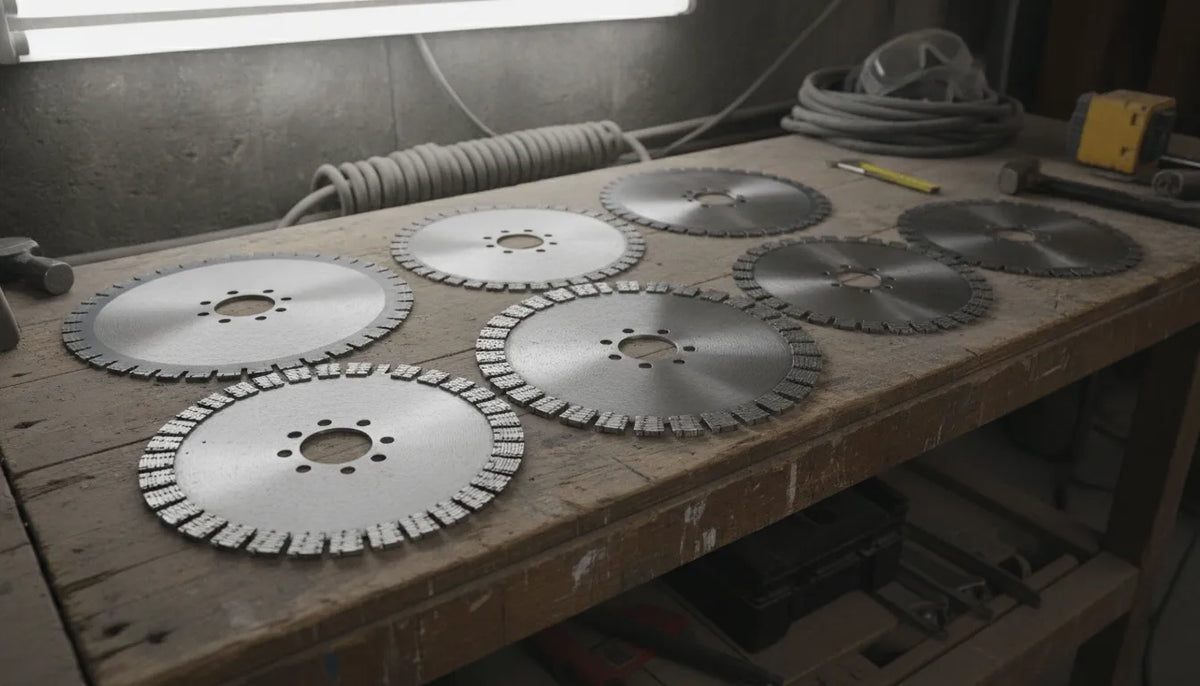

Core parts of a diamond blade
A diamond blade has a blade portion made of diamond abrasive grains. These grains are fixed to a base plate along its outer edge, as outlined in patent records on US-6401705-B1. The base plate is a round steel core. The cutting edge has segments that do the active cutting. Each segment contains thousands of tiny diamond crystals. These crystals are the hardest known material and act as micro-teeth to wear down stone, concrete, and tile.
Every standard blade relies on four main parts:
- Steel core: The heavy-duty steel base plate that spins on the saw shaft.
- Diamond grit: The sharp industrial crystals that grind through tough work surfaces.
- Metal bond: The matrix of metal powders that holds the diamond crystals in place.
- Segment: The combined piece of metal bond and diamond grit welded to the core.
The steel core and base plate
The steel core is the backbone of the tool. It must stay flat and rigid under high speed and pressure. Workers use high-carbon steel to make the core. The core must be flat and run true to prevent wobbling during a cut. Vibration can ruin the cut and damage your saw. Makers must heat and press the core so it can take heavy stress without bending.
How the segment bond works
The metal bond matrix, or segment bond, is a mix of metal powders. The bond holds the diamond grit until it gets dull. During the cut, the work material wears down the metal matrix. This wear reveals fresh, sharp diamond grit to keep the cut clean. If the metal bond is too hard, it will not wear away, and the blade will stop cutting. If the bond is too soft, it releases the diamonds too fast, which wastes the tool.
Segment Bonds: Soft, Medium, and Hard Explained
The metal segment bond is a vital part of a diamond blade. This bond is the metal matrix that holds the diamond grit in place until the grit gets dull. When the grit wears down, the metal bond wears away to reveal fresh, sharp diamonds. Understanding how these diamond blade materials work will help you get the best cutting speed and the longest tool life.
The role of segment bonds
A diamond blade cuts by grinding, and the metal segment bond holds the abrasive grains as they grind the work surface. Published research on diamond abrasives confirms that their extreme hardness makes them ideal for cutting in highly abrasive environments. As you cut, the diamonds do the work while the metal matrix slowly wears away. If the bond does not wear down at the right rate, the blade will stop cutting or wear out too soon.
Choosing the right bond hardness
You must match the bond hardness to the material you want to cut. Use a soft bond for hard materials like dense granite to show fresh diamonds when the grit dulls. But you should use a hard bond for soft, abrasive materials like asphalt to extend blade life. The hard bond resists the rough scraping of sandy materials, which keeps the diamonds in place longer.
Choosing the wrong bond can ruin your blade. A soft bond on abrasive materials wears away too fast, which makes the diamonds drop out early. But a hard bond on hard stone will not wear down, so the diamonds get dull and the blade glazes over. When selecting blade materials and segment bonds for stone fabrication, matching these traits is key.
| Bond Type | Best Material | Wear Rate | Performance Outcome |
|---|---|---|---|
| Soft Bond | Hard stone, granite, quartz | Fast wearing | Exposes fresh diamonds quickly |
| Medium Bond | Cured concrete, brick, block | Medium wearing | Balances speed and blade life |
| Hard Bond | Asphalt, green concrete, sandstone | Slow wearing | Prevents early diamond loss |
Laser welding and segment safety
The way segments attach to the blade core is vital for job safety. Laser-welded segments provide the highest safety and bond strength for heavy-duty work by fusing directly to the steel core. This laser weld is much stronger than a standard brazed segment where silver solder layers can fail. It prevents segment loss even under high heat and heavy cutting loads.
Using the right segment bond style protects both the user and the saw. Brazed blades work well for wet cutting because water keeps the core cool. But in dry cutting, high heat can melt silver solder, which may cause segments to fly off. Laser-welded cores handle extreme heat without breaking, so you can find safe and strong options in our diamond tools shop.
Cutting Edge Types: Segmented, Turbo, and Continuous Rim
When you work with stone, tile, or concrete, the shape of the blade edge sets how well the tool cuts. The outer rim of a diamond blade can be solid, split into segments, or grooved. Each design changes how the blade meets the work piece, how heat escapes, and how fast the tool can spin. Choosing the right rim style is just as crucial as selecting high-quality diamond blade materials for your work.
In short, continuous rim blades are for smooth cuts on tile. Segmented blades are for faster cutting on concrete and stone, while turbo rims offer a balance of speed and finish.
Segmented Rims for Fast Cutting
Segmented blades feature deep gullets or slots along the outer edge. These gaps let air and water flow through the blade to cool the steel core during dry runs. They also help clear dust and slurry from the cut path.
Because the segments hit the work piece with high force, these blades cut fast. But this action leaves a rough edge on the cut surface. Builders use segmented rims mostly for bulk cutting of concrete, brick, and block where speed matters more than looks. You should not use them on fine stone because the segments will chip the edge.
Turbo Rims for Speed and Finish
Turbo rims use a ridged edge that looks like a fan. The small teeth on the rim draw air in to cool the blade as it spins. This lets you do dry cutting while still keeping a smooth path.
As a result, turbo rims cut faster than solid rims and leave a cleaner edge than segmented ones. They offer a great balance of speed and finish quality. These blades work well on hard masonry, tile, and medium-hard stone. They can cut dry, but adding water helps to keep dust down and makes the blade last much longer.
Continuous Rims for Precision
Continuous rim blades have a flat, solid edge with no slots or teeth. They must run with water to keep the steel from getting too hot and warping. The solid rim cuts slowly but creates a clean, chip-free finish on fine tiles.
To see how these blades are made, patents show that they have diamond grains fixed along the outer rim (US Patent 6,401,705). You should use a continuous rim when cutting glass, ceramic tile, and porcelain. Without water, the blade edge would glaze over, which stops the diamonds from cutting.
| Rim Type | Best Application | Cutting Speed | Finish Quality |
|---|---|---|---|
| Segmented | Concrete, brick, stone | Fast | Rough |
| Turbo | Masonry, tile, granite | Medium | Clean |
| Continuous | Ceramic, glass, porcelain | Slow | Smooth |
Blade Core Types: Standard, Laser Welded, and Silent Sandwich
The central steel disc serves as the base plate. As shown in blade design patents, this steel plate supports the cutting segments. Without a strong core, the blade would warp, bend, or crack. Shops must think about these factors when understanding diamond blade materials and core types.
Standard steel cores and tensioning
Most standard blades use heat-treated steel cores. These cores are ground and polished for balance. During use, a blade gets hot and spins at high speeds. This heat can make the steel expand and wobble.
To stop this, makers use a process called tensioning. Tensioned steel cores are needed for stable, low-vibration cutting. Without tensioning, the blade would flutter and make bad cuts. When choosing diamond blade materials, the steel core is just as key as the diamond segment.
Standard cores are best for general-purpose work. They work well for wet or dry cutting on common jobs. But they may not last as long under heavy, constant loads. For high-speed or heavy-duty cutting, you will need a more robust core design.
Laser-welded cores for heavy-duty work
Heavy-duty jobs need a much stronger weld. To stop segment loss, makers weld the segments with a high-power laser. Laser-welded segments offer the highest safety and bond strength. This process fuses the diamond segments directly to the steel core.
This weld is stronger than the steel plate itself. It stops the segments from breaking off under high heat. This is key when cutting hard materials like cured concrete or stone, which create extreme friction. A laser weld can take this heat without failing.
Silent sandwich cores for noise control
Large saws in stone shops make a lot of noise. This noise comes from the steel core as it vibrates. To solve this, makers made silent sandwich cores. These cores use two steel plates with a dampening layer between them.
The middle layer is often made of copper or rubber. It absorbs the vibrations before they can turn into sound. A silent blade can drop noise levels by up to ten decibels. This helps protect the hearing of shop workers.
These quiet cores are more expensive to buy. But they are a must for indoor fabrication shops. They help shops meet local noise rules and keep workers safe. A steady blade also lasts longer because it vibrates less.
How Diamond Grit Size and Concentration Affect Performance
When selecting high-quality diamond blade materials, you must look beyond the steel core and the metal bond. You must check diamond grit size and concentration to get the best results on the job. These factors control both cutting speed and tool life.
The Role of Diamond Grit Size
A diamond blade works by fixing diamond cutting grains to the outer edge of a steel base plate. This design is shown in US patents for cutting tools (PubChem Patent US-6401705-B1). Grit sizes are measured in mesh numbers, where small numbers mean coarse grit and large numbers mean fine grit. Choosing the right grit is key to getting a clean cut.
You should choose your blade based on the material you plan to cut. Fine grit is best for stone work because it makes smooth, clean cuts without chipping. On the other hand, coarser grit is best for heavy-duty concrete cutting. Coarse diamonds cut fast and quickly through tough slabs, but they leave a rougher surface.
Understanding Diamond Concentration and CPCC
Diamond concentration refers to the amount of diamond grit in the metal segment. In the trade, this is written as carats per cubic centimeter, or cpcc, which shows the diamond volume in the metal matrix. A higher cpcc value means more diamonds are packed into each segment. This does not mean the blade is better, but it means it is built for different tasks.
There is a trade-off between cutting speed and blade life when choosing a concentration. A higher diamond concentration extends blade life because more crystals share the work. But this also reduces the cutting speed. With too many diamonds showing, each point has less pressure to bite into the slab, which slows down the cut.
Segment Height and Tool Lifespan
Beyond grit and concentration, you must check the segment height. This height controls how long your tool will last. A taller segment gives you more depth to wear through over time. This ties segment height directly to the tool's total life.
When you compare blades, do not just look at the upfront price. A blade with a taller segment may cost more now, but it will last much longer on the jobsite. This reduces your cost per cut over time. Choosing the right height ensures you get the best value from your diamond blade materials.
Matching Diamond Blade Materials to Your Application
To get the best results on the job, you must match your tool to the stone or concrete you cut. A standard diamond blade has a metal plate with diamond grains fixed along its outer edge. This design is detailed in patent files on PubChem. Choosing the right diamond blade materials keeps your work safe and cuts down on tool wear. If you choose the wrong blade, you risk slow cutting or segment damage.
Choosing the right blade core and bond
When you work with stone or concrete, the type of material dictates your blade choice. You need to look at both the steel core and the metal segment bond. For instance, continuous rim blades are for smooth cuts on tile. Segmented blades are for faster cutting on concrete and stone, while turbo rims offer a balance of speed and finish. You can learn more by selecting high-quality diamond blade materials for your project.
Steps for matching blade materials
Follow these five steps to find the best blade for your needs:
- Find the material you want to cut. Hard stone, cured concrete, rough asphalt, and fragile tile all need their own blade designs.
- Match the metal bond hardness to your material. Use a soft bond for hard granite, and use a hard bond for soft, abrasive asphalt to extend tool life.
- Choose the cutting edge based on your finish and speed needs. Select a continuous rim for clean cuts on tile, or use segmented rims for fast concrete work.
- Choose the core type that fits your saw power and duty cycle. Heavy work needs a high-strength core, while shop work can use silent cores to lower noise.
- Check that the blade arbor size and RPM rating match your saw. The tool must spin safely within the limit of your machine to prevent segment loss.
Wet versus dry cutting needs
You must also plan for how you will cool the blade during use. The material being cut directly determines the best diamond size and bond matrix for the blade. Use fine grit for clean stone cuts and coarser grit for heavy concrete cuts. Without proper cooling, too much heat damages the bond and diamond edges, which leads to segment glazing. Wet cutting is needed to cool the blade and remove debris. Dry cutting requires blades designed to shed heat fast. Our guide on blade materials and segment bonds for stone fabrication can help you select the best setup.
Frequently Asked Questions
What is a diamond blade made of?
According to a patent on PubChem, a diamond blade has two main parts. It has a steel core plate and a cutting edge. The outer edge has small diamond grains held in a metal bond. As you cut, the metal wears down. This wear exposes new sharp diamonds. This design lets the tool cut hard stone and concrete.
What material cannot be cut by a diamond cutting tool?
Diamond tools struggle to cut soft, ductile metals like pure aluminum or brass. These soft metals melt from the heat of cutting. The melted metal gums up the blade segments and ruins the tool. Also, you should not cut steel or iron at high speeds. The carbon in the diamond can dissolve into the iron. This chemical reaction causes the diamond grains to wear down very fast.
What are the different types of diamond blades?
There are three main types of diamond blades. Segmented blades have deep slots along the edge. They cut concrete and stone fast. Continuous rim blades have a smooth edge with no slots. They make clean cuts in fragile tile. Turbo rim blades have a grooved edge. This grooved pattern offers a great balance of speed and smooth finishes.
Do diamond blades use real diamonds?
Yes, these blades use real diamonds. However, they do not use rare gems from jewelry. Instead, makers use synthetic diamonds grown in a lab. These human-made crystals are just as hard as natural stones. They are also much cheaper to make. This makes them perfect for grinding and cutting tough materials.
