Diamond polishing pads for natural stone remove surface material in stages, each grit replacing the scratch pattern of the one before it. A standard wet sequence runs from 50 grit (coarse material removal) through 100, 200, 400, 800, 1500, and 3000, often finishing with a buff pad for clarity. Granite requires the full sequence, while marble and limestone need fewer steps and lighter pressure. Choosing the right bond type, grit range, and wet or dry method for your specific stone type determines whether the final edge reflects like glass or comes out hazy.
How Diamond Polishing Pads Work
To get a mirror-like shine on stone, you must understand the science of the scratch. Natural stone finishing relies on mechanical abrasion. Professional-grade diamond polishing pads for natural stone use industrial diamonds held in a resin or metal matrix. As your machine spins, these sharp diamond crystals shave microscopic grooves into the stone surface. Each pass cuts away the peaks left by the previous tool, bringing the material closer to a flat, glossy state.
The Cutting and Matrix Release Process
The bond material of your pad is just as critical as the diamond crystals. As you work, friction and heat wear down the resin or metal bond. This slow wear is necessary because it releases worn, dull diamond crystals. This process exposes fresh, sharp diamond points underneath to keep the cutting action efficient. Without this self-sharpening matrix release, the pad would glaze over, cease cutting, and burn the stone.
Scratch Refinement and Grit Progression
Each grit size in a polishing sequence leaves a specific scratch pattern. Low grits, like 50 or 100, cut deep to remove saw marks and lippage. High grits refine the scratch pattern until the grooves are too small to scatter light, which creates a high gloss. For a flawless finish, your grit progression must not exceed double the current grit level per step, according to a standard polishing protocol established by Michigan Technological University. Jumping from a 200-grit pad straight to an 800-grit pad will trap deep scratches under a shallow shine, ruin your finish, and waste your shop time.
The Critical Role of Cleanliness
Between each polishing stage, you must thoroughly clean the stone surface. Slurry from a lower grit carries coarse diamond debris that will contaminate your next step. If a single 100-grit particle gets trapped under a 400-grit pad, it will carve deep swirls across your polished face. Use clean water and cotton cloths to wipe the surface down between stages. Industry guidelines advise against using paper towels for this step, as they can hold abrasive fibers that scratch the stone, according to the same MTU sample preparation guide. For more details on maintaining stone integrity during fabrication, see our complete guide to stone care polishing pads.
Grit Progression for Granite and Quartzite
Granite and quartzite are among the hardest natural stones used in modern fabrication. Because of this high density, achieving a mirror-like finish requires a complete, step-by-step sequence. Skipping steps will leave deep, visible scratches that ruin the final look of the stone. A standard professional sequence for these materials involves a complete progression of 50, 100, 200, 400, 800, 1500, and 3000 grit, followed by a final buff stage.
Coarse Stage and Scratch Removal
The first stage of polishing focuses on stock removal and eliminating rough marks from fabrication or saw cuts. For this early work, hybrid pads in 50 and 100 grit are highly effective. These coarse pads combine metal and resin bonds to strip away imperfections quickly without causing deep surface damage. Starting with these coarse steps creates a flat, even surface that is ready for finer polishing. When you use premium wet diamond polishing pads, you ensure that this initial scratch pattern remains uniform and manageable.
Resin Refining and Polishing
Once the rough scratches are gone, you transition to resin-bond pads spanning from 200 to 3000 grit. The resin matrix wears away slowly to expose fresh, fine diamond particles that gently refine the surface. The mid-range grits of 200 and 400 prepare the stone by smoothing out the coarse patterns. Next, the 800 and 1500 grits bring out a soft satin sheen. Finally, the 3000 grit pad reveals the rich depth and high gloss of the stone, which can then be sealed with a specialized buff pad to maximize clarity. Following this progression strictly adheres to established grit progression rules, which state that you should not double the grit level in a single step to prevent deep scratches.
Shop our full line of diamond tools for every stage of your grit progression and keep your fabrication moving without delays.
Wet Cooling and Pressure Control
To get the best results on granite and quartzite, wet polishing is highly recommended. Water acts as a crucial coolant that protects the resin pads from melting under intense heat. It also flushes out stone dust to keep the working area clear. Mechanical stone finishing studies published by the National Institutes of Health show that proper lubrication and coolant flow significantly reduce tool wear while improving overall finish quality. Along with water cooling, you must adjust your pressure as you move through the grits. Use firm, steady pressure on the coarse 50 and 100 grits, and then gradually ease up to light, guiding pressure for the final polishing steps.
Grit Progression for Marble, Limestone, and Travertine
Working with softer calcite-based materials like marble, limestone, and travertine demands a different approach than hard granite. Because these stones are softer, they do not require a long grit sequence. Starting with very coarse pads can create deep grooves that are difficult to remove. When using diamond polishing pads for natural stone, your goal is to achieve a flat, reflective finish without overworking the surface.
Selecting the Starting Grit
For most marble and limestone surfaces, you should skip the aggressive grits entirely. If the stone has minor wear or faint scratches, start your sequence at 400 grit. You should only use a 120, 150, or 220 grit pad if you must remove deep saw marks or severe lippage. Starting too low on calcite stones often creates an uneven, dimpled texture known as orange peel. Using too much mechanical force can also fracture the soft crystal matrix of the stone, so you must use light, even hand pressure throughout the job.
Fewer Steps and Wet-Only Polishing
A typical marble sequence requires only three or four steps to reach a high gloss. After preparing the surface, progress from 400 grit to 800 grit, then finish with a 1500 grit pad before applying a final buffing compound. You must perform this entire process using wet-only polishing. Keeping the surface flooded with clean water is vital. Water lubricates the pad, flushes out slurry, and keeps the stone cool. Without enough water, friction builds up fast, which can scorch the delicate surface of the stone and leave permanent cloudy patches.
Advanced Polishing Options
Modern pad designs make polishing soft stones even faster and more reliable. Fabricators can use specialized multi-step pad systems to achieve a high-gloss finish in fewer steps. These systems combine multiple abrasive phases into a single pad. To speed up your fabrication process, you can use advanced 3-step diamond polishing techniques to cut labor time in half while maintaining a professional finish on marble and limestone.
Scientific Standards for Surface Finish
Maintaining a clean workspace between grits is essential for calcite-based stones. Even a single coarse particle left behind can ruin a polished surface. Industrial sample preparation guidelines emphasize that clean tools are critical to prevent contamination, as tiny debris can introduce fresh scratches SOP Sample Polishing. After each grit step, rinse the stone surface thoroughly with clean water and wipe it down with a clean cotton cloth before moving to the next pad.
Wet vs Dry: Choosing the Right Method
Selecting the right method to use with your diamond polishing pads for natural stone depends on your specific job site and material. Wet and dry techniques both have distinct pros and cons that impact your finishing process. Professional stone fabricators choose between these options based on gloss goals, water access, and safety setup. Let us look at how these two methods compare so you can make the best choice for your stone fabrication workspace.

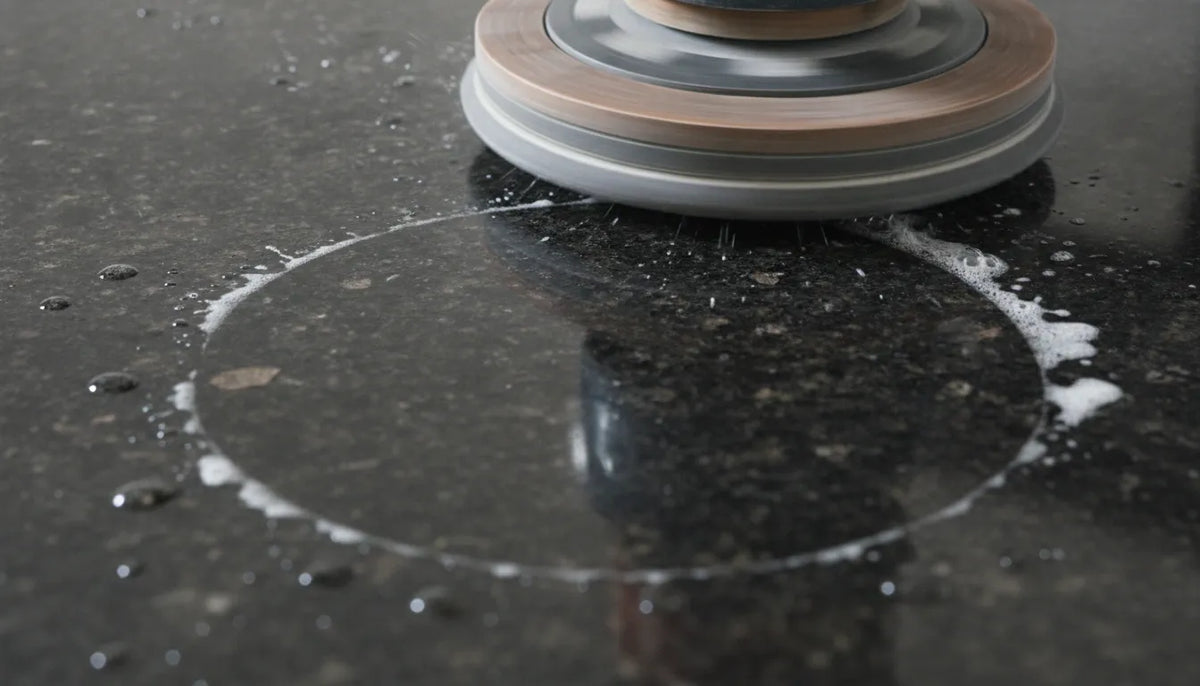

The Benefits of Wet Polishing
Wet polishing is the industry standard for high-volume stone fabrication shops. Constant water flow cools your tools and washes away stone slurry, which helps prevent deep scratches. This cooling action prevents thermal shock and keeps your diamond resin from burning the stone face. It also ensures the highest gloss finish possible on materials like granite and marble.
Using premium wet diamond polishing pads is crucial because water prevents the fast wear of the resin bond. Additionally, the water suppresses harmful silica dust, keeping your work environment safer. However, this method creates wet slurry that you must contain and clean up, and it requires a dedicated water hookup.
When to Choose Dry Polishing
Dry polishing is ideal for job site installations, touch-ups, or workspaces where water is not available. It offers unmatched mobility because you do not need water lines, hoses, or slurry containment pools. This makes it perfect for on-site repairs and fast home countertop installations. You can use advanced 3-step diamond polishing techniques with dry-rated pads to save significant time on site.
But dry polishing creates heavy clouds of fine silica dust that pose serious health risks. According to federal guidelines from the National Institute for Occupational Safety and Health, operators must use HEPA dust extraction and personal respirator gear when dry cutting or grinding. Dry polishing also builds up friction heat quickly, so you must use light pressure to avoid burning the stone surface.
Wet vs Dry Comparison Table
The choice between wet and dry methods often comes down to your workspace setup and material requirements. Use this table to compare the key differences between these two polishing styles before you start your next fabrication project.
| Factor | Wet Polishing Method | Dry Polishing Method |
|---|---|---|
| Gloss Quality | Highest possible shine with deep clarity | Good shine, but slightly lower gloss depth |
| Dust Control | Excellent; water traps and suppresses dust | None; requires heavy HEPA vacuum systems |
| Tool Cooling | Continuous cooling by water flow | Air cooled; requires frequent cooling pauses |
| Mobility | Low; restricted by water and power lines | High; easy to use on any residential site |
| Pad Durability | Excellent; pads last longer under water | Lower; heat friction shortens pad lifespan |
| Ideal Workplaces | Production shops with drainage systems | On-site kitchen or bathroom installations |
Choosing the Right Diamond Polishing Pad for the Job
Every stone fabrication job has its own challenges. You must match the pad bond type to the specific task to get a clean finish. Using the wrong bond can ruin the stone or wear out the tool too fast. Choosing the right diamond polishing pads for natural stone depends on the hardness of the material and your current stage of work.
Aggressive Metal and Electroplated Bonds
Metal bond pads are the most aggressive tools. They use a hard metal matrix to hold the diamonds. This matrix wears away slowly to expose new sharp diamonds for heavy material removal. You should use metal bond pads for shaping, profiling, and removing deep scratches. They cut fast but leave rough scratch patterns behind.
Electroplated pads are another good choice for shaping and edge profiling. These tools feature a single layer of nickel that bonds the diamonds directly to the steel surface. This bond provides maximum diamond exposure. It gives you very fast, precise cuts on hard natural stone. You can browse our wide diamond tool selection to find these heavy-duty shaping options.
Versatile Hybrid Bonds
Hybrid bond pads combine metal and resin technologies. They are tougher than resin pads but cut smoother than metal pads. Fabricators use hybrid pads as transition tools. They help you move from aggressive metal grinding to smooth resin polishing. Hybrid pads are excellent for removing coarse scratches quickly without creating new deep gouges in the stone surface.
These pads offer high heat tolerance and great flexibility. They work well on hard quartzite and granite. Using hybrid pads for early steps helps you transition smoothly through your grit progression. If you want to cut down on steps, you can try advanced 3-step diamond polishing techniques that use these high-performance materials.
Smooth Resin and Buff Bonds
Resin bond pads are the standard for finishing and polishing natural stone. They use a plastic-based resin matrix that wears down quickly. This quick wear is needed because it keeps the heat low during the final polishing stages. High heat can burn the stone and ruin the polish. Resin pads range from 100 grit up to 3000 grit, which is the final step before the buff stage.
The Final Buff Stage and Precision
Buff pads are the final step in the process. They do not have a standard grit rating. Instead, they use extremely fine diamond powder embedded in a felt or rubber matrix. These pads create the final mirror-like shine and clarity on the stone. Buff pads require water to prevent burning, but they bring out the deep color and luster of natural stone. Proper coolant and feed speed are critical to achieving a high-quality surface finish without heat damage. You can read about these technical patterns in the National Institutes of Health (NIH) machining studies on granite edge finishing.
Explore our full selection of diamond polishing pads for natural stone and get the right bond type for your next project.
Frequently Asked Questions
Do you use water with diamond polishing pads?
Yes, wet polishing is the industry standard because water cools the stone and prevents the resin from burning. Water also acts as a lubricant to remove slurry and keeps harmful silica dust out of the air. According to research hosted by the NIH, wet fabrication methods cut down on airborne dust and improve edge quality. While you can get dry-rated pads for small jobs, wet pads yield a higher gloss finish.
How do you choose the right diamond polishing pad grit?
You must choose your grit based on the stage of the finishing process. Start with coarse grits from 50 to 200 for shaping and removing scratches. Move to medium grits from 400 to 800 to hone the surface. Finish with high grits from 1500 to 3000 and a final buff pad to bring out the deep gloss. For the best results, use diamond polishing pads for natural stone in a complete sequence.
How do you avoid scratches during grit progression?
To avoid deep scratches, never skip more than one grit size in your sequence. According to guidance from Michigan Tech, you should not increase your grit level by more than double per step. You must also clean the stone surface completely between stages to remove loose diamond debris. If you leave coarse grit on the stone, it will contaminate the next stage and ruin the polish.
Can you use wet diamond pads dry?
No, you should never use wet-rated pads without water. Dry use will melt the resin bond and leave dark burn marks on natural stone. If your jobsite lacks water access, you must buy pads that are rated for dry use. High-quality dry pads are made with a special heat-resistant resin that can withstand dry friction. Always wear a respirator and use a dust shroud with a HEPA vacuum when you polish dry.
