Selecting vacuum lifters for stone and glass requires matching the lifting equipment to your shop materials, slab weights, and safety protocols. These lifters use atmospheric pressure to grip smooth or textured sheets, allowing one or two operators to handle loads that would normally require a large crew. To find the right lifter, you must calculate your maximum load weight first. Then add a standard two-to-one safety factor and match the pad type to your material porosity. Standard suction pads secure polished stone and glass, while textured stone requires specialized foam pads. Diamond Tool Store distributes heavy-duty vacuum lifters from leading brands like Aardwolf and Weha, offering pneumatic, battery, and manual options designed to meet strict industrial standards.
Vacuum Lifters For Stone And Glass: Understanding Vacuum Lifter Technology

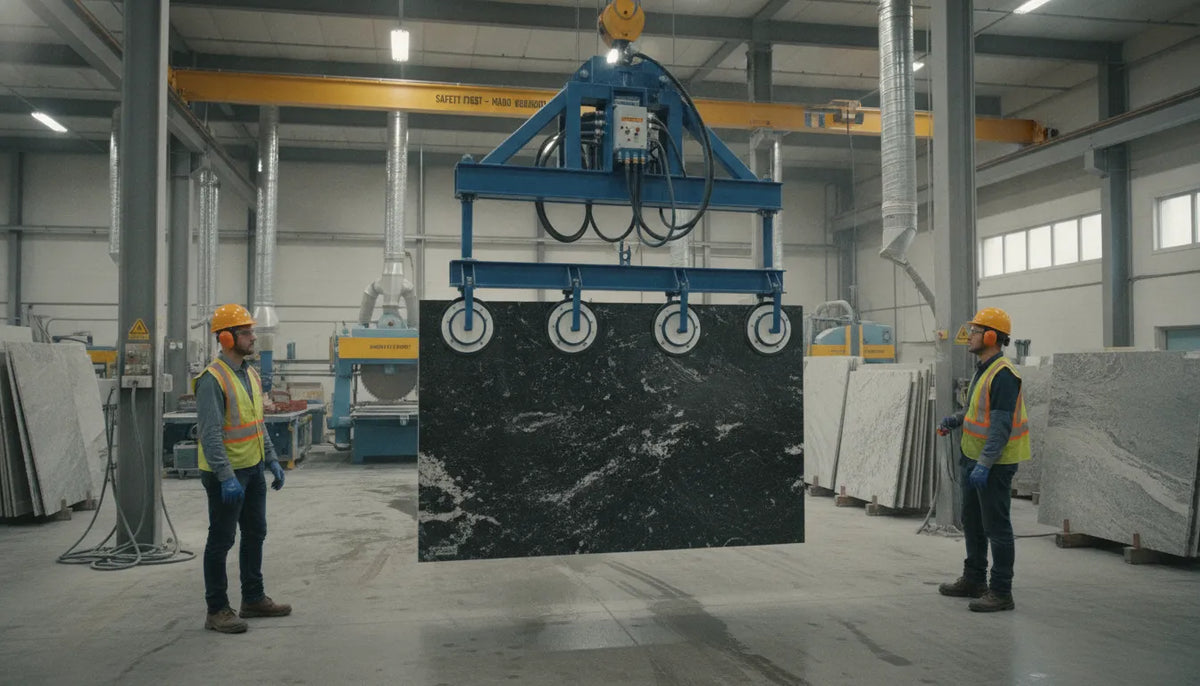

Heavy fabrication shops rely on vacuum lifters to move large sheets of stone and glass. These machines use a simple physical law to lift heavy loads without edge clamps. By removing air between a suction pad and the slab, the tool creates a strong grip. This lets a small crew move tons of material safely.
The Role of Atmospheric Pressure
Many people think that vacuum lifters pull a slab upward, but outside air pressure does the hard work. At sea level, natural air exerts about 14.7 psi of force in all directions. When the pump evacuates air from behind the suction pads, it creates a low-pressure zone. The higher pressure of the outside air then presses the slab firmly against the pad. For example, a single suction pad with one square foot of surface area can theoretically hold over 2,000 lb of weight at full vacuum. To learn more about standard load calculations and safe handling, you can read the OSHA safety bulletin on stone handling.
Key Tool Components
A standard vacuum lifter uses several vital parts to maintain its grip. The vacuum pump evacuates the air, while thick rubber suction pads seal against the flat face of the slab. A vacuum gauge shows the exact pressure level to let the operator know when it is safe to lift. Good machines also have a reserve tank. This tank holds the vacuum pressure if the pump stops, which gives the team time to lower the slab safely. Most industrial stone lifting equipment also features low-vacuum alarms that sound if pressure drops below safe limits.
Pumps and Power Sources
Modern shops choose their power sources based on where they work. In-shop systems often use electric or air-driven pumps that connect to shop lines. For installation sites, crews use battery-powered units. These mobile tools let workers handle large sheets of glass or stone far from a power outlet. If you need a versatile setup, an air-powered vacuum lifter provides steady suction for busy production lines.
Capacity Ratings: What You Need to Know
Every slab of stone has a unique weight. If you use a tool with the wrong weight limit, you risk dropped loads and shop injuries. Choosing the right professional stone lifting equipment starts with knowing slab weights. You must find the weight of the slabs you move every day.
How to Estimate Stone Weight
Weight varies by stone type and slab thickness. Natural granite weighs about 13 pounds per square foot at three centimeters of thickness. Quartz surfaces are lighter but still heavy. Engineered quartz at two centimeters of thickness weighs about nine pounds per square foot. According to weight charts from OSHA, a standard kitchen slab that measures nine by five feet can weigh from 500 to 800 pounds. This is why manual lifts are too slow and risky for busy fabrication shops.
Choose the Right Powered Lifter Range
Most shops use powered lifters to handle these loads safely. Common battery and air powered models fit into a capacity range of 660 to 2,200 pounds. Diamond Tool Store sells the heavy-duty vacuum glass lifter made by Aardwolf. This model is rated for 400 kilograms, which is about 882 pounds. It uses four suction pads and air power to hold and tilt glass or stone slabs in the shop.
The Two to One Safety Margin
You must never use a tool at its absolute limit. In the lifting trade, a two to one safety factor is the standard rule. This means your lifter must be rated for at least double the weight of your heaviest slab. If your heaviest granite slab is 800 pounds, you need a machine rated for at least 1,600 pounds. Using this safety margin keeps your crew safe from unexpected vacuum loss on porous slabs.
Safety Standards and Best Practices
Working with heavy slabs of stone and glass carries clear risk. Shop owners and team leaders must follow strict safety rules when they use vacuum lifters for stone and glass. Safe habits protect workers and prevent costly material breaks.
Load Limits and Safety Factors
Every lift must stay within safe limits. Standard industry practice requires a minimum 2:1 safety factor over the actual weight of the load. This means if you need to lift a slab that weighs 500 pounds, your device must be rated for at least 1,000 pounds. You can verify weight limits using a heavy-duty vacuum glass lifter rated for your largest materials. Never exceed the rated load capacity of your lifting system. Always inspect the suction pads for wear, tears, or dirt before you start any lift.
OSHA Rules and Lift Safety
The Occupational Safety and Health Administration shares vital safety tips for handling stone slabs. The OSHA SHIB 08-12-2008 bulletin warns about the hazards of manual lifting and recommends using mechanical aids like suction lifts. OSHA also rules that suction cups must be rated for the specific finish of the stone. This is critical when you move unpolished or textured slabs. During any lift, workers must never stand under, near, or in the fall path of a suspended slab. Keep the work area clear while the load is in the air.
Vacuum Controls and Pad Selection
Safe lifts rely on constant air pressure. High-quality systems use a vacuum gauge to verify seal strength before lifting. Some advanced models include a dual-circuit vacuum reserve to meet tough safety standards. If the pump stops, these reserve tanks keep the grip secure. Low-vacuum alarms will sound to warn workers of any air leaks. You must also match your pad type to the stone finish. Standard rubber pads work well on polished stone, but you must use foam pads on honed or textured stone to maintain a tight seal. For related shop tools, check out our full line of professional stone lifting equipment to keep your workspace safe.
Glass Lifters vs. Stone Lifters: Key Differences
Glass and stone present very different material handling challenges. While both surfaces are compatible with professional stone lifting equipment, choosing the wrong machine can lead to material damage or loss of suction. Understanding the differences in surface texture, weight distribution, and tilt options will help you select the right tool for your shop.
Surface Texture and Porosity
Glass is completely non-porous and smooth. This makes it easy to form a tight seal with standard rubber suction pads. Stone is often porous and can have textured or honed finishes. For these surfaces, standard rubber pads may lose suction. Stone shops need foam-edged pads that can conform to minor surface imperfections. If you work with both materials, a highly adaptable tool like the heavy-duty vacuum glass lifter from Aardwolf can handle rough-surfaced glass as well as polished stone slabs.
Weight and Pad Distribution
Glass is highly fragile and can crack under localized edge pressure. Vacuum systems for glass use multiple smaller pads to distribute the lifting force evenly across the sheet. Stone slabs are much heavier and stiffer, requiring a larger total pad area to support the weight. A typical three-centimeter granite slab weighs about thirteen pounds per square foot according to weight guides from Quattrolifts. This means stone lifting requires heavy-duty frames and massive suction pads to keep the heavy load stable during transport.
Safety Features and Tilt Controls
Both types of equipment must feature robust safety mechanisms to prevent accidents. According to U.S. OSHA standards for overhead cranes and hoist attachments, lifting equipment must secure loads safely with adequate safety factors. Industry-standard lifters often feature a dual-circuit vacuum reserve to maintain suction even if a hose is damaged. Glass lifters often feature quick manual or powered tilt controls from zero to ninety degrees. These controls allow operators to move large panels from flat cutting tables onto vertical transport A-frames with ease.
| Feature | Glass Lifters | Stone Lifters |
|---|---|---|
| Primary Surface Type | Smooth, non-porous glass sheets | Polished, honed, or textured stone |
| Suction Pad Material | Standard smooth rubber pads | Foam-rimmed pads for rough finishes |
| Load Distribution | Multiple small pads across frame | Fewer, larger high-capacity pads |
| Common Tilt Range | 0 to 90 degrees with precise lock | Fixed flat or 0 to 90 degree tilt |
| Safety System | Dual-circuit reserve and alarms | Heavy-duty vacuum tanks and gauges |
How to Choose the Right Vacuum Lifter for Your Shop
Selecting the proper machinery to handle heavy slabs is a vital decision for your fabrication facility. The right equipment protects your crew, prevents slab breakage, and speeds up your daily production. By following a clear, step-by-step process, you can find the best vacuum lifters for stone and glass that fit your daily shop operations.
Assess Capacity and Shop Needs
You must map out your physical workspace and the materials you handle before choosing a model. Consider your crane hook height, aisle clearance, and forklift access. Different materials also demand specific pad configurations. For instance, smooth stone works with standard cups, but textured slabs require specialized foam pads to hold a tight seal.
- Calculate your heaviest slab weight: You must know the exact load weights of your materials. For example, a 3 cm thick granite slab weighs about 13 lb per square foot. Which means a typical 9 by 5 foot kitchen slab weighs 500 to 800 lb. Calculate your maximum load using these material standards.
- Apply a 2:1 safety factor: Standard safety guidelines require your lifting device to have a rated capacity of at least double your heaviest load. If your heaviest slab is 800 lb, your tool must be rated for at least 1,600 lb. Always follow the 2:1 safety ratio to ensure safe material handling.
- Determine your tilt and rotation needs: Evaluate how you move slabs during fabrication. If you need to rotate panels for cutting or tilt them for polished finishes, choose a model with mechanical assists. For example, the heavy-duty vacuum glass lifter from Aardwolf offers a 0 to 90 degree tilt range.
- Evaluate your shop layout: Check your ceiling height, overhead crane limits, and aisle widths. Your lift system must fit within these dimensions without blocking other workstations or crane paths. Ensure your forklift or jib crane can support the weight of both the lifter and the slab.
- Choose between powered and manual models: Decide on your power source based on your production volume. High-volume shops benefit from powered models that offer fast cycle times and less physical strain. For smaller shops or lower volumes, a simple air-powered vacuum lifter or manual tilter is often the most cost-effective choice.
Select Trusted Industry Brands
Investing in reliable brands is key to long-term safety and performance. Diamond Tool Store offers top-tier professional stone lifting equipment from leading manufacturers like Aardwolf and Weha. These trusted brands design their systems with built-in safety features like low-vacuum alarms, dual-circuit vacuum reserves, and heavy-duty steel frames. Selecting recognized brands ensures you can easily source replacement pads and get reliable technical support for your shop.
Common Applications in Stone and Glass Fabrication
Specialized vacuum lifters play a vital role in modern workshops and job sites. They allow crews to move heavy, fragile sheets with less physical strain. By using professional stone lifting equipment, shops can handle multiple materials without scratching polished surfaces.
Stone Countertop and Slab Fabrication
In stone fabrication, crews handle heavy slabs of granite, engineered quartz, and marble. A typical three-centimeter granite slab weighs about 13 pounds per square foot. Moving these slabs by hand poses a high risk of back injury. Vacuum lifters grip the wide face of the slab. This design eliminates the need for edge clamps and lets a smaller crew do the job safely. Suction pads hold the stone tight while an overhead crane moves it to a bridge saw or CNC machine.
Glass Panel Installation
Glass installers face a different set of challenges on the job. Large glass panels for windows, storefronts, and shower enclosures are extremely fragile. They can crack easily under edge pressure from standard clamps. Suction lifts distribute the gripping force evenly across the glass face. For heavy exterior panels, crews use a heavy-duty vacuum glass lifter. This tool keeps the glass steady and helps workers tilt panels up to 90 degrees during installation.
Large-Format Porcelain and Concrete Work
The demand for large-format porcelain tile and concrete countertops is growing fast. These materials are heavy but prone to cracking if handled poorly. Installers use compact air-powered vacuum lifters to lift, tilt, and place these pieces with high precision. Using suction cups to move these panels prevents chipped corners and keeps hands clear of pinch points.
Monument and Memorial Fabrication
Monument builders regularly handle large, heavy stone blocks and grave markers. These stones often have textured, honed, or unpolished finishes. Handlers use vacuum lifters with special foam pads to create a strong seal on rough stone. According to safety guidelines in OSHA SHIB 08-12-2008, mechanical aids like suction lifts must be used instead of manual lifting to prevent catastrophic drops. The lifter holds the heavy monument steady while craftsmen engrave or polish the face.
Frequently Asked Questions
Can vacuum lifters be used on both stone and glass?
Yes, many high quality models handle both materials. Glass has a smooth, non-porous surface that forms a tight seal quickly. Polished stone also seals easily. For textured, honed, or rough stone surfaces, you must use specialized foam pads instead of standard rubber cups to prevent vacuum leaks. You can find versatile options on the Diamond Tool Store glass lifters and vacuum handling equipment page.
How do you choose the right vacuum lifter capacity?
You must calculate the weight of your heaviest slab and apply a strict 2:1 safety factor. For example, a standard three centimeter granite slab weighs about 13 pounds per square foot. According to OSHA safety guidelines, using proper mechanical aids is vital to prevent jobsite injuries. Always choose a lifter rated for at least double your maximum load weight to ensure safe operations.
What are the safety requirements for vacuum lifters for glass?
Glass handling requires daily seal checks, functional vacuum gauges, and low-vacuum warning alarms. Operators must never stand in the fall shadow of a suspended load. For extra security, many professional crews use lifters with dual-circuit vacuum reserve tanks. These systems hold the load safe if power fails, giving workers time to lower the glass safely to the ground.
What maintenance is required for stone vacuum lifters?
Stone lifting creates abrasive dust that can damage vacuum pumps and seals. You must clean the suction pads daily with water to remove grit and debris. Inspect the rubber or foam pads for cracks, tears, or wear weekly. You also need to check the vacuum lines for cracks, clean the air filters, and test the low-vacuum warning alarm before every shift.
Ready to browse vacuum lifters and glass handling equipment?
Using weak or unrated lifting tools in a busy stone or glass shop is a serious risk. One dropped slab can damage expensive materials, ruin your timeline, or cause severe injuries on the shop floor. Upgrading to a certified vacuum lifter helps you move heavy materials with total confidence and speed up daily fabrication cycles.
Ready to contact our team? Browse Diamond Tool Store's full selection of vacuum lifters and glass handling equipment to get the right tool for your shop.
