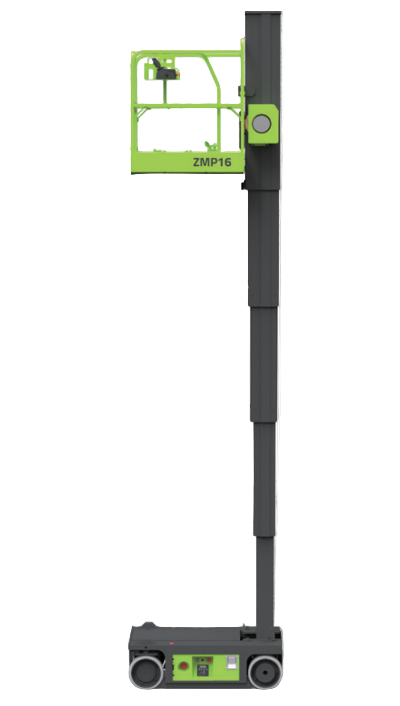

Vertical Mast Lift - ZMP16
SKU# ZMP16
$15,57143
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Finance this today with .png)
Apply Here
Vertical Mast Lift - ZMP16
$15,57143
Unit price
/
Make a Selection
ZOOMLION VERTICAL MAST LIFT
- Complied with CSA/ANSI standard
- Permanent magnet synchronous traveling motor, energy saving and high efficiency
- Standard large-diameter tires and collectable pothole plates, easy to pass the threshold
- Front wheel driving and steering and small turning radius for flexible indoor movement
- Multi-arm synchronous lifting, fast and no impact
- Compact dimensions, access to lifts, and ideal for indoor applications
- Small distance between platform and ground, easy to enter and exit the platform
Size
| Platform Height | 22ft 7in/19ft |
| A - Platform Height-Elevated | 16ft 1in/12ft 6in |
| B - Platform Height-Stowed | 1ft 8in |
| C - Platform Length | 3ft 5in |
| D - Platform Width | 2ft 6in |
| K-Platform Extension | 1ft 8in |
| E - Overall Height | 6ft 6in |
| F - Overall Length | 4ft 9in |
| G - Overall Width | 2ft 6in |
| H - Wheelbase | 3ft 8in |
| I - Ground Clearance (Stowed) | 2.6in |
| J - Ground Clearance (Raised) | 0.7in |
Performance
| Platform Capacity | 510lb |
| Capacity on Deck Extension | 250lb |
| Max. Number of Workers (indoor/outdoor) | 1/1 |
| Drive Speed (Stowed) | 2.5mph |
| Drive Speed (Raised) | 0.31mph |
| Turning Radius (Inside) | 9in |
| Turning Radius (Outside) | 5ft |
| Lifting Motor | 24V/2.5KW |
| Drive Motor | 24V/2×0.6KW |
| Up/Down Time | 21s/23s |
| Gradeability | 25%(14°) |
| Max. Working Slope (Lateral/Vertical) | 1.5°/3° |
| Control | Proportional control |
| Drive | Rear wheels |
| Brake | Rear wheels |
| Tire | Solid seamless tire |
Power
| Battery | 2×12V/120Ah |
| Charger | 24V/30A |
Weight
| Gross | 2110lb |
Brochure
