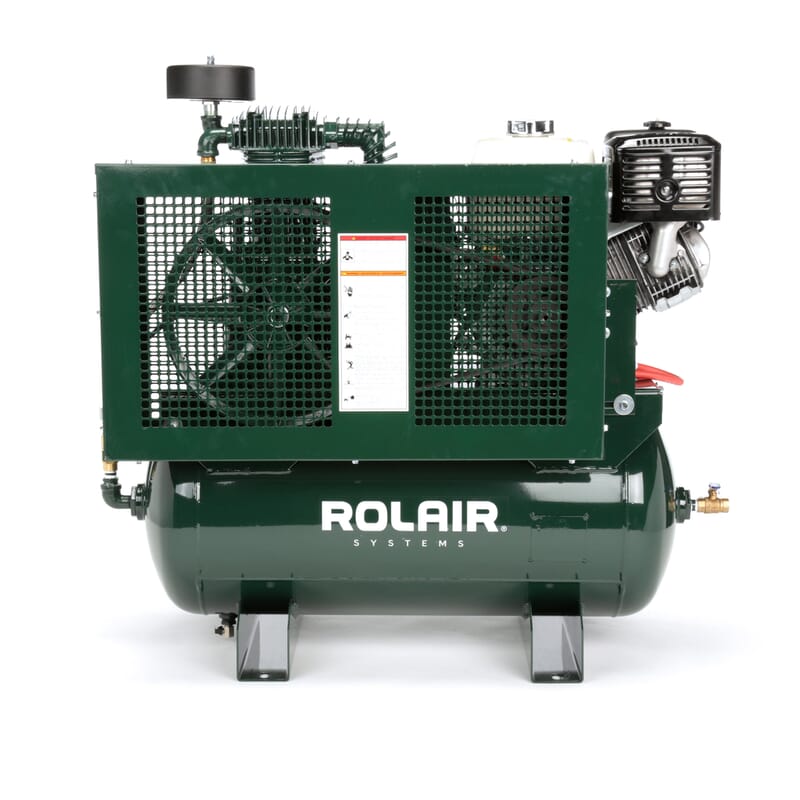

Truck Mount Series Air Compressor
From
$2,26350
$3,52100
Unit price
/
Make a Selection
Stationary Gas Air Compressors
Model 13GR30HK30 produces 23.0 CFM @ 175 PSI and comes with a 389 cc (GX390) Electric-Start Honda engine that features automatic idle-down, for increased fuel efficiency, and an atmospheric unloading system to prevent oil consumption. Mounted on a 30 gallon ASME tank, this unit is often used on service vehicles or in agricultural applications.
About The Pump
- Two-Stage
- Cast-Iron Cylinders
- Aluminum Head and Crankcase for Faster Heat Dissipation
- Ball Bearings
- Splash Lubricated
- Bearing Inserts on Connecting Rods
- Swedish Lammelar Reed Valves
- Oil Sight Gauge
- Low RPMs to Ensure Long Life and Trouble-Free Performance
About The Engine
- 389 cc (13 HP) Honda OHV Engine
- Electric Start with Recoil Back-Up
- Alternator
- Low Oil Shutdown
Standard Equipment
- Automatic Engine Idle Control for Economy and Long Service Life
- Schmidt Belt Tightening Device
- Automatic Pilot Valve Operation
- Pressure Gauge 0-300 in 5 lb. Graduations
- Safety Relief Valve ASME Approved
- Long Lasting Flexible Brass Discharge Hose
- Totally Enclosed Steel Belt Guard
Specifications
| HORSE POWER | 163 cc (5 HP) to 688 cc (20 HP) |
| CFM DISPLACED | 13.1 - 41.0 CFM |
| CFM DELIVERED | 8.7 - 33.7 CFM |
| LUBRICATION TYPE | Splash Lubrication |
| REED VALVE SYSTEM | Yes (Standard) |
| NUMBER OF CYLINDERS | 2 - 4 |
| COUNTRY OF ORIGIN | Compressor Origin.pdf |
Additional Models
| MODEL # | HP | PHASE | TANK SIZE | MOTOR RPM | CFM DISPLACED | CFM DELIVERED | LENGTH | WIDTH | HEIGHT | APPROX. SHIPPING WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|
| 5GR30HK17 | 5 | N/A | 30 Gallons | N/A | 13.1 @ 100 PSI | 8.7 @ 100 PSI | 42" | 22" | 38" | 250 lb. |
| 13GR30HK30 | 13 | N/A | 30 Gallons | N/A | 29.5 @ 175 PSI | 23.0 @ 175 PSI | 42" | 22" | 48" | 395 lb. |
| 13GR60HK30 | 13 | N/A | 60 Gallons | N/A | 29.5 @ 175 PSI | 23.0 @ 175 PSI | 52" | 26" | 52" | 495 lb. |
| 13GRBMHK30 | 13 | N/A | Base Mount | N/A | 29.5 @ 175 PSI | 23.0 @ 175 PSI | 38" | 20" | 32" | 295 lb. |
| 20GRBMHK60 | 20 | N/A | Base Mount | N/A | 41.0 @ 175 PSI | 33.7 @ 175 PSI | 53" | 29" | 32" | 435 lb. |
| 20GR60HK60 | 20 | N/A | 60 Gallons | N/A | 41.0 @ 175 PSI | 33.7 @ 175 PSI | 64" | 30" | 50" | 585 lb. |
