Metacaulk Intumescent Sleeve for 6" and 8" Pipe
SKU# 66582
$39.07 off
$22138
$26045
Unit price
/
Make a Selection
Shipping calculated at checkout.
Call for free submittals. 800-342-3876
Couldn't load pickup availability
Safe & Secure Payments.
Metacaulk Intumescent Sleeve for 6" and 8" Pipe
$22138
$26045
Unit price
/
Make a Selection
Note: Hazardous chemicals must be shipped via UPS Ground. All other shipping options will be removed from checkout if added to cart. If you need expedited services for non-hazardous products, please make a separate transaction.

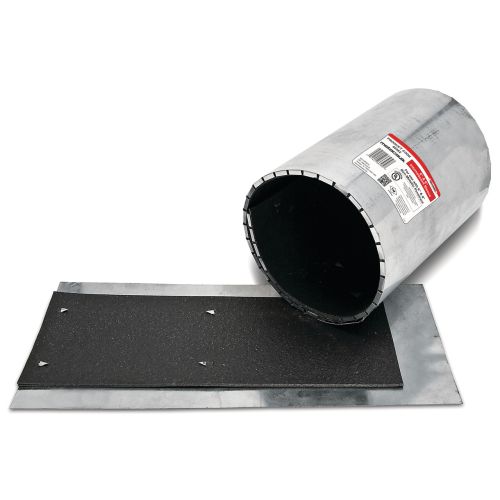

Metacaulk Intumescent Sleeve is a firestop seal for several types of plastic pipe & hard non-metal conduit installations.
Ideal for flammable pipes penetrating the uneven concrete fluted deck assembly. No need to firestop both penetration sides.
Concrete floor/wall installations & concrete fluted deck assembly. Approved with optional sleeve (S/10 or heavier) cast or grouted into floor/wall for 8"(20 cm) or smaller PVC/CPVC. Gives immediate smoke seal when used with Biostop 500+/150+
Features
- Tested for PVC, CPVC, ABS and PVC/ABS Foam Core, FRPP, PP, PVDF pipe
- Easy installation without modifications, steel bolts or fasteners- Fasten with fiberglass tape, pop rivets or hose clamps around pipe.
- Economical and Saves on Labor Cost
- No Measurement of Material Required and easily wraps around pipes. Eliminates need for collars/wrap strips.
- Flexible, Can be retrofitted, easily removed and replaced and is manufactured from a durable galvanized steel outer shell lined with a highly intumescent material
| Case Weight (lbs): | 4.50 |
|---|---|
| Case Height (inch): | .25 |
| Case Length (inch): | 8.25 |
| Case Width (inch): | 18.00 |
| Brand: | Metacaulk |
| Recommended Use: | Can be used with pipe sizes ranging from 2 inch to 8.0 in, Great for pipes penetrating walls > 90° angle. Not for use in environments where long-term exposure to rainfall/saltwater spray may occur |
| UPC: | 021449665827 |
| Interleaved: | 10021449665824 |
| Color: | NA |
| Application: | Concrete floor/wall installations & concrete fluted deck assembly. Approved with optional sleeve (S/10 or heavier) cast or grouted into floor/wall for 8"(20 cm) or smaller PVC/CPVC. Gives immediate smoke seal when used with Biostop 500+/150+ |
| Fin/Blade Spacing: | .000 |
| Fin Degree: |
