Augers For Excavators 15-30T
From
$29,86000
Unit price
/
Make a Selection

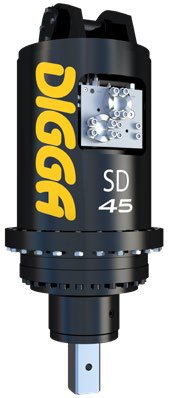

Digga's range of drilling augers for 15-30t excavators are the ultimate in performance, quality and cost effectiveness.
Over 30 years of design and development has produced the highest quality range of auger drives on the market today. Completely manufactured and assembled by Digga, using only the highest grade materials and strictest quality control.
Fitted with a radial piston motor, an integrated pressure relief valve and input housing. The innovative design allows the gearbox to go down the hole to maximize drilling depth without extensions.
Features:- 2-speed drive system
- Compact high torque Digga manufactured gearbox
- Radial piston motor with integrated pressure relief valve (PRV), eliminating the need for bulky valve blocks
- Reduces potential leak points
- ECV (Energy Control relief Valve) fitted standard
- Extreme duty shaft locking system
- No complex hoses, valving or filtration
- Can also be used as a screw anchor drive
- 1 year gearbox & 1year motor warranty
| Specs | SD45 | SD50 | SD70 |
|---|---|---|---|
| Max Torque (FT-LBS @ 3,500 PSI) | 32,892 FT-LBS | 38,569 FT-LBS | 50,465 FT-LBS |
| Motor Type | Radial Piston | Radial Piston | Radial Piston |
| Max Pressure (Do Not Exceed) | 3,500 PSI @ 100 GPM | ||
| Max flow (Do Not Exceed) | 100 GPM @ 3,500 PSI | ||
| Max Horse Power (Do Not Exceed) | 201 | 201 | 201 |
| Pressure Relief Valve | Included | Included | Included |
| Energy Control Valve | Included | Included | Included |
| Standard Output Shaft | 100 mm Square | 100 mm Square | 100 mm Square |
| Recommended Auger | RC11 / DR11 | RC11 / DR11 | RC11 / DR11 |
| Max Auger Diameter (Clay / Shale)¹ | 60" | 60" | 60" |
| Max Auger Diameter (Earth)¹ | 79" | 79" | 79" |
| Weight (lbs.) | 1843 | 1843 | 1843 |
| Overall Length (in.) | 50.9" | 50.9" | 50.9" |
| Diameter (in.) | 23.6" | 23.6" | 23.6" |
| OUTPUT SPEED | OUTPUT TORQUE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SD45 | SD50 | SD70 | SD45 | SD50 | SD70 | ||||||||
| GPM | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | PSI | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED | HI TORQUE LOW SPEED | LO TORQUE HIGH SPEED |
| 8 | 3 | 5 | 2 | 4 | 2 | 3 | 700 | 6,578 | 3,289 | 7,714 | 3,857 | 10,093 | 5,046 |
| 12 | 4 | 8 | 3 | 7 | 3 | 5 | 800 | 7,518 | 3,759 | 8,816 | 4,408 | 11,535 | 5,767 |
| 16 | 5 | 10 | 4 | 9 | 3 | 7 | 900 | 8,458 | 4,229 | 9,918 | 4,959 | 12,977 | 6,488 |
| 20 | 7 | 13 | 6 | 11 | 4 | 9 | 1,000 | 9,398 | 4,699 | 11,020 | 5,510 | 14,418 | 7,209 |
| 24 | 8 | 16 | 7 | 13 | 5 | 10 | 1,100 | 10,338 | 5,169 | 12,122 | 6,061 | 15,860 | 7,930 |
| 28 | 9 | 18 | 8 | 16 | 6 | 12 | 1,200 | 11,277 | 5,639 | 13,224 | 6,612 | 17,302 | 8,651 |
| 32 | 10 | 21 | 9 | 18 | 7 | 14 | 1,300 | 12,217 | 6,109 | 14,326 | 7,163 | 18,744 | 9,372 |
| 36 | 12 | 23 | 10 | 20 | 8 | 15 | 1,400 | 13,157 | 6,578 | 15,428 | 7,714 | 20,186 | 10,093 |
| 40 | 13 | 26 | 11 | 22 | 9 | 17 | 1,500 | 14,097 | 7,048 | 16,530 | 8,265 | 21,628 | 10,814 |
| 44 | 14 | 29 | 12 | 24 | 9 | 19 | 1,600 | 15,036 | 7,518 | 17,632 | 8,816 | 23,070 | 11,535 |
| 48 | 16 | 31 | 13 | 27 | 10 | 20 | 1,700 | 15,976 | 7,988 | 18,734 | 9,367 | 24,511 | 12,256 |
| 52 | 17 | 34 | 14 | 29 | 11 | 22 | 1,800 | 16,916 | 8,458 | 19,836 | 9,918 | 25,953 | 12,977 |
| 56 | 18 | 37 | 16 | 31 | 12 | 24 | 1,900 | 17,856 | 8,928 | 20,938 | 10,469 | 27,395 | 13,698 |
| 60 | 20 | 39 | 17 | 33 | 13 | 26 | 2,000 | 18,796 | 9,398 | 22,040 | 11,020 | 28,837 | 14,418 |
| 64 | 21 | 42 | 18 | 36 | 14 | 27 | 2,100 | 19,735 | 9,868 | 23,142 | 11,571 | 30,279 | 15,139 |
| 68 | 22 | 44 | 19 | 38 | 14 | 29 | 2,200 | 20,675 | 10,338 | 24,244 | 12,122 | 31,721 | 15,860 |
| 72 | 23 | 47 | 20 | 40 | 15 | 31 | 2,300 | 21,615 | 10,807 | 25,346 | 12,673 | 33,163 | 16,581 |
| 76 | 25 | 50 | 21 | 42 | 16 | 32 | 2,400 | 22,555 | 11,277 | 26,448 | 13,224 | 34,604 | 17,302 |
| 80 | 26 | 52 | 22 | 45 | 17 | 34 | 2,500 | 23,494 | 11,747 | 27,550 | 13,775 | 36,046 | 18,023 |
| 84 | 27 | 55 | 23 | 47 | 18 | 36 | 2,600 | 24,434 | 12,217 | 28,652 | 14,326 | 37,488 | 18,744 |
| 88 | 29 | 57 | 24 | 49 | 19 | 37 | 2,700 | 25,374 | 12,687 | 29,754 | 14,877 | 38,930 | 19,465 |
| 92 | 30 | 60 | 26 | 51 | 20 | 39 | 2,800 | 26,314 | 13,157 | 30,856 | 15,428 | 40,372 | 20,186 |
| 96 | 31 | 63 | 27 | 53 | 20 | 41 | 2,900 | 27,254 | 13,627 | 31,958 | 15,979 | 41,814 | 20,907 |
| 100 | 33 | 65 | 28 | 56 | 21 | 43 | 3,000 | 28,193 | 14,097 | 33,060 | 16,530 | 43,255 | 21,628 |
| 3,100 | 29,133 | 14,567 | 34,162 | 17,081 | 44,697 | 22,349 | |||||||
| 3,200 | 30,073 | 15,036 | 35,264 | 17,632 | 46,139 | 23,070 | |||||||
| 3,300 | 31,013 | 15,506 | 36,366 | 18,183 | 47,581 | 23,791 | |||||||
| 3,500 | 32,892 | 16,446 | 38,569 | 19,285 | 50,465 | 25,232 | |||||||
