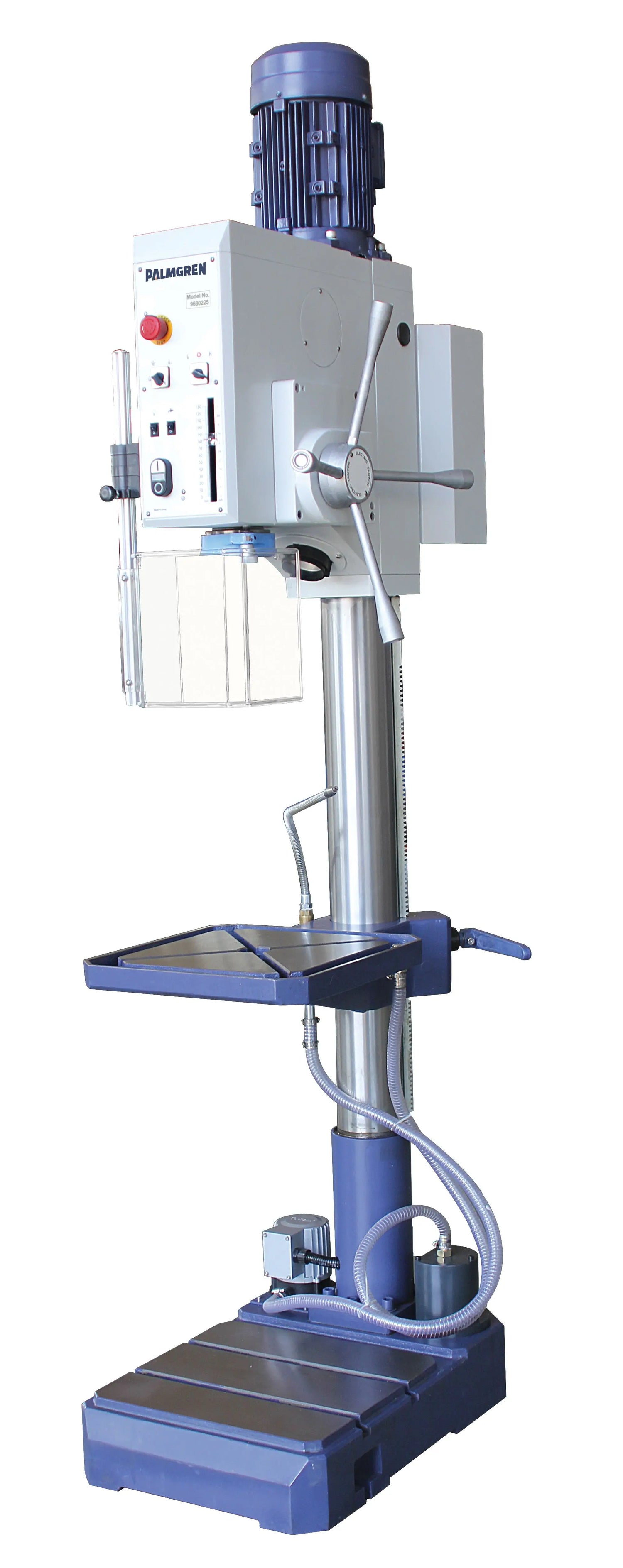

22" Gear Head Drill Press: 3 Horsepower (240V 3 Phase)

This versatile all gear drive drill press is ideal for precision drilling applications and continuous industrial use.

Equipped with a state-of-the-art push button electro-mechanical clutch for power feed engagement and overload protection. The all gear drive transmission delivers full power at any speed, driving the cutting tools at nearly 100% of the available motor horsepower. This drill utilizes the combination of steel and reinforced fiber gears to ensure positive, quite operation. All clutches are made of ground steel for added performance and strength. The wide speed range makes this drill ideal for drilling small to large diameter holes fast and easily.

• Wide speed range with 8 different speeds
• Simple knob selectors for operator ease in changing spindle speeds
• Electro-magnetic clutch power feed - the operator simply dials in the desired feed rate and engages the power feed with the push of a button
• The feed disengages automatically when the preset depth is reached
• Fully enclosed machine tool spindle with internal MT4 mounted in precision bearings for maximum accuracy, minimizing deflection
• Quick release drill ejector
• Front mounted control panel designed for operator convenience
• Forward & reverse spindle switch
• T-slotted production table and base
• Rack and pinion table raiser
• Front mounted dial adjusted work stop
• Interlocking chuck guard
• Work light
• Coolant system
