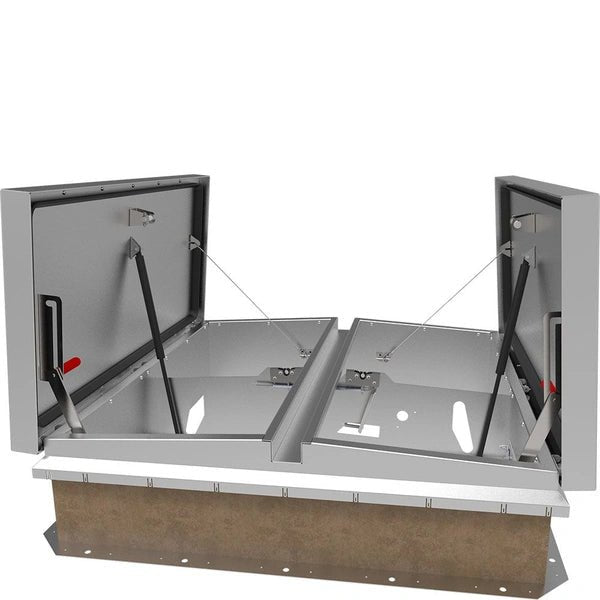

Double Door SafeMAX™ Smoke Vent
Call for Pricing
Unit price
/
Make a Selection
The Babcock-Davis Double Door SafeMAX Smoke Vent provides UL793 listed performance and is engineered with metal covers providing an emphasis on reliability and affordability.
SafeMAX Smoke Vents are ideal for factory and storage/warehouse occupancies.
Design considerations include: total vent area required by code and application, effective vent area, and the roof structural support system.
Features
- Greater Effective Vent Area
- Double Leaf Design
- Optional Winch or Linear Actuator
- UL Listed
Specifications
| Model | BSVS |
| Door | Double Leaf |
| Material | Aluminum: 11 gauge Steel: 14 gauge galvanneal |
| Finish | Aluminum: Mill Steel: Powder Coat, High Reflectance White |
| Cover | Formed metal cover with liner internally stiffened to withstand a live load of 40psf |
| Curb | Single wall curb with EZ tab counterflash and mounting flange |
| Insulation | 1 inch polyiso R-6 in cover and around curb |
| Gasket | Extruded EPDM adhesive backed gasket seal, continuous around cover |
| Hinge | Heavy-duty pintle hinge with stainless steel hinge pins |
| Springs | Gas spring with damper opens cover against 10psf snow load in not less than 2 seconds |
| Hold Open Arm | Zinc plated steel automatic hold open arm locks cover in open position |
| Latch | Zinc plated steel rotary latch designed to hold covers closed against 90psf for double doors. Opens manually by external and internal pull cables. Opens automatically with a fusible link at standard temperature 165°F. |
| Certification | UL 793 listed |
| Minimum Size | 48 inches by 48 inches |
| Maximum Size | 60 inches by 120 inches | 72 inches by 96 inches |
| Warranty | 5 years |
Order Guide
Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.
| MODEL | MATERIAL | WIDTH | X | LENGTH | DOOR | CURB | OPENING | LINK TEMP | CLOSING | OPTIONS | |
|---|---|---|---|---|---|---|---|---|---|---|---|
BSVS |
|
X |
D |
R |
— |
|
|||||
|
A - Aluminum Curb & Cover B - Steel Curb & Aluminum Cover W - Steel Curb & Cover |
48" x 48" 48" x 72" 48" x 96" 72" x 72" 60" x 60" |
D - Double Leaf |
1 - Single Wall 2 - Double Wall 3 - Curb Mount |
N - No Electrical L - 24VDC/24VAC H - 110VAC / 240VAC A - Linear Actuator |
165 212 280 350 360 450 |
R - Rooftop Close W - Manual Winch L - Linear Actuator |
OP1 - Door Position Sensor | ||||
Additional sizes and options available, call for more information.
