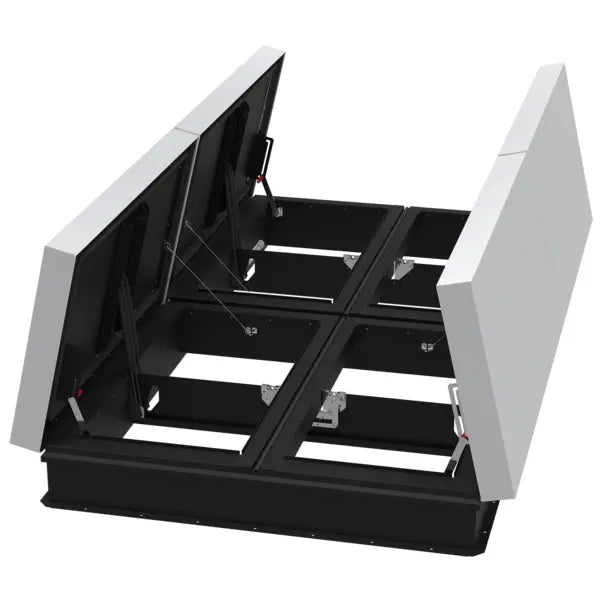

Quad Door AcousticMAX™ Y

Name: Quad Door AcousticMAX™ Y
Brand: Babcock-Davis
SKU: BSVYG
Availability: InStock

SKU# BSVYG

Call for Pricing

Shipping calculated at checkout.

2-3 Week Lead Time

Safe & Secure Payments.

Finance this today with Centra Funding Logo Apply Here

Block the intrusion of exterior environmental noise with Babcock-Davis' new STC50 Quad Door Acoustical Smoke Vent.

Designed for performing arts centers and theaters, every detail has been designed with precision.

Model	BSVY
Door	Quad Leaf
Sound Rating	Sound Transmission Class (STC) 50 Outdoor-Indoor Transmission Class (OITC) 39
Material	14 gauge galvanic steel
Finish	Inside: Powder Coat, Black Outside: Powder Coat, High Reflectance White
Cover	Metal with liner, withstands a live load of 40psf
Curb	Double wall curb with easy tab counterflash and mounting flange
Insulation	Mineral wool with sound mat in cover and curb; total R-14
Hardware	Stainless steel heavy-duty pintle hinge. Gs spring with damper open cover against 10psf load. Zinc plated hold open arm.
Latch	Zinc plated steel rotary latch designed to hold covers closed against 90psf wind uplift
Certification	UL 793 listed, optional FM 4330 approved
Minimum Size	48 inches by 96 inches
Maximum Size	72 inches by 192 inches
Warranty	5 years

Use the table below to guide specification of available options. The part number components are indicated in BOLD ORANGE text.

MODEL	WIDTH	X	LENGTH	DOOR	CURB	OPENING	LINK TEMP	CLOSING		OPTIONS
BSVYG		X		Q				R	—
	48" x 48" 48" x 72" 48" x 96" 60" x 60" 60" x 96" 60" x 120" 72" x 72" 72" x 96" Additional size options also available.			Q - Quad Door	2 - Double Wall 3 - Curb Mount	N - No Electrical L - 24VDC/24VAC H - 110VAC / 240VAC A - Linear Actuator	165 212 280 350 360 450	R - Rooftop Close W - Manual Winch L - Linear Actuator		SFM - FM Labeled OP1 - Door Position Sensor B__ - Burglar Bars
