Wylie Express Combo Trailer Water, Light & Power System

Wylie Express Combo Trailer Water, Light & Power System

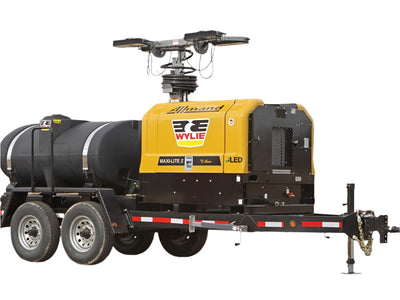

The Wylie Express Combo Trailer is a multi-function industrial utility trailer that combines water supply, electrical power generation, and jobsite lighting into a single DOT-approved trailer platform. Designed for construction sites, oil field operations, remote camps, utility crews, and infrastructure projects, the Express Combo Trailer helps eliminate the need for separate water trailers, light towers, and generator trailers.

The system integrates a large potable-rated water tank, diesel-powered generator, hydraulic LED light tower, fuel storage system, and industrial trailer package for dependable remote jobsite support in demanding field conditions.

Key Features

• All-in-one water, power, and light trailer system
• DOT-approved industrial trailer package
• 550 gallon baffled polyethylene water tank
• 240 gallon diesel fuel tank
• 15 kW or optional 20 kW generator configurations
• Hydraulic LED light tower system
• Light tower extends up to approximately 27 feet
• Tandem slipper spring axle design
• Heavy-duty 7" channel iron trailer frame
• Surge brake system standard
• Adjustable 2-5/16" ball hitch or optional 3" pintle ring
• Flojet 115V water pump system
• 45 PSI water delivery system
• Pressure tank included
• Multiple 120V and 240V electrical outlets
• LED trailer lighting package
• Cold weather/freeze protection package available
• Potable-rated water system components

Common Applications

Construction Job Sites

Provides temporary water, power, and lighting for commercial construction, site development, and infrastructure projects.

Oil Field & Remote Operations

Commonly used for remote field offices, temporary camps, drilling support, and mobile utility operations.

Utility & Municipal Projects

Supports remote crews with on-site lighting, water access, and generator power during emergency repairs and utility installation.

Temporary Mobile Offices

Can supply water and electrical power to RVs, mobile offices, and temporary structures at remote worksites.

Specifications

Generator & Power System

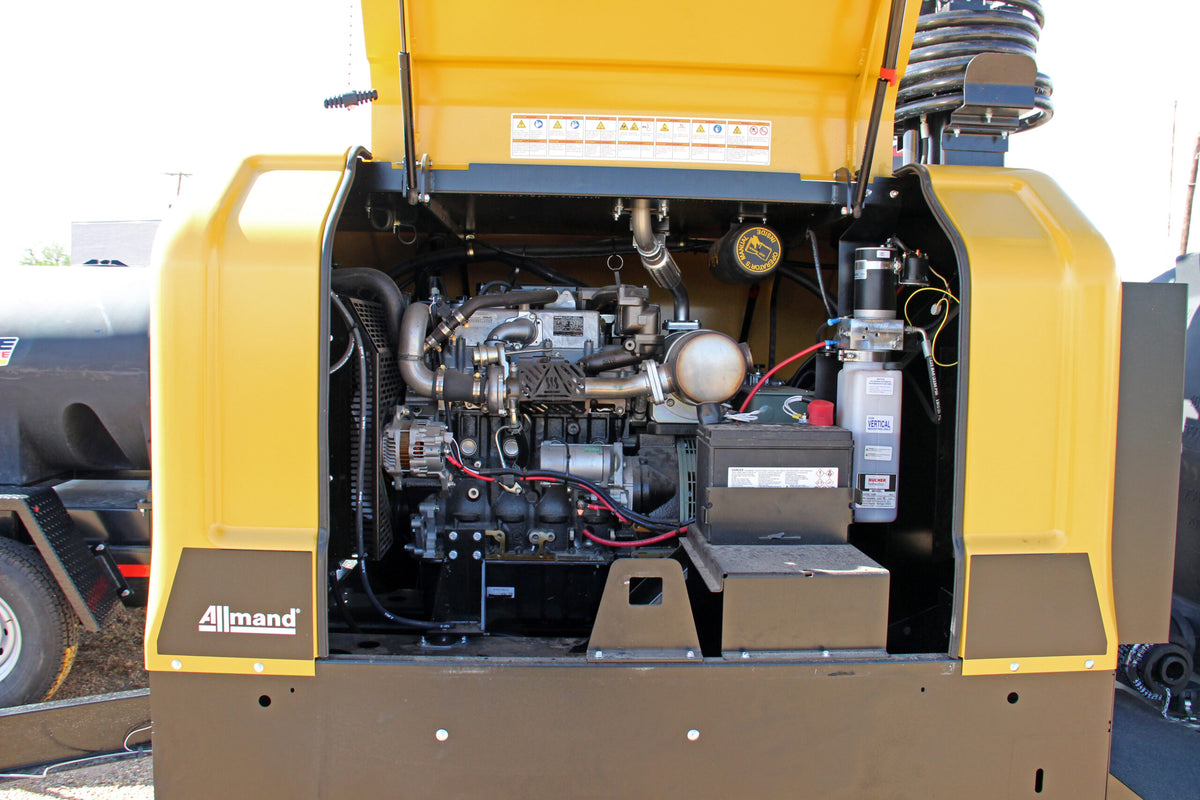

The Express Combo Trailer is available with either a 15 kW or 20 kW diesel generator package depending on configuration. The generator system provides power for temporary offices, jobsite tools, RVs, lighting systems, and remote work environments.

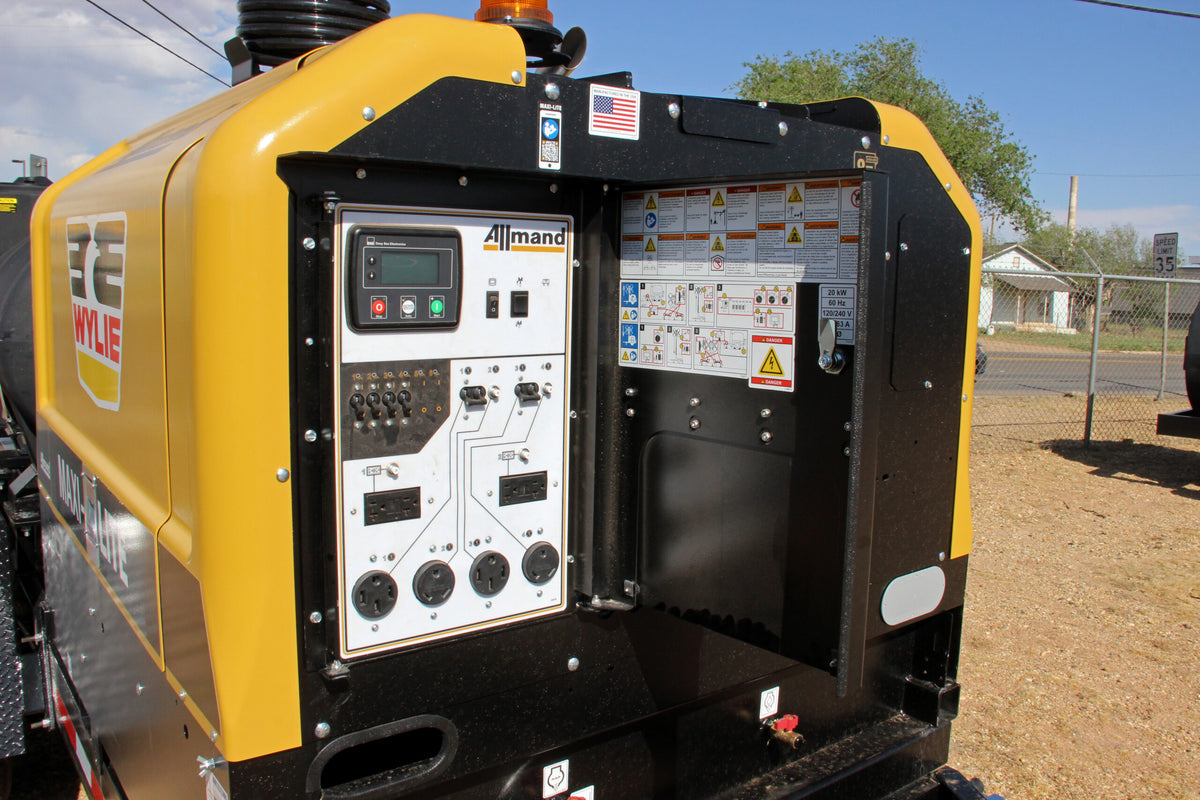

Available power outlets commonly include:

• 120V GFCI outlets
• 30A twist-lock outlets
• 50A RV connections
• 120/240V single-phase power output

The large 240 gallon diesel fuel tank allows extended generator runtime, with some configurations capable of operating up to approximately 300 hours before refueling depending on load conditions.

LED Light Tower System

The hydraulic light tower system provides elevated illumination for nighttime operations, remote projects, emergency repairs, and temporary work areas. The tower extends to approximately 27 feet and uses multiple LED fixtures for wide-area lighting coverage.

Typical configurations include:

• Four LED light fixtures
• Hydraulic mast raising system
• Rotating tower capability
• High-output worksite lighting

Water Delivery System

The integrated 550 gallon baffled polyethylene tank supplies water for jobsite use, temporary facilities, washdown operations, and remote utility support. Water system components are rated for potable water applications, although the trailer itself is considered non-certified potable equipment.

The system includes:

• Flojet pressure pump
• Pressure tank
• Pressurized water distribution system
• Water fill connections
• Plumbing for temporary site support

Heavy-Duty Trailer Construction

The Express Combo Trailer is built around a heavy-duty 7-inch channel iron trailer frame designed for rugged industrial towing applications. Tandem slipper spring axles, surge brakes, and LED trailer lighting help provide stable towing and dependable field operation.

The baffled tank design helps reduce water movement during towing for improved trailer stability and safer transport.

Cold Weather Package

An optional freeze protection system is available for cold climate operation. The package is designed to help protect water system components and plumbing during low-temperature conditions commonly encountered in northern oil fields and winter construction environments.

Contractor & Rental Fleet Benefits

The Wylie Express Combo Trailer is commonly used by:

• Construction contractors
• Utility contractors
• Oil field service companies
• Municipal departments
• Disaster response teams
• Equipment rental fleets
• Infrastructure crews
• Remote camp operators

By combining water, generator power, and lighting into a single trailer, operators can reduce equipment transport requirements and simplify jobsite setup.

Technical & Documentation Information

Available Product Documentation Includes

• Operator and parts manuals
• Trailer specifications and dimensions
• Generator operating information
• Water system diagrams
• Electrical outlet references
• Light tower operation instructions
• Safety and towing guidelines
• Maintenance schedules
• Parts breakdowns and replacement references
• Freeze protection system information
