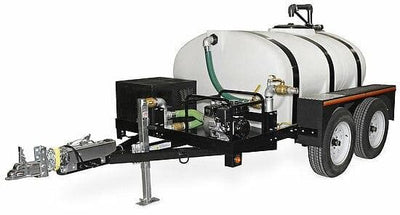

Water Trailer - MWT-0510-2MHD

The dual-axle water trailer features a 510-gallon water tank and features rear spray, fire and garden hose hook-ups and hydrant fill capabilities. It is great for dust control, cleaning parking lots and transporting water to remote locations.

Tank:

• 510-gallon elliptical low profile 3/8-inch thick polyethylene
• 16-inch manhole with 4-inch vent and a sump pump

Central Manifold:

• Easy to operate butterfly brass valves

Plumbing:

• 1 1/2-inch fire hose hook-up with 50-foot x 1 1/2-inch hose and fog nozzle
• Break-away hydrant fill with 25-foot x 2 1/2-inch hose
• Dual rear spray heads
• Garden hose connector
• Manifold discharge system
• Water hammer prevention valve

Trailer:

• DOT approved
• 12-inch under-clearance at axle
• 7,000-lb. side-mount crank jack
• Dual leaf spring suspension
• Rubber mounted sealed lights
• Wire storage basket
• Two safety chains with snap hooks

Semi-Trash Pump:

• 2-inch suction and discharge that handles solids up to 3/4-inch diameter
• Heavy-duty powder coated wraparound frame with 1-inch steel tubing
• Silicon carbide mechanical seals
• Precision molded cast iron impeller and volute for reduced vibration and wear

Options

• TX-0008 Hard Suction Option: Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage.
• TX-0010 Adjustable Trailer Coupler Hitch: Replaces the standard 2-inch ball hitch with a 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket
• TX-0019 Lunette Ring Hitch: Replaces the standard 2-inch ball hitch with an 3-inch integrated lunette ring for use with pintle hitches
