Ring-Lift Recess Former - Reusable Urethane
Call for Pricing
Precast Concrete Accessories
The Recess Former is used with any of the Ring-Lift anchors. It provides a fast and accurate void, with a consistent shape for smooth lifter attachment. The former is made with a durable urethane for easy stripping and reusability.
A former is used when a hole in the formwork is undesirable. A mounting plate with four 3/16" diameter holes is used to fasten the anchor and former to the formwork by nailing, screwing, welding, or taping.
The anchor and former are attached to the mounting plate by sliding the assembly over the two protruding pins on the plate.

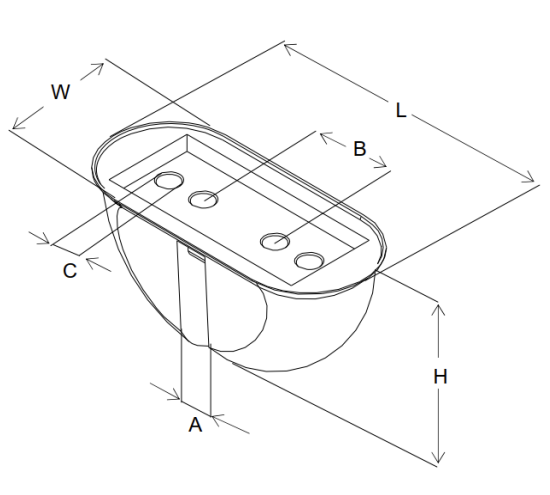

| P/N | Clutch ID | Load Range | Length (L) | Height (H) | Width (W) | Slot (A) | Spacing (B) | Hole Dia (C) |
|---|---|---|---|---|---|---|---|---|
| SBRLF1T | 2.5T | 1T | 3-3/4" | 1-15/16" | 1-11/16" | 3/16" | 1-1/16" | 0.406" |
| SBRLF2T | 2.5T | 2T-2.5T | 3-3/4" | 1-15/16" | 1-11/16" | 3/8" | 1-1/16" | 0.406" |
| SBRLF5T | 5T | 4T-5T | 4-7/8" | 2-1/4" | 2-3/16" | 5/8" | 1-3/8" | 0.406" |
| SBRLF10T | 10T | 8T-10T | 6-1/2" | 3-1/4" | 3-1/2" | 3/4" | 1-15/16" | 0.406" |
Each former has two optional connections; one coil thread and one NC thread.
