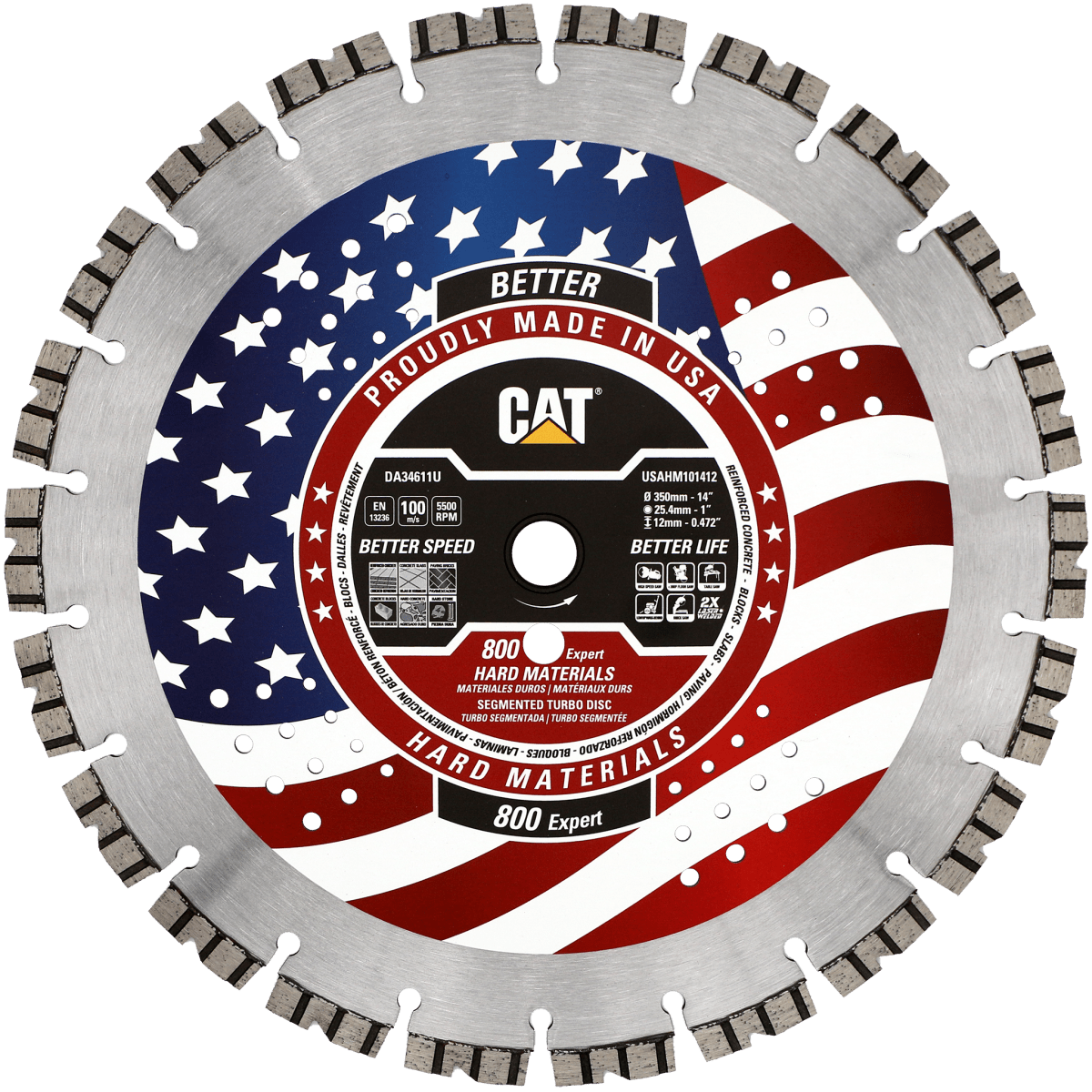

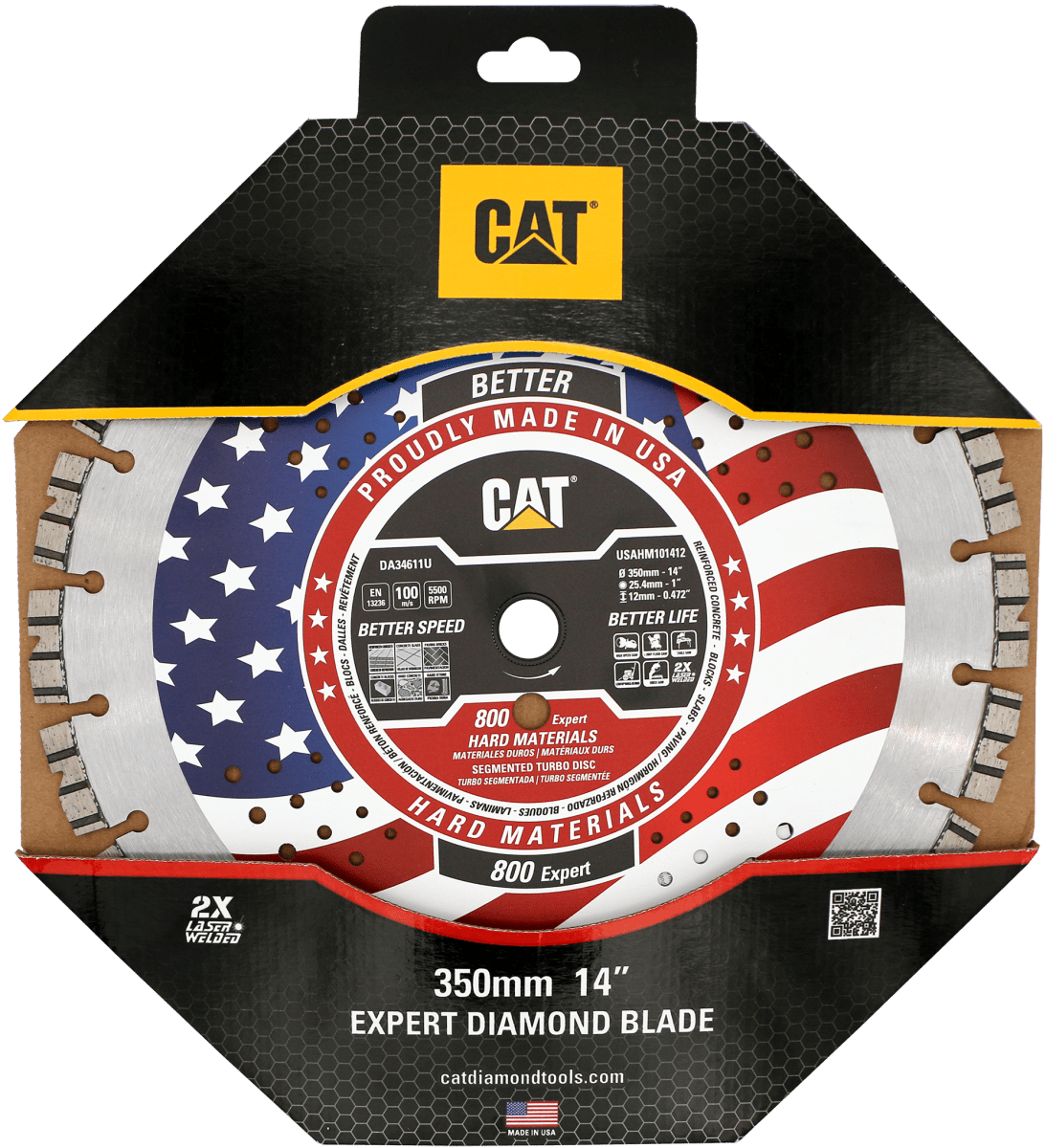

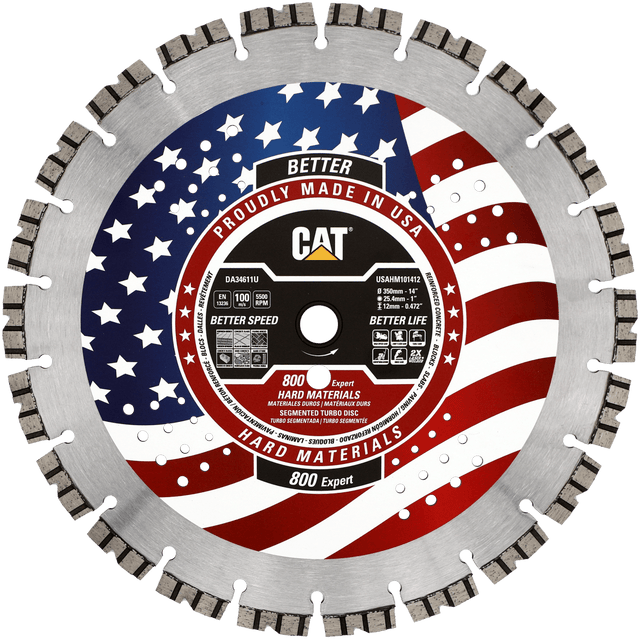

Cat® Hard Material blades are designed for intensive use across the 3 performance grades

Good - 10mm (600 Pro)

Better - 12mm (800 Pro)

Best - 15mm (1000 Pro)

Each individual product has specifically designed segments shape and geometry which complements the diamond grit and bond formulation that is proved to enhance the cutting performance in terms of fluidity and smoothness of cut, speed and blade life. Cat® Hard Material blades are able to cut a multitude of hard materials and easily cut through the hardest aggregates and applications. Each increase in performance rating increases the performance in terms of speed and life by use of higher diamond quality and diamond concentration, bond formulation and segment height.

Reinforced ConcreteHard ConcreteConcrete Slabs
Concrete BlocksPaving BricksHard Stone

ATTRIBUTES

  • SUPERIOR DIAMOND QUALITY & BOND FORMULATION
  • VERY LONG LIFE & SPEED OF CUT
  • FULLY HARDENED & HEAT TREATED STEEL CORE
  • VENTED COOLING HOLES FOR RAPID HEAT DISPERSION
  • 2X LASER WELDED FOR SAFETY & STABILITY OF SEGMENTS
  • UNIQUE TURBO SEGMENT DESIGN FOR AGGRESSIVE CUTTING ACTION
  • UNIQUE V TURBO DESIGN CLEARS ABRASIVE FINES FROM THE CUT & GENERATES LESS FRICTION
  • KEYHOLE GULLET DESIGN FOR DUST EXTRACTION FROM CUT
PRODUCT TYPE DIAMETER SEGMENT HEIGHT SEGMENT WIDTH MAIN ARBOR - BORE REDUCING RINGS INCLUDED MACHINES USED
SEE KEY
PART NO CODE NO MM INCH MM INCH MM INCH MM INCH MM INCH
DA34610U USAHM101212 300 12 12 0.472 3.175 0.125 25.4+P 1+P 20MM 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34611U USAHM101412 350 14 12 0.472 3.175 0.125 25.4+P 1+P 20MM 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34612U USAHM101612 400 16 12 0.472 3.175 0.125 25.4+P 1+P 20MM 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw
DA34613U USAHM101812 450 18 12 0.472 3.175 0.125 25.4+P 1+P 20MM 0.78 High Speed SawFloor SawLow HP Walk-BehindTable SawBrick Saw

Available in USA, non-oSa accredited.

APPLICATION

HEAVILY STEEL REINFORCED CONCRETE, CRITICALLY HARD AGGREGATE CONCRETE (FLINT, CHERT), HARD TO MEDIUM AGGREGATE CONCRETE (CHERT - TRAP ROCK - RIVER GRAVEL), MEDIUM AGGREGATE CONCRETE (TRAPROCK - QUARTZ), SOFT - MEDIUM AGGREGATE CONCRETE (GRANITE - LIMESTONE), CLASS A ENGINEERING BRICK 125 N/MM2, CLAY PIPE - ROOF TILES, CLAY PAVIOURS, QUARRY TILES, TERRACOTTA, PORPHYRY, CLASS B ENGINEERING BRICK 75N/MM2, LIGHT REINFORCED CONCRETE, BASALT, HARD LIMESTONE, LIMESTONE AGGREGATE CONCRETE, LIGHTLY REINFORCED CONCRETE, CONCRETE PAVIOURS - KERBS - SLABS, CONCRETE ROOF TILES - PIPES, HARD FACING BRICK, MEDIUM FACING BRICK.

DUCTILE IRON, QUARTZITE, REFRACTORY BRICK, SOFT FACING BRICKS, CONCRETE BLOCKS OVER 15N/MM2, HARD SLATE, SOFT SLATE,MARBLE, CONCRETE SCREED.

SOFT SANDSTONE (COARSE GRIT), PLASTER - GROUT, CONCRETE BLOCK UNDER 15N/MM2, THERMAL BLOCK 7 N/MM2.

KEY

CORRECT BOND FOR APPLICATION OPTIMAL PERFORMANCE, SPEED & LIFE

GOOD MATCH BOND FOR APPLICATION EXCELLENT PERFORMANCE SPEED & LIFE

ACCEPTABLE BOND FOR APPLICATION REDUCED PERFORMANCE, SPEED & LIFE

OCCASIONAL USE ONLY - MUCH REDUCED PERFORMANCE, SPEED & SHORT LIFE - GLAZING & PREMATURE WEAR WILL OCCUR
