9" Industrial-Grade Plastic Hand Cup for Flat Surfaces

Wood's Powr-Grip N5000 — 9" Industrial-Grade Plastic Handle Vacuum Hand Cup for Flat Surfaces (150 lbs / 68 kg)

The Wood's Powr-Grip N5000 is a professional-grade vacuum hand cup engineered for the safe lifting and handling of heavy flat, smooth, nonporous surfaces with a rated load capacity of 150 lbs (68 kg). Featuring a 9" (23 cm) standard rubber suction pad (Model G0725) and an all industrial-grade plastic handle and plunger, the N5000 delivers the same high-capacity flat-surface performance as the metal-handle N5450 in a lightweight, rust-resistant construction that is well-suited for environments where corrosion resistance and reduced tool weight are priorities. The N5000 (SKU: 91530, Model: N5000) is manufactured by Wood's Powr-Grip and is ideal for glaziers, stone fabricators, tile installers, and industrial material handlers who require a high-capacity flat-surface hand cup with the durability and rust-resistance of industrial-grade plastic construction.

The N5000 is the 9" plastic-handle counterpart to the N5450 (metal handle, same G0725 pad, same 150 lb capacity, flat only) and the larger-capacity sibling of the N4000 (plastic handle, 8" pad, 125 lb capacity, flat only). Where the N5450 is the preferred choice for maximum handle durability in heavy-use environments, the N5000 is the correct selection when lightweight construction and rust-resistance are the priority — such as in wet environments, coastal job sites, or operations where tool weight directly affects operator fatigue over long shifts. Both the N5000 and N5450 use the same G0725 pad, making pad replacement interchangeable between the two models.

Key Features & Benefits

Industrial-Grade Plastic Handle and Plunger — Lightweight and Rust-Resistant

The all industrial-grade plastic handle and plunger construction makes the N5000 significantly lighter than metal-handle equivalents, reducing operator fatigue during high-repetition lifting tasks and making it easier to carry and maneuver on job sites. Industrial-grade plastic resists rust and corrosion in wet, humid, and coastal environments where metal handles would require additional maintenance or would degrade over time. For operations where tool weight and corrosion resistance are operational priorities, the N5000 is the correct choice over the metal-handle N5450.

150 lb (68 kg) Rated Load Capacity

The N5000 is rated for loads up to 150 lbs (68 kg) on flat, smooth, nonporous surfaces — matching the N5450’s capacity and covering the majority of heavy glass panels, granite countertop sections, stone slabs, and large-format tile encountered in fabrication and installation work. This high capacity enables single-operator handling of panels that would otherwise require a two-person lift, directly reducing labor overhead and improving throughput. Always confirm the actual panel weight before selecting this tool for a lift.

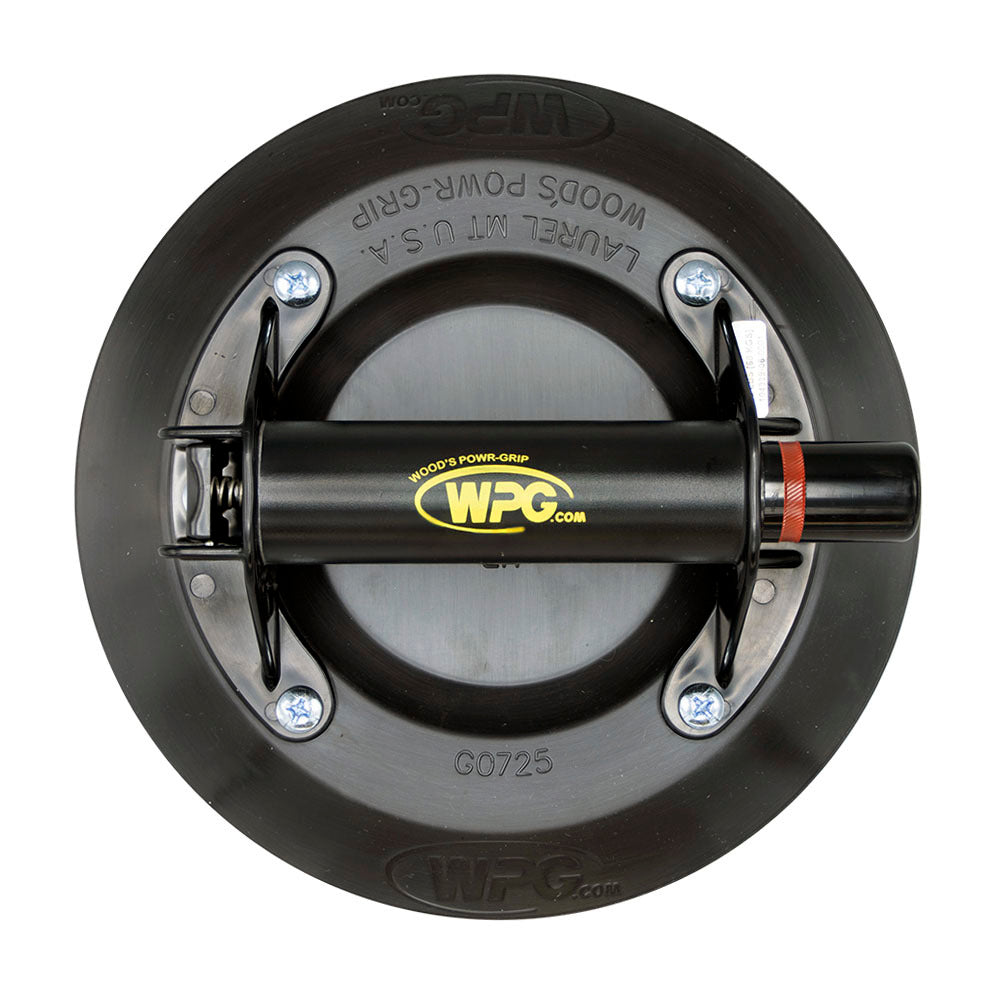

9" Standard Rubber Suction Pad (Model G0725)

The 9" (23 cm) G0725 pad creates a large-area vacuum seal on flat, smooth, nonporous surfaces, providing strong and stable holding power for heavy panels. The standard rubber compound maintains flexibility and seal integrity across the rated operating temperature range (10°F to 120°F). The G0725 pad is shared with the N5450, meaning replacement pads are interchangeable between the two models — simplifying inventory management for operations that stock both cups. Replacement pads are available separately through Wood's Powr-Grip authorized distributors.

Fast Attach and Release Mechanism

The quick-engage vacuum mechanism allows operators to attach and release the cup rapidly without tools, supporting high-throughput workflows in glass fabrication shops, stone yards, and on installation job sites. Faster cycle times per lift translate directly to improved productivity when handling multiple panels in sequence. The release action is controlled and deliberate, preventing accidental disengagement during a lift.

Red-Line Vacuum Loss Indicator

The built-in red-line indicator provides a continuous visual warning if vacuum pressure drops significantly during a lift, giving the operator an immediate alert before load failure can occur. This safety feature is critical when handling heavy panels at or near the 150 lb capacity limit, where a vacuum failure could result in serious injury or costly panel damage. Monitor the indicator throughout the lift and lower the load immediately if vacuum loss is detected.

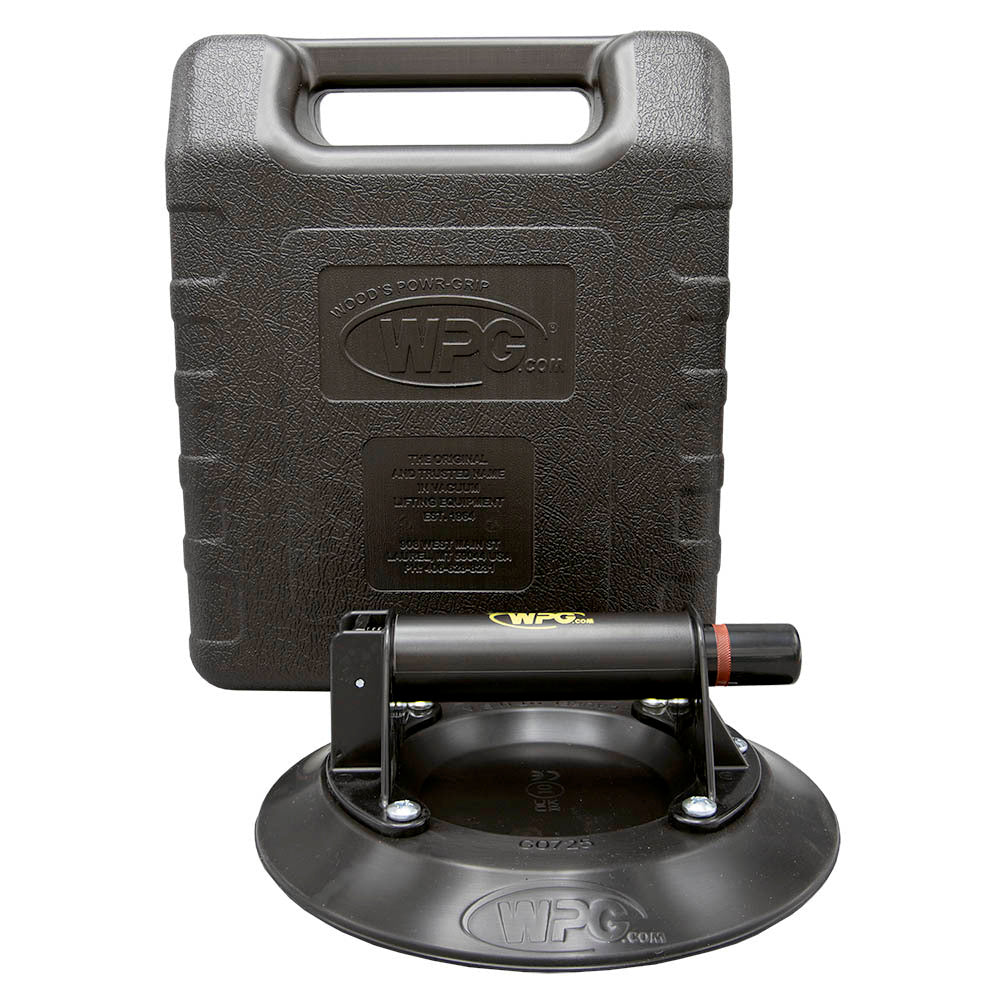

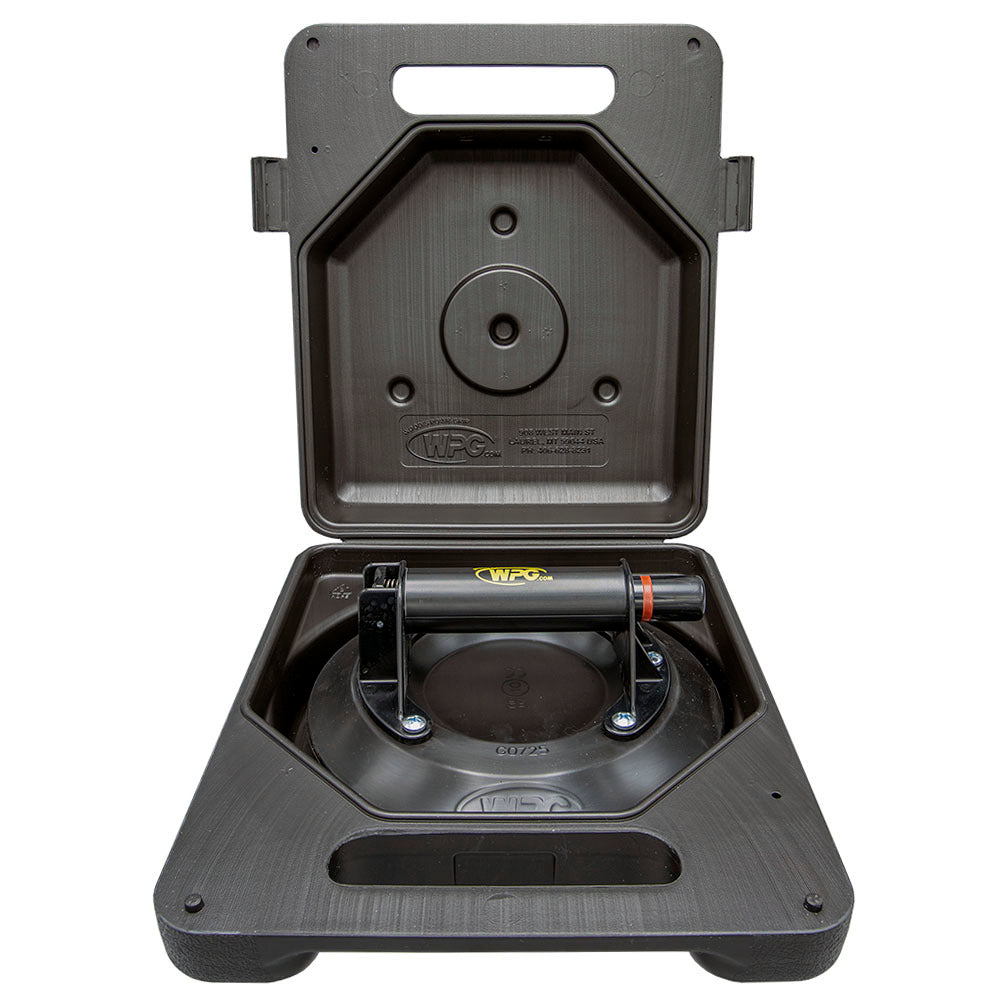

Protective Carrying Case Included

The N5000 ships with a protective carrying case that keeps the suction pad clean, protected from UV and contamination, and ready for use on the next job. Proper pad storage is one of the most effective ways to extend rubber seal life and maintain consistent vacuum performance over the tool’s service life. The case also protects the pad during transport in work vehicles and on job sites.

Common Applications

Heavy Flat Glass Panel Handling

Glaziers use the N5000 to lift and position heavy plate glass, tempered glass, and architectural glass panels during fabrication, transport, and installation. The 9" pad and 150 lb capacity cover the majority of large-format flat glass panels encountered in commercial and residential glazing work, and the lightweight plastic construction reduces fatigue during extended glass handling shifts.

Granite and Stone Countertop Installation

Stone fabricators and countertop installers use the N5000 to lift and position polished granite, marble, quartzite, and engineered stone slabs during templating, cutting, and final installation. The 150 lb capacity accommodates most standard countertop sections without requiring a second operator, and the rust-resistant plastic construction performs reliably in wet stone shop environments where water and slurry are present.

Large-Format Tile Handling

Tile setters handling large-format polished ceramic and porcelain tile (24"x48" and above) use the N5000 to safely move heavy tile from pallet to installation surface. The 9" pad provides a large contact area for stable vacuum retention on smooth, glazed tile surfaces, and the lightweight handle reduces fatigue during high-repetition tile handling tasks.

Wet and Coastal Environment Glass Handling

In environments where moisture, humidity, or salt air would accelerate corrosion on metal-handle cups, the N5000’s all-plastic construction provides a maintenance-free alternative that resists rust and degradation without requiring protective coatings or additional care. This makes it the preferred choice for glaziers and installers working in coastal, marine, or consistently wet environments.

Smooth Metal Panel and Sheet Handling

In metal fabrication and architectural panel installation, the N5000 handles smooth, nonporous metal panels and sheets on flat surfaces where edge handling would risk deformation or injury. The plastic construction is particularly appropriate in environments where metal-on-metal contact between the handle and the workpiece could cause surface damage or sparking.

High-Repetition Flat Surface Handling

For operations involving repeated lifting of flat panels throughout a shift — such as glass fabrication lines, stone slab yards, and tile distribution centers — the N5000’s lighter plastic construction reduces cumulative operator fatigue compared to metal-handle alternatives, improving safety and productivity over long working periods.

Compatible Materials

• Plate glass and float glass (flat)
• Tempered and laminated safety glass (flat)
• Polished granite, marble, and quartzite (flat)
• Engineered stone and quartz composite (flat)
• Glazed and polished ceramic tile (flat)
• Polished porcelain tile — large format (flat)
• Smooth painted or coated metal panels (flat)
• Polished stainless steel and aluminum panel (flat)
• ACM (aluminum composite material) — smooth face (flat)
• Any smooth, nonporous flat surface requiring safe manual lifting up to 150 lbs

Not compatible with: curved surfaces (flat only); rough, textured, or porous surfaces; surfaces contaminated with oil, wax, or debris in the pad contact area; concrete, brick, unpolished stone, wood, or drywall.

Product Documents

• N5000 Instructions (PDF)

Application Instructions

Step 1: Surface Assessment

1. Confirm the surface is smooth, flat, and nonporous — do not proceed on rough, textured, porous, or curved surfaces.
2. Clean the pad contact area — remove dust, oil, moisture, and debris.
3. Verify the panel weight does not exceed 150 lbs (68 kg).

Step 2: Pad Inspection and Preparation

1. Inspect the G0725 suction pad for cuts, cracks, hardening, or contamination. Replace if damaged.
2. Wipe the pad face clean before each lift.
3. Ensure the pad is at operating temperature (above 10°F / -12°C) before use.

Step 3: Attaching the Cup

1. Position the pad flat against the surface with full perimeter contact across the 9" diameter.
2. Engage the vacuum mechanism using the plastic handle/plunger until firm resistance is felt.
3. Check the red-line vacuum indicator — confirm it shows a stable, full vacuum before lifting.
4. Apply a controlled test load (firm downward pull) to verify seal integrity before committing to the full lift.

Step 4: Lifting, Positioning, and Release

1. Lift smoothly — avoid sudden jerking motions that can break the vacuum seal.
2. Monitor the red-line indicator continuously throughout the lift and during positioning.
3. Do not exceed the 150 lb (68 kg) rated load capacity.
4. Lower the load fully to a stable surface before releasing the vacuum.
5. Engage the release mechanism slowly and in a controlled manner.
6. Clean the pad after use and store in the supplied protective carrying case.

Technical Specifications

Safety Data Summary

Hazard Information

• Vacuum loss during a lift can result in sudden load drop, causing serious injury or property damage
• Overloading beyond 150 lbs (68 kg) rated capacity may cause sudden cup release without warning
• Use on curved, rough, textured, or porous surfaces will prevent a full pad seal and significantly increases drop risk — flat surfaces only
• Damaged or contaminated suction pads must be replaced before use
• Operating below 10°F (-12°C) may degrade rubber pad performance and vacuum retention
• Do not use above 5,000 ft (1,500 m) elevation

Personal Protective Equipment

• Safety glasses or face shield when handling glass panels
• Cut-resistant gloves rated for glass and stone handling
• Steel-toed safety footwear
• Hard hat when working in overhead or multi-level environments

Safe Handling

• Inspect the pad and clean the contact area before each lift
• Never exceed the rated 150 lb load capacity
• Monitor the red-line indicator continuously — lower the load immediately if vacuum loss is detected
• Do not use on curved, textured, or porous surfaces — flat, smooth, nonporous only
• Store in the supplied carrying case to protect the pad between uses

Frequently Asked Questions

Q: What is the difference between the N5000 and the N5450?
A: Both use the same 9" G0725 pad and have the same 150 lb flat-surface capacity, but the N5000 has an all industrial-grade plastic handle and plunger (lightweight, rust-resistant) while the N5450 has a metal handle (greater rigidity and durability for heavy-use environments). Choose the N5000 when lightweight construction and corrosion resistance are the priority; choose the N5450 when maximum handle durability and grip rigidity are required. Pad replacement is interchangeable between the two models (both use G0725).

Q: What is the difference between the N5000 and the N4000?
A: Both use industrial-grade plastic handle and plunger construction, but the N5000 has a larger 9" pad (vs. 8" on the N4000) and a higher 150 lb capacity (vs. 125 lb). Choose the N5000 for heavier panels or when the larger pad diameter improves seal stability on large-format materials; choose the N4000 for lighter loads or when a smaller pad footprint is preferred.

Q: Can the N5000 be used in wet or humid environments?
A: Yes — the all-plastic construction resists rust and corrosion, making the N5000 well-suited for wet stone shop environments, humid glazing job sites, and coastal or marine applications where metal-handle cups would require additional maintenance. Always clean and dry the pad contact area on the work surface before attaching, regardless of environment.

Q: Is the G0725 pad on the N5000 the same as the one on the N5450?
A: Yes. Both the N5000 and N5450 use the G0725 standard rubber pad (9" diameter), making replacement pads interchangeable between the two models. This simplifies pad inventory management for operations that stock both cups.

Q: What replacement pad does the N5000 use?
A: The N5000 uses the G0725 standard rubber pad (9" diameter). Replacement pads are available separately through Wood's Powr-Grip authorized distributors.

Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type and load requirements before placing your order.
