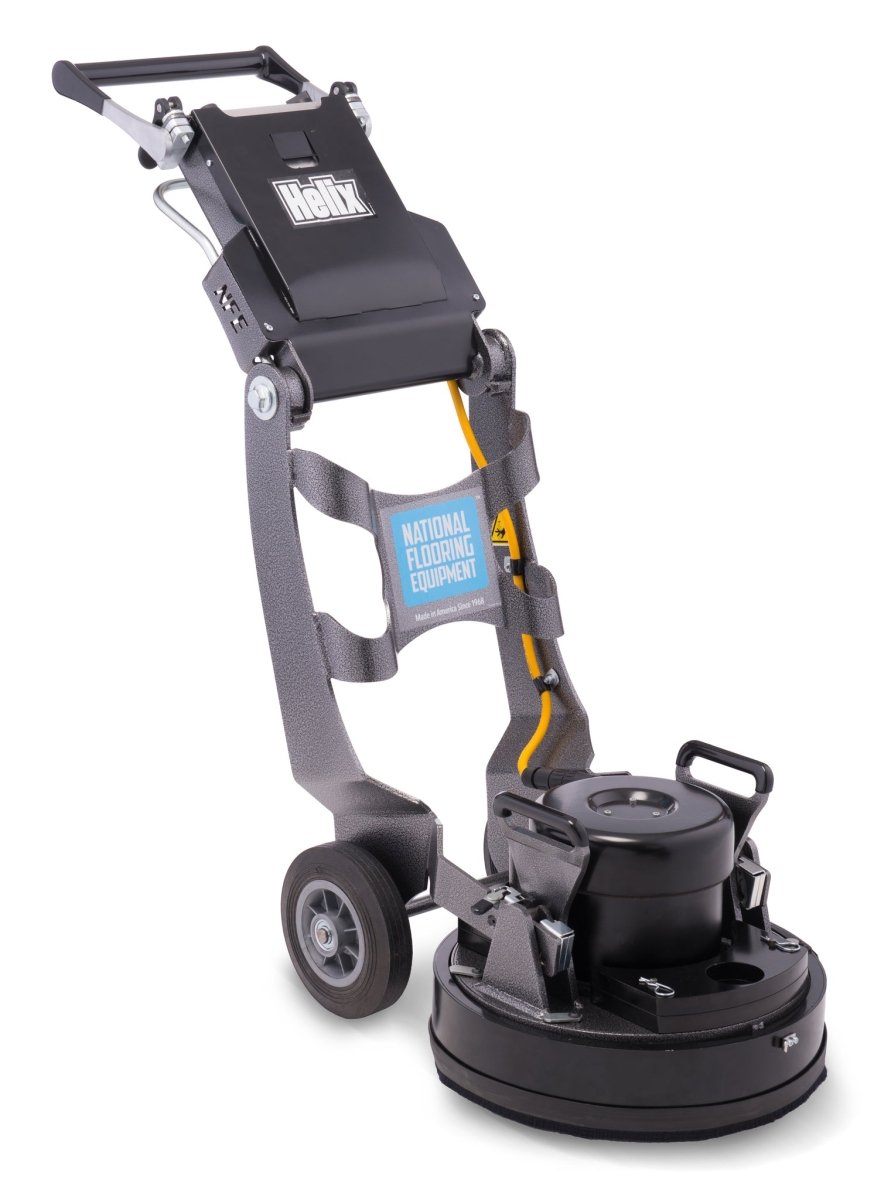

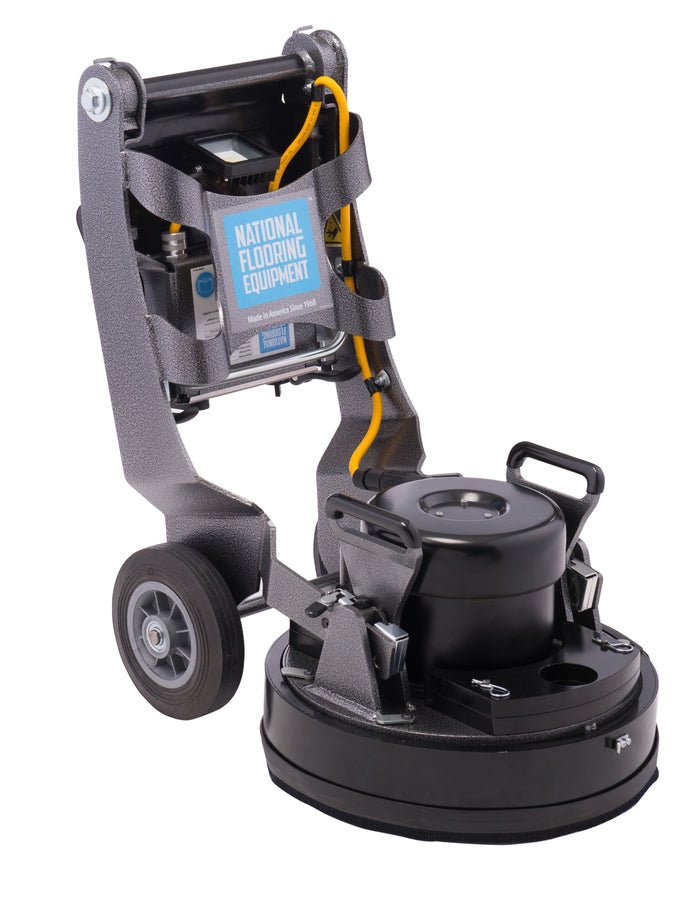

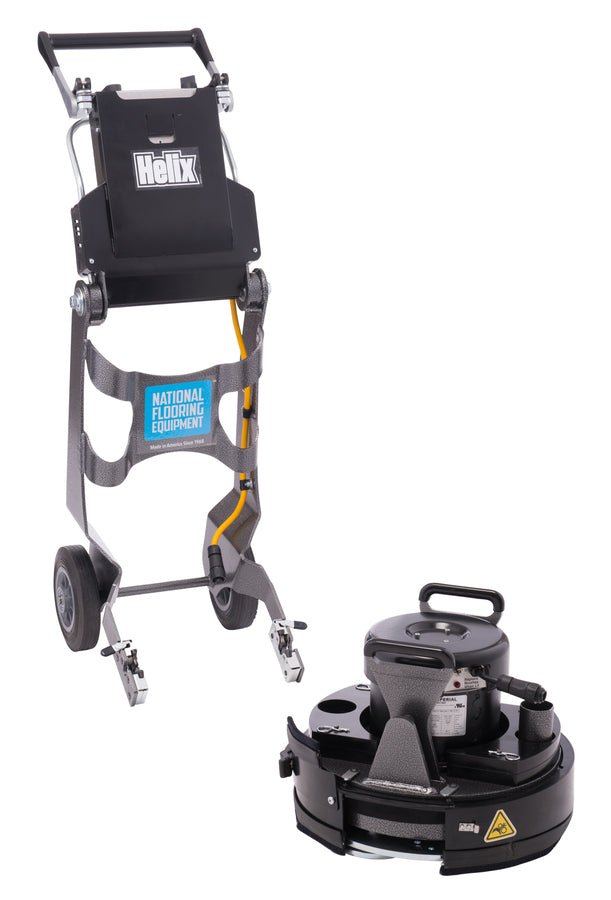

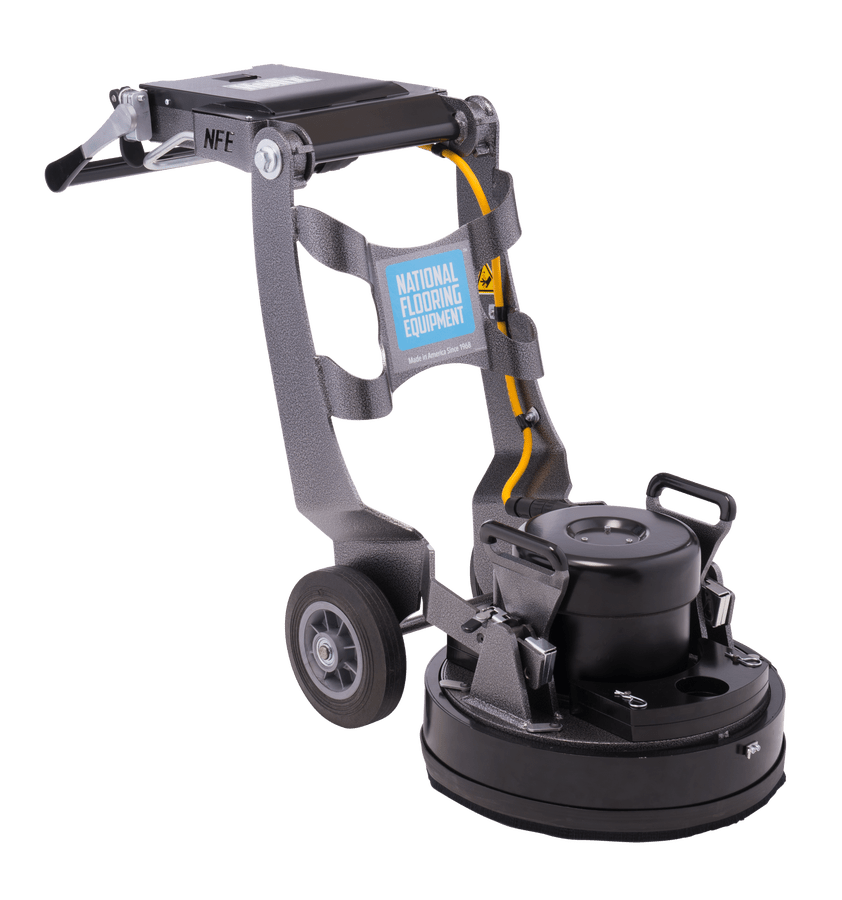

Helix Grinder
SKU: HELIX
Designed for small jobs and tough to reach spaces, this 16-inch planetary grinder creates the perfect profile for new coatings.
This easy-to operate machine has a built-in edge grinder, dual-speed operation, an adjustable handle, and floating dust skirt for maximum efficiency.
- Width: 17.5"
- Disk Size: 16"
- Max Height: 47.6"
- Min Height: 29.4"
- Max Length: 47"
- Min Length: 27.9"
- Weight: 206 lb
- Grinding Pressure: 128 lb
- Drum RPM: High/Low Speed: 304/171 (120V/60Hz)
- High/Low Speed: 291/164 (230V/50Hz)
- Motor RPM: High/Low Speed: 3339/1871 (120V/60Hz)
- High/Low Speed: 3200/1800 (230V/50Hz)
- Motor Phase: Single
- HP: 1.5
- Amps: 120V / 60Hz / 12 amps
National Flooring Equipment stands behind its products with a one-year warranty. We will replace or repair any product or part necessary at our Minneapolis, MN facility or at a National-designated certified warranty location. Our warranty includes the cost of freight expenses on qualified repair.
