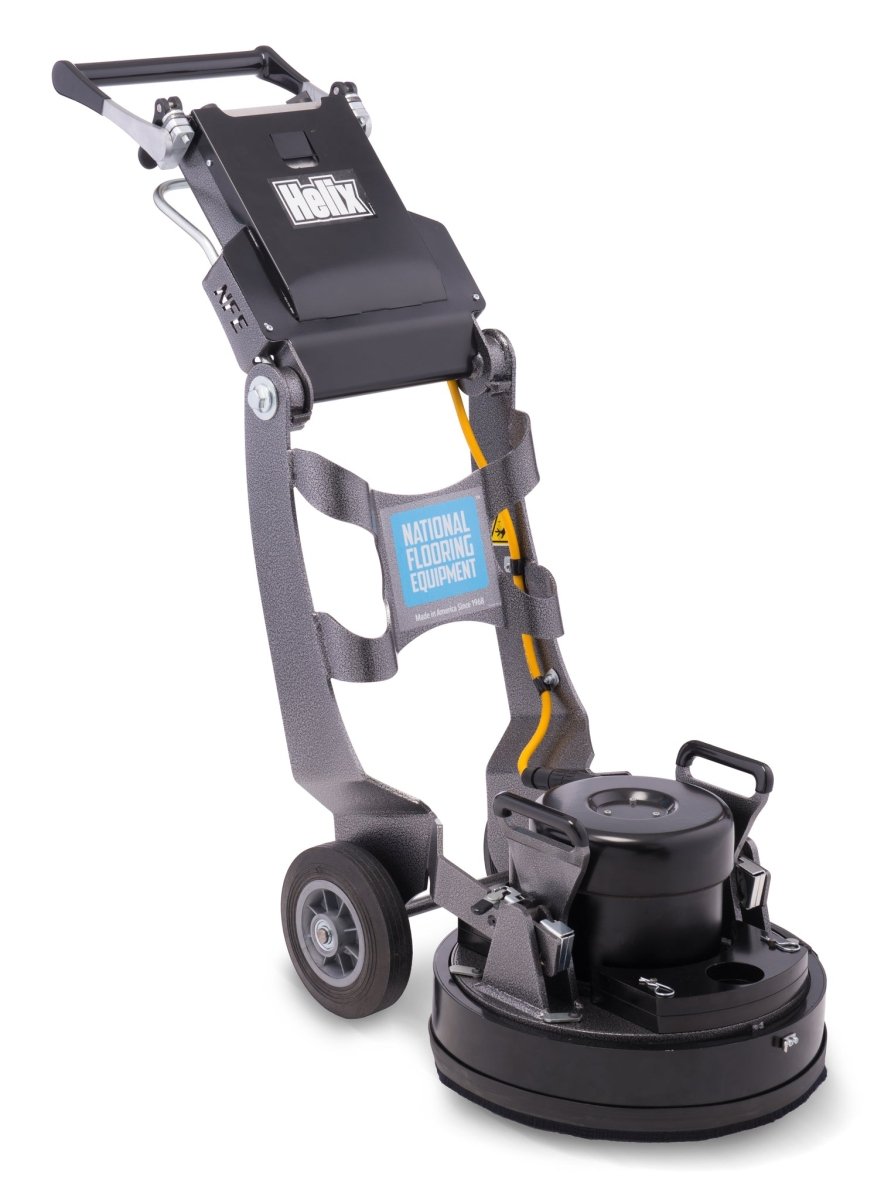

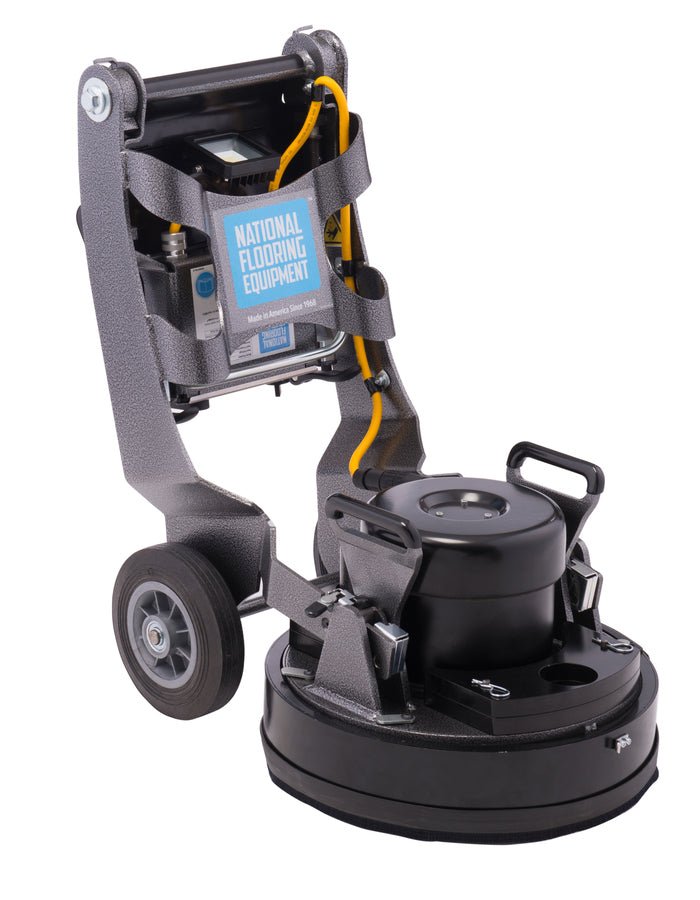

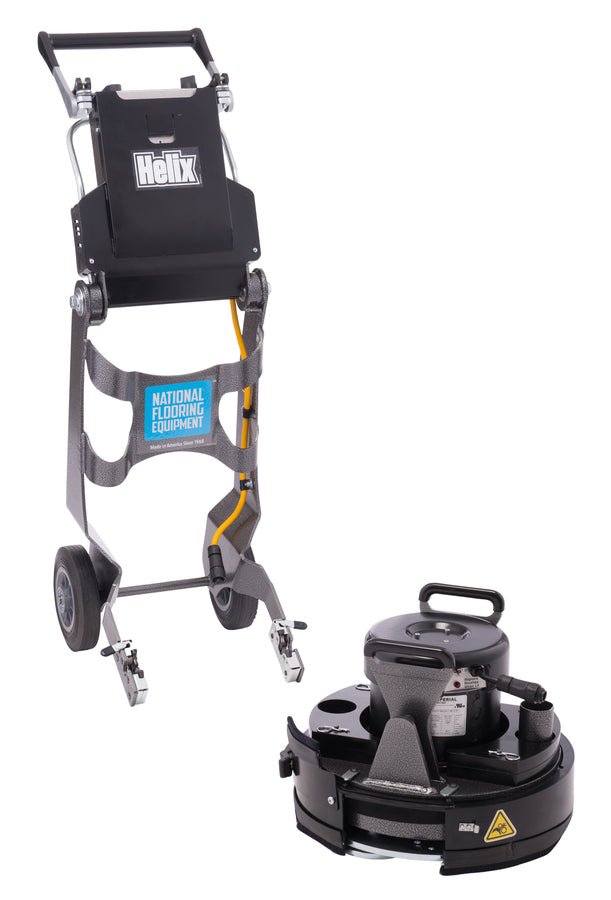

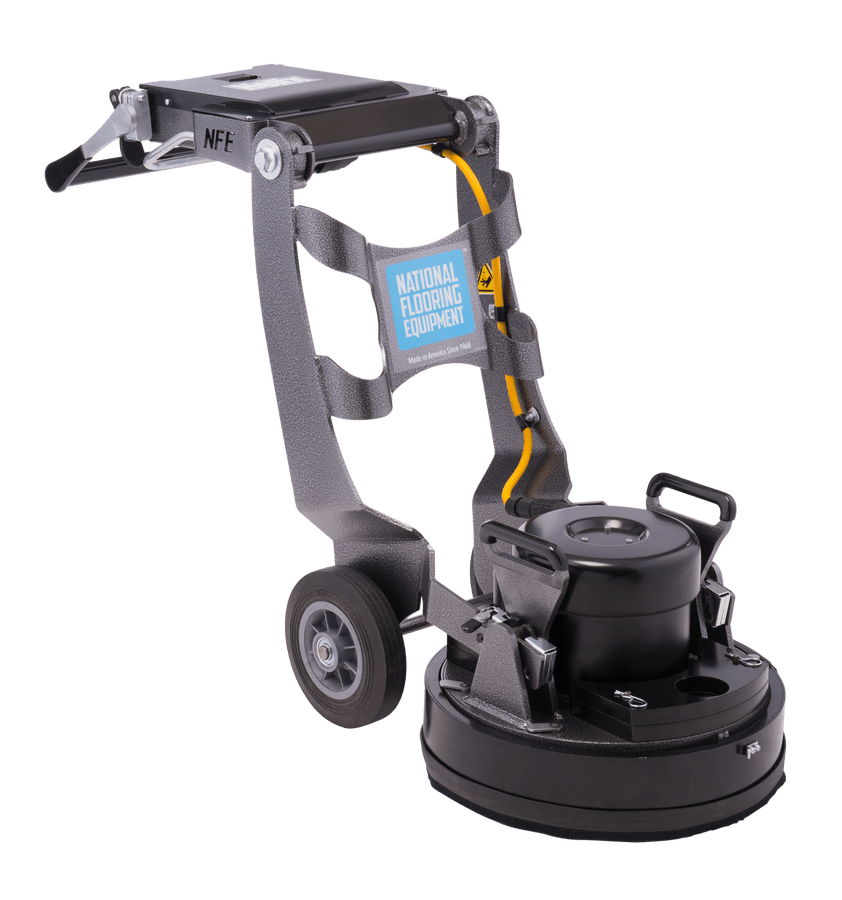

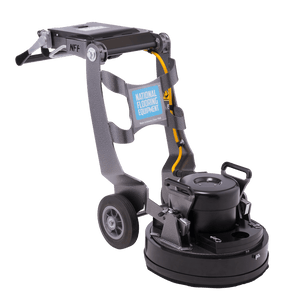

Helix Grinder

Designed for small jobs and tough to reach spaces, this 16-inch planetary grinder creates the perfect profile for new coatings.

This easy-to operate machine has a built-in edge grinder, dual-speed operation, an adjustable handle, and floating dust skirt for maximum efficiency.

• Width: 17.5"
• Disk Size: 16"
• Max Height: 47.6"
• Min Height: 29.4"
• Max Length: 47"
• Min Length: 27.9"
• Weight: 206 lb
• Grinding Pressure: 128 lb
• Drum RPM: High/Low Speed: 304/171 (120V/60Hz)
• High/Low Speed: 291/164 (230V/50Hz)
• Motor RPM: High/Low Speed: 3339/1871 (120V/60Hz)
• High/Low Speed: 3200/1800 (230V/50Hz)
• Motor Phase: Single
• HP: 1.5
• Amps: 120V / 60Hz / 12 amps

Helix Operating Manual

Helix Service Manual

National Flooring Equipment stands behind its products with a one-year warranty. We will replace or repair any product or part necessary at our Minneapolis, MN facility or at a National-designated certified warranty location. Our warranty includes the cost of freight expenses on qualified repair.
