Pallet Forks – 6,000 Lbs. Capacity Tall Frame Hd
SKU: 314019

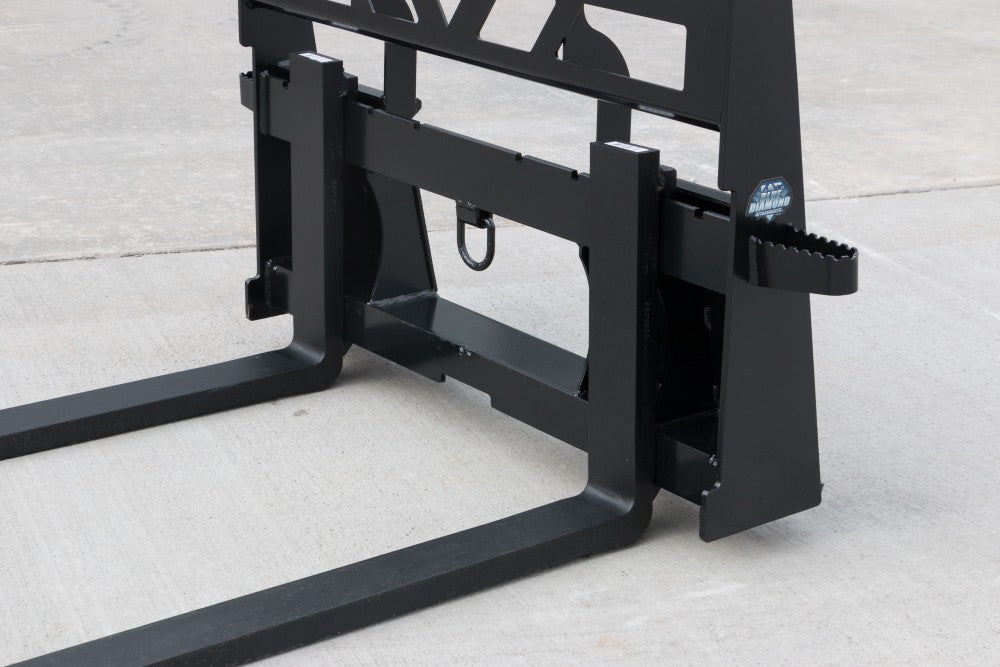

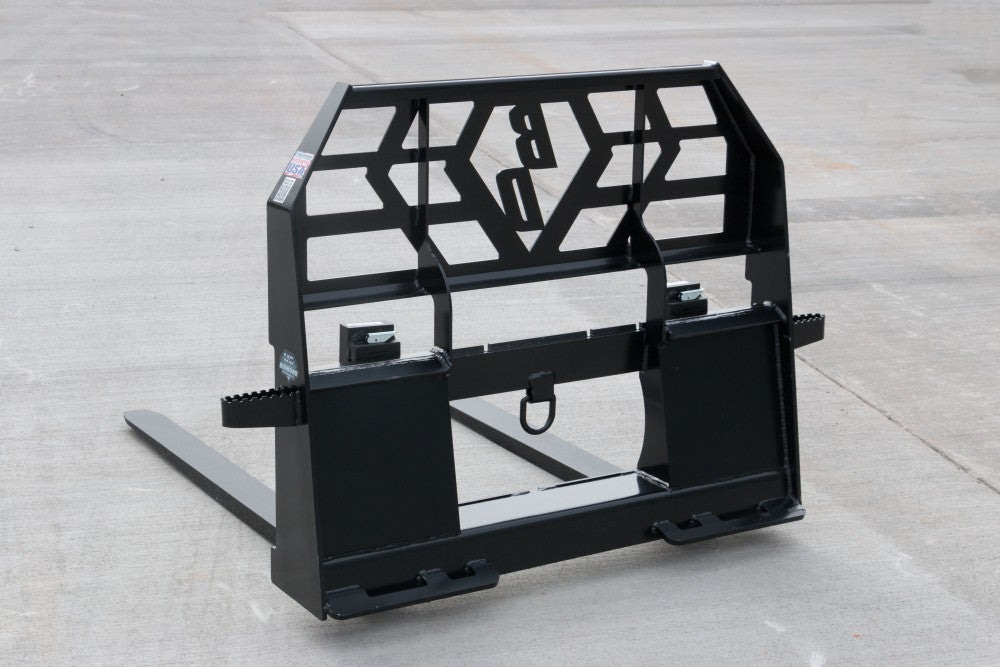

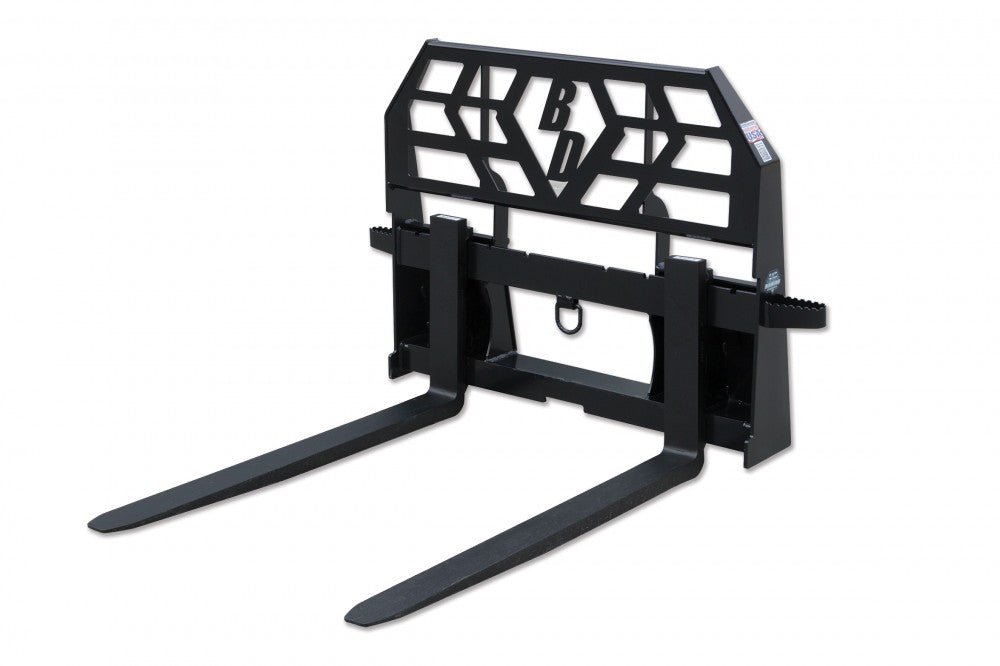

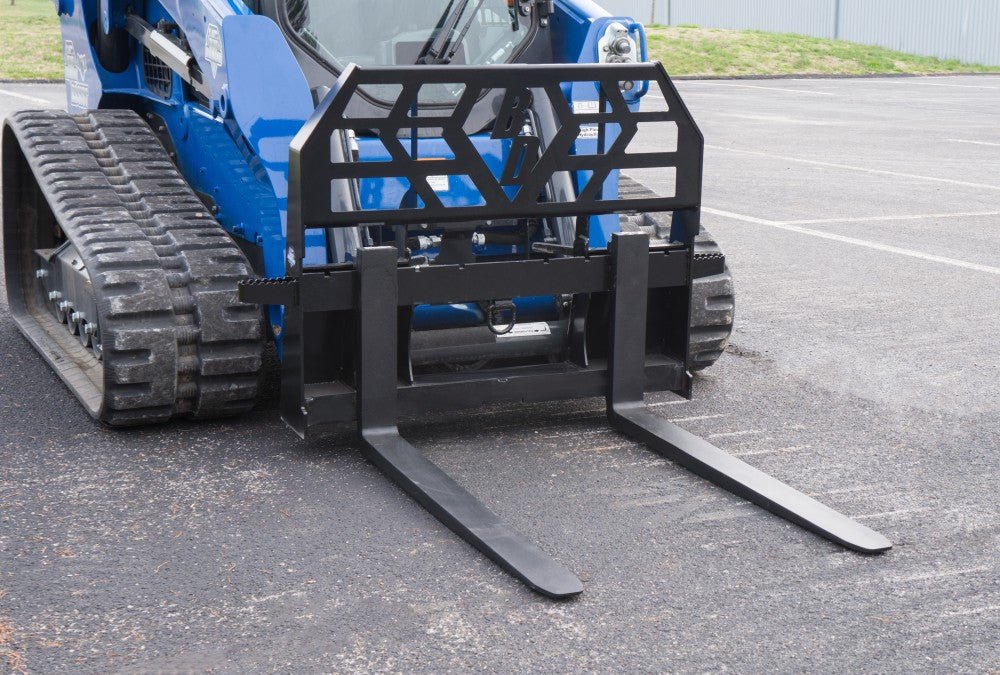

Our new Blue Diamond® Tall Frame Heavy Duty Pallet Forks are rated for 6,000 lbs lift. Featuring a heavier frame than our standard height Heavy Duty frame, these forks bring a few additional benefits.

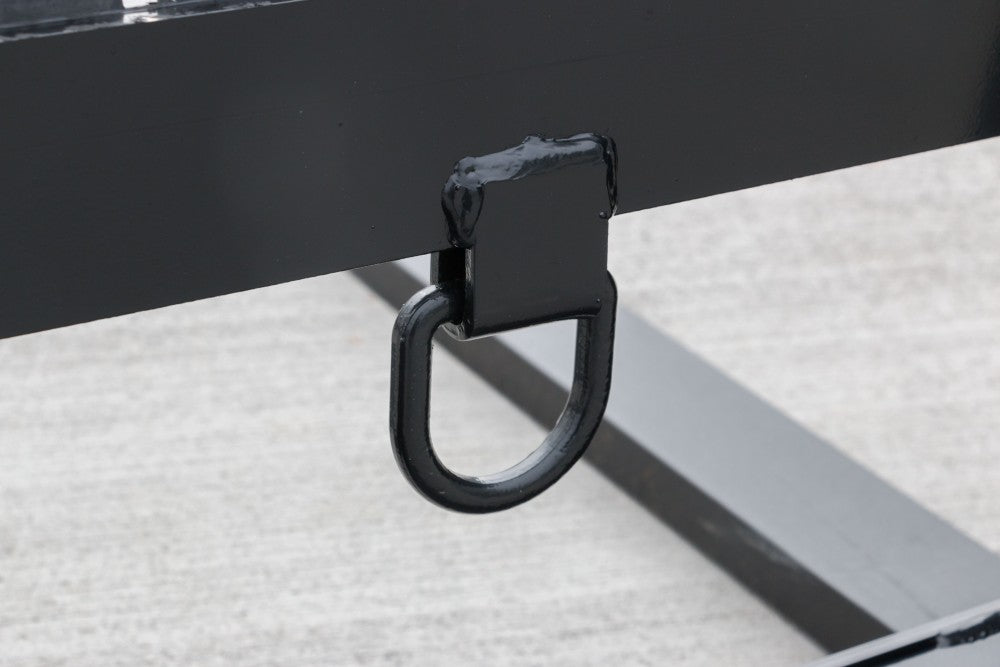

A heavy D-ring comes standard as do a high-visibility back rest and steps on each side. The back rest on this frame is set forward so the face of the backrest is flush with the front of the tines below. With a massive bottom frame and bracing, these forks are ready for whatever you’re lifting. They come standard with 48″ or 60″ adjustable tines.
FEATURES INCLUDE :
- Includes D-ring
- 4” carriage bar
- Excellent visibility

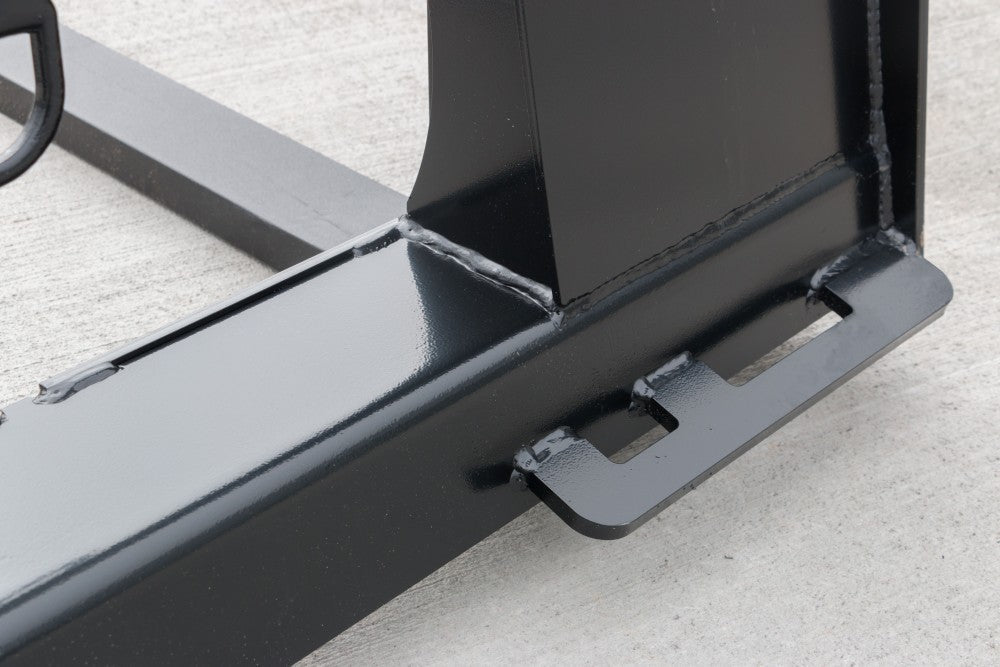

- Side steps for easy access into your machine
- 6,000 lb capacity
- 45″ wide (Outside of tine measurement)
- 38″ tall
PALLET FORKS - HEAVY DUTY D-RING WIDE FRAME
PRODUCT SPECS
| PART NUMBER | MODEL | TINE SIZE | LIFT CAPACITY | WEIGHT |
|---|---|---|---|---|
| 314019 | Pallet Fork, HD, W/Steps/D-Ring | 48" x 1 3/4" | 6,000 lbs | 375 lbs |
| 314020 | Pallet Fork, HD, W/Steps/D-Ring | 48" x 1 3/4" | 5,500 lbs | 486 lbs |
| 314021 | Pallet Fork, HD, W/Steps/D-Ring | 60" x 1 3/4" | 6,000 lbs | 560 lbs |
| 314022 | Pallet Fork, HD, W/Steps/D-Ring | 60" x 1 3/4" | 5,500 lbs | 520 lbs |
| 314023 | Pallet Fork, HD, W/Steps/D-Ring | 72" x 1 3/4" | 6,000 lbs | 562 lbs |
| 314024 | Pallet Fork, HD, W/Steps/D-Ring | 42" x 1 3/4" | 6,000 lbs | 481 lbs |
