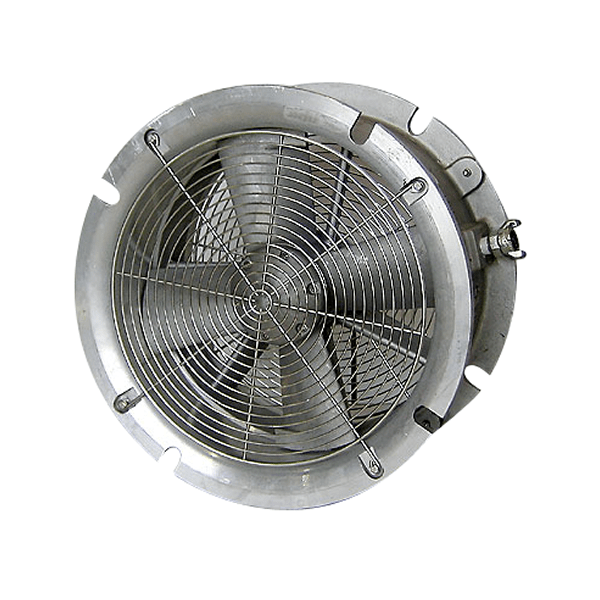

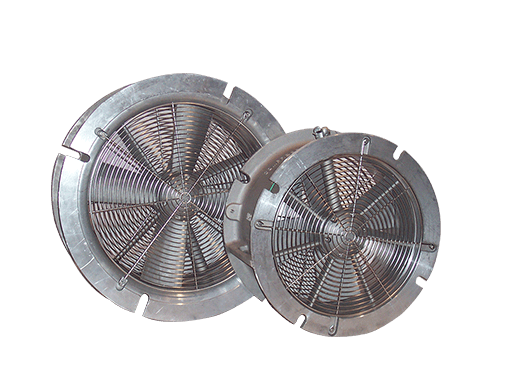

TX-JF20 - 20" Jet Fan Suited for ventilation of tanks, process vessels, or other confined areas for the removal of hazardous fumes or contaminated air from welding, sandblasting and other operations.

• Use for general ventilation in any location where compressed air is available. Use as blower or exhauster.
• Mounting Flange designed to use with 20″, 150# API Flange Plate.
• Rated operating pressure 40-110 PSI.
• Design allows for lower RPMs while still moving more air.
• Bearings are packed with a hi-tech synthetic lubricant for longer life.
• Fan Blades are precision balanced.
• Use as blower or exhauster.
• Electro polished stainless steel fan guards.
• Housings and Blades are heat treated to T6 aircraft aluminum specifications.
• Extreme-duty, high quality, high pressure air seal for longer service life.
• Heaviest-duty, highest quality fan in the industry.
• Hi-tech four blade design.
• Six guide vanes to smooth air flow and eliminate turbulence.
• Fan design by one of the foremost fan engineers in the world.

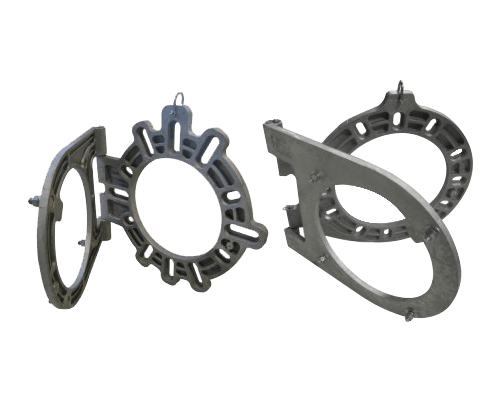

• Use with Swing Gates (TX-SG20) for added safety in confined space use.

Specifications:

• Weight = 96 lbs
• Minimum Hose Size = 1″ NPT
• Air Inlet = 3/4″ NPT
• Max Pressure = 150 PSI
• Depth = 12″
• Diameter = 24.5″

Jet Fan Brochure
