Brush Cutter – Extreme Duty Open Front

SKU# 103016

$10,153⁰⁰ ~~$11,848²⁴~~

Shipping calculated at checkout.

Options

60” Low Flow-Open Front 16-26 GPM 72” Low Flow-Open Front 16-26 GPM 60” High Flow-Open Front 27-40 GPM 72” High Flow-Open Front 27-35 GPM 72” High Flow-Open Front 36-45 GPM

Product variants

Safe & Secure Payments.

Finance this today with Centra Funding Logo Apply Here

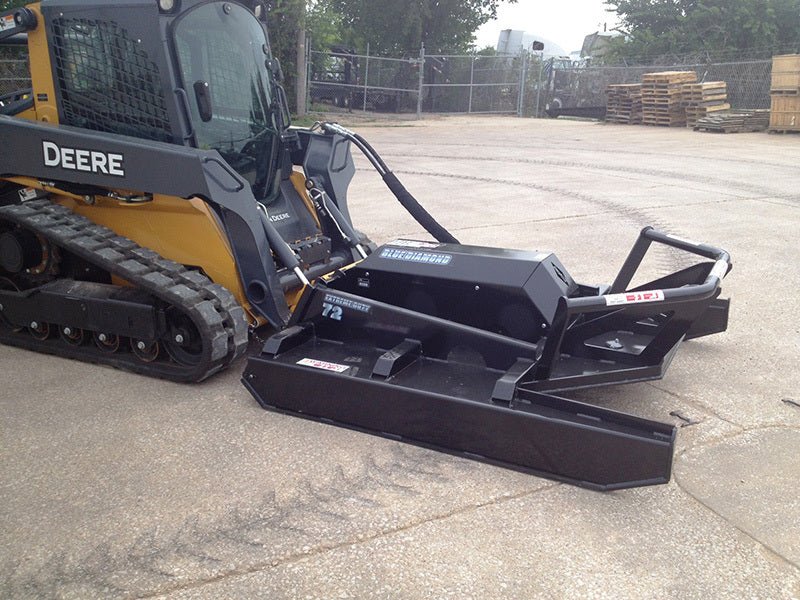

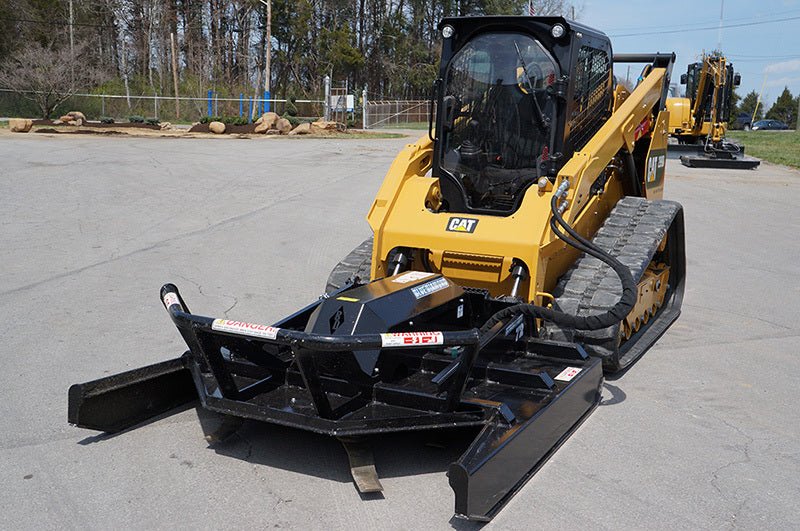

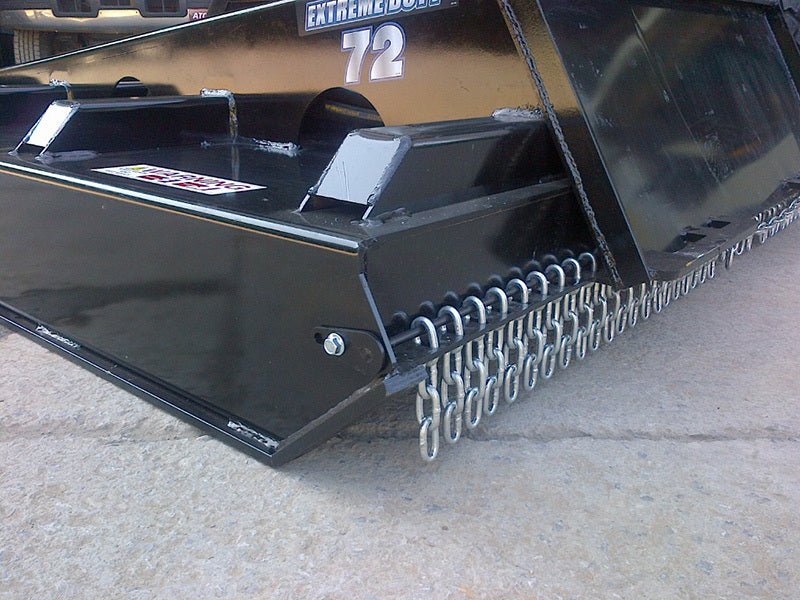

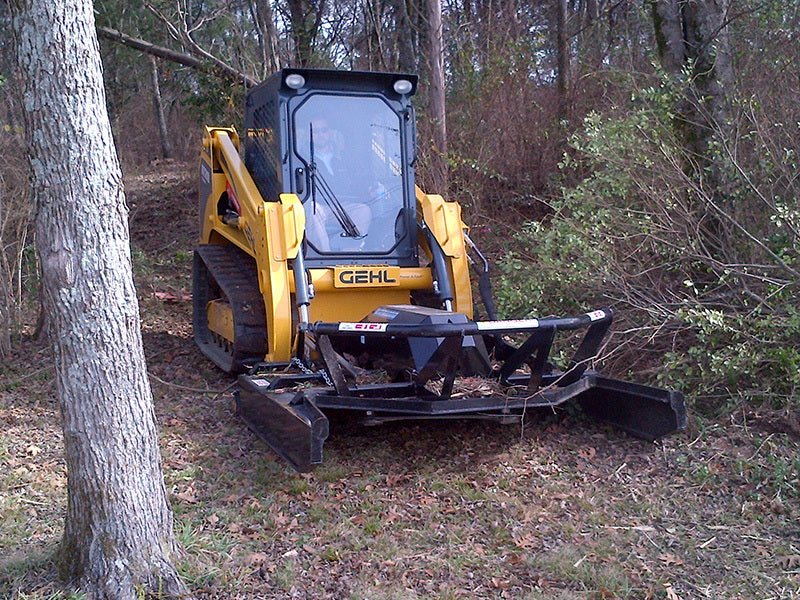

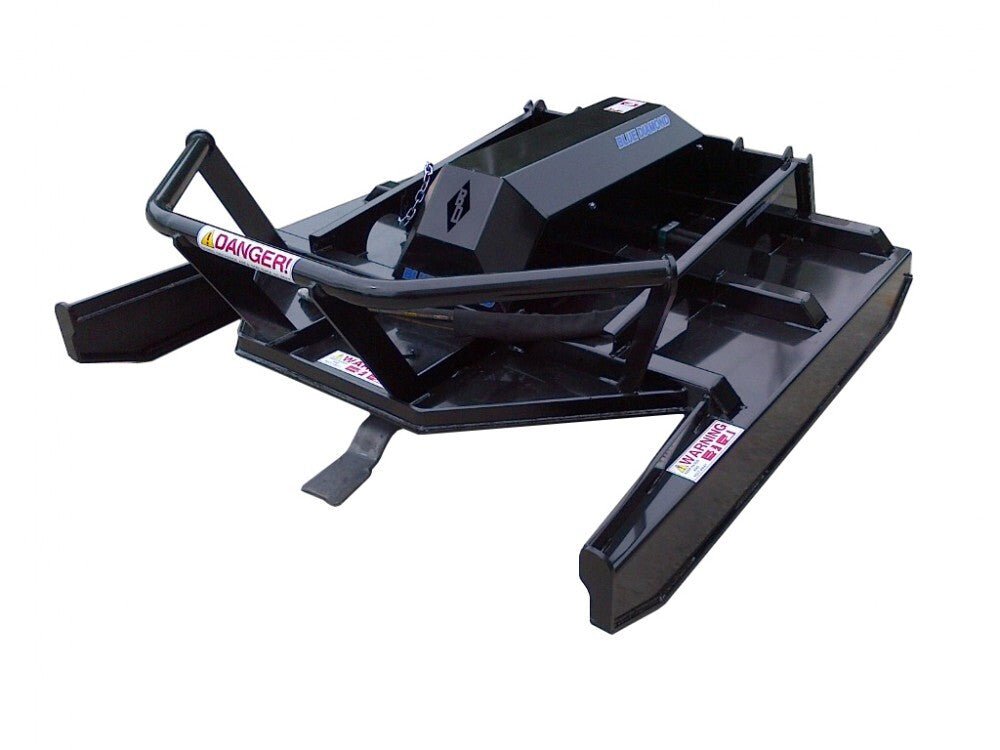

The Blue Diamond® Open Front Extreme Duty Brush Cutter is not only a brutal machine, mowing up to 6″ to 8″ material, but it also cuts grass better than any of its competitors.

Why limit yourself to doing one or the other? You don’t have to sacrifice any performance to be versatile! Find out why the Blue Diamond® Brush Cutter is the most popular skid steer brush cutter in the industry!

Features

3.5″ (at bearing, 4″ at seal) forgedone piece spindle is the toughest in the industry.
Grease-filled drive dramatically improves bearing life and downtime due to seal damage
Custom purpose-built motor and relief block out last industry standard motors
External cross-port reliefs protect motor versus internal relief valves
Fully enclosed motor compartment keeps out the debris that causes overheating issues, especially see in new Tier 4 version machines.
No rear roller to bounce off stumps or pull cut debris along. Open design allows smoother operation
Bi-directional cutting allows for control of the discharge angle, as well as doubling the use of the blades

Product Specs

PART NUMBER	MODEL	REQ. FLOW	WEIGHT
103016	60” Low Flow-Open Front	16-26 GPM	1,220 lbs.
103025	72” Low Flow-Open Front	16-26 GPM	1,547 lbs.
103017	60” High Flow-Open Front	27-40 GPM	1,220 lbs.
103030	72” High Flow-Open Front	27-35 GPM	1,555 lbs.
103032	72” High Flow-Open Front	36-45 GPM	1,555 lbs.

BDA EXTREME DUTY BRUSH CUTTER

EXTREME DUTY OPEN FRONT SPEC SHEET
