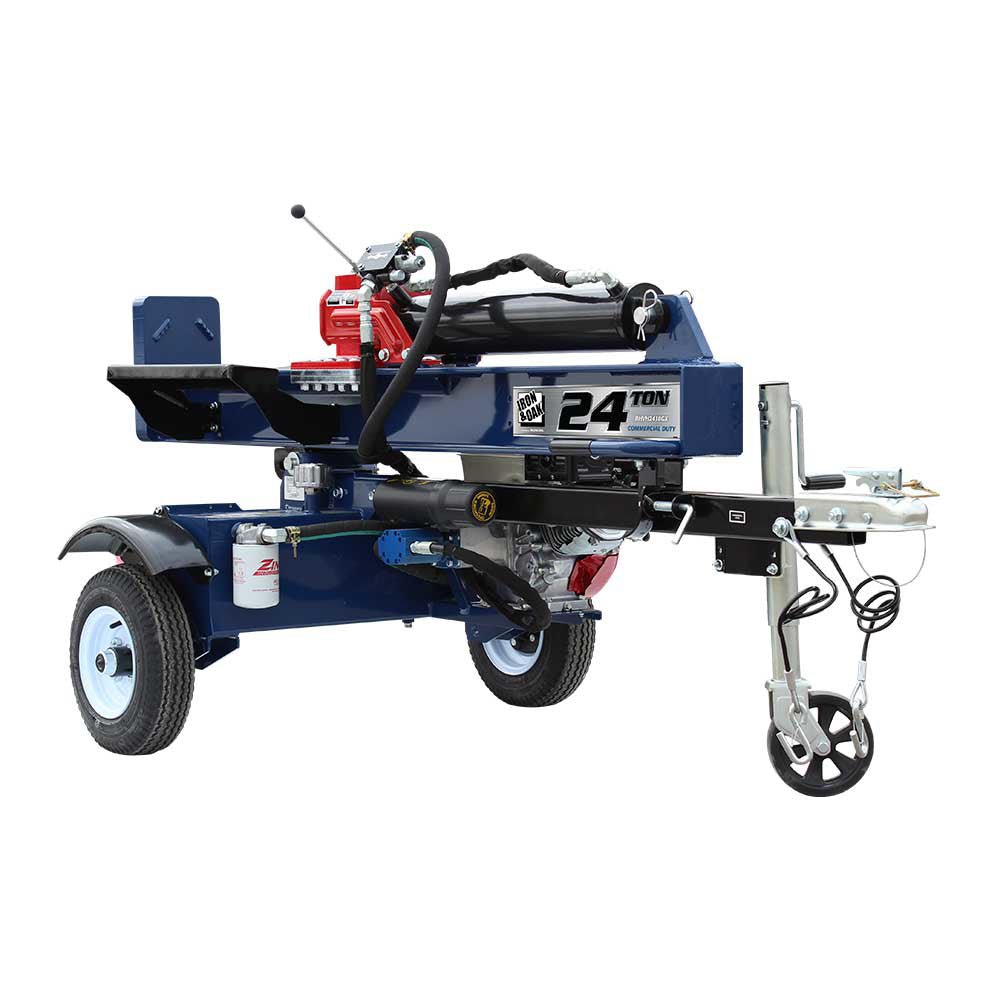

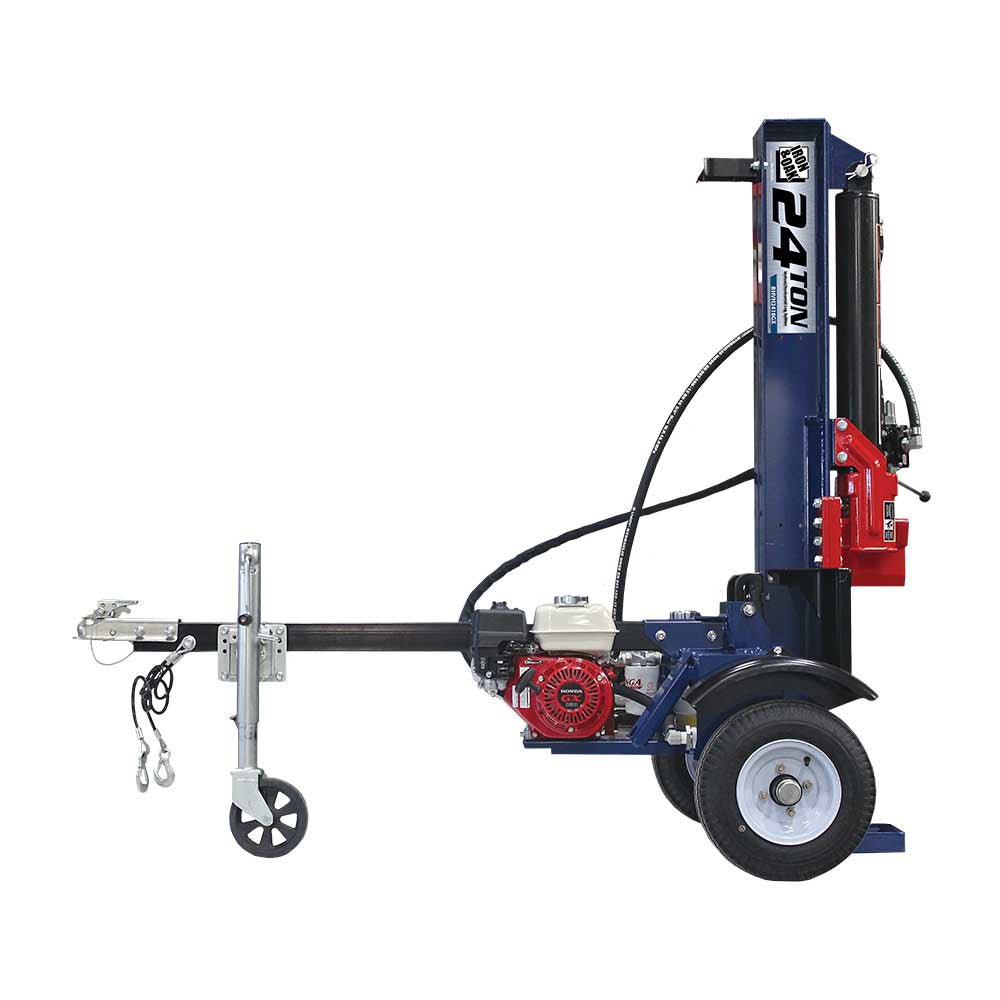

The Iron & Oak 24-ton log splitter gives you the ability to split both vertically and horizontally.

The 24 tons of pressure can split through most logs — ideal for rental properties and homeowners. This commercial-grade model comes standard with bells and whistles such as a log cradle, log dislodger, fenders, and more.

  • Auto latch system locks beam into the horizontal position for safe towing
  • Enhanced handle to assist with transitioning the unit between horizontal and vertical operating positions

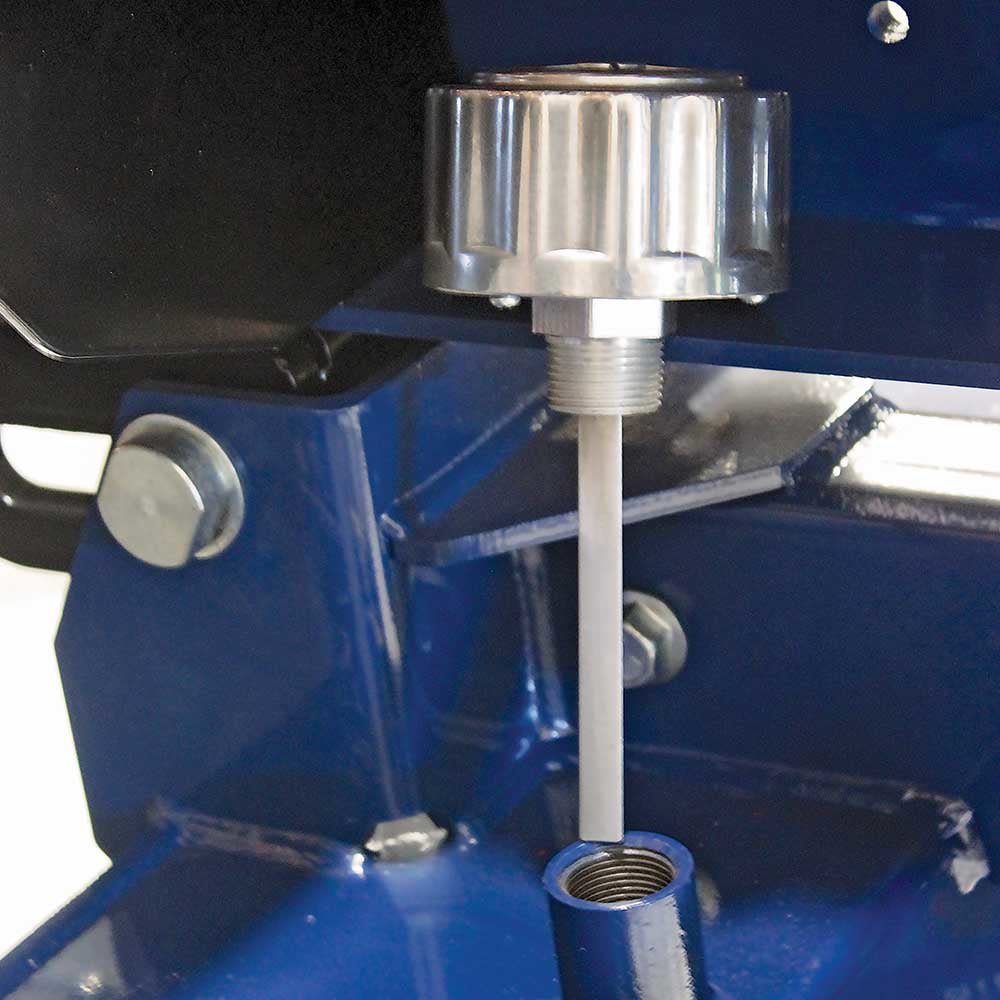

  • The 4-stage hydraulic filtration system prevents damage to the hydraulic system by removing metal particles and other micro-particles that can contaminate and damage the machine - components include a suction strainer, return line filter, breather cap air filter, and magnetic drain plug
  • Offset valve for a better operator position
  • Heavy-duty wedge design with five bolts per side
  • Halite commercial cylinder seals

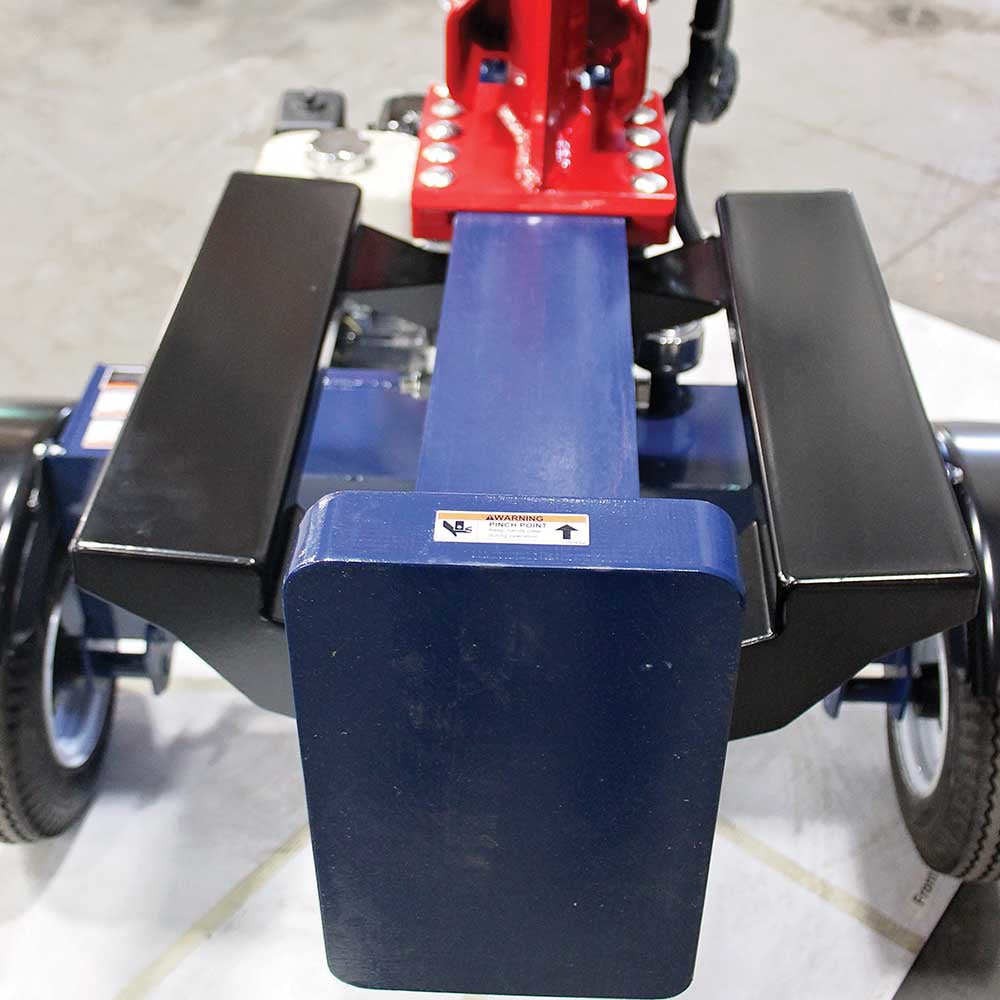

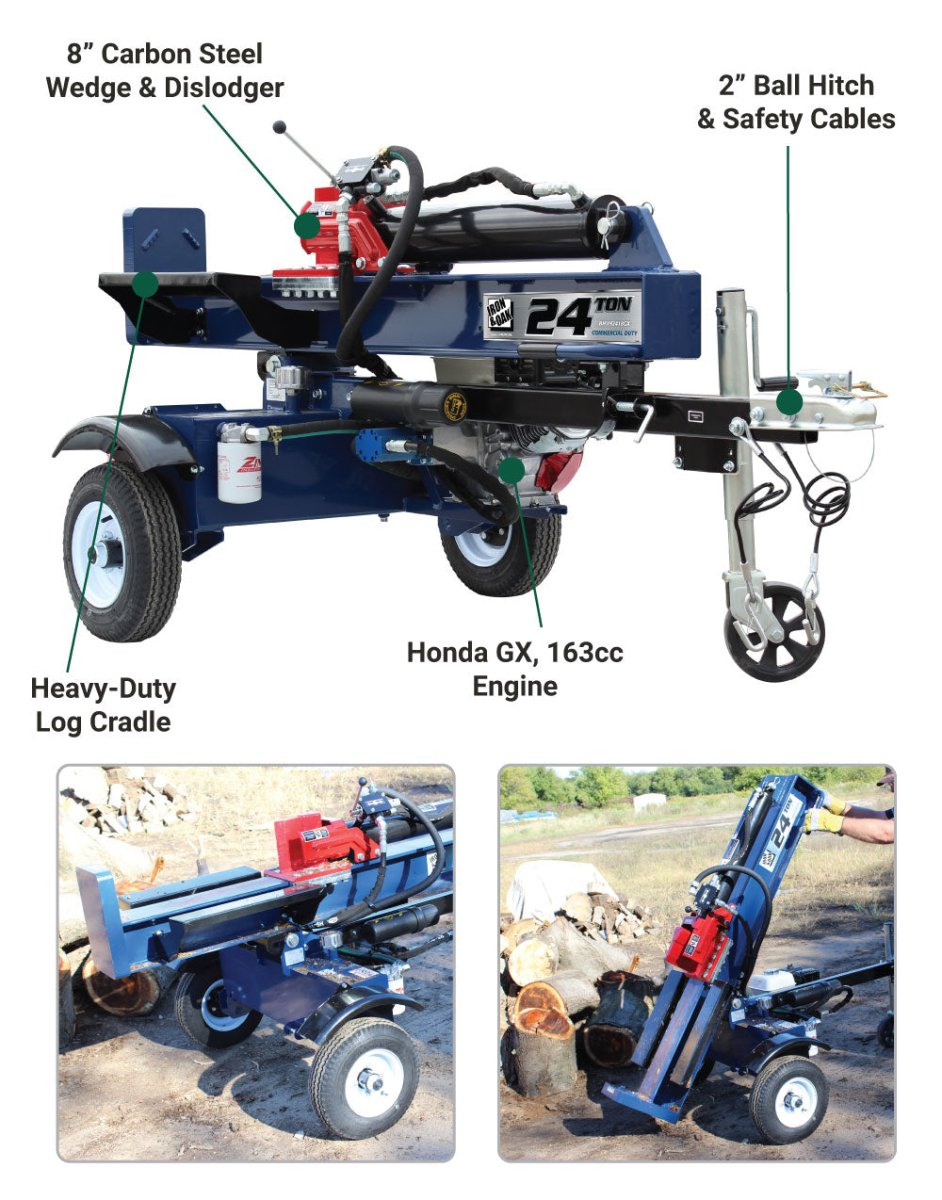

  • Log dislodger and log cradle standard
  • Larger jack wheel makes it easier to move
  • Tow cables included
Product Specifications
Equipment Type Log Splitter (Tow-behind)
Cycle Time 13 Seconds
Cylinder Size 4 in. x 24 in. Clevis Type, 1.75-in. Rod
Displacement 163cc
Dry Weight 675 Lbs
Engine Gx160
Engine Brand Honda
Hitch 2 In.
Hydraulic Capacity 10.0 Gal. System Total (tank 9 Gal. System Total)
Log Length 25 in. Max
Operation Horizontal And Vertical
Pump Type 11 Gpm Hi-lo 2 Stage
SKU BHVH2418GX
Splitting Force (Tons) 24 Tons
Splitting Height 32 In.
Tires 4.8 In. X 8.0 In. Highway Rated
Wedge Heavy-duty, 5 Bolts Per Side
