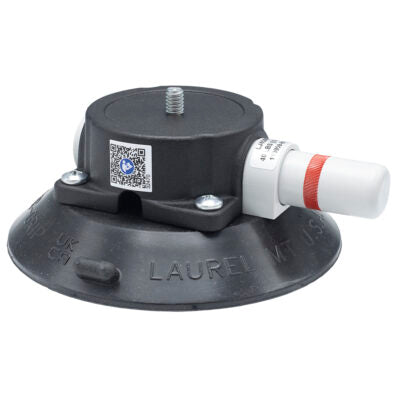

4-1/2" Vacuum Cup with 1/4-20 Threaded Stud (Pack of 4)

Wood's Powr-Grip 4-1/2" Vacuum Cup with 1/4-20 Threaded Stud — Reliable Equipment Mounting on Smooth, Nonporous Surfaces

The Wood's Powr-Grip 91207 is a 4-1/2" diameter vacuum cup designed for securely mounting equipment on smooth, nonporous surfaces in demanding job site environments. Built around the LJ45 pad model with a 1/4" long x 1/4-20 threaded stud connection point, this cup provides contractors and trades professionals with a dependable hands-free mounting solution without the need for fasteners or adhesives. It is suitable for both flat and curved surfaces, making it versatile across a wide range of installation scenarios. The 1/4-20 threaded stud connection allows direct integration with compatible tools, handles, and accessory mounts.

What sets the Wood's Powr-Grip 91207 apart from generic vacuum cups is its UV-resistant rubber compound, which maintains pad integrity under prolonged sun exposure — a critical advantage for exterior applications where lesser materials degrade quickly. Wood's Powr-Grip is the original and trusted name in vacuum lifting and mounting equipment, with a product design focused on maintainability, including field-replaceable pads, filters, and pump assemblies that extend the service life of the cup well beyond a single job.

Key Features & Benefits

UV-Resistant Rubber Pad

The vacuum pad is manufactured from UV-resistant rubber, preventing premature hardening, cracking, or loss of suction that commonly occurs with standard rubber compounds exposed to sunlight. This makes the 91207 a dependable choice for exterior mounting tasks where the cup may be left in place for extended periods. Contractors working outdoors can rely on consistent sealing performance across the full service life of the pad.

1/4-20 Threaded Stud Connection

The 1/4" long x 1/4-20 threaded stud provides a standard mechanical interface compatible with a wide range of tools, camera mounts, handles, and accessory hardware. This eliminates the need for adapters in most configurations and allows rapid equipment changes on the job. The threaded connection delivers a rigid, vibration-resistant attachment point that performs under load.

Flat and Curved Surface Compatibility

The LJ45 pad is rated for use on both flat and curved surfaces, expanding the range of substrates where the cup can be deployed without requiring a different tool. This flexibility reduces the number of specialty cups a contractor needs to carry to cover common mounting scenarios. The pad's conforming rubber construction adapts to moderate surface curvature while maintaining an airtight seal.

Wide Operating Temperature Range

The 91207 is rated for operation from 0°F to 120°F (-18°C to 49°C), covering the full range of temperatures encountered on North American job sites in all seasons. Cold-weather performance is particularly important for contractors working in northern climates where rubber compounds in competing products can stiffen and lose their seal. This rating ensures year-round usability without product substitution.

Field-Maintainable Design

The cup is engineered for ongoing maintenance with user-replaceable components including the felt filter, vacuum pad, and pump assembly. A built-in red-line vacuum indicator on the plunger provides an immediate visual check of seal integrity without the need for gauges or test equipment. Contractors can perform leak tests, clean the pad, and replace worn components in the field, maximizing uptime and minimizing replacement costs.

Established Brand Reliability

Wood's Powr-Grip is the original manufacturer of professional-grade vacuum cups and lifting equipment, with decades of use across glazing, construction, and industrial trades. Products are sold through authorized dealers and supported by a dedicated customer service and technical sales team. This supply chain structure ensures genuine replacement parts and professional support are consistently available.

Common Applications

Equipment Mounting on Glass Surfaces

The 91207 is well suited for temporarily or semi-permanently mounting tools, sensors, cameras, or signage hardware to glass panels on building facades, storefronts, or interior partitions. The nonporous surface provides a strong, reliable seal without risk of adhesive residue.

Instrument and Monitor Mounting

Contractors and technicians can use the 1/4-20 threaded stud to attach monitoring equipment, levels, or display units directly to smooth machine surfaces or finished panels. This provides a stable, repositionable mounting solution that does not require drilling or permanent hardware.

Automotive and Vehicle Surface Attachment

The UV-resistant pad and wide temperature range make the 91207 appropriate for mounting equipment to vehicle exteriors, including painted metal panels and windshields, in outdoor environments. The cup holds securely on curved automotive surfaces within its rated curvature tolerance.

HVAC and Mechanical Equipment Installation

Technicians can use the vacuum cup to temporarily secure components or tools against smooth metal equipment housings during installation or service procedures. The threaded stud allows connection to custom jigs or positioning fixtures.

Signage and Display Installation

The 91207 provides a clean, fastener-free mounting point for temporary signage, display panels, or wayfinding hardware on smooth interior surfaces such as tile, polished concrete, or coated drywall. Removal leaves no marks or residue on finished surfaces.

General Construction Positioning Tasks

The cup can serve as a hands-free holding fixture for lightweight components on smooth nonporous surfaces during layout, measurement, or assembly operations, freeing the operator's hands for other tasks.

Compatible Materials

• Flat glass (tempered, laminated, annealed)
• Curved glass within allowable curvature tolerance
• Polished or painted steel
• Aluminum (smooth, uncoated or coated)
• Ceramic and porcelain tile (glazed)
• Polished concrete and stone
• Acrylic and polycarbonate sheet (smooth face)
• Fiberglass reinforced panels (smooth gel-coat face)
• Other smooth, nonporous, clean surfaces

Product Documents

• Instructions — Wood's Powr-Grip Vacuum Cup Instructions (PDF)
• Troubleshooting & Maintenance Guide — 3", 3"x6", 4-1/2" and 6" Vacuum Cups (PDF)

Application Instructions

Step 1: Inspect the Cup Before Use

1. Confirm the felt filter is in place in the pad face recess. Do not use the cup if the filter is missing.
2. Examine the plunger assembly and cylinder for cracks or visible damage.
3. Check that the vacuum pad face feels grippy. If it feels slick, clean the pad before use.
4. Inspect the sealing edge by slowly running your finger along its full length, feeling for roughness, cuts, or foreign material. Bend the sealing edge toward you to check for V-shaped gaps indicating cuts or cracks. Replace the pad if any gap or excessive roughness is found.

Step 2: Clean the Vacuum Pad (If Required)

1. Remove the felt filter from the pad face.
2. Hold the cup facedown or cover the suction inlet to prevent liquid from entering the pump during cleaning.
3. Apply soapy water or a mild cleanser with a clean sponge or lint-free cloth to the pad face. Do not use solvents or rubber conditioners.
4. Wipe all residue from the pad face and allow the cup to dry completely.
5. Reinstall the felt filter before use.

Step 3: Prepare the Mounting Surface

1. Ensure the target surface is smooth, nonporous, and clean.
2. Wipe the surface free of dust, oil, moisture, or other contamination. Allow the surface to dry if washed.

Step 4: Attach the Vacuum Cup

1. Press the cup pad firmly against the prepared surface.
2. Operate the plunger to evacuate air and create the vacuum seal.
3. Continue pumping until the red line on the plunger is no longer visible, indicating sufficient vacuum.
4. Confirm the cup is secure before loading.

Step 5: Leak-Test the Cup (Periodic Maintenance)

1. Attach the cup to a clean, smooth, scratch-free piece of glass or metal.
2. Leave the cup in place for approximately 2 hours.
3. If the red line does not appear during the test period, the cup is usable.
4. If the red line does appear, perform general maintenance (clean pad, lubricate pump, inspect sealing edge) and repeat the test.
5. If the problem persists after maintenance, consult the Troubleshooting Guide or contact Wood's Powr-Grip Customer Service or an authorized dealer.

Step 6: Release the Cup

1. Use the release tab to break the vacuum seal before removing the cup from the surface.
2. Do not pull the cup away from the surface without first releasing the vacuum.

Technical Specifications

Frequently Asked Questions

Q: What surfaces is the 91207 vacuum cup compatible with?
A: The cup is designed for smooth, nonporous surfaces including flat and curved glass, polished or painted metal, glazed tile, polished concrete, and similar materials. Porous, rough, or contaminated surfaces will not provide a reliable seal.

Q: How do I know if the vacuum cup is maintaining its seal?
A: The red line on the plunger serves as a built-in vacuum indicator. If the red line is not visible, the cup is holding adequate vacuum. If the red line appears during use or a 2-hour leak test, inspect and clean the cup and repeat the test.

Q: Can this cup be used outdoors in direct sunlight?
A: Yes. The UV-resistant rubber pad is specifically formulated to resist degradation from ultraviolet exposure, making the 91207 suitable for outdoor and exterior mounting applications. The operating temperature range of 0°F to 120°F covers typical outdoor ambient conditions.

Q: What accessories are compatible with the 1/4-20 threaded stud on this cup?
A: The 1/4-20 stud is compatible with a wide range of standard threaded accessories. Wood's Powr-Grip offers compatible accessories including T-handles (stock #15790) and aluminum accessory mounts (stock #50210). Many standard camera, instrument, and rigging accessories with 1/4-20 female threads will also fit.

Q: How often should the vacuum pad be replaced?
A: Wood's Powr-Grip recommends replacing the vacuum pad at least once every two years, or sooner if the pad face appears slick or worn, or if cuts or V-shaped gaps are found in the sealing edge. A worn or damaged pad cannot maintain a safe seal and must be replaced before continued use.

Q: Can the cup components be serviced in the field?
A: Yes. The felt filter, vacuum pad, and pump assembly are all individually replaceable. Field maintenance procedures including cleaning, pad inspection, sealing edge checks, pump lubrication, and leak testing are documented in the Troubleshooting & Maintenance Guide available for download above. If maintenance does not resolve performance issues, contact Wood's Powr-Grip Customer Service at 1-800-548-7341 or visit WPG.com.
