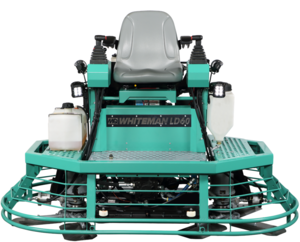

Multiquip LD60 6' Hydraulic Ride-On Power Trowel

The LD60 is the only fully hydraulic 6' ride-on trowel on the market today, built for performance levels unmatched by any 6' ride-on trowel in the industry.

An electro-proportional servo controlled pump and high torque drive motors power the LD60 to deliver industry-leading results. Proportional hydraulic steering enhances maneuverability, while the all-new walk-around frame design simplifies maintenance and offers easy access to all serviceable components.

Drive System

• 23 HP Vanguard air-cooled V-twin gasoline engine offers the quality, performance, and dependability contractors demand
• Poclain and Parker hydraulic components deliver the efficiency and performance required for panning and finishing
• Fully hydrostatic system offers years of trouble-free service

Design

• Proportional hydraulic steering offers quick response with minimal operator effort
• Electric linear actuators control pitch for precision blade pitch control
• Rebuildable spider assemblies reduce maintenance costs
• Non-overlapping design allows the versatility of using blades or pans on the job site
• Standard 36" pans and blade accessories are available
• Improved stability — engine placement lowers overall center of gravity and reduces frame roll
• LED lighting provides state-of-the-art illumination for nighttime or indoor work
• Retardant spray system, actuated by controls located on the steering handles, provides uniform coverage of the slab surface

Operating Controls

• Manual hand throttle and pump stroke controls allow the operator to set precise engine and rotor RPM
• Ergonomic controls enhance productivity and reduce operator fatigue

Note: Engines using gasoline or LPG fuel should be operated only in areas with adequate ventilation. Never operate in confined areas or in areas where the free flow of air is restricted.
