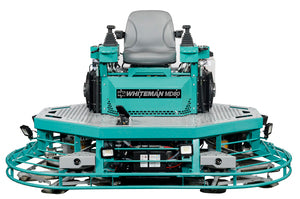

Multiquip MD80 8' Hydraulic Riding Trowel

The MD80 is Multiquip's 8-foot hydraulic ride-on power trowel, built to deliver superior performance with hassle-free operation on every slab.

The newest addition to Multiquip's family of hydraulic riders, the MD80 pairs a powerful 40 HP Vanguard engine with twin six-blade rotors to take contractors from panning through to final finish with total control.

Drive System

• 40 HP EFI Vanguard gasoline engine complies with US EPA Tier 4 Final emission requirements
• Patented Engine Power Management senses engine load and adjusts hydraulic pump stroke to allow the engine to operate at peak performance
• Six-blade spider assemblies assure the flattest floors possible with 33% more blade contact

Operator Controls

• Cruise control enables the operator to precisely set rotor speeds to maintain consistent rotor speeds under varying load conditions
• Ergonomic controls enhance productivity and reduce operator fatigue
• 6 LED lights provide state-of-the-art illumination for nighttime or indoor work
• Retardant spray system is actuated by control buttons located on the steering control handles
• Proportional hydraulic steering has been enhanced and offers improved responsiveness with minimal operator effort
• Multifunction display provides the operator with easy-to-read data including engine speed, fuel levels, and alerts
• Drink holder for operator convenience

Design

• Electric linear actuator controls pitch for precision blade angle
• Improved stability — engine placement lowers overall center of gravity and reduces frame roll
• Rebuildable spider assemblies reduce maintenance costs
• Non-overlapping design allows the versatility of using blades or pans on the job site
• Standard 46" pans and blade accessories are available

Supporting Documents

MD80 Cut Sheet

Specifications
