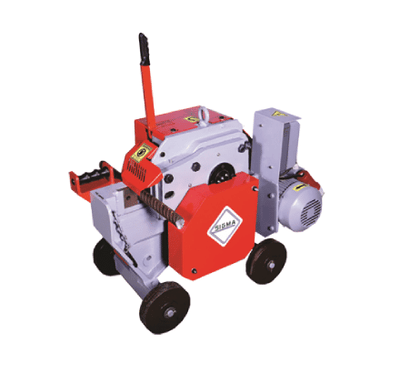

Sigma Series Professional Rebar Cutters | 240/415V 3-Phase
SKU: DCM-32
Sigma Series Professional Rebar Cutters | 240/415V 3-Phase available for cutting up to #11 rebar
The SIGMA SERIES professional heavy-duty rebar cutters have a robust steel alloy body casting with hardened gear and clutch systems coupled with an industrial grade motor. The rebar cutter has capacity to cut high tensile grade 60 rebar. Currently available is two sizes, the shearing capacity makes these tools true in-shop production machines.
Model No. DCM-32: Number of Bars: 1 / 2; Grade 60: #10 ( 32mm) / #6 (20mm)
Model No. DCM-40: Number of Bars: 1 / 2; Grade 60: #11 (40mm) / #8 (25mm)
PRODUCT LINKS
- Printable DCM-32/40 literature sheet: CLICK HERE
- DCM-40 Technical Manual: CLICK HERE
- DCM-32 Technical Manual: CLICK HERE
| Width | 22.05" (560mm) / 22.05" (560mm) |
| Length | 40.35" (1025mm) / 40.16" (1120mm) |
| Height | 29.50" (750mm) / 29.50" (750mm) |
| Motor | 5 hp (3.7 kw) / 7.5 Hp (7.5 kw) |
| Frequency | 60 Hz / 60 Hz |
| Voltage | 240/415V 3-phase AC / 240/415V 3-phase AC |
| Weight | 805 lbs ( 365 Kg) / 1047 lbs (475 Kg) |
| Rotation (RPM) | 1400 RPM / 1400 RPM |
| DCH-40 Hydraulic Model | Available for cutting up to #11 rebar |
