Multiquip TP7X Tile Saws
Multiquip TP7X Tile Saws is backordered and will ship as soon as it is back in stock.
Safe & Secure Payments.
TP7 Tile Saw is a lightweight, compact, and professional

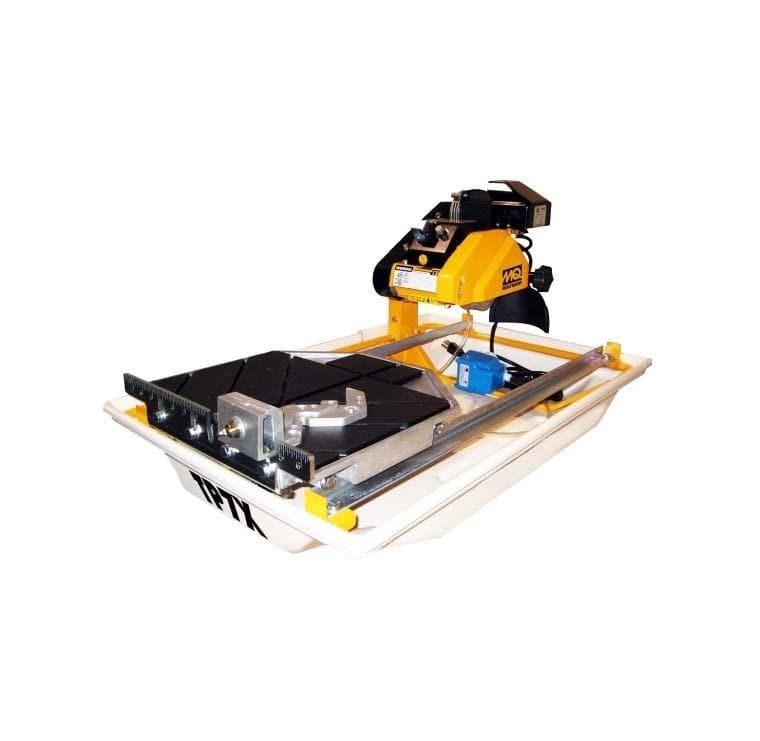

The TP7 is a lightweight, compact tile saw. The sturdy steel precision frame is matched with a cast aluminum oversized conveyor cart. An innovative water-cooled bearing assembly works with the water pump to keep key bearing components running cooler. A thermal plastic water tray reservoir will not rust nor bend out of shape.
- Compact, rugged frame assembly for easy transport and storage
- Electric induction UL/CSA-approved motor with thermal overload and fan cover protection
- High-impact thermal plastic tray won't rust or bend out of shape Rugged cast aluminum table with heavy-duty injection molded rubber padding.
- Industrial ball bearing rollers ensure smooth, precise cart movement
- Maintenance-free submersible water pump provides high volume water flow
- Heavy cast aluminum blade guard evenly distributes water to the blade
- Combination 45/90 degree rip guide and 45 degree miter block included
- Premium 7 inch (178 mm) tile blade included
| Power Source | 1HP 115V 15A 50/60HZ | |
| Blade Capacity | 7 in | |
| Blade RPM | 6,000 | |
| Arbor Size | 5/8 in | |
| Drive System | V-Belt | |
| Cutting Depth | 1-3/4 in | |
| Straight Cut | 17 in | |
| Diagonal Cut | 12 in | |
| Water Pump | 115V 100GPH | |
| Water Pan | Molded Polyethylene | |
| Cutting Jigs | Standard | |
| Overall Length | 30 in | 762 mm |
| Overall Width | 19 in | 483 mm |
| Overall Height | 18 in | 457 mm |
| Operating Weight | 43 lb | 20 kg |
