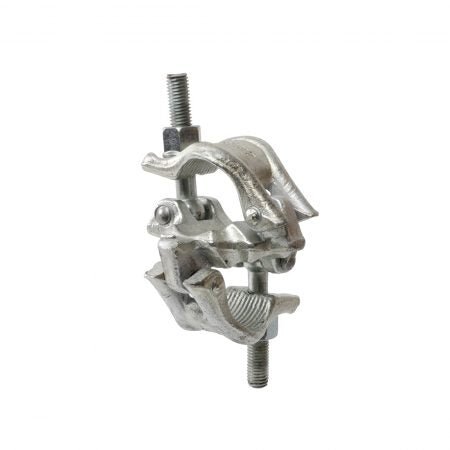

Bolted 90° Fixed Clamp

Bolted 90° Fixed Clamp for Scaffolding & Structural Tube Connections

A Bolted 90° Fixed Clamp is a structural fitting used to securely connect two tubes, pipes, or scaffold members at a fixed right angle (90°). It is tightened using bolts to create a strong, rigid connection that prevents movement or rotation between joined components, making it ideal for stable structural assemblies.

Built for strength and reliability, this clamp is commonly used in professional scaffolding and industrial frameworks where secure fixed-angle connections are required. Its bolted design ensures long-term stability in both temporary and permanent installations.

Key Features

• Creates a permanent or semi-permanent 90° fixed connection

• Heavy-duty bolted design for maximum strength and stability

• Helps maintain structural alignment and rigidity

• Suitable for indoor and outdoor applications

• Typically manufactured from galvanized steel, stainless steel, or malleable iron for corrosion resistance

Typical Applications

• Scaffolding systems

• Safety railings and guardrails

• Tube-and-pipe framework structures

• Industrial platforms

• Handrail and barrier installations

Construction Features

• Material options include galvanized steel, stainless steel, or malleable iron for durability and corrosion resistance

• Fixed 90° geometry engineered for precise right-angle alignment

• Bolted fastening system ensures a secure, vibration-resistant hold

• Designed for structural load-bearing applications requiring rigidity

• Weather-resistant finish suitable for indoor and outdoor environments

Why Use a Bolted 90° Fixed Clamp?

• Provides a strong, non-rotating right-angle joint

• Improves structural stability in scaffolding and pipe frameworks

• Reduces movement and misalignment under load

• Faster and more flexible than welded connections for temporary builds

• Supports efficient on-site assembly and disassembly

Safety Recommendations

• Fully tighten all bolts before use

• Inspect regularly for cracks, corrosion, or bolt wear

• Ensure correct tube size compatibility (Ø 1.625 / 1.9 in.)

• Do not exceed designed load capacity

• Follow OSHA, ANSI, and CSA safety standards

• Recheck tightness during extended or high-load applications

Frequently Asked Questions

What is a bolted 90° fixed clamp used for?
It connects two tubes at a fixed right angle for scaffolding and structural applications.

Does this clamp allow movement?
No, it creates a rigid, non-adjustable 90° connection.

What materials is it made from?
It is typically made from galvanized steel, stainless steel, or malleable iron.

Can it be used outdoors?
Yes, the galvanized finish makes it suitable for outdoor use.

What tube sizes does it fit?
It fits tubes with diameters of Ø 1.625 / 1.9 inches.

Specifications

• Dimensions: Ø 1.625 / 1.9 in.

• Weight: 3.25 lb

• Finish: Galvanized

• Standards: ANSI, CSA, OSHA
