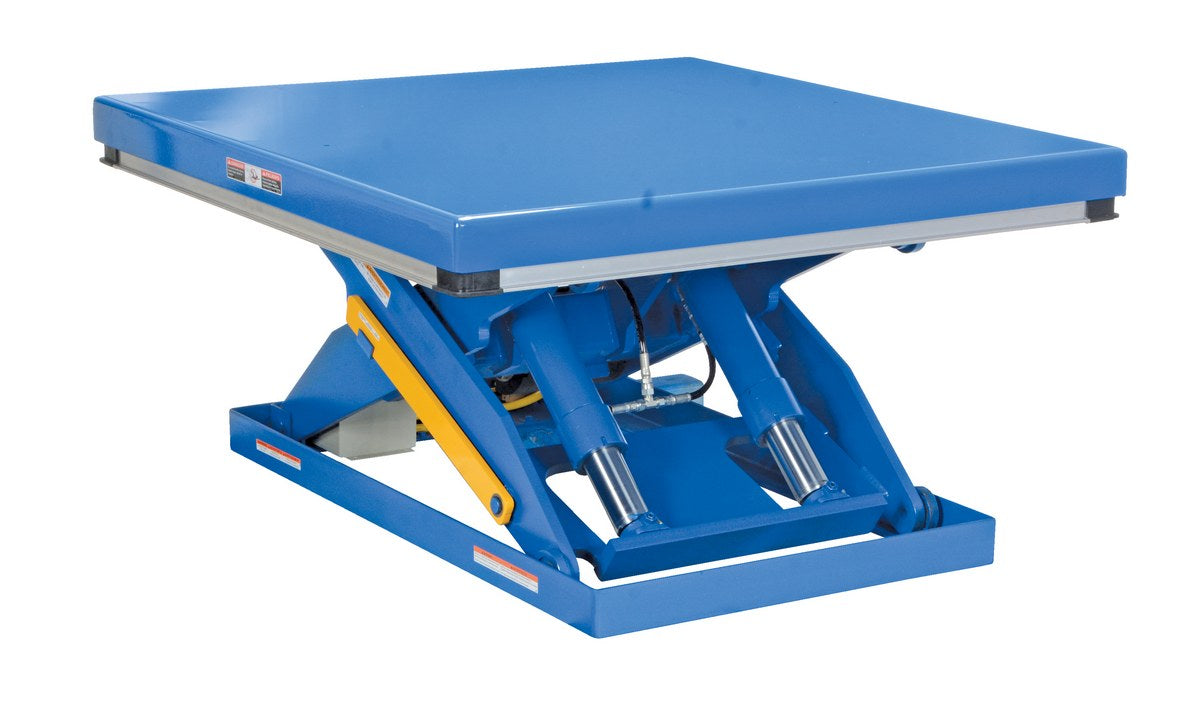

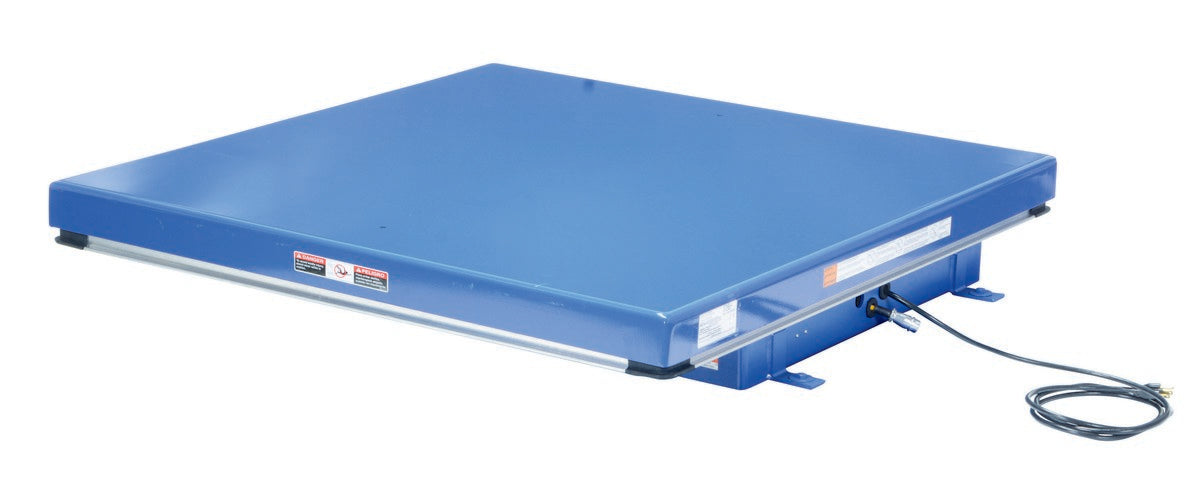

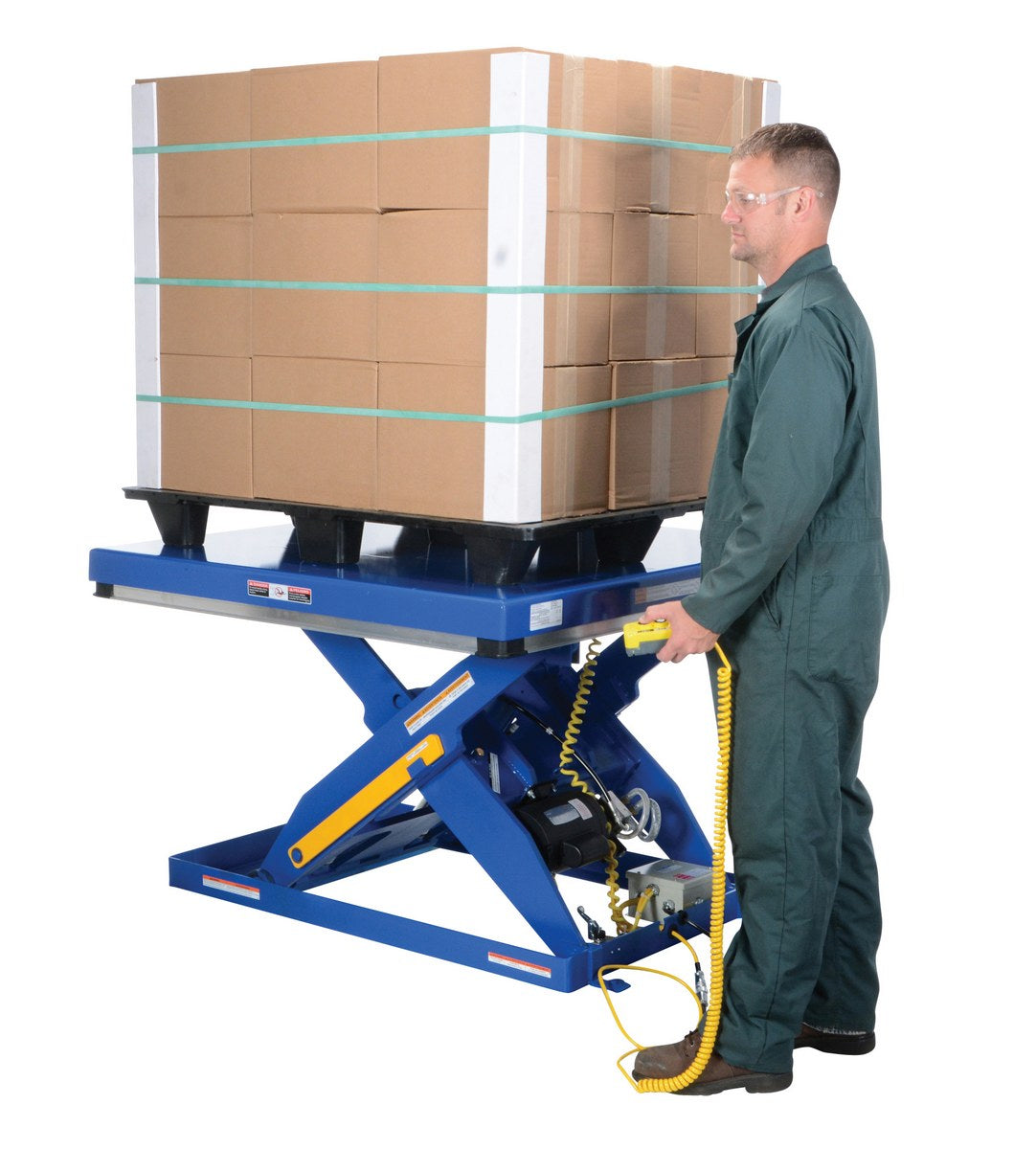

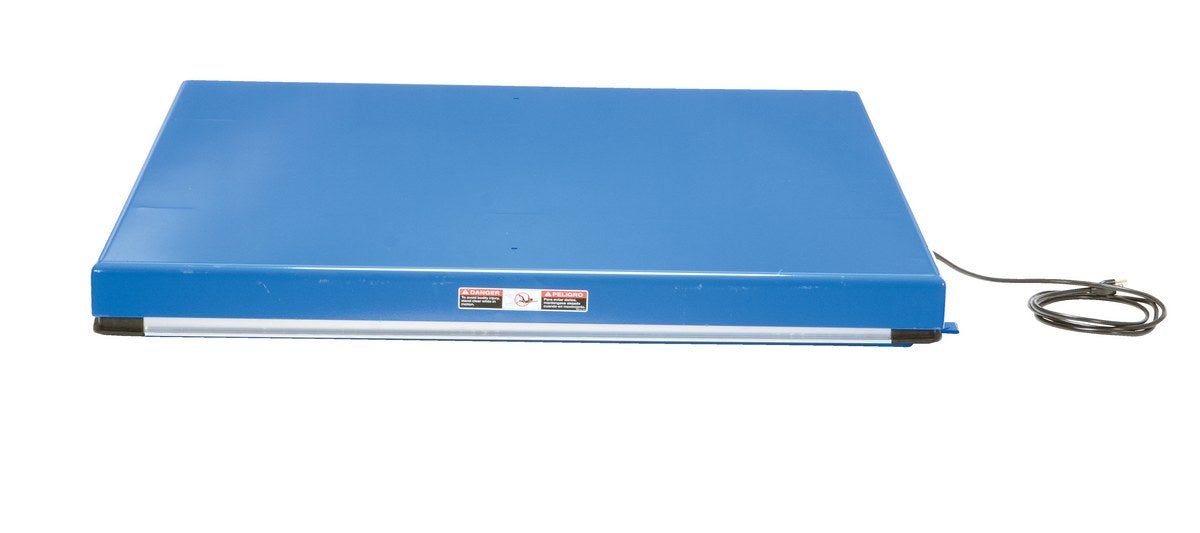

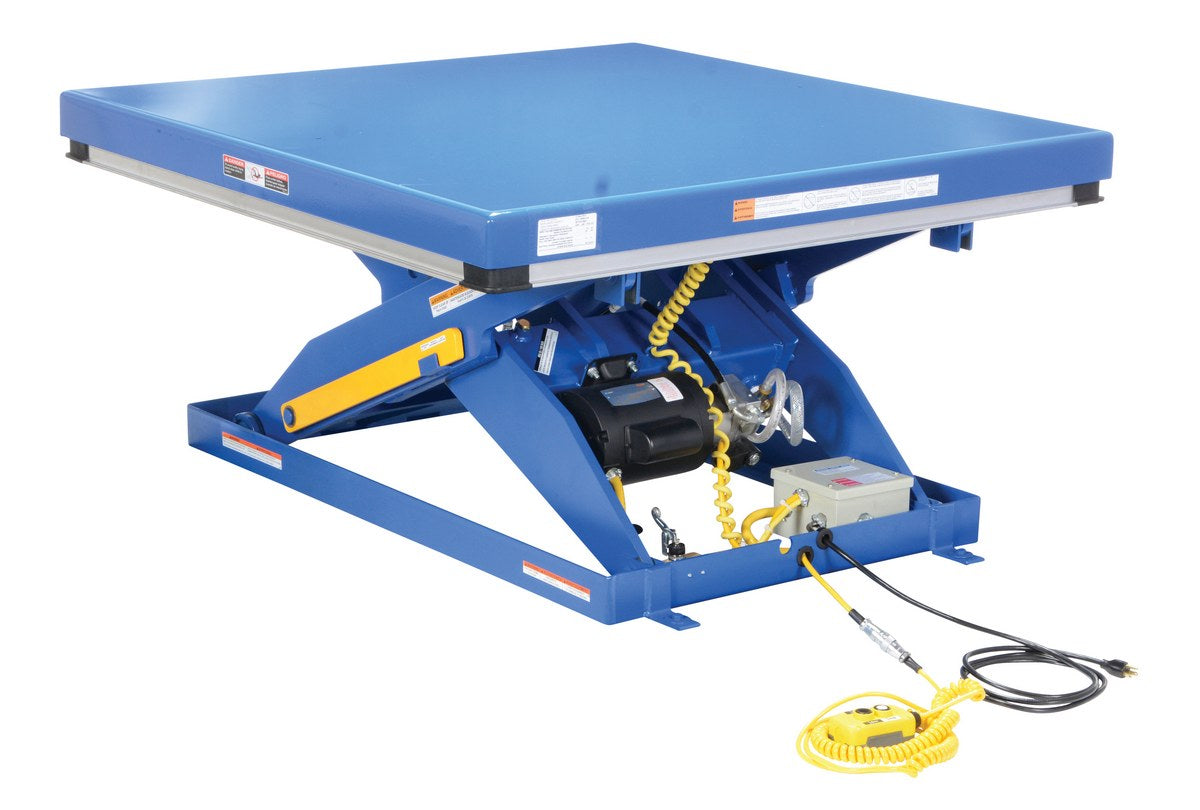

Electric Hydraulic Scissor Lift Tables - Partially Stainless Steel

Full featured electric hydraulic scissor lift tables are used by all types of manufacturing and warehouse facilities

Safety features include: electric toe guard to protect pinch points during lowering of the table, internal safety velocity fuse to maintain platform height in event of hose or fitting failure, 24V AC push button hand control, maintenance prop, and upper travel limit switch to stop table at maximum height. 2HP, 460V, 3 phase, 60 Hz totally enclosed motor standard, other voltages available. 3000 psi hydraulic component rating.

ELECTRIC HYDRAULIC PSS LIFT TABLE 1K 24X48

• Partially stainless steel construction for durability
• Large platform to handle large awkward sized material
• AC powered for constant power supply functionality
• Remote control capability to create distance between personnel and table

• Uniform Capacity (lb.):1,000
• Travel Time (sec.):7
• Vertical Travel(in.):36
• Voltage/Phase:460/3
• Hertz:60
• Motor Horsepower:2
• Hydraulic Component Rating (psi):3000
• Cord Length (in.):96
• Push Button Hand Control:24V AC
• Raised Height (in.):43
• Lowered Height (in.):7
• Platform Width/Length (in.):24-3/8 x 48-3/8

Dimensions - 24.375 W x 51 L x 7 H

Color - Silver (Frame, Deck), White (Leg Set)



Material - Frame, Deck/304 Stainless Steel, Leg set/Carbon Steel

Partially Stainless Steel Scissor Lift Tables (460V 3 Phase Standard)
Model	Image	PDF's	Platform Size (WxL)	Lowered Height	Raised Height	Capacity (lbs)	Voltage/ Phase	Wt. (lbs)
EHLT-2448-1-43-PSS	-		24"x48"	7"	43"	1,000	460/3	592
EHLT-2448-2-43-PSS	-		24"x48"	7"	43"	2,000	460/3	600
EHLT-2448-3-43-PSS	-		24"x48"	7"	43"	3,000	460/3	610
EHLT-2448-4-43-PSS	-		24"x48"	7"	43"	4,000	460/3	633
EHLT-4848-1-43-PSS	-		48"x48"	7"	43"	1,000	460/3	719
EHLT-4848-2-43-PSS	-		48"x48"	7"	43"	2,000	460/3	727
EHLT-4848-3-43-PSS	-		48"x48"	7"	43"	3,000	460/3	737
EHLT-4848-4-43-PSS	-		48"x48"	7"	43"	4,000	460/3	765

KEY: = Approval Drawing -- = Warranty -- = Testing Certificate
