The ZLTT is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Designed for loading and unloading of products.

The ZLTT is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. No pit mounting required. Maximum tilt angle is 45 degrees. Lift and tilt controlled separately. Remote power unit with hand-held control standard.

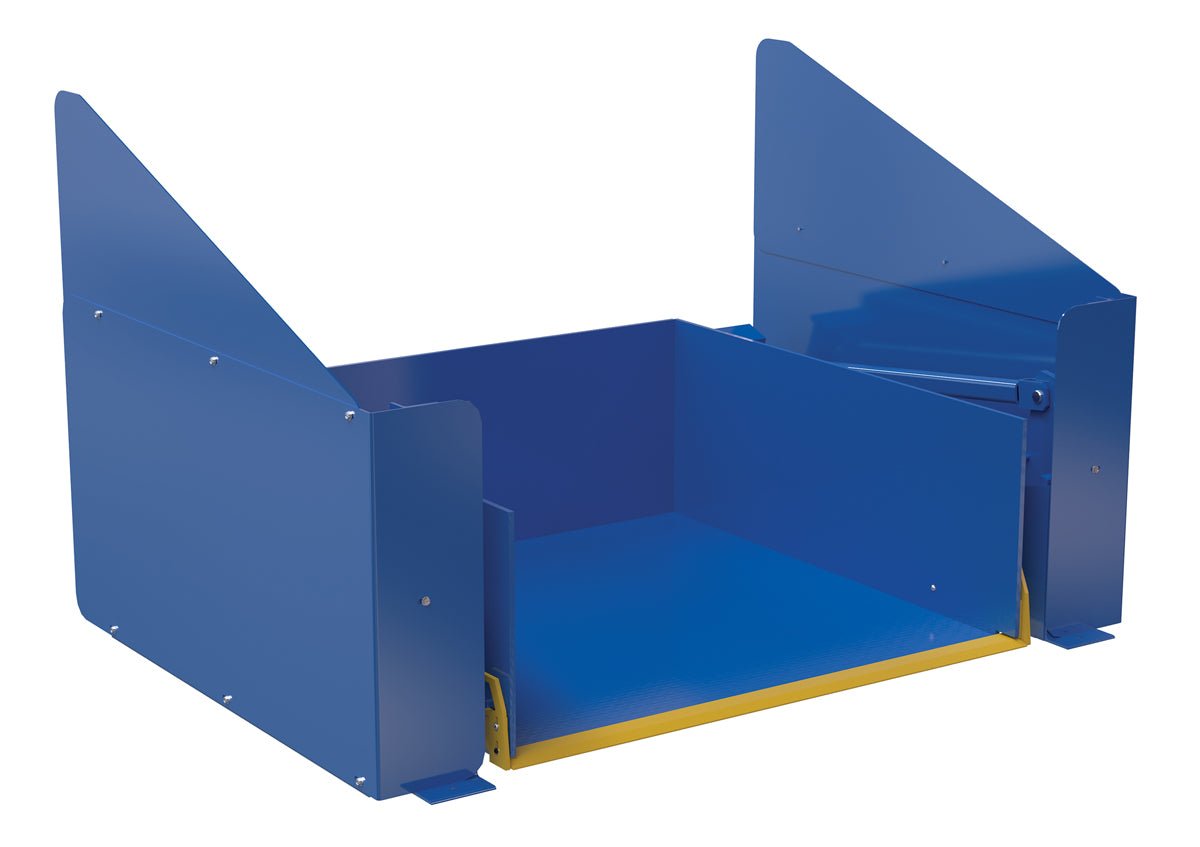

Zero Lift & Tilt Table
Model Image PDFs Platform
Size
Capacity
(lbs)
Raised
Height*
Overall Size
(WxLxH)
Wt.
(lbs)
ZLTT-4452-2-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x51-1/2" 2,000 36" 69"x60"x30" 2121
ZLTT-4452-4-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x51-1/2" 4,000 36" 69"x60"x30" 2230
ZLTT-5252-2-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x51-1/2" 2,000 36" 77"x60"x30" 2327
ZLTT-5252-4-36 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x51-1/2" 4,000 36" 77"x60"x30" 2352
ZLTT-4472-2-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x71-1/2" 2,000 48" 69-1/4"x83-3/4"x30" 2950
ZLTT-4472-4-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 44"x71-1/2" 4,000 48" 69-1/4"x83-3/4"x30" 3013
ZLTT-5272-2-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x71-1/2" 2,000 48" 77-1/4"x83-3/4"x30" 3045
ZLTT-5272-4-48 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 52"x7-1/2" 4,000 48" 77-1/4"x83-3/4"x30" 3074
Foot Control - Model FC-4 Available
*Raise Height Noted with Platform in Level Position

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate
