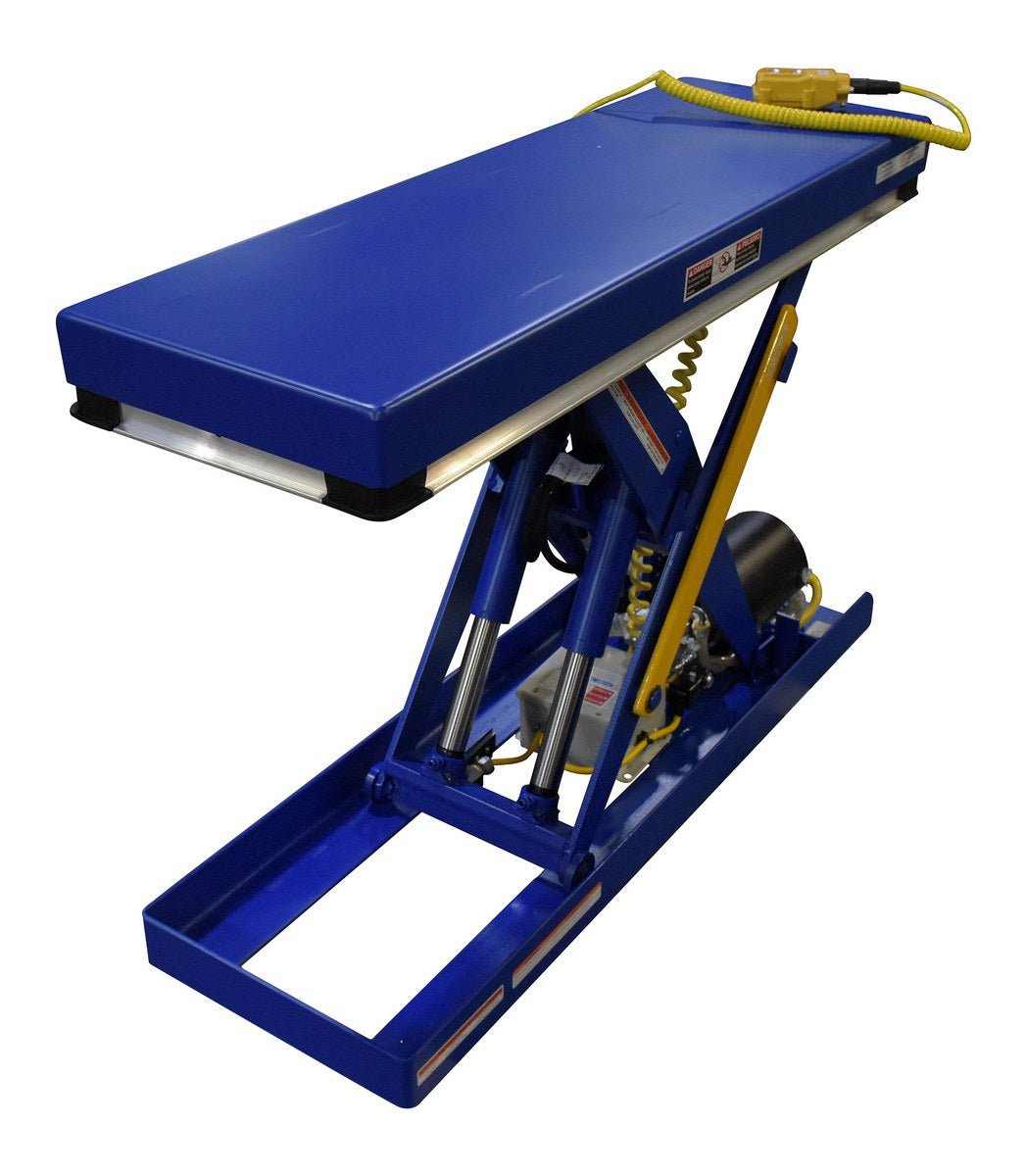

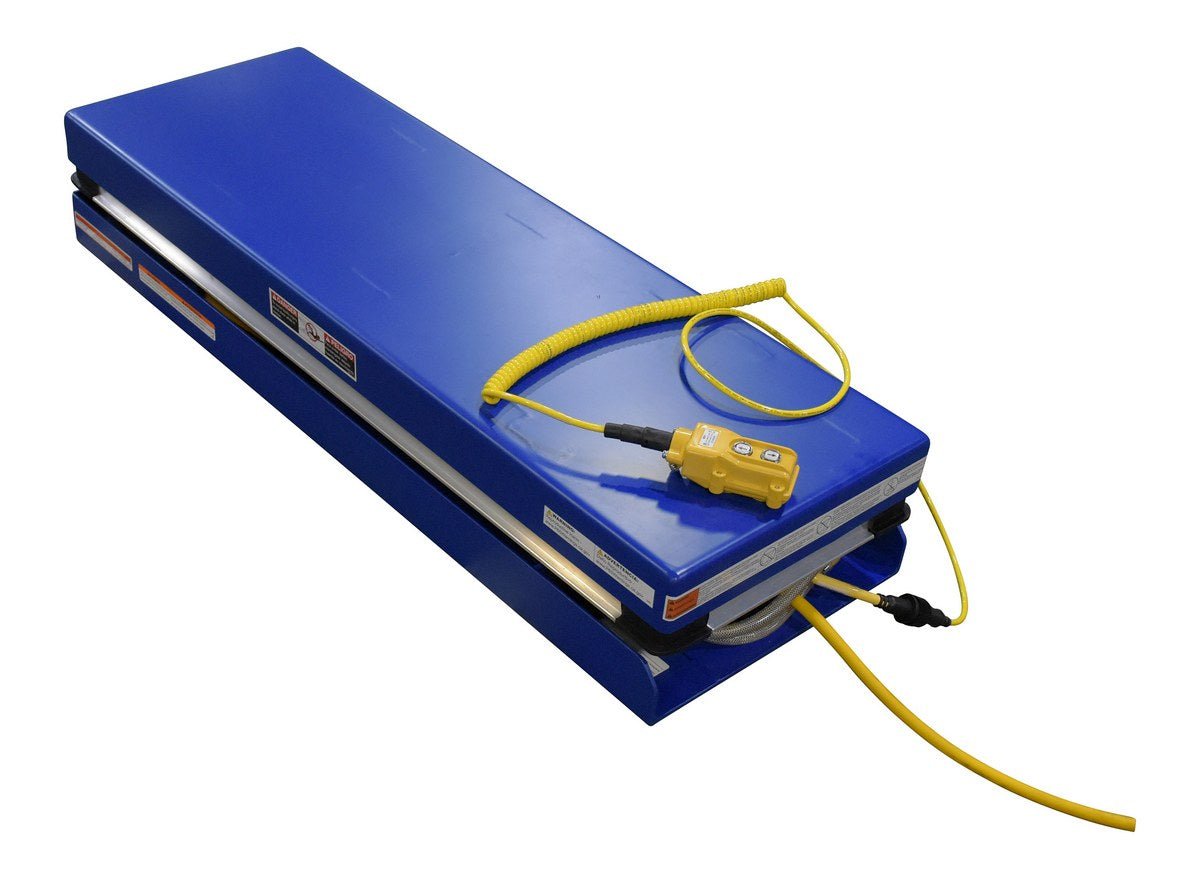

Narrow Scissor Lift Tables
SKU: EHLT-N-1648-1-32
The Narrow Scissor Lift Table is used by all types of manufacturing and warehouse facilities.
Safety features include: electric toe guard to protect pinch points while lowering of the table, internal safety velocity fuse to maintain platform height in an event of hose or fitting failure, maintenance prop, upper travel limit switch to stop table at maximum height, and a displacement-style hydraulic cylinders for maximum strength. It also features a pressure plated pump, manifold system, displacement style hydraulic cylinder, and a state-of-the-art lifetime lubricated bearings. 2HP, 460V, 3 Phase, 60 HZ totally enclosed motor standard, other voltages available.
- Electric toe guard protects pinch points while lowering for maximum safety
- Internal safety velocity fuse maintains platform height in case of hose or fitting failure
- Displacement-style hydraulic cylinders for maximum strength
- Standard 56 frame electric motor is a fully enclosed with optional voltages available
All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
|
Narrow Scissor Lift Table |
||||||
| Model | Platform Size (WxL) |
Lowered Height |
Raised Height |
*Uniform Capacity (lbs) |
Voltage Phase |
Wt. (lbs) |
| EHLT-N-1648-1-32 | 16"x48" | 8" | 32" | 1,000 | 460/3 | 359 |
| EHLT-N-1648-2-32 | 16"x48" | 8" | 32" | 2,000 | 460/3 | 364 |
| *Uniform static capacity | ||||||
