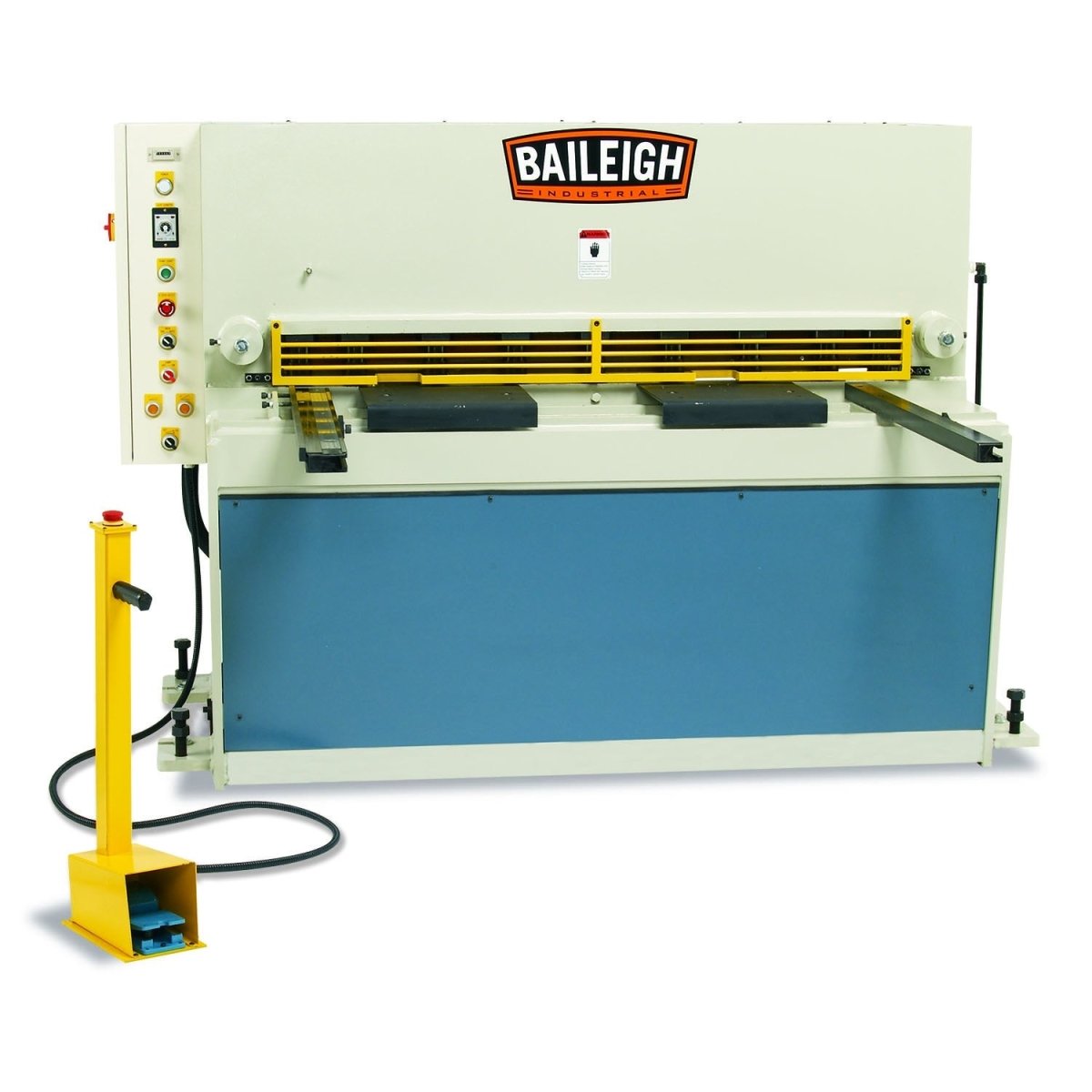

With its welded steel frame, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts.

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 7.5 hp motor runs on 220-volt 3-phase power.

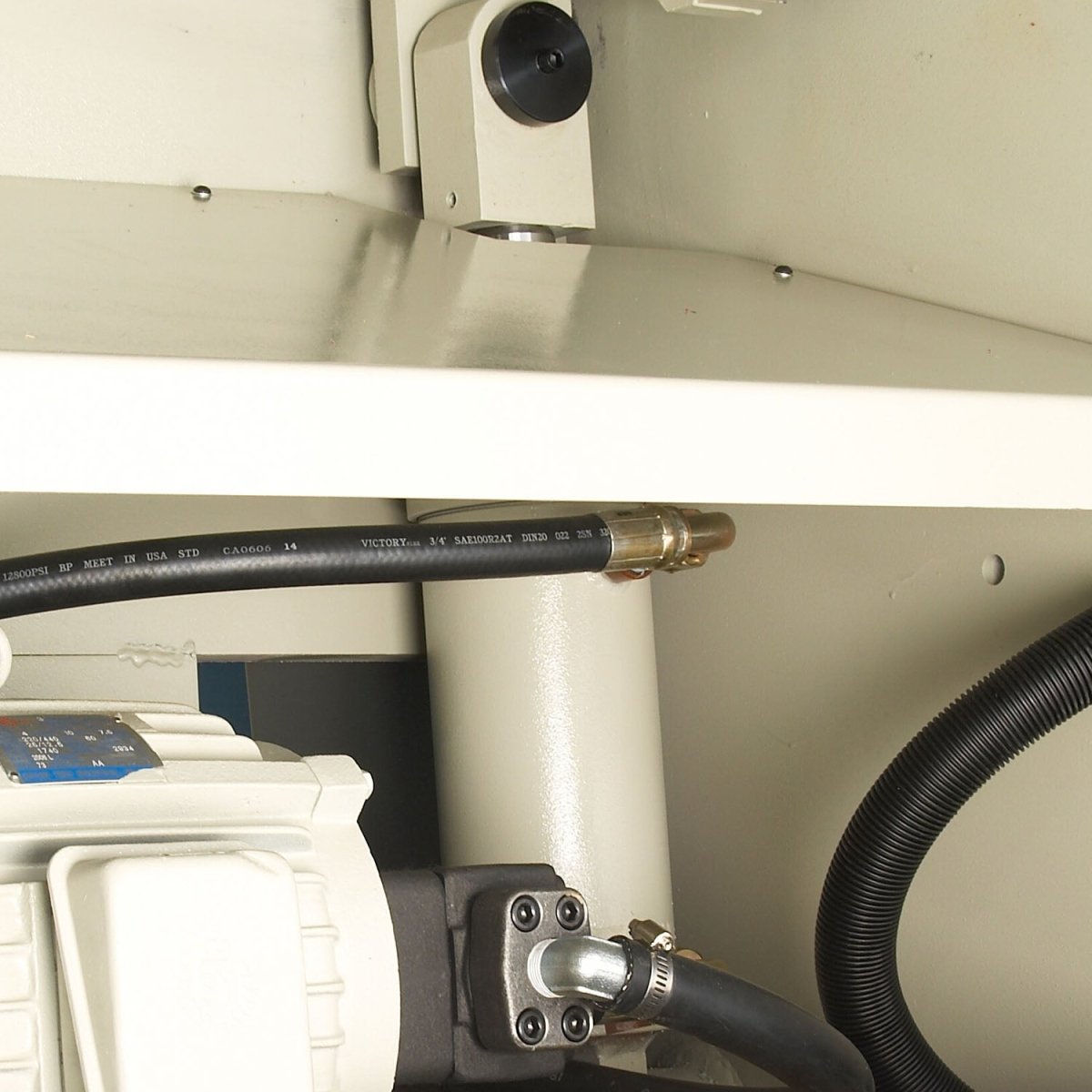

• Industrial-grade hydraulic system is located in the front for easy fluid changes.
• 35 to 47 strokes per minute for speedy production.
• Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.

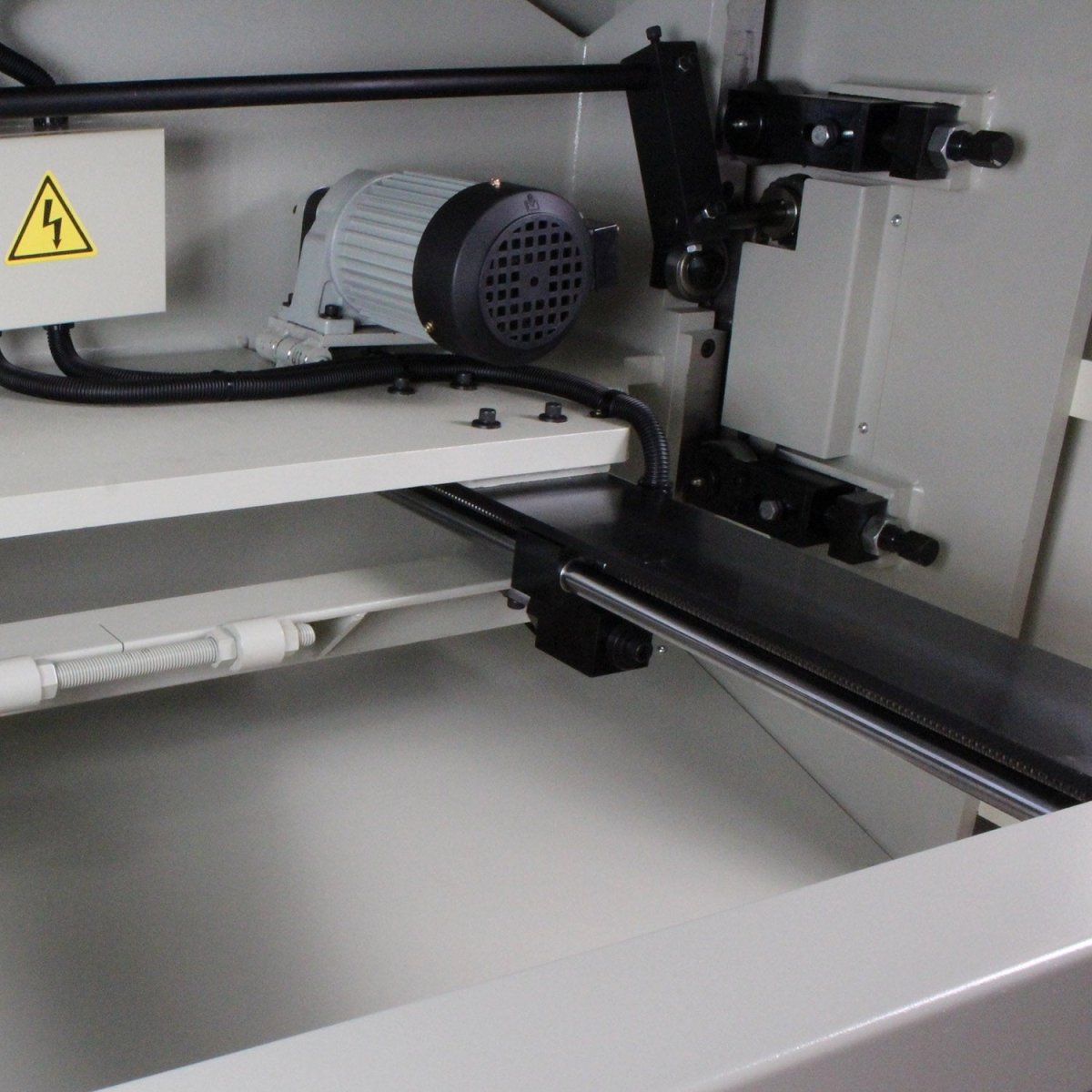

• Manually adjustable 23.62” backgauge ensures precise repeatability.
• Heavy duty table with roller bars slides material into the machine more easily.

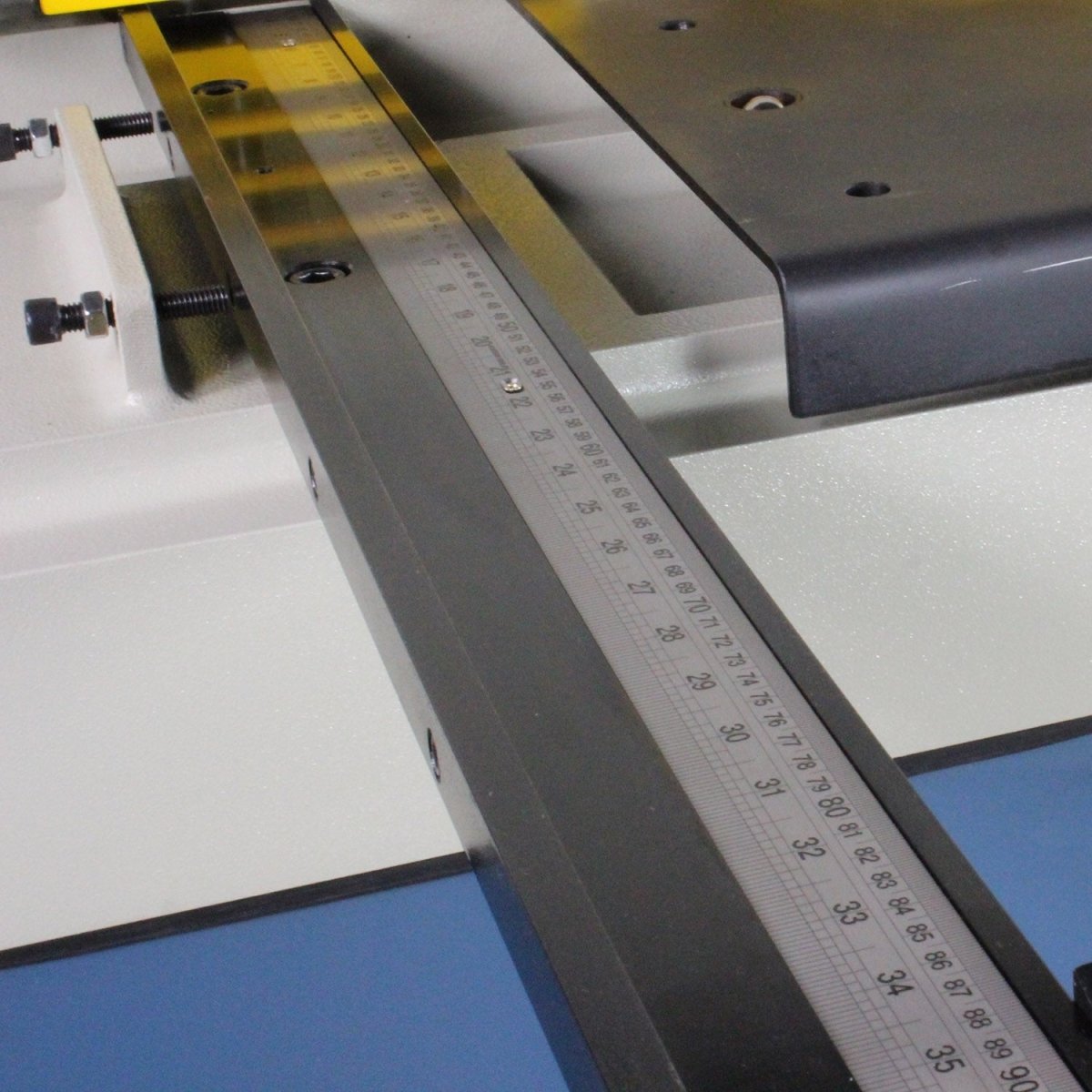

• Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
• Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
• Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
• Convenient blade gap adjustment lets you eliminate folding and twisting.
• Comes standard with high carbon chromium blades.
• 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.

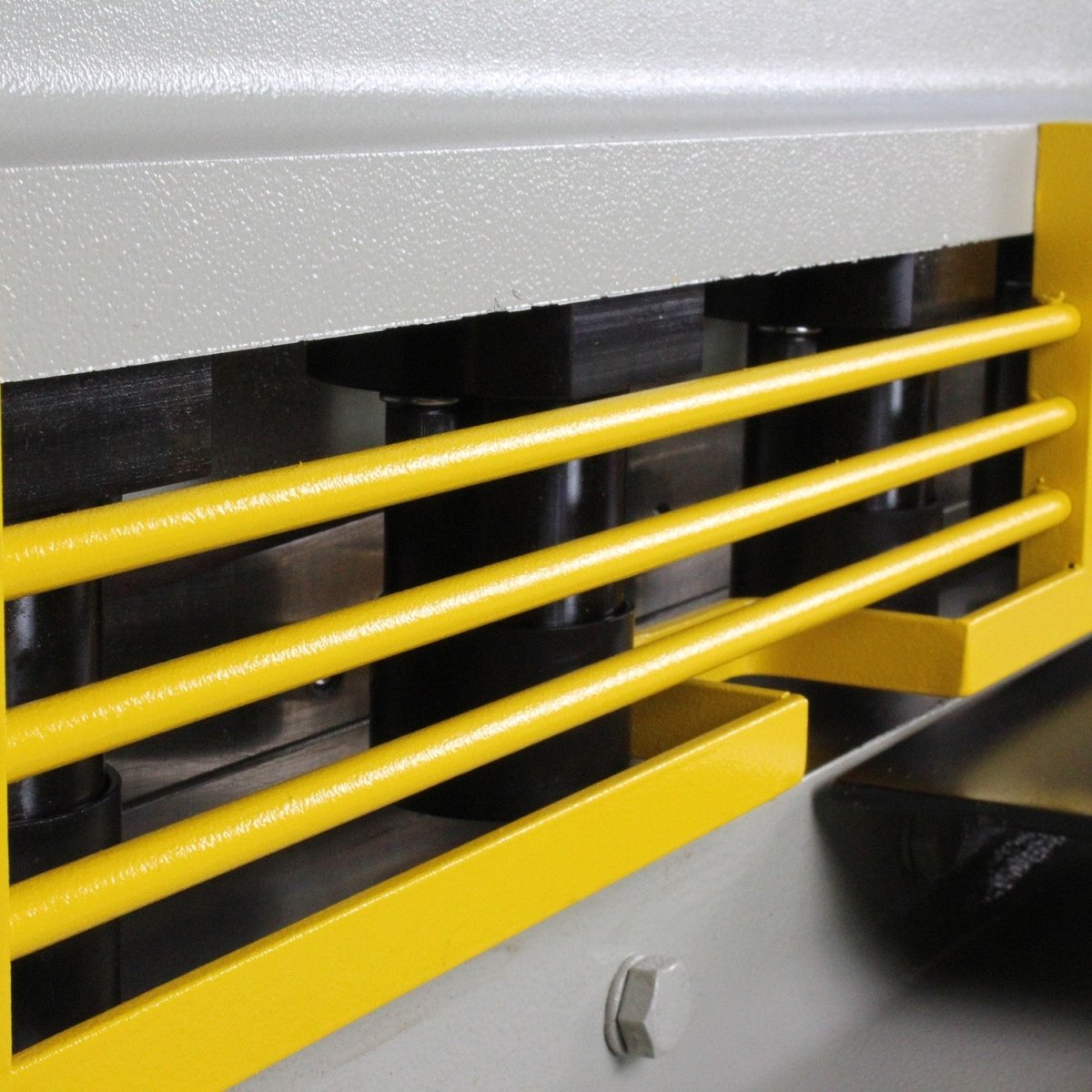

• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

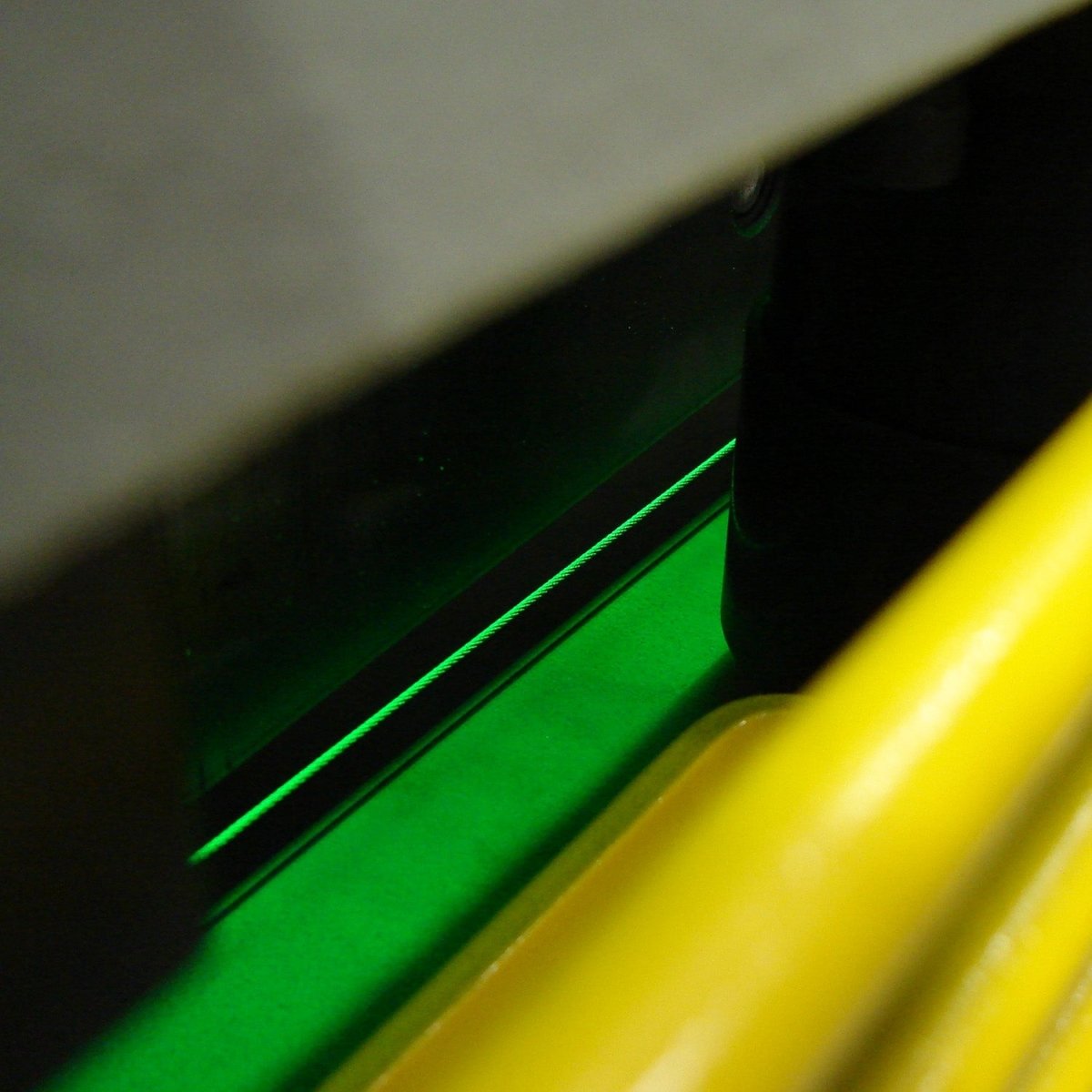

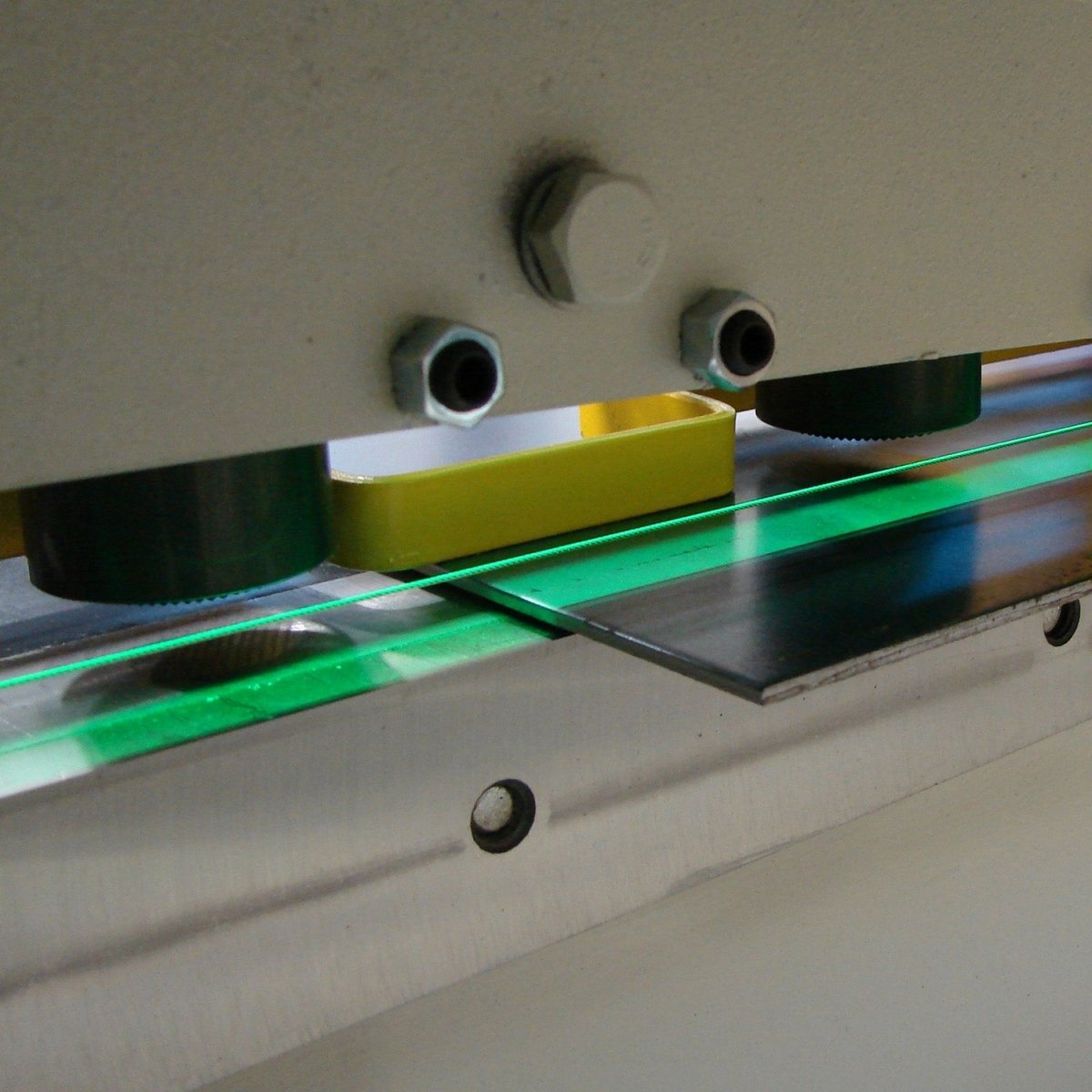

• Shadow line creates a reference line on the material so you know exactly where the cut will be.
• The SH-5210-HD plate shear is covered by a 1-year parts warranty.

Item Number	SH-5210-HD
Blade Rake Angle	.5 to 2.0 degrees
Back Gauge Length	23.62"
Shear Length	52"
Motor	7.5 hp
Thickness (SS)	10 ga. (13 ga.)
Strokes Per Minute	35 – 47
Front Gauge Length	39.37"
Blade Angle	1/2° – 2° Adjustable
Blade Gap Adjustment	Manual, Lever Acuated
Power	220V / 3-phase
Shipping Weight	4200lbs
Minimum Material Thickness	24ga
Shipping Dimensions (Inches)	88x45x66

* specifications subject to change without notice.
