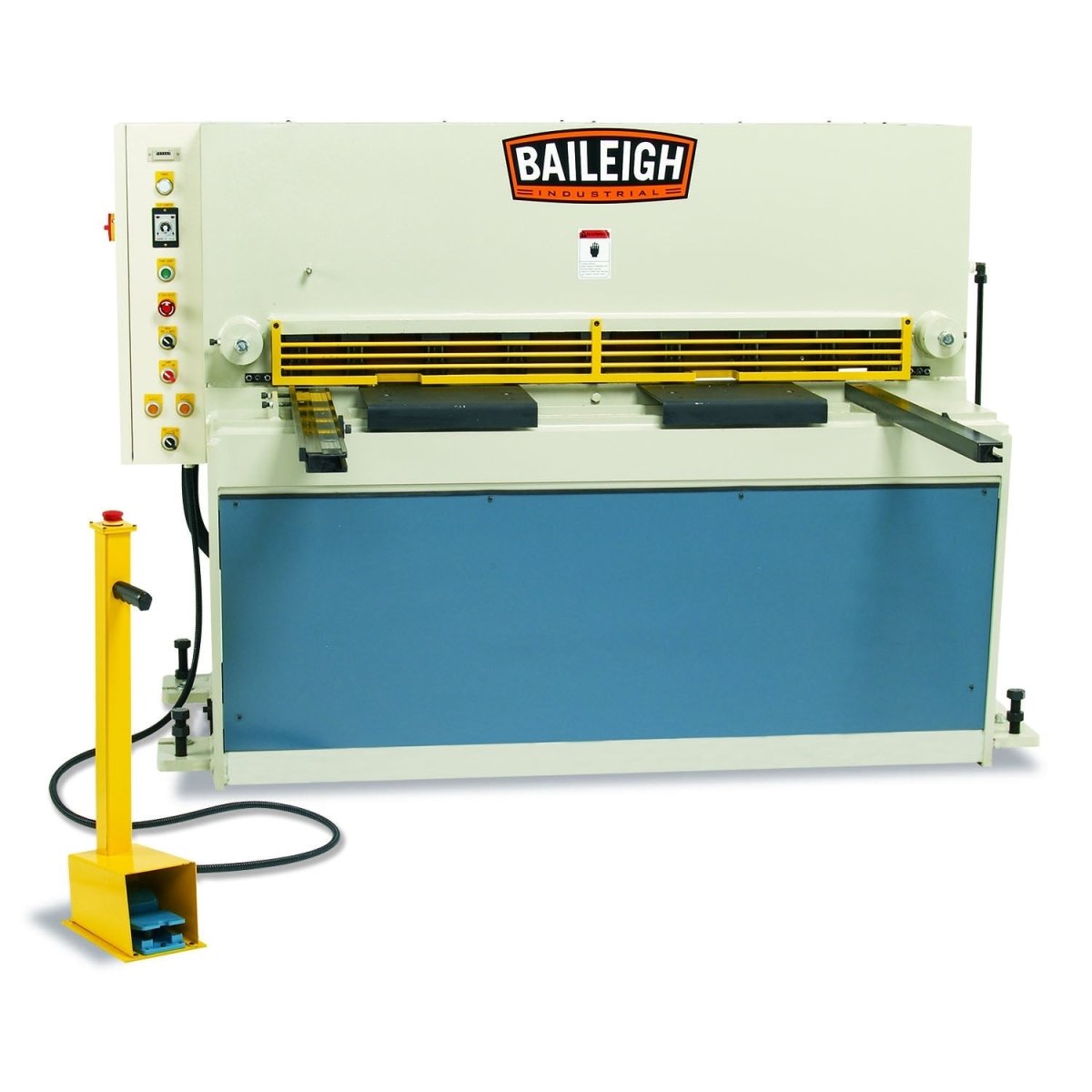

Heavy Duty Hydraulic Sheet Metal Shear SH-5210-HD

SKU 1007122

With its welded steel frame, this hydraulic sheet metal shear offers a long lifespan of use cutting thick materials for high production. The adjustable blade gap and rake angle ensure quality cuts.

  • 52” length.
  • 10 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 7.5 hp motor runs on 220-volt 3-phase power.

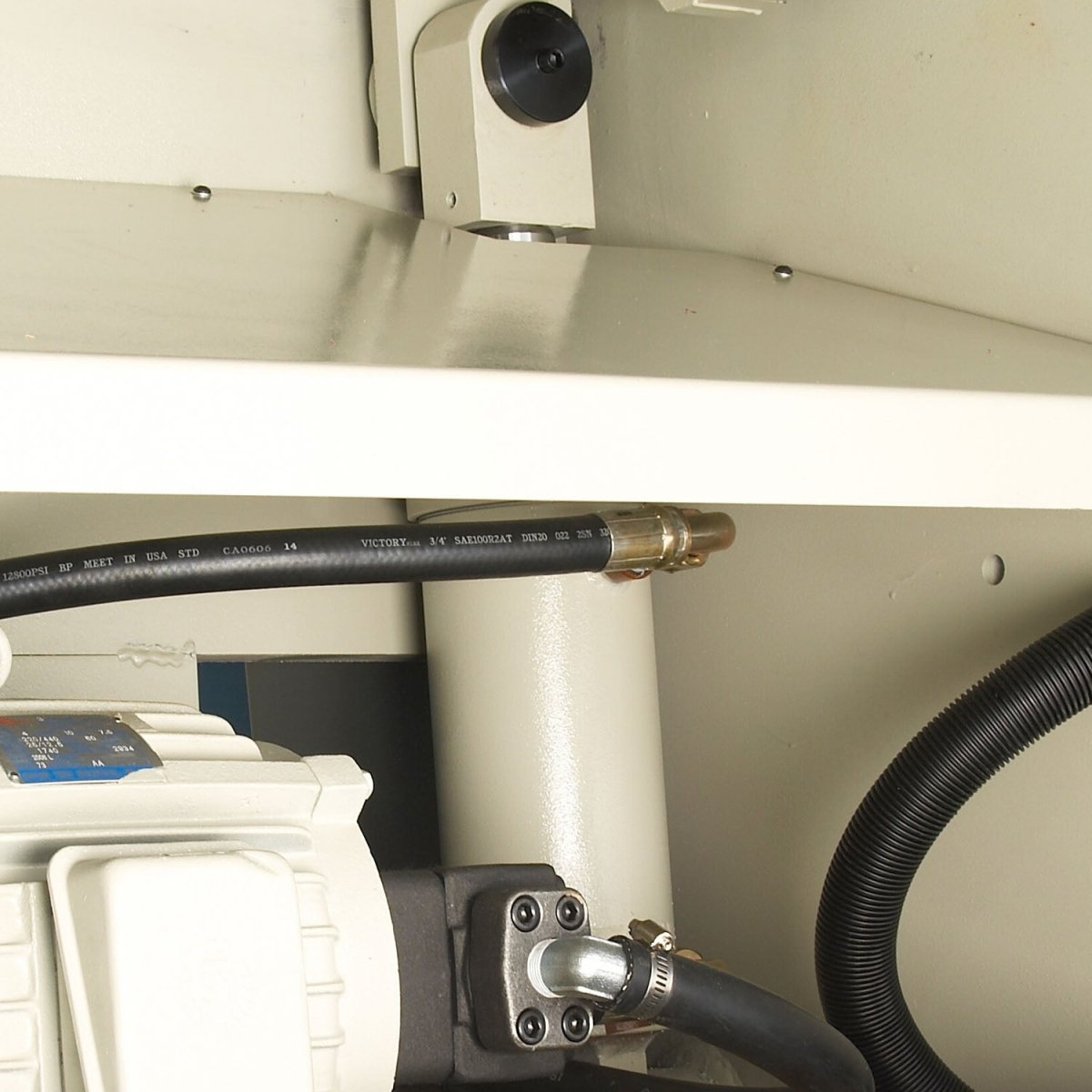

  • Industrial-grade hydraulic system is located in the front for easy fluid changes.
  • 35 to 47 strokes per minute for speedy production.
  • Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.

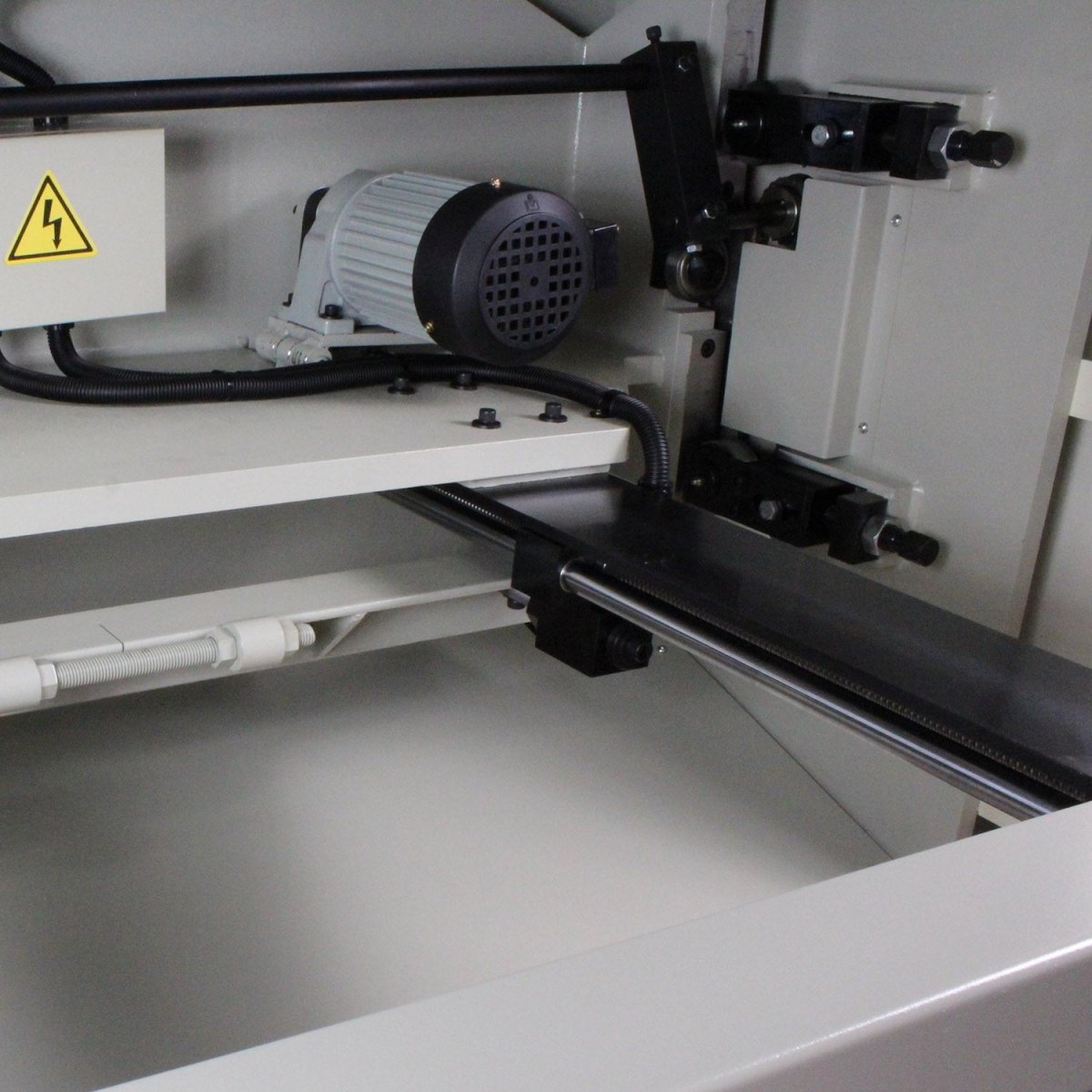

  • Manually adjustable 23.62” backgauge ensures precise repeatability.
  • Heavy duty table with roller bars slides material into the machine more easily.
  • Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
  • Switch between 3 modes as needed:
    • Jog mode: Inching the blade down to the material.
    • Single cycle mode: One cut for one pedal push.
    • Automatic cycling mode: Continuously cutting for production runs.
  • Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
  • Convenient blade gap adjustment lets you eliminate folding and twisting.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.

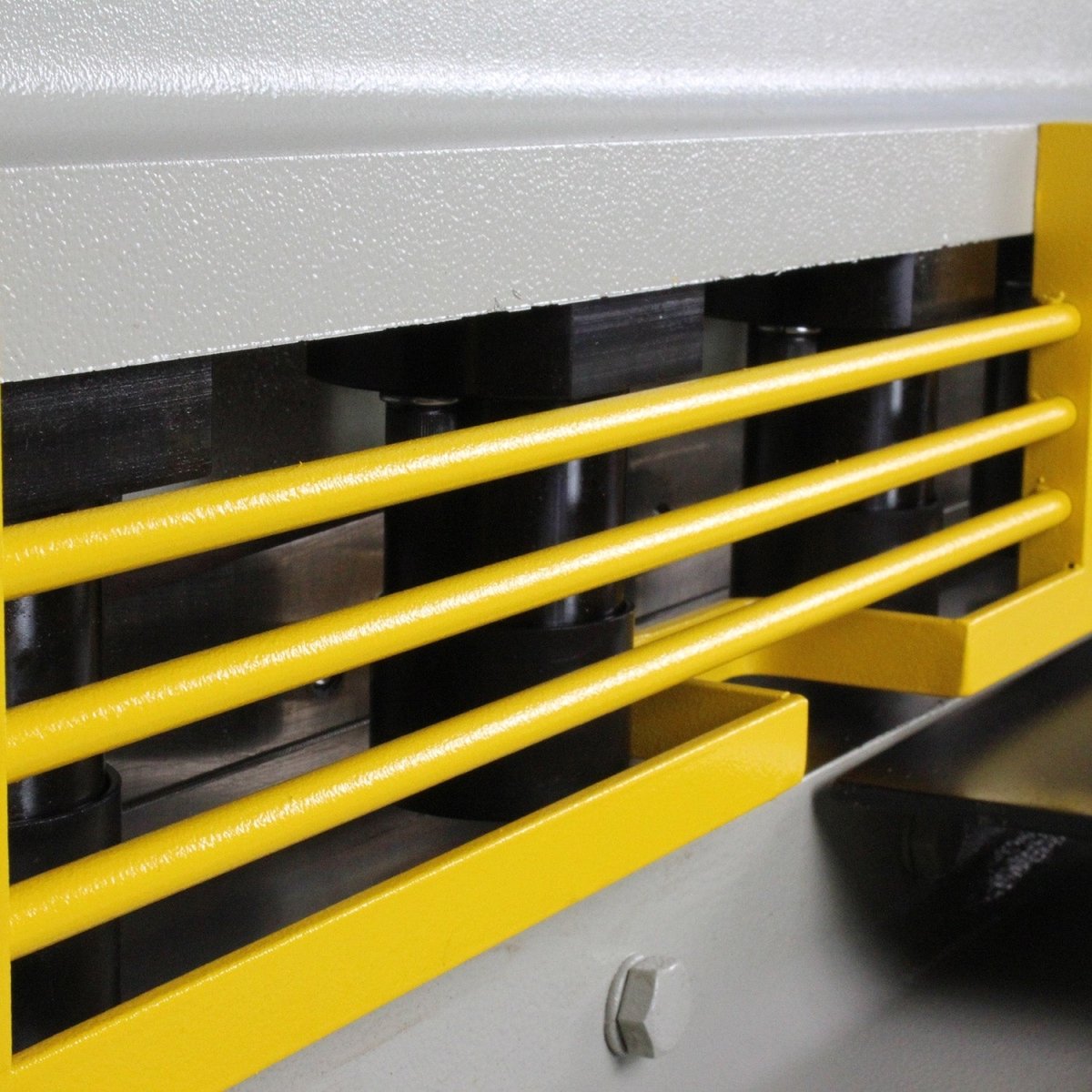

  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

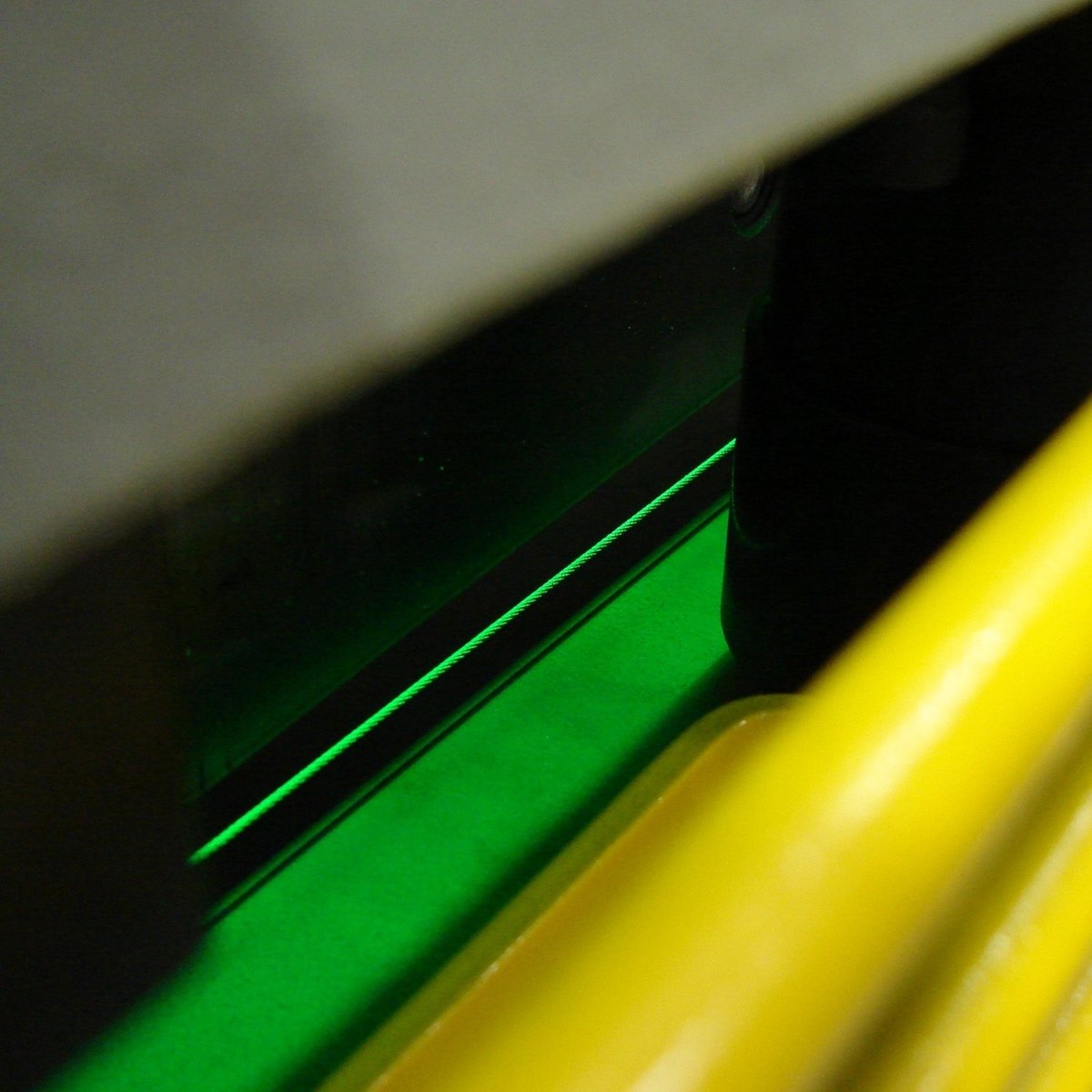

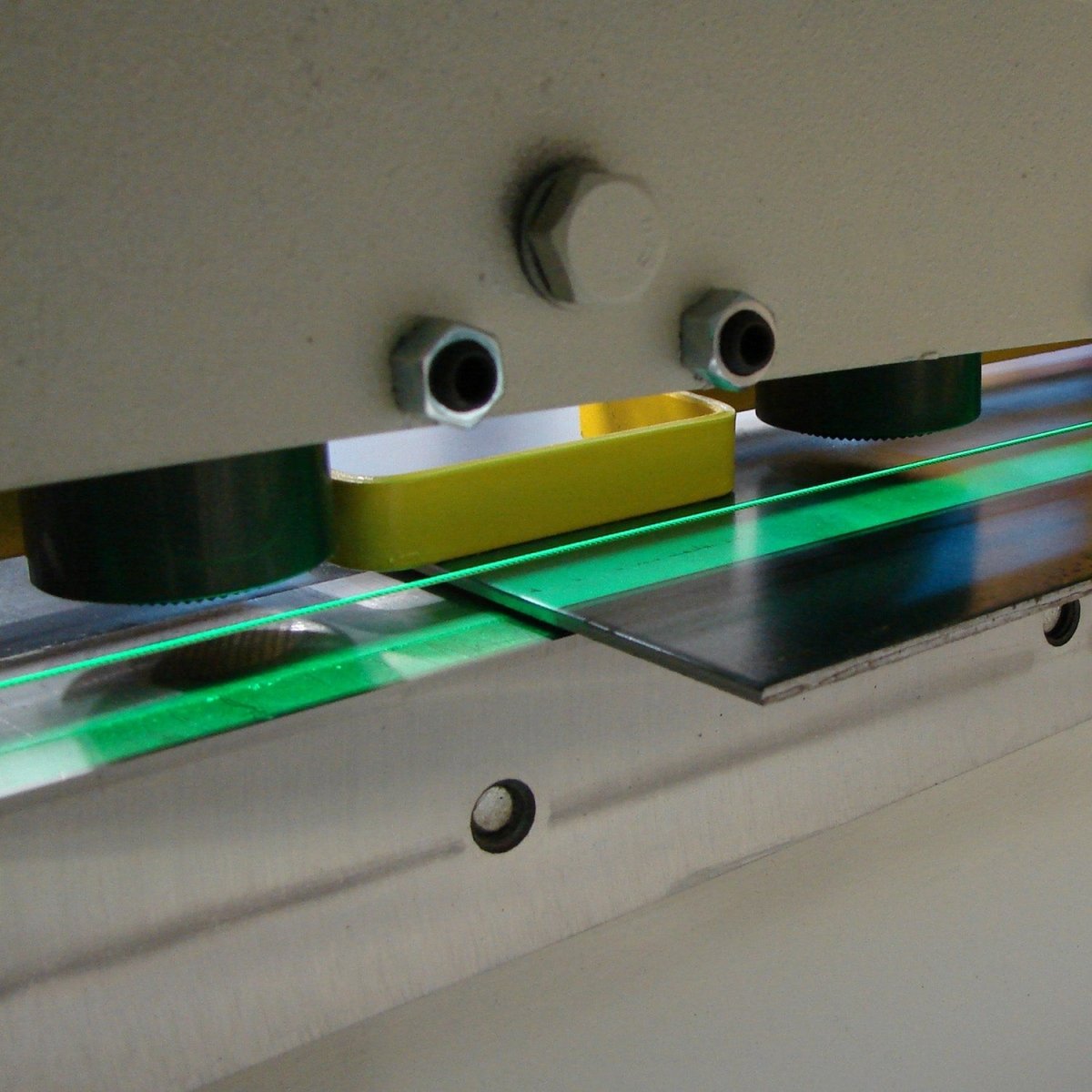

  • Shadow line creates a reference line on the material so you know exactly where the cut will be.
  • The SH-5210-HD plate shear is covered by a 1-year parts warranty.
Item Number SH-5210-HD
Blade Rake Angle .5 to 2.0 degrees
Back Gauge Length 23.62"
Shear Length 52"
Motor 7.5 hp
Thickness (SS) 10 ga. (13 ga.)
Strokes Per Minute 35 – 47
Front Gauge Length 39.37"
Blade Angle 1/2° – 2° Adjustable
Blade Gap Adjustment Manual, Lever Acuated
Power 220V / 3-phase
Shipping Weight 4200lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 88x45x66

* specifications subject to change without notice.
