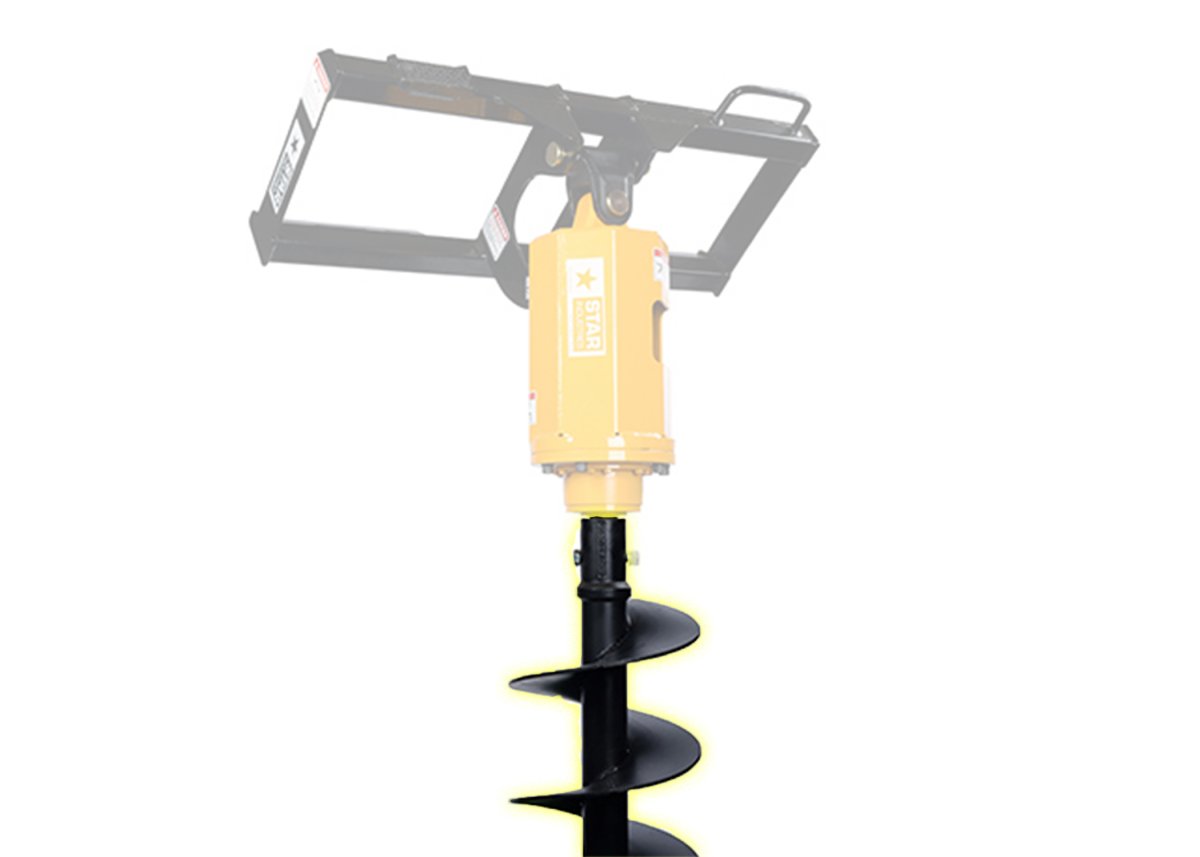

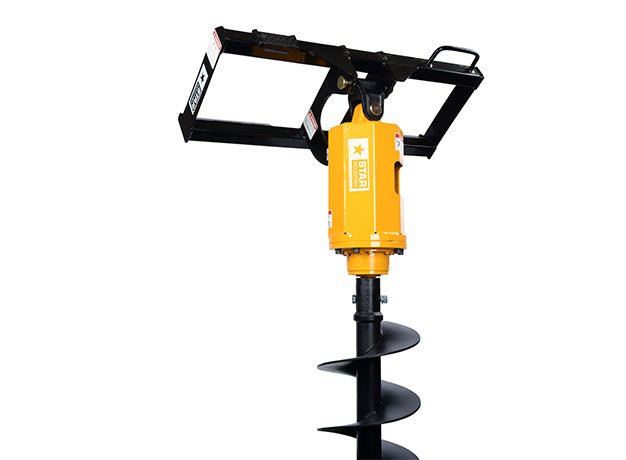

Auger Kit Complete Assembly
SKU# 160QT-SS
$65000
Unit price
/
Make a Selection
Shipping calculated at checkout.
Couldn't load pickup availability
Safe & Secure Payments.
Auger Kit Complete Assembly
From
$44000
Unit price
/
Make a Selection
Everything you need to get drilling

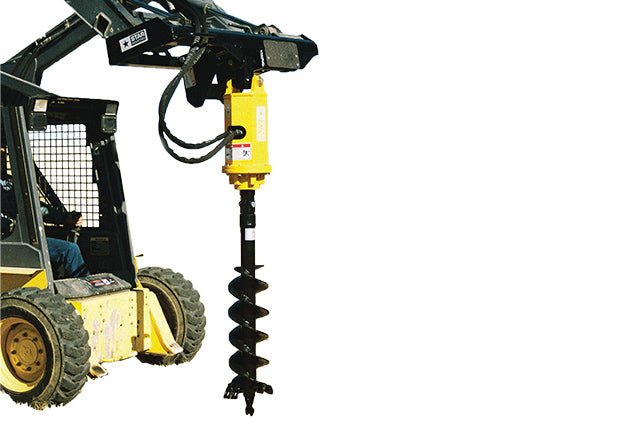

Take on the toughest drilling applications with a Star Industries Auger Kit. The rugged planetary drive unit features heavier components than any other competitor giving it more torque and strength to handle any drilling job (even solid rock).Mounting Frames

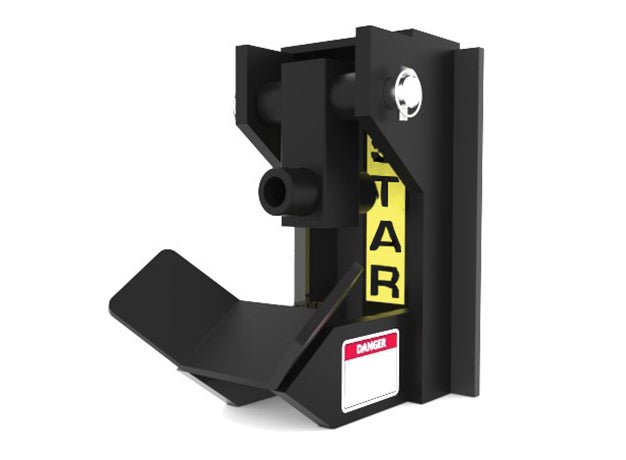

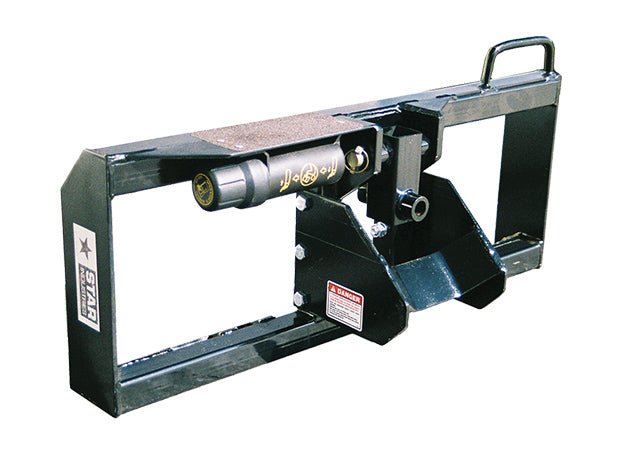

Star Industry Auger Mounting Frames are constructed from heavy wall tubular steel and feature the largest and strongest cradle on the market. Mounting includes a convenient, weatherproof tube for storage of operations manual.Hose Kit

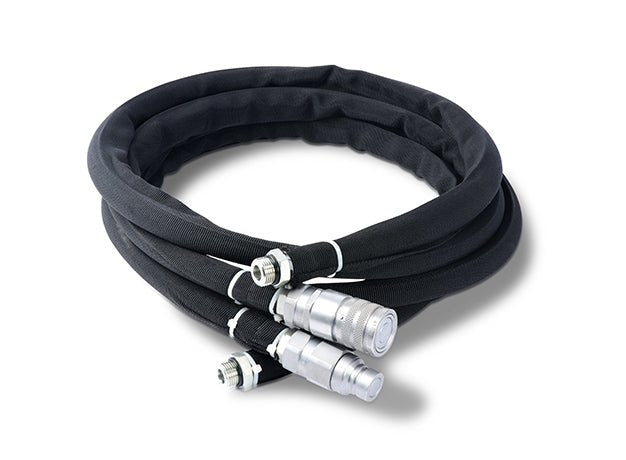

Hose Kit includes two ½ x 96” hoses in a protective sleeve and flat face hydraulic quick couplers.Drives

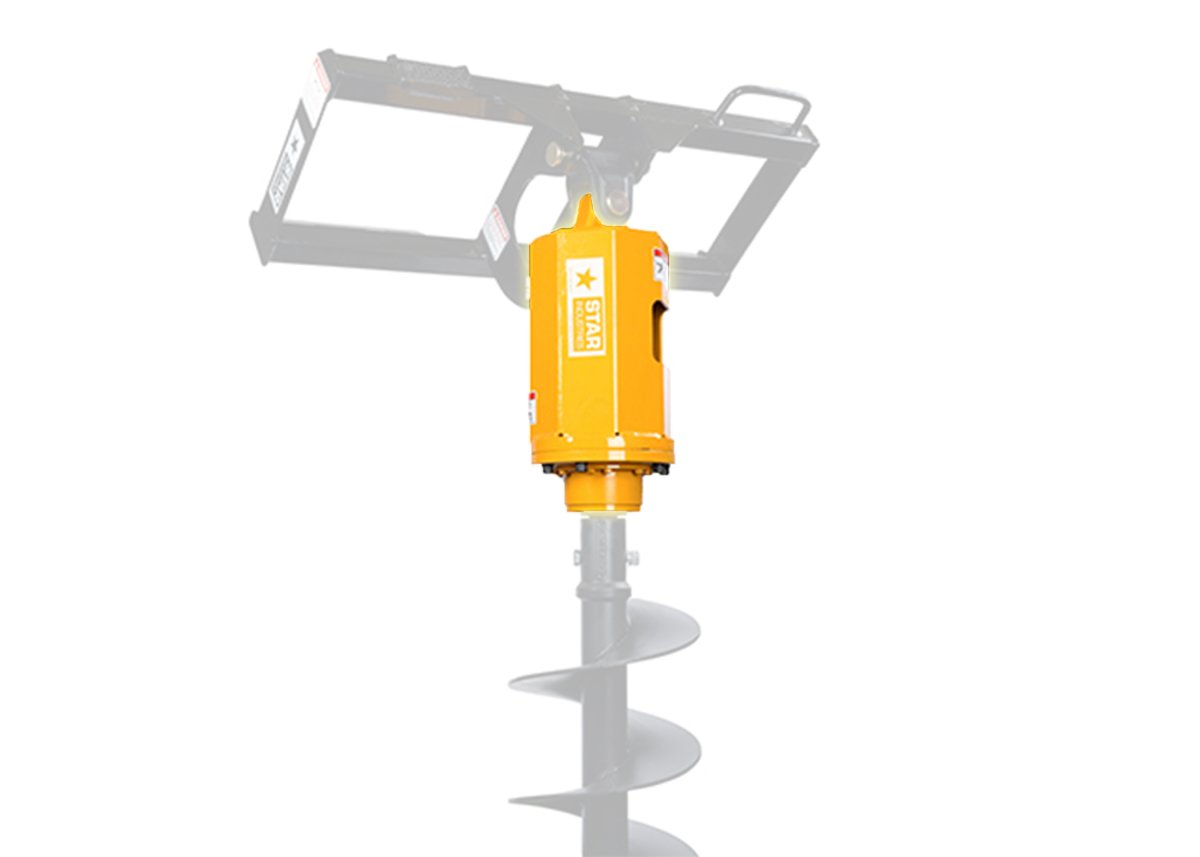

Rugged planetary drive units feature heavier components than all competitors and will outperform all other drives in their class. Paired with the correct auger, they can handle any drilling need.Auger Kits
- Skid Steer (SS) – Universal Skid-Steer Mount
- Mini Skid-Steer (MSS) – Mini Skid-Steer Mount
- Backhoe (BH) – Backhoe Mount
- Ideal for dirt, concrete and even solid rock

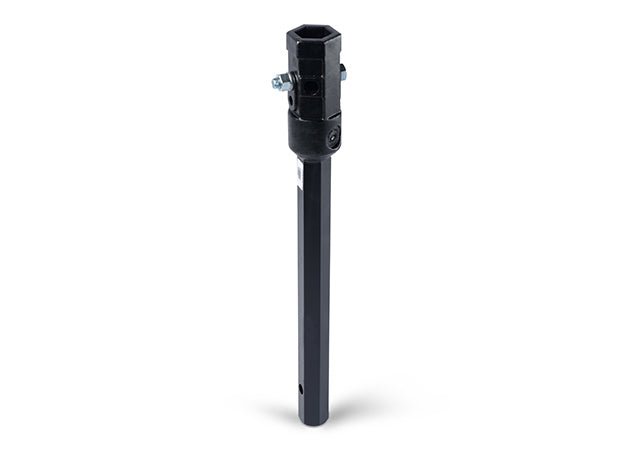

- Range of auger types and shaft extensions for all applications
- Extra heavy-duty components that outperform all other drives in their class
- Mini Auger kit available
*Available in any combination of Auger Drive Unit and Frame
Auger Mounting Frames
| Model | For |
|---|---|
| 160QT-SS | Universal Skid-Steer Mount |
| 160QT-MSS | Mini-Skid-Steer Mount |
| 160QT-FL | Fits specified telehandler quick-tach |
| 160QT-BH | Boom tip attachment for Backhoes and Mini-Excavators |
| 160QT-BLNKB | Weld-on attachment plate |
Drive Specifications
| Attribute | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| Min./Max. Fluid Flow Limits | 10-20 GPM | 15-30 GPM | 20-35 GPM | 6-15 GPM | 10-20 GPM |
| Max. Intermittent Pressure | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI | 3000 PSI |
| Max. Continuous Pressure | 3500 PSI | 3500 PSI | 3500 PSI | 3500 PSI | 3500 PSI |
| Max. Auger Dia. Dirt/Rock | 30 in/24 in | 36 in/36 in | 36 in/36 in | 18 in/18 in | 30 in/24 in |
Speed Output
| FLOW | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| 5 GPM | – | – | – | 31 RPM | – |
| 10 GPM | 43 RPM | – | – | 61 RPM | 53 RPM |
| 15 GPM | 65 RPM | 45 RPM | – | 91 RPM | 79 RPM |
| 20 GPM | 86 RPM | 60 RPM | 50 RPM | – | 105 RPM |
| 25 GPM | – | 75 RPM | 62 RPM | – | – |
| 30 GPM | – | 90 RPM | 75 RPM | – | – |
| 35 GPM | – | – | 87 RPM | – | – |
Torque Output
| PRESSURE | 160D-1020 | 160D-1530 | 160D-2035 | 160D-615M | 160D-1020M |
|---|---|---|---|---|---|
| 2000 PSI | 1420 ft. lbs. | 2041 ft. lbs. | 2459 ft. lbs. | 1008 ft. lbs. | 1165 ft. lbs. |
| 2500 PSI | 1776 ft. lbs. | 2550 ft. lbs. | 3075 ft. lbs. | 1260 ft. lbs. | 1456 ft. lbs. |
| 3000 PSI | 2131ft. lbs. | 3062 ft. lbs. | 3688 ft. lbs. | 1512 ft. lbs. | 1747 ft. lbs. |
| 3500 PSI | 2486 ft. lbs. | 3572 ft. lbs. | 4303 ft. lbs. | 1764 ft. lbs. | 2038 ft. lbs. |
