Take the hard work and hassle out of loading and moving wire mesh panels

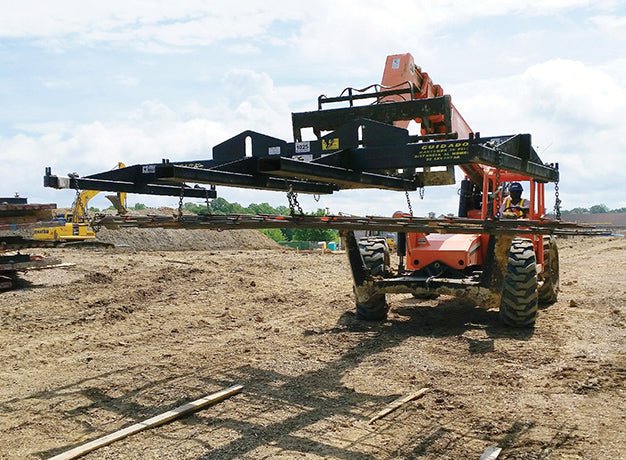

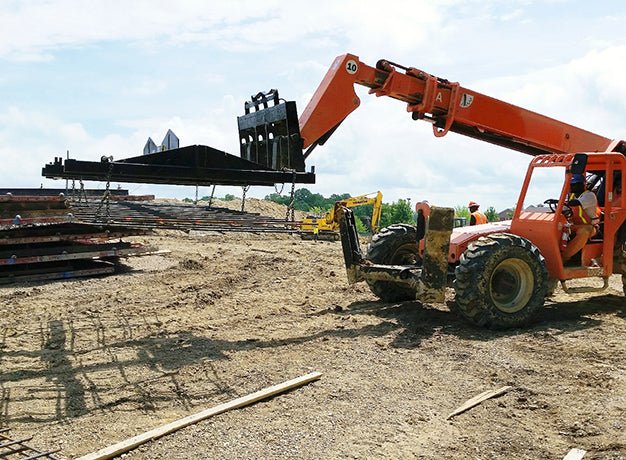

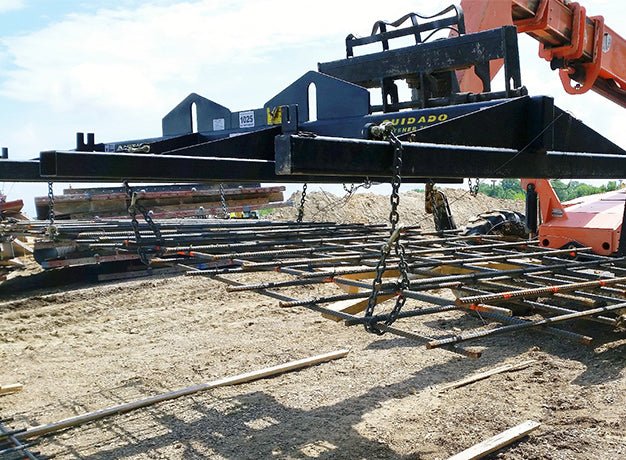

The Star Industries Wire Mesh Handler is primarily designed for use with a forklift; however, pick up points have been provided for use with a crane.

• Empty weight — 1025 lbs.
• Effective length — 13 ft
• Effective width — 7 ft. 5 in.
• Lifting chain — 5/16” grade 100 rated for lifting
• Accepts forks up to 2-3/8 inches thick x 7 inches wide
• Complies with ASME BTH-1-2008, design of below the hook lifting devices design category B service class 1
• Designed to a safety factor of 3:1

• Lift & transport wire mesh with ease
• Up to 7,000 lbs capacity
• Suitable for forklift or crane

Model	Description	Size	Capacity	Weight
1155	Fork Pockets 39″ OC. Requires 48″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles.	13’	7,000 lbs	1025 lbs
1155-36CCFP	Fork Pockets 36″ OC. Requires 44″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles.	13’	6,500 lbs	1025 lbs
1155-24CCFP	Fork Pockets 24″ OC. Requires 32″ or wider Carriage. Handles up to 8 ft. X 20 ft. wire mesh bundles.	13’	6,500 lbs	1025 lbs

Danger: Do NOT use without installing retaining pins behind the heel of each fork and securing with hairpins or cotter pins. Safety chain(s) must also be used. Wrap chain around a strong part of the fork carriage and secure with locking grab hook.
