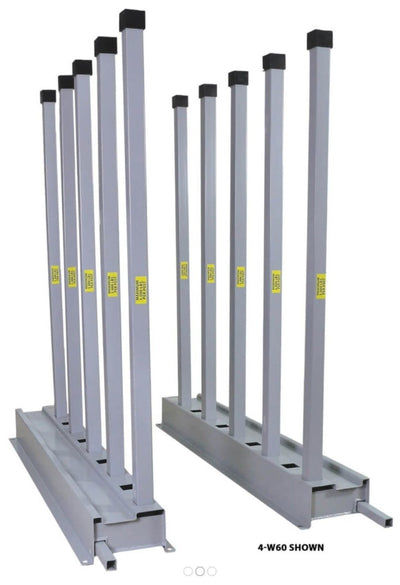

Groves Bundle/Slab Rack

Groves Bundle Rack

Store bundles or slabs in your shop or warehouse with ease in this well designed, patented rack!

Features:

• Heavy-Duty powder coated finish.
• Post height options available (40", 60" or 80")
• Complete with 11” connector tube for butting rails together in a straight line for desired length
• Rails built with 2” square holes spaced 4” apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1” up from the bottom
• 2” square tube posts ad 2” square rubber post caps to separate bundles and slabs
• Rails designed with slots to hold 2 x 4’s which protect the slab edges and the finish on the rails (2 x 4’s not included)
• Patent # 7143901


Specifications:

SAFETY WARNING:
MAXIMUM WEIGHT ALLOWED PER OPENING IN BASE IS 9,000 LBS. (4,500 LB. PER POST)
MINIMUM OF 2-DEGREE ANGLE WHEN DROPPING STONE IN-BETWEEN POSTS
INSPECT POSTS EACH TIME USED
NOTE: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5" LESS THAN LISTED (EXAMPLE: 60" POST WILL BE 54.5" ABOVE THE TOP OF THE RAIL)
