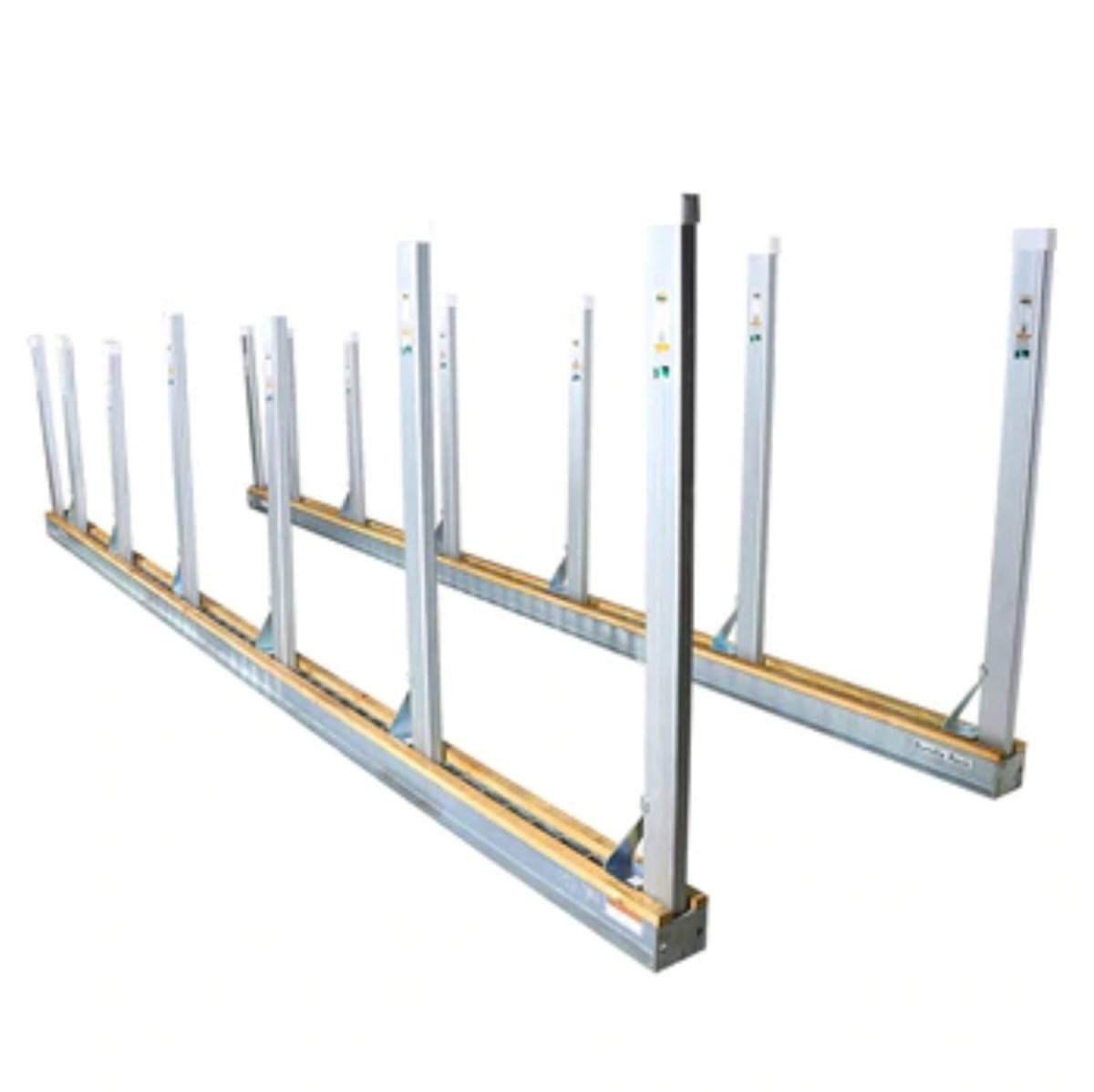

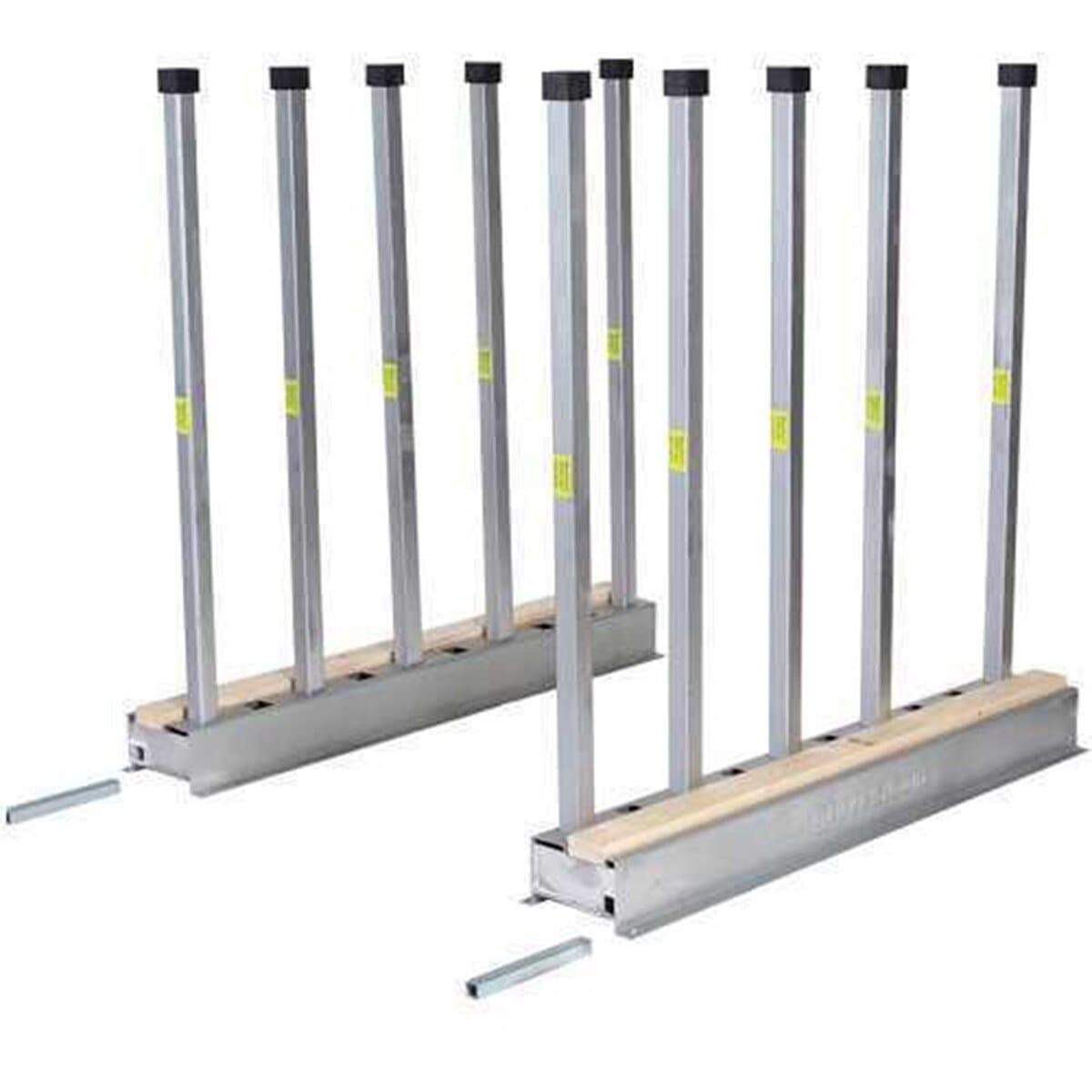

Groves Bundle/Slab Rack - 6,000 lb Capacity
SKU: 4-W60
Groves Bundle Rack - 6,000 lb Capacity
Store bundles or slabs in your shop or warehouse with ease in this well designed, patented rack!
Features:- Heavy-Duty powder coated finish.
- Post height options available (40", 60" or 80")
- Complete with 11" connector tube for butting rails together in a straight line for desired length
- Rails built with 2" square holes spaced 4" apart (10 holes). A steal plate with identical holes is welded and boxed inside the rail, 1" up from the bottom
- 2" square tube posts and 2" square rubber post caps to separate bundles and slabs
- Rails designed with slots to hold 2' x 4's which protect the slab edges and the finish on the rails (2' x 4's not included)
MAXIMUM WEIGHT ALLOWED PER OPENING IN BASE IS 9,000 LBS. (4,500 LB. PER POST)
MINIMUM OF 2-DEGREE ANGLE WHEN DROPPING STONE IN-BETWEEN POSTS
INSPECT POSTS EACH TIME USED
NOTE: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5" LESS THAN LISTED (EXAMPLE: 60" POST WILL BE 54.5" ABOVE THE TOP OF THE RAIL)
Specifications:
| SUGGESTED PACKAGES FOR BUNDLES OR SLABS USING 60" POSTS | |||||
|---|---|---|---|---|---|
| Part No. | Length | Openings | Parts In Package | Weight lbs. | Price Each |

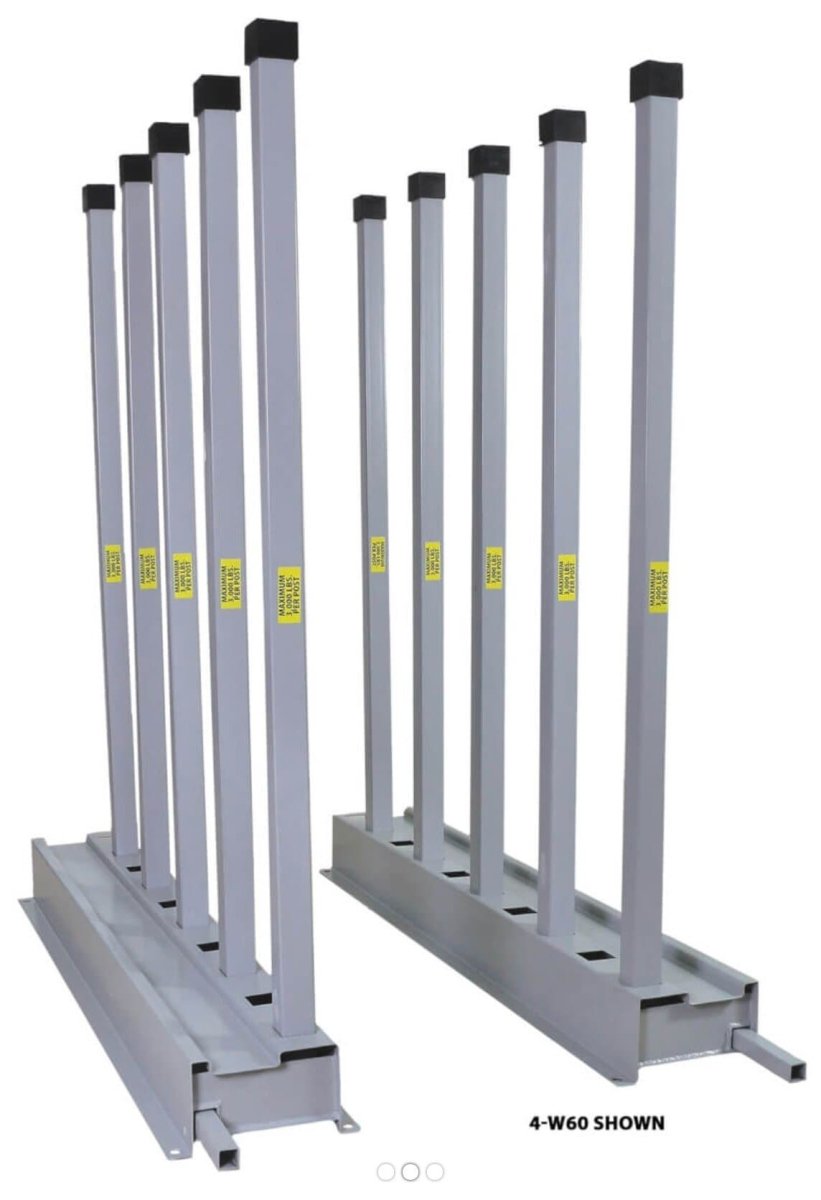

| 4-W60 | 5' | 4 | 2 BR-5, 10 SP-60 | 260 | $733.00 |
| 9-W60 | 10' | 9 | 4 BR-5, 20 SP-60 | 520 | $1,466.00 |
| 19-W60 | 20' | 19 | 8 BR-5, 40 SP-60 | 1,040 | $2,932.00 |
| 49-W60 | 50' | 49 | 20 BR-5, 100 SP-60 | 2,600 | $7,330.00 |
| Part No. | Description | Weight lbs. | Price Each |
|---|---|---|---|
| BR-5 | Outside Rail with Wood Slot | 55 | $199.00 |

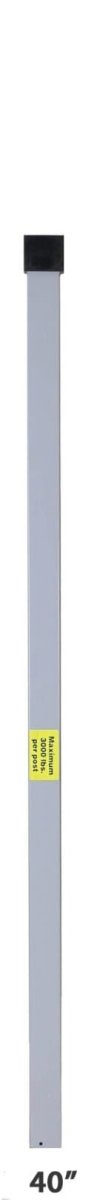

| SP-40 | 40" Post For Bundle Rack | 10 | $25.00 |
| SP-60 | 60" Post For Bundle Rack | 15 | $33.50 |
| SP-80 | 80" Post For Bundle Rack | 19 | $47.50 |
| PC-2 | Scratch-Resistant Rubber Post Caps | 1 | $3.15 |
| BSB-23 | Backsplash Brackets | 15 |

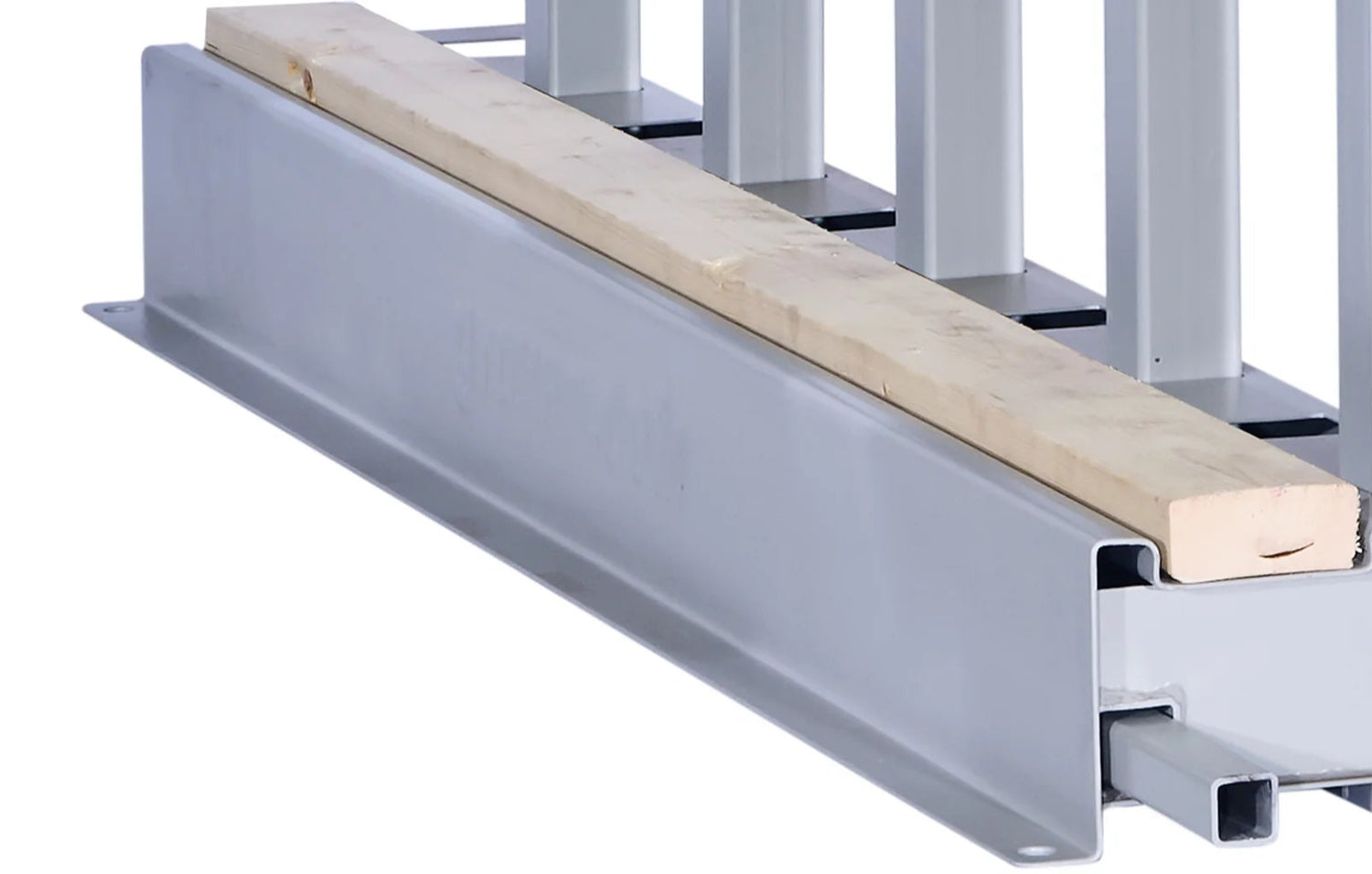

60" Outside Rail with Wood Post
Features:
- Outside rails are designed with slots to hold a 2' x 4'. This helps protect the material being stored as well as the rail surface.
- Outside rails have 2" square holes spaced 4" apart on the top. A steel plate with identical holes is welded and boxed inside the rails, 1" up from the bottom.
- Rails shipped with 11" connector tube for butting rails together in a straight line.
- Note: When assembled the overall usable height of the post is 5.5" less than listed.Example: A 60" post will be 54.5" above the top of the outside rail.
Designed to work with our BR-5 Bundle Rails (Posts come complete with Bundle Rack packages but are also sold separate).
Features:- Heavy-duty powder coated finish.
- For storing smaller fabricated parts and cut-offs
- Comes complete with 2" x 2" Post Caps
USE .5″ HOLES LOCATED ON BOTTOM FLANGE FOR SECURING RAILS TO THE FLOOR.
MAXIMUM WEIGHT ALLOWED PER POST: 3,000 LBS. (WHEN USING TWO NEXT TO EACH OTHER THE OPENING IS 6,000 LBS.)
NOTE WITH BUNDLE RACK PACKAGES: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5" LESS THEN LISTED (EXAMPLE: 40" POST WILL BE 34.5" ABOVE THE TOP OF THE RAIL)
60" Post For Bundle Rack
Designed to work with our BR-5 Bundle Rails (Posts come complete with Bundle Rack packages but are also sold separate).
Features:- Heavy-duty powder coated finish.
- For storing smaller fabricated parts and cut-offs
- Comes complete with 2" x 2" Post Caps
USE .5″ HOLES LOCATED ON BOTTOM FLANGE FOR SECURING RAILS TO THE FLOOR.
MAXIMUM WEIGHT ALLOWED PER POST: 3,000 LBS. (WHEN USING TWO NEXT TO EACH OTHER THE OPENING IS 6,000 LBS.)
NOTE WITH BUNDLE RACK PACKAGES: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5" LESS THEN LISTED (EXAMPLE: 60" POST WILL BE 54.5" ABOVE THE TOP OF THE RAIL)

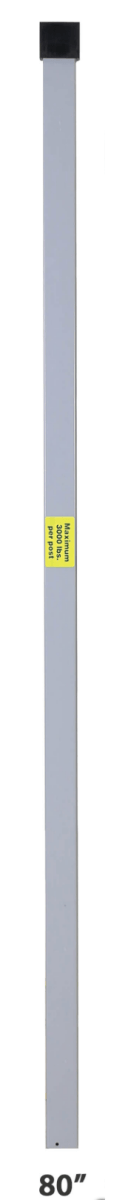

80" Post For Bundle Rack
Designed to work with our BR-5 Bundle Rails to store fabricated parts and cutoffs (Posts come complete with Bundle Rack packages but are also sold separate).
Features:- Heavy-duty powder coated finish.
- For storing smaller fabricated parts and cut-offs
- Comes complete with 2" x 2" Post Caps
USE .5″ HOLES LOCATED ON BOTTOM FLANGE FOR SECURING RAILS TO THE FLOOR.
MAXIMUM WEIGHT ALLOWED PER POST: 3,000 LBS. (WHEN USING TWO NEXT TO EACH OTHER THE OPENING IS 6,000 LBS.)
NOTE WITH BUNDLE RACK PACKAGES: WHEN ASSEMBLED THE OVERALL HEIGHT OF THE POSTS ARE 5.5" LESS THEN LISTED (EXAMPLE: 80" POST WILL BE 74.5" ABOVE THE TOP OF THE RAIL)

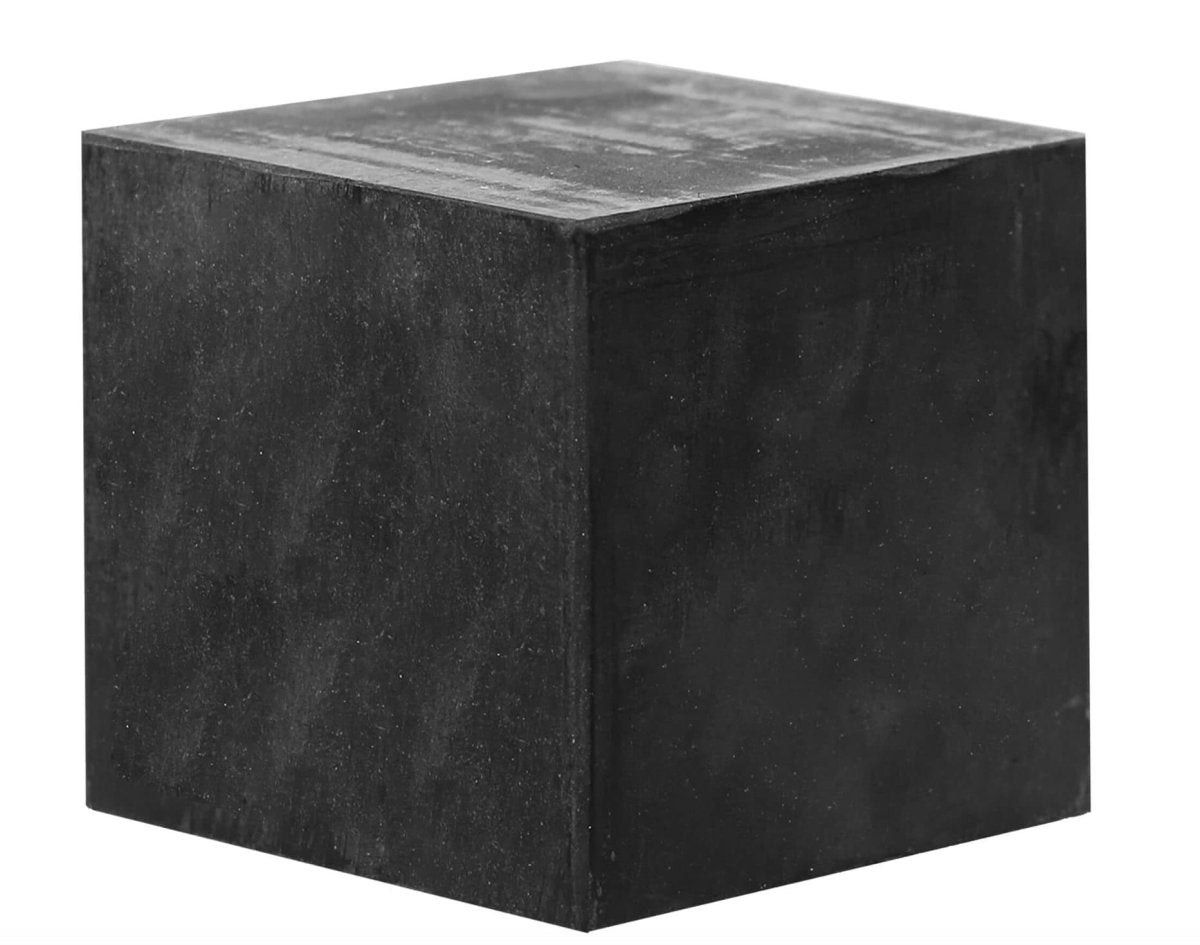

Rubber Caps For Bundle Rack Post
2" Post Caps built for our SP-40, SP-60 and SP-80 Bundle Rack Posts
Features:- Made of Rubber
- Scratch resistant
| Weight | .25 lbs |
|---|---|
| Size | For Bundle Rack |
