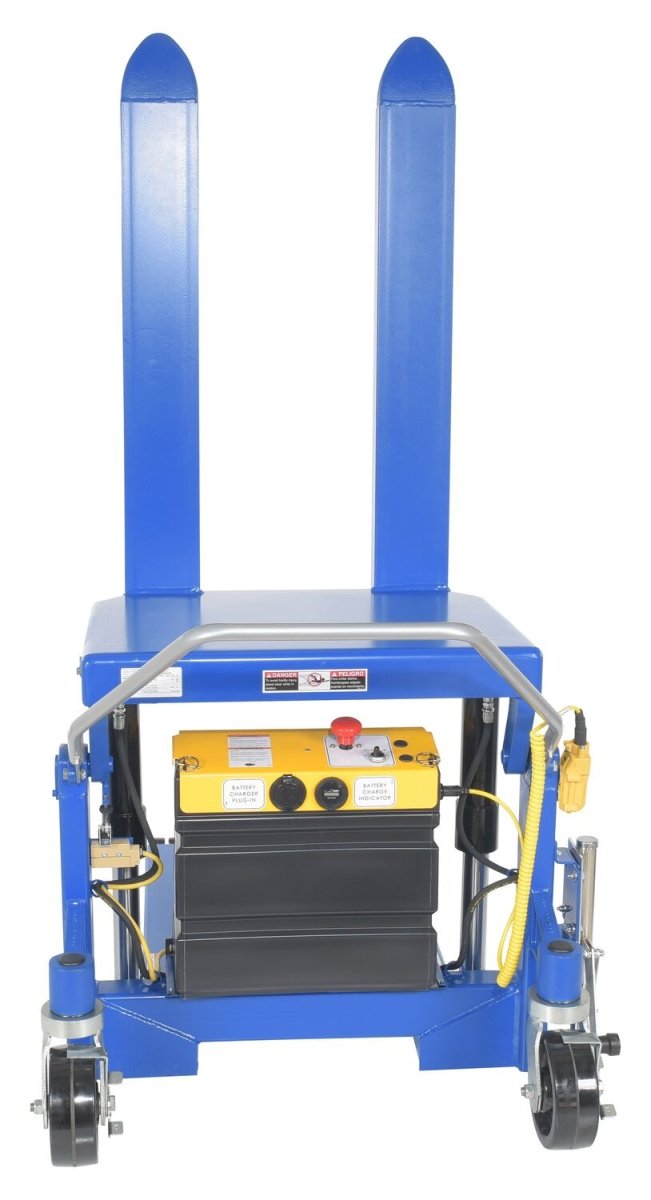

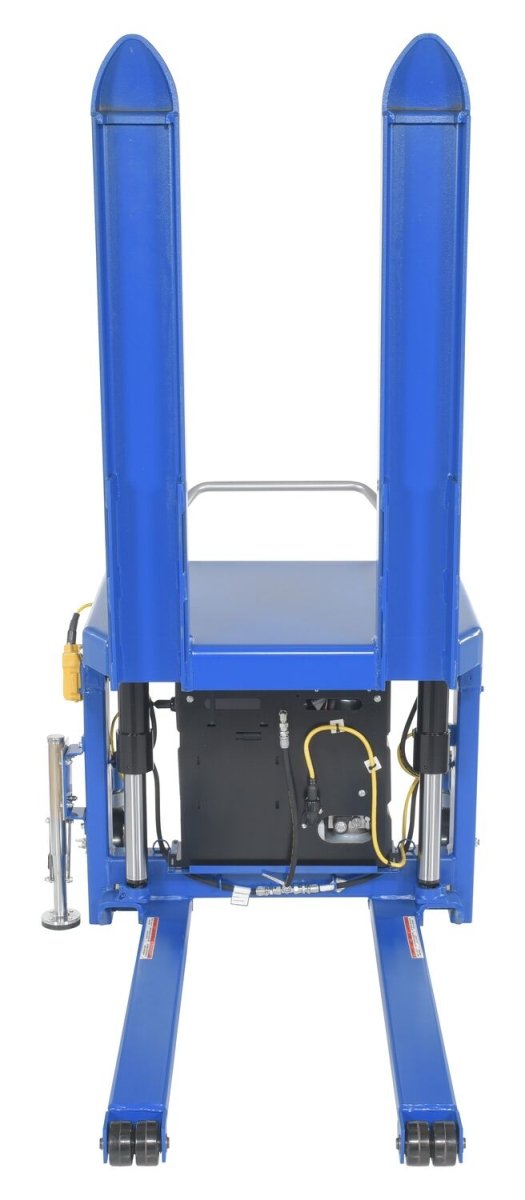

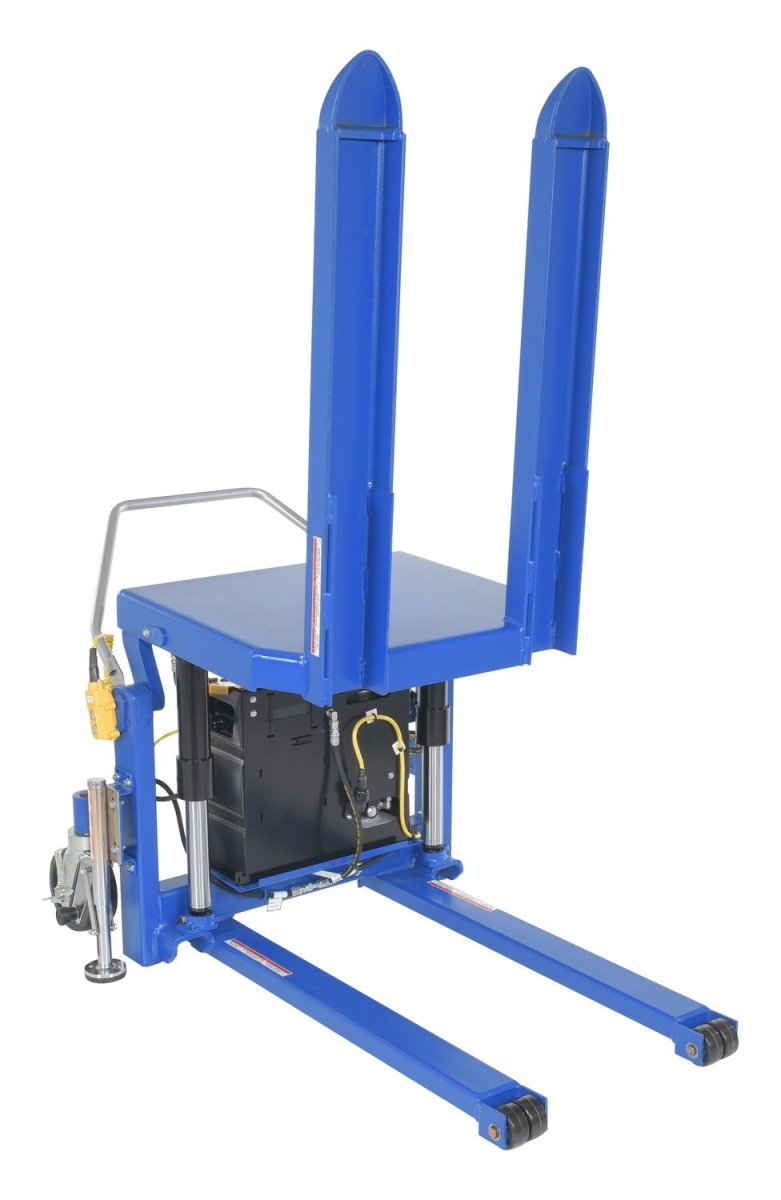

Lift and position filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty Tilt Master

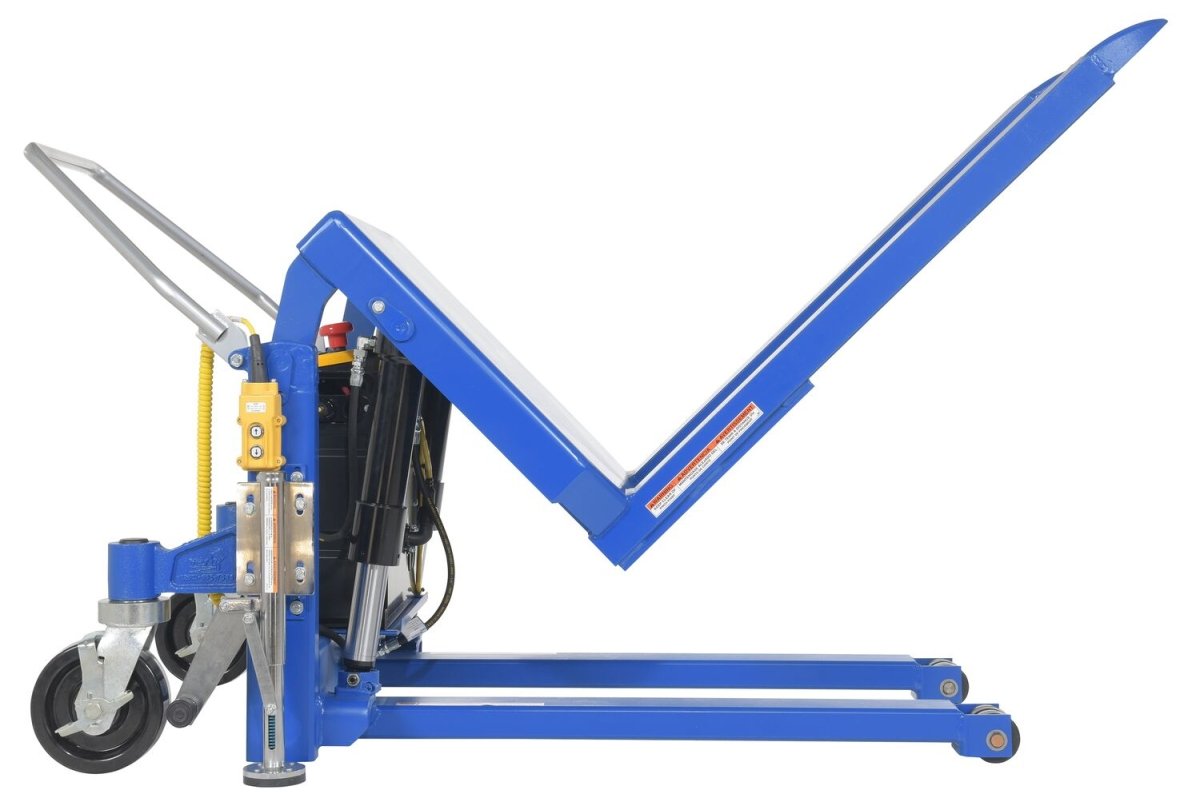

These 90 degree tilters will function as a transporter by moving completed products from work station to work station without waiting for a fork truck.

An ergonomic handle comes standard for quick and easy maneuverability. Unit has a thin profile to allow the user to get as close to the load as possible. Units roll easily on 8" x 3" phenolic steering wheels. Floor lock standard on non PTDS units. Series TM is designed to be used with open bottom pallets or skids only. The Tilt Master Straddle units, series TMS, can be used with virtually any kind of container or pallet. Units come standard with a hand pendant control on an 8 foot coil cord.

Reduce worker fatigue and injury with the Portable Traction Drive Power Option. An alternative to costly fork trucks. This state of the art option allows a single operator to safely and ergonomically transport products. maximum speed is 2.5 m.p.h.

Three power options to choose from:

• Suffix -AC is 115V, 1 phase power with a push-button hand control.
• Suffix -DC includes one (1) 12V battery DC series, push-button hand control, on-board charger and battery charge indicator gauge.
• DC-PTDS includes two (2) 12V batteries, Combination throttle / direction butterfly style controller, an adjustable steering yoke, and an auto reverse emergency 'belly switch'
• Suffix -DC-FC includes one (1) 12V battery, foot control, on-board charger and battery charge indicator gauge.
• Suffix -AIR features reciprocating air/oil power with a heel/toe foot treadle control. (Filter-Regulator-Lubricator required)

Applications

• Tilts products from ground level to a comfortable operator working height
• Doubles as a pallet truck and a portable tilt table

	Tilt Master - TM Series Works With Skids Only
	Tilt Master Straddle - TMS Series Works With Skids and Pallets

Model	Image	PDFs	Description	*	Net Wt. (lbs)
TM-20-AC		1 Year Limited Warranty	TILT MASTER AC POWER & 2000 LB CAP	Uniform Capacity (lb.): 2000	646
TM-20-AIR		1 Year Limited Warranty	TILT MASTER AIR/OIL, RECIPR, 2000 LB	Uniform Capacity (lb.): 2000	621
TM-20-DC		1 Year Limited Warranty	TILT MASTER DC POWER 2000 LB CAP	Uniform Capacity (lb.): 2000	680
TM-20-DC-FC		1 Year Limited Warranty	TILT MASTER DC FOOT CONTROL 2000 LB	Uniform Capacity (lb.): 2000	733
TM-20-DC-PTDS		1 Year Limited Warranty	TILT MASTER DC POWER TRACTION 2000 LB	Uniform Capacity (lb.): 2000	827
TM-40-AC		1 Year Limited Warranty	TILT MASTER AC POWER & 4000 LB CAP	Uniform Capacity (lb.): 4000	710
TM-40-AIR		1 Year Limited Warranty	TILT MASTER AIR/OIL, RECIPR, 4000 LB	Uniform Capacity (lb.): 4000	658
TM-40-DC		1 Year Limited Warranty	TILT MASTER DC POWER 4000 LB CAP	Uniform Capacity (lb.): 4000	688
TM-40-DC-FC		1 Year Limited Warranty	TILT MASTER DC FOOT CONTROL 4000 LB	Uniform Capacity (lb.): 4000	699
TM-40-DC-PTDS		1 Year Limited Warranty	TILT MASTER DC POWER TRACTION 4000 LB	Uniform Capacity (lb.): 4000	850
TM-60-AC		1 Year Limited Warranty	TILT MASTER AC POWER & 6000 LB CAP	Uniform Capacity (lb.): 6000	739
TM-60-AIR		1 Year Limited Warranty	TILT MASTER AIR/OIL, RECIPR, 6000 LB	Uniform Capacity (lb.): 6000	851
TM-60-DC		1 Year Limited Warranty	TILT MASTER DC POWER 6000 LB CAP	Uniform Capacity (lb.): 6000	707
TM-60-DC-PTDS		1 Year Limited Warranty	TILT MASTER DC POWER TRACTION 6000 LB	Uniform Capacity (lb.): 6000	873
TMS-20-AC		1 Year Limited Warranty	TILT MASTER STRAD AC POWER & 2000 LB CAP	Uniform Capacity (lb.): 2000	989
TMS-20-AIR		1 Year Limited Warranty	TILT MASTER STRAD AIR/OIL RECIPR 2000 LB	Uniform Capacity (lb.): 2000	881
TMS-20-DC		1 Year Limited Warranty	TILT MASTER STRAD DC POWER 2000 LB CAP	Uniform Capacity (lb.): 2000	922
TMS-20-DC-PTDS		1 Year Limited Warranty	TILT MASTER STRAD DC POWER TRACTION 2000	Uniform Capacity (lb.): 2000	1083
TMS-40-AC		1 Year Limited Warranty	TILT MASTER STRAD AC POWER & 4000 LB CAP	Uniform Capacity (lb.): 4000	953
TMS-40-AIR		1 Year Limited Warranty	TILT MASTER STRAD AIR/OIL RECIPR 4000 LB	Uniform Capacity (lb.): 4000	893
TMS-40-DC		1 Year Limited Warranty	TILT MASTER STRAD DC POWER 4000 LB CAP	Uniform Capacity (lb.): 4000	968
TMS-40-DC-PTDS		1 Year Limited Warranty	TILT MASTER STRAD DC POWER TRACTION 4000	Uniform Capacity (lb.): 4000	1122
TMS-60-AC		1 Year Limited Warranty	TILT MASTER STRAD AC POWER & 6000 LB CAP	Uniform Capacity (lb.): 6000	978
TMS-60-AIR		1 Year Limited Warranty	TILT MASTER STRAD AIR/OIL RECIPR 6000 LB	Uniform Capacity (lb.): 6000	967
TMS-60-DC		1 Year Limited Warranty	TILT MASTER STRAD DC POWER 6000 LB CAP	Uniform Capacity (lb.): 6000	998
TMS-60-DC-PTDS		1 Year Limited Warranty	TILT MASTER STRAD DC POWER TRACTION 6000	Uniform Capacity (lb.): 6000	1161
