Wood's Powr-Grip MRTALP Series Low-Profile Rotator/Tilter Vacuum Lifters Intelligent Lifting for Tight Spaces and Heavy Panels

The Wood's Powr-Grip MRTALP Series Rotator/Tilter Vacuum Lifters are heavy-duty, DC-powered vacuum lifting systems engineered for contractors and trades professionals who need precise rotational and tilt control in space-constrained job sites. Available in three specialized models covering insulated metal panels, smooth surfaces (including glass), and flat textured construction materials, this series handles load capacities up to 1,100 lbs (500 kg). Powered by a Dual Vacuum System and equipped with Intelli-Grip® Technology, these lifters are designed for demanding commercial and industrial installation environments.

Unlike standard vacuum lifters, the MRTALP Series features a low-profile design that allows operation in narrow overhead spaces where conventional equipment cannot reach. T-Arms and extension options expand the system's capability to handle long roofing and insulated metal panels, making these lifters a versatile solution across multiple trades rather than a single-use tool.

Key Features & Benefits

Intelli-Grip® Technology with Dual Vacuum System

Intelli-Grip® automatically monitors both vacuum and power systems in real time, maximizing safety and operational efficiency on every lift. The system provides diagnostic codes and on-screen information to simplify maintenance and troubleshooting, reducing downtime on the job. A dual vacuum system ensures redundancy, so a single circuit issue does not immediately compromise load security.

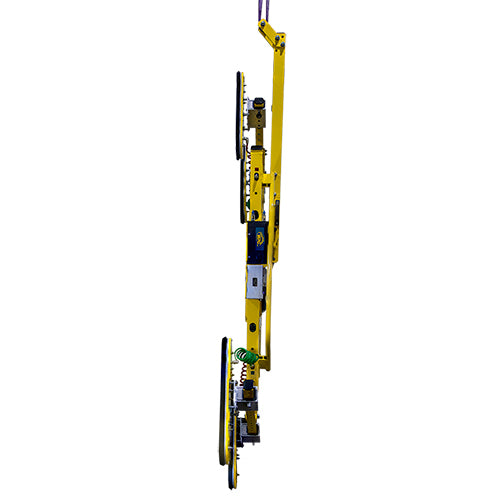

Low-Profile Design for Narrow Spaces

The MRTALP's compact, low-profile frame is purpose-built to operate in tight clearances where standard lifters physically cannot fit — critical for curtain wall installation, interior glazing, and metal panel work in occupied or partially finished structures. Contractors gain access to more installation positions without needing to modify the work environment.

Full Rotator/Tilter Functionality

The lifter provides both rotation and tilt control, allowing operators to precisely orient panels and glass during placement without manual repositioning. This reduces the number of crew members needed for complex installations and significantly decreases the risk of load damage or misalignment.

T-Arms and Extension Options for Long Panels

Pad Frame T-Arm assemblies and long extension arms allow the MRTALP Series to safely handle oversized insulated metal roofing panels that would otherwise be impractical to lift with a standard pad frame. This accessory flexibility means one lifter platform can cover a wider range of panel formats and project types.

Optional Remote Control System (Stock# 59906)

The plug-and-play Remote Control System lets a single operator control all lifter functions from up to 250 feet (76 m) away — ideal for multi-story window and panel installation where the operator and the load are not at the same level. Easy installation requires no special tooling or rewiring.

DC Power for Jobsite Flexibility

All MRTALP Series models run on DC voltage, eliminating the need for an AC power source at the point of use. Battery-powered operation keeps the system functional in locations without reliable electrical access, including rooftops, exterior facades, and remote construction sites.

Common Applications

Insulated Metal Panel Installation

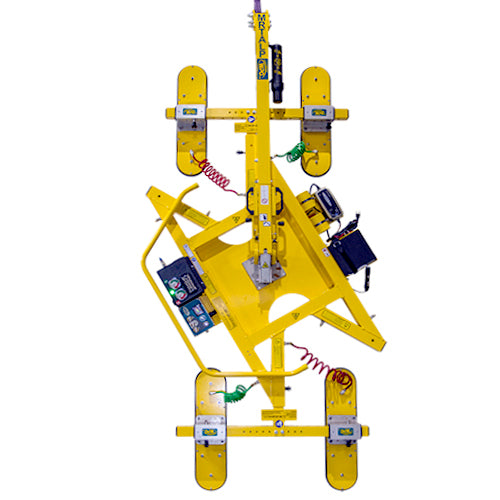

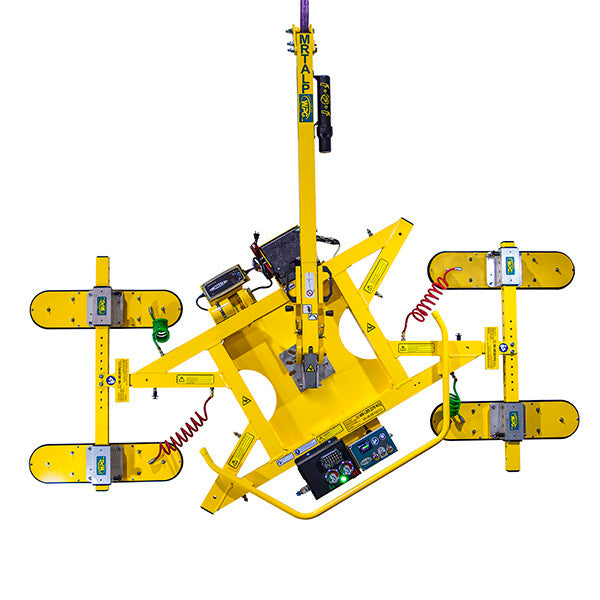

The MRTALP4625DC3 (Panel Master) is specifically configured for handling insulated metal panels, including long roofing panels with optional extension arms. Its 600 lb (270 kg) capacity covers the majority of standard IMP formats used in commercial construction.

Commercial Glazing and Window Installation

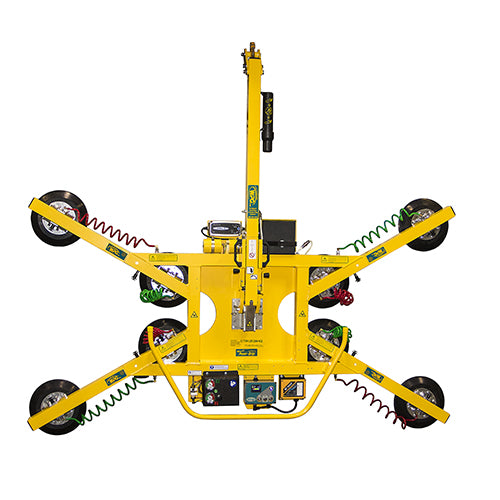

The MRTALP811LDC3 is optimized for flat, smooth surfaces and is ideal for lifting and placing glass panels, storefronts, curtain wall units, and windows — including multi-story installations when paired with the optional remote control system.

Construction and General Panel Installation on Textured Surfaces

The MRTALP810TDC3 handles flat but textured materials commonly encountered in construction and installation settings, broadening the system's applicability beyond glass to include concrete panels, textured cladding, and similar materials.

Roofing Panel Handling

With long extension arms (Stock# 95725) and roof extension options, the MRTALP Series can safely grip and maneuver long metal roofing panels that exceed the standard pad frame span, reducing manual handling risk for roofing crews.

Tight-Clearance Interior Installation

The low-profile frame allows the lifter to function in elevator shafts, mechanical rooms, narrow corridors, and other constrained interior spaces where ceiling clearance is limited.

Multi-Story Facade Work

When used with the optional Remote Control System, a single operator can direct panel and window placement from the ground or a remote position while the load is being set at height, improving site safety and reducing crew requirements.

Compatible Materials

• Insulated metal panels (IMP)
• Long metal roofing panels
• Flat glass (architectural, structural, curtain wall)
• Smooth surface materials (stone, composite, metal cladding)
• Flat textured surfaces (textured concrete panels, fiber cement, textured cladding)
• Windows and storefront units
• General construction panels suitable for vacuum lifting

Product Documents

• Instructions – MRTALP4625DC3 (Panel Master, 600 lb)
• Specifications – MRTALP4625DC3
• Instructions – MRTALP811LDC3 & MRTALP810TDC3 (1,100 lb Models)
• Specifications – MRTALP811LDC3 & MRTALP810TDC3
• Service Manual – DC3 Intelli-Grip Dual Vacuum System (All Models)
• Troubleshooting / Leak Test Procedure – DC3 Intelli-Grip Lifters
• Instructions – Remote Control System (Stock# 59906)
• Specifications – Remote Control System
• Instructions – Long Extension Arms (Stock# 95725)
• Specifications – Long Extension Arms
• Instructions – Vertical Lift Bar Option
• Instructions – Pad Frame T-Arms
• Specifications – T-Arm Options
• Instructions – Roof Extensions
• Specifications – Roof Extensions
• Instructions – Pad Mount Extensions
• Specifications – Adjustable Spacers

Application Instructions

Stage 1: Pre-Operation Inspection and Setup

1. Read and understand all operating instructions before use. Equipment is intended for professional operators only.
2. Select the correct model for your load surface: MRTALP4625DC3 for insulated metal panels, MRTALP811LDC3 for smooth surfaces (glass), MRTALP810TDC3 for flat textured surfaces.
3. Assemble the pad frame — install T-Arm assemblies, vacuum pads, and connect vacuum hoses per the instructions for your model.
4. If handling long roofing or insulated metal panels, attach appropriate extension arms to the pad frame before use.
5. Select the screen language on the Intelli-Grip® Control Unit if required.
6. Perform all pre-use inspections and tests as described in the operating instructions, including checking the 12-volt battery and verifying vacuum system integrity.
7. If using the Remote Control System, prepare and pair the remote per its dedicated instructions before lifting begins.

Stage 2: Attaching to the Load

1. Position the lifter on the load surface, ensuring pads are correctly placed and centered for balanced lifting.
2. Power up the lifter using the Intelli-Grip® Control Unit.
3. Seal the vacuum pads onto the load surface and verify a secure hold by reading the vacuum gauges on both circuits.
4. Confirm the vacuum level is in the safe (green) zone on all gauges before proceeding. Do not lift if either circuit reads in the red zone.
5. Interpret the Lift Light status on the control unit — green indicates it is safe to lift.

Stage 3: Lifting, Rotating, and Tilting

1. Lift and move the load using the crane or hoist attached at the lift point or lift bar.
2. Monitor vacuum indicators continuously during the lift. The Intelli-Grip® system will display warning codes if leak rates exceed the threshold (default: 4" Hg loss per 5 minutes per circuit).
3. To rotate the load, use the rotation release lever and control handle as directed in the operating instructions.
4. To tilt the load, engage the tilt linkage per the operating instructions. Note that the tilt lock must be disengaged before tilting.
5. In case of power failure, follow the emergency procedures outlined in the operating instructions before attempting any manual intervention.

Stage 4: Releasing the Load and Post-Use

1. Once the load is in its final position, release the pads from the load per the operating instructions for your model.
2. Power down the lifter and disconnect the power source.
3. Inspect pads, hoses, fittings, and the vacuum system for any wear, damage, or contamination after each use.
4. Perform scheduled service and maintenance per the Service Manual and the Inspections and Tests section of your operating instructions.
5. Store the lifter and all accessories in a clean, dry location protected from damage.

Technical Specifications

Safety Data Summary

Hazard Information

• Equipment is rated for professional use only — read and understand all operating instructions before use.
• Severe vacuum leakage (vacuum pump cycling every few seconds or continuous running; gauge below 16" Hg [-54 kPa]) indicates loss of holding capacity — do not lift.
• Moderate vacuum leakage will trigger a "High leak rate on circuit #" warning on the Intelli-Grip® display — inspect and repair before continuing operation.
• Electrical shock hazard — disconnect power source before servicing or when required by the service manual.
• Do not exceed rated load capacity for the model in use.
• Do not apply soapy water to fittings or vacuum hoses when checking for leaks — it will be drawn into the vacuum system.
• Always inspect pads, hoses, and fittings for contamination, cuts, abrasions, cracks, or loose connections before each use.
• Do not lift if the vacuum gauge reads in the red zone on either circuit.
• Service personnel must read and understand the operating instructions (especially Inspections and Tests and Maintenance sections) before servicing.

Personal Protective Equipment

• Follow all applicable jobsite PPE requirements for the installation environment (head protection, eye protection, foot protection, high-visibility apparel as required).
• Qualified service personnel should follow standard electrical safety practices when servicing DC-powered components.

Safe Handling

• Perform all pre-use inspections and vacuum tests before each lift session.
• Verify both vacuum circuits are holding properly before lifting any load.
• Monitor vacuum indicators continuously during all lifts.
• Follow emergency power failure procedures outlined in the operating instructions if power is lost during a lift.
• Perform scheduled maintenance and service per the service manual and operating instructions at all required intervals.
• Only use recommended test tools and equipment when performing leak detection and vacuum system tests.
• Always remove covers gently when servicing — wiring and hoses may be attached to components inside.

Frequently Asked Questions

Q: What is the difference between the three MRTALP models, and how do I choose the right one?
A: The MRTALP4625DC3 (Panel Master, Stock# 98741) is designed specifically for insulated metal panels and supports extension options for long roofing panels at 600 lbs capacity. The MRTALP811LDC3 (Stock# 98735) is optimized for flat, smooth surfaces such as glass at 1,100 lbs capacity. The MRTALP810TDC3 (Stock# 98730) handles flat but textured surfaces common in construction and installation at 1,100 lbs capacity. Select the model matching your load surface type and weight.

Q: What does the Intelli-Grip® system monitor, and what does it do if it detects a problem?
A: Intelli-Grip® continuously monitors both vacuum circuits and the power system. If it detects a leak rate exceeding the threshold (default: 4" Hg loss per 5 minutes per circuit), it displays a "High leak rate on circuit #" warning on-screen. It also provides diagnostic codes and system information to assist with troubleshooting and maintenance. These alerts allow operators to identify issues before they become a safety risk.

Q: Can the MRTALP Series handle long roofing panels?
A: Yes. The MRTALP4625DC3 (Panel Master) is designed for insulated metal panels, and with the addition of Long Extension Arms (Stock# 95725) and Roof Extension options, the pad frame span can be extended to safely grip and handle long metal roofing panels that exceed the standard frame reach.

Q: How does the optional Remote Control System work, and what is its range?
A: The Remote Control System (Stock# 59906) is a plug-and-play accessory that allows a single operator to control all lifter functions from up to 250 feet (76 m) away. It is particularly useful for multi-story window and panel installation where the operator needs to guide the load from a different level than the lifter. No special wiring or tooling is required for installation.

Q: What should I do if the vacuum gauge drops into the red zone during a lift?
A: Do not continue the lift. A reading in the red zone (below 16" Hg [-54 kPa]) indicates severe vacuum leakage or insufficient holding force. Lower and secure the load immediately if safe to do so, then inspect all vacuum pads, hoses, and fittings for damage, contamination, or loose connections. Perform the full leak test procedure per the Troubleshooting/Leak Test document before resuming operations.

Q: Who can service the MRTALP Series lifters?
A: Service must be performed by qualified service personnel only. Service personnel are required to read and understand the lifter's operating instructions — especially the Inspections and Tests and Maintenance sections — before performing any service work. Service is required whenever a deficiency is indicated by routine inspections or tests, and any warranted service must be completed before the lifter is returned to normal operation.
