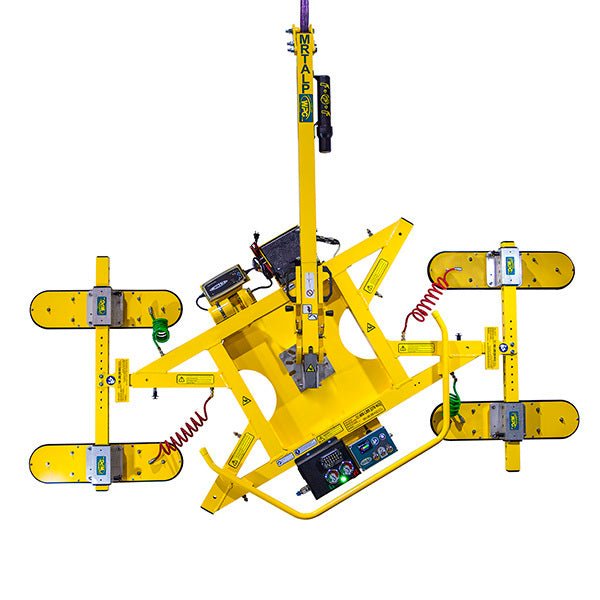

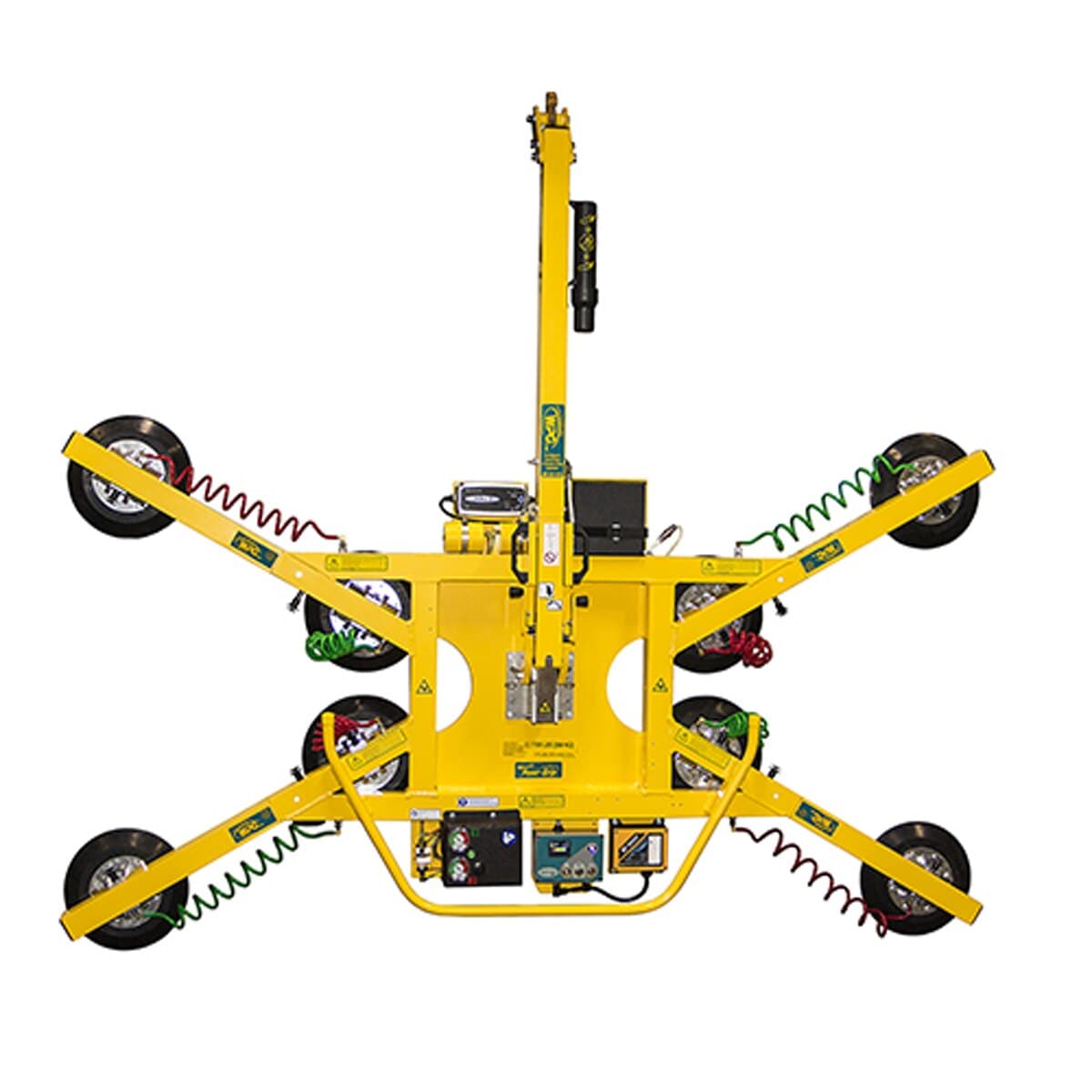

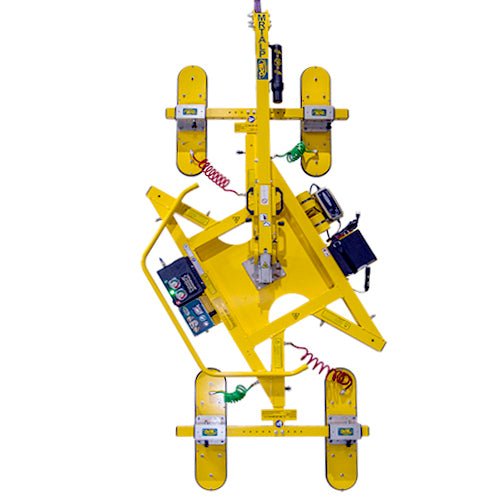

MRTALP Lifter Series

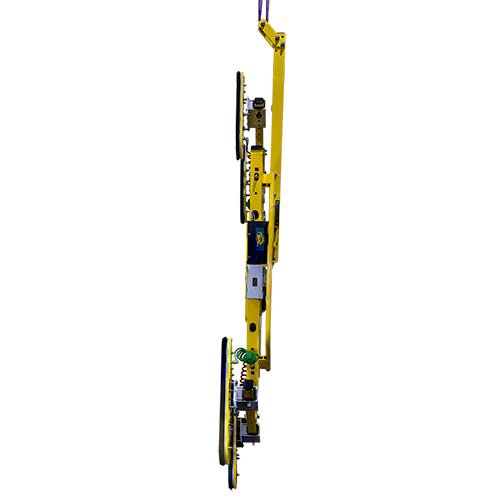

This lifter features a low profile, allowing it to operate in narrow spaces. T-Arm and extension options allow this lifter to also handle insulated metal panels.

Dual Vacuum models now available w/ Intelli-Grip® Technology, automatically monitoring vacuum and power systems to maximize safety and efficiency while simplifying maintenance and repairs.

Employing state-of-the-art technology,
Intelli-Grip™ automatically monitors
vacuum and power systems to:

• Maximize productivity
• Help reduce human error
• Simplify maintenance and repairs
• Protect employees and property from harm

Rotator/Tilter

98730

MRTALP810TDC3

Flat and textured surfaces lifter w/ Intelli-Grip and Dual Vacuum System. Ideal for textured surfaces in Construction/Installation settings.

1100 lbs [500 kg]

DC

98741

MRTALP4625DC3

Panel Master: Insulated Metal Panel lifter w/ Intelli-Grip and Dual Vacuum System. Options allow for handling long roofing panels.

600 lbs [270 kg]

DC

Instructions

Service Manual

Troubleshooting

Specifications

Automatic self-testing ensures lifter is ready for use, every lift.
Color display provides critically relevant information at a glance. Anticipates threats and alerts operator beforehand with clearly visible and audible warnings.
Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low.
Multiple alarm levels plainly identify the severity of hazards.

1100 lbs [500 kg]

*See Frame Configurations and Capacities

Manual rotation, 180° edgewise, with locking every 30°
Assisted manual tilt, 90° between upright and flat, with automatic latchingin upright position

Intelli-Grip® technology
Dual vacuum system Adjustable-position lift spool High-capacity battery and charger Battery energy gauge

Low vacuum strobe light
Low vacuum/power loss warning buzzer with back-up battery Green lift light
Vacuum gauges
Vacuum line filters
Vacuum reserve tanks
Spring-mounted vacuum pads
(Re)movable pad mounts
Pad extension arms
Blow-off for quick release
Two-action, push-button release

Features two completely independent vacuum circuits. Provides vacuum system redundancy.
Limits possibility of a catastrophic failure.
Reduces chance of harm to personnel or equipment.

Remote control system (59906AM)
Pad frame T-arm assemblies (97465 & 97465HV)
Vertical lift bar (57353)
Long extension arms (95725)
Extensions for movable pad mounts (93101 & 93101AM)Alternative vacuum pads (Specifications not as listed above. Pleasecontact us for more information):

9" [23 cm] diameter pad (VPFS9)

10" [25 cm] diameter concave pad (G0750)
Counterbalance Lifter (CB2DCS)
Alternative pad compounds, including ones for low-marking, temperature resistant and coated surface applications (special order)

Intelli-Grip®Technology

Maximum Load Capacity*

Load Movement

Standard Features

Dual Vacuum System

Available Options

Maximum Load Capacity

• 1100 lbs [500 kg]

Intelli-Grip™ Technology

• Automatic self-testing ensures lifter is ready for use, every lift.
• Color display provides critically relevant information at a glance.
• Anticipates threats and alerts operator beforehand with clearly visible and audible warnings.
• Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low.
• Multiple alarm levels plainly identify the severity of hazards.

Load Movement

• Manual rotation, 180° edgewise, with automatic latching every 30°
• Assisted manual tilt, 90° between upright and flat, with automatic latching in upright position

Standard Operating Power

• 12 volts DC, 5 amps

Weight of Lifter

• 214 lbs [97 kg]

Profile Thickness:

• 8" [20 cm] (does not include load)

Number / Size of Vacuum Pads

• 8 / 11" [28 cm] diameter, lipped pads

Standard Pad Spread

• Minimum Width: 17" [43 cm]
• Maximum Width: 52¾" [134 cm]
• Minimum Length: 44-½ [113 cm]
• Maximum Length: 102" [259 cm]

Standard Features

• Intelli-Grip™ technology
• Dual vacuum system
• Adjustable-position lift spool
• High-capacity battery and charger
• Battery energy gauge
• Low vacuum strobe light
• Low vacuum/power loss warning buzzer with back-up battery
• Green lift light
• Vacuum gauges
• Vacuum line filters
• Vacuum reserve tanks
• Spring-mounted vacuum pads
• (Re)movable pad mounts
• Pad extension arms
• Blow-off for quick release
• Two-action, push-button release

Dual Vacuum System

• Features two completely independent vacuum circuits.
• Provides vacuum system redundancy.
• Limits possibility of a catastrophic failure.
• Reduces chance of harm to personnel or equipment.
