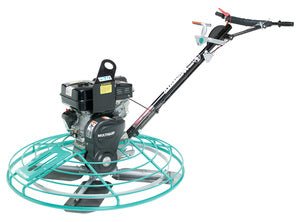

Whiteman B46H90 Standard Walk-Behind Trowel

4-blade, 46", Honda GX270, 8.5 HP, Min 60-130 Max RPM blade speed
Shown with optional QXH QuickPitch Handle
  • 46-inch (1170mm) guard ring diameter
  • Trowel covered by 1-year limited warranty
  • Front access panel provides quick access to trowel arms and blades
  • Center mount lifting bale included
  • Spider and thrust collar assembly design simplifies routine maintenance
  • Gearbox features top quality components & large oil capacity for years of trouble-free performance
  • Optimally balanced for smooth finishing
  • Handles available with either QuickPitch or Standard (knob type) pitch control
Clutch Type Centrifugal
No. of Blades 4
Ring Diameter 46 in 1168.4 mm
Rotor Speed 60-130 RPM
Handle Options SXH
QXH

Overall Length 75 in 1910 mm
Overall Width 46 in 1170 mm
Overall Height 41 in 1044 mm
Operating Weight 277 lb 125.6 kg
Shipping Weight 285 lb 129.2 kg

Engine Make/Model Honda GX-270
Start Method Recoil
Engine Power 8.5 HP 6.3 kW
Engine RPM 3600
Fuel Type Gasoline
Notice: Features and equipment specifications are subject to change without notice.
