6" Handi-Grip Hand Cup for Flat and Curved Surfaces - Pack of 4

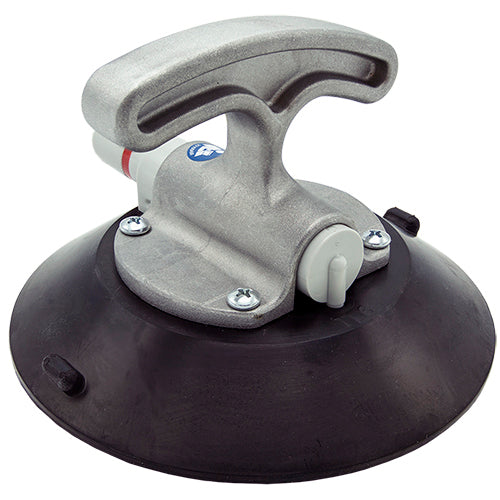

Wood's Powr-Grip TL6HG — 6" Aluminum Handle Handi-Grip Vacuum Hand Cup for Flat and Curved Surfaces (70 lbs / 32 kg) — Pack of 4

The Wood's Powr-Grip TL6HG Handi-Grip is a compact, versatile vacuum hand cup engineered for fast, reliable lifting and positioning of a wide variety of flat and curved smooth, nonporous surfaces weighing up to 70 lbs (32 kg). Featuring a 6" (15 cm) standard rubber suction pad (Model TL6), an aluminum handle, and an industrial-grade plastic plunger, the TL6HG is designed as an everyday-use hand cup capable of handling windshields, stone tiles, sheet materials, glass panels, and a broad range of other smooth nonporous objects encountered across glazing, automotive glass, stone installation, and general material handling applications. Rated for curved surfaces with a minimum radius of 12" (305 mm) and operable down to 0°F (-18°C), the TL6HG performs across a wide range of environments and seasons. Sold as a Pack of 4 (SKU: 91316, Model: TL6HG), the kit provides redundant tooling for multi-cup lifts and high-volume operations. Manufactured by Wood's Powr-Grip.

The TL6HG occupies the same core specification space as the TL6RH (same TL6 pad, 70 lb capacity, 12" minimum radius, 0°F rating, aluminum handle, plastic plunger, vacuum pad protector, Pack of 4) but with a standard centered handle geometry rather than the TL6RH’s offset fixed handle. Where the TL6RH’s offset handle is specifically designed to prevent load swing and rotation — making it the correct choice for asymmetrical or off-center loads — the TL6HG’s standard handle is optimized for general-purpose use across the broadest possible range of flat and curved applications where load orientation control is not the primary concern. The aluminum construction provides lightweight, corrosion-resistant performance suited for field carry and multi-environment use.

Key Features & Benefits

Versatile Flat and Curved Surface Capability (Min. 12" Radius)

The TL6HG is rated for both flat and curved smooth, nonporous surfaces with a minimum curved surface radius of 12" (305 mm), covering the full range of applications from flat glass panels and stone tiles to curved automotive windshields, side glass, and gently curved architectural elements. This dual-surface capability makes the TL6HG the correct single tool for field technicians and installers who encounter a variety of surface profiles throughout the workday without wanting to carry multiple specialized cups. The 12" minimum radius matches the LJ6VH and TL6RH, accommodating most automotive glass curvatures.

Aluminum Handle — Lightweight and Corrosion-Resistant

The aluminum handle provides a lightweight, corrosion-resistant grip suited for repeated use across shop and field environments, including wet, humid, and cold conditions. Aluminum construction resists rust in environments where moisture, outdoor exposure, or salt air are factors, while maintaining the structural rigidity needed for controlled lifting of loads up to 70 lbs. The lightweight handle reduces operator fatigue during high-repetition handling tasks — particularly relevant for the TL6HG’s broad general-purpose positioning as an everyday carry cup.

6" Standard Rubber Suction Pad (Model TL6)

The 6" (15 cm) TL6 pad provides reliable vacuum attachment on flat and curved smooth, nonporous surfaces across the rated operating temperature range. The standard rubber compound maintains flexibility and seal integrity from 0°F to 120°F, and the 6" diameter is optimized for the compact, maneuverable form factor that makes the TL6HG effective in tight spaces and on smaller surface areas. The TL6 pad is shared with the TL6RH and TL6RH2B, making replacement pads interchangeable across all three models.

Extended Low-Temperature Rating (0°F / -18°C)

The TL6HG is rated for operation down to 0°F (-18°C), making it suitable for cold storage facilities, outdoor winter job sites, and refrigerated environments where standard-rated cups (10°F minimum) may experience rubber hardening and reduced seal performance. For field technicians working year-round in northern climates or cold chain environments, this extended cold-temperature rating ensures the TL6HG remains operational in all seasons without requiring a separate cold-rated cup.

Fast Attach and Release Mechanism

The quick-engage vacuum mechanism allows operators to attach and release the cup rapidly without tools, supporting high-throughput workflows across the wide variety of applications the TL6HG is designed for. Faster cycle times per lift improve productivity when handling multiple panels, tiles, or glass units in sequence. The release action is controlled and deliberate, preventing accidental disengagement during a lift.

Red-Line Vacuum Loss Indicator — Vacuum Pad Protector Included — Pack of 4

The built-in red-line indicator provides a continuous visual warning if vacuum pressure drops significantly during a lift, giving the operator an immediate alert before load failure can occur. Each TL6HG ships with a vacuum pad protector to keep the suction pad clean and protected during storage and transport, extending rubber seal life and maintaining consistent vacuum performance. The pack-of-4 configuration provides redundant tooling for multi-cup lifts and ensures replacement cups are on hand when a pad requires service.

Common Applications

Automotive Windshield and Glass Handling

Auto glass technicians use the TL6HG for windshield installation and replacement, side glass handling, and rear window positioning. The 12" minimum radius rating accommodates most automotive windshield curvatures, and the compact 6" pad fits within the usable glass surface area. The pack-of-4 configuration supports two-technician, two-cup lifts for full windshield panels.

Stone Tile and Large-Format Tile Handling

Tile setters and stone installers use the TL6HG to lift and position stone tiles, polished ceramic, and large-format porcelain tile during installation. The 6" pad provides reliable vacuum contact on smooth, glazed tile surfaces, and the aluminum handle resists corrosion in wet tile installation environments where water and adhesive are present.

Sheet Material Handling

Fabricators and installers working with sheet glass, sheet metal, acrylic sheet, polycarbonate, and other smooth nonporous sheet materials use the TL6HG for lifting, positioning, and transferring panels during cutting, routing, and assembly operations. The compact form factor and 70 lb capacity cover the majority of standard sheet material handling tasks.

General Flat Glass Panel Handling

Glaziers use the TL6HG as a general-purpose flat glass cup for handling plate glass, tempered glass, and architectural glass panels on job sites where a compact, portable lifter is needed. The 70 lb capacity and 6" pad are well-matched for standard glass panel sizes encountered in residential and light commercial glazing work.

Cold Storage and Outdoor Winter Applications

The 0°F (-18°C) low-temperature rating makes the TL6HG suitable for handling smooth, nonporous materials in cold storage facilities, walk-in freezers, and outdoor winter job sites. Always verify pad seal integrity with a test load before lifting in cold conditions, as rubber performance approaches its rated limit at 0°F.

Multi-Cup Coordinated Lifts

The pack-of-4 configuration supports multi-cup coordinated lifts for panels or objects exceeding the 70 lb single-cup rating. Multiple TL6HG cups can be positioned along a panel to distribute load, with each cup providing an independent vacuum attachment point. Coordinate all operators before lifting and lower simultaneously.

Compatible Materials

• Automotive windshields and curved glass (min. 12" / 305 mm radius)
• Automotive side glass and rear windows
• Flat plate glass and float glass
• Tempered and laminated safety glass — smooth face
• Polished stone tile (granite, marble, travertine — smooth face)
• Glazed ceramic and polished porcelain tile
• Acrylic sheet and polycarbonate panels
• Smooth sheet metal and formed metal panels
• Smooth painted or coated metal panels (flat and curved, within radius rating)
• Any smooth, nonporous flat or curved surface with min. 12" (305 mm) radius

Not compatible with: rough, textured, or porous surfaces; surfaces with radius tighter than 12" (305 mm); thin or fragile materials that could fracture under vacuum stress; surfaces contaminated with oil, wax, or debris in the pad contact area; concrete, brick, unpolished stone, wood, or drywall.

Product Documents

• TL6HG Instructions (PDF)
• TL6HG Specifications (PDF)

Application Instructions

Step 1: Surface and Material Assessment

1. Confirm the surface is smooth and nonporous — do not proceed on rough, textured, or porous surfaces.
2. For curved surfaces, confirm the radius is 12" (305 mm) or greater.
3. Verify the panel or object weight does not exceed 70 lbs (32 kg) per cup.

Step 2: Pad Inspection and Preparation

1. Inspect the TL6 suction pad for cuts, cracks, hardening, or contamination. Replace if damaged.
2. Clean the pad contact area on the work surface — remove dust, oil, moisture, and debris.
3. In cold environments, verify pad flexibility above 0°F (-18°C) before use.

Step 3: Attaching the Cup

1. Position the pad flat against the surface with full perimeter contact.
2. Engage the vacuum mechanism using the aluminum handle/plunger until firm resistance is felt.
3. Check the red-line vacuum indicator — confirm full vacuum before lifting.
4. Apply a controlled test load (firm downward pull) to verify seal integrity before committing to the full lift.

Step 4: Lifting, Positioning, and Release

1. Lift smoothly — avoid sudden jerking motions that can break the vacuum seal.
2. Monitor the red-line indicator continuously throughout the lift and during positioning.
3. For multi-cup lifts, coordinate with all operators to lift and lower simultaneously.
4. Do not exceed the 70 lb (32 kg) rated load capacity per cup.
5. Lower the load fully to a stable surface before releasing the vacuum.
6. Engage the release mechanism slowly and in a controlled manner.
7. Clean the pad after use and store with the vacuum pad protector.

Technical Specifications

Safety Data Summary

Hazard Information

• Vacuum loss during a lift can result in sudden load drop, causing serious injury or property damage
• Overloading beyond 70 lbs (32 kg) per cup may cause sudden cup release without warning
• Use on surfaces with radius tighter than 12" (305 mm) will prevent full pad seal and significantly increases drop risk
• Damaged or contaminated suction pads must be replaced before use
• In cold environments, verify pad flexibility and seal integrity before each lift — rubber performance approaches its limit at 0°F (-18°C)
• Do not use above 5,000 ft (1,500 m) elevation

Personal Protective Equipment

• Safety glasses or face shield when handling glass or tile panels
• Cut-resistant gloves rated for glass and stone handling
• Steel-toed safety footwear
• Insulated gloves and appropriate cold-weather PPE when operating at or near 0°F (-18°C)

Safe Handling

• Inspect the pad and clean the contact area before each lift
• Never exceed the rated 70 lb load capacity per cup
• Monitor the red-line indicator continuously — lower the load immediately if vacuum loss is detected
• For multi-cup lifts, coordinate all operators before lifting and lower simultaneously
• In cold environments, verify pad seal integrity with a test load before every lift
• Store with the vacuum pad protector to maintain pad condition between uses

Frequently Asked Questions

Q: How does the TL6HG differ from the TL6RH?
A: Both use the same TL6 pad, 70 lb capacity, 12" minimum radius, 0°F rating, aluminum handle, plastic plunger, vacuum pad protector, and Pack of 4 configuration. The key difference is the handle geometry: the TL6RH has an offset, fixed handle specifically designed to prevent load swing and rotation — the correct choice for asymmetrical or off-center loads. The TL6HG has a standard centered handle optimized for general-purpose use across the broadest range of flat and curved applications. Choose the TL6RH when load orientation control is critical; choose the TL6HG for general everyday use.

Q: How does the TL6HG differ from the LJ6VH?
A: Both are 6" curved and flat surface cups with 70 lb capacity and 12" minimum radius. The TL6HG has an aluminum handle and plastic plunger; the LJ6VH has an all-metal handle and plunger. The LJ6VH is specifically recommended for windshield handling and is sold as a Pack of 4 with a vacuum pad protector. The TL6HG is positioned as a broader general-purpose cup for windshields, stone tiles, and sheet materials. For windshield-specific applications, either is appropriate; for maximum handle durability, the LJ6VH’s all-metal construction has an advantage.

Q: Can the TL6HG be used in cold environments?
A: Yes. The TL6HG is rated down to 0°F (-18°C), making it suitable for cold storage facilities, outdoor winter job sites, and refrigerated environments. Always verify pad flexibility and seal integrity with a test load before lifting in cold conditions.

Q: Is the TL6 pad interchangeable with other WPG models?
A: Yes. The TL6 pad is shared with the TL6RH (single cup, SKU 91320) and the TL6RH2B matched pair (SKU 91345), making replacement pads interchangeable across all three models. Replacement TL6 pads are available separately through Wood's Powr-Grip authorized distributors.

Q: What replacement pad does the TL6HG use?
A: The TL6HG uses the TL6 standard rubber pad (6" diameter). Replacement pads are available separately through Wood's Powr-Grip authorized distributors.

Q: Is this product made to order?
A: Yes. This product is made to order and all sales are final. Please confirm your surface type, curved surface radius, and load requirements before placing your order.
