The Ideal Hand Cup for Flat and Curved Surfaces

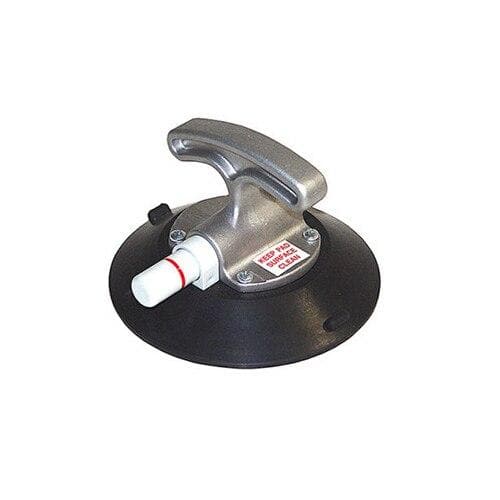

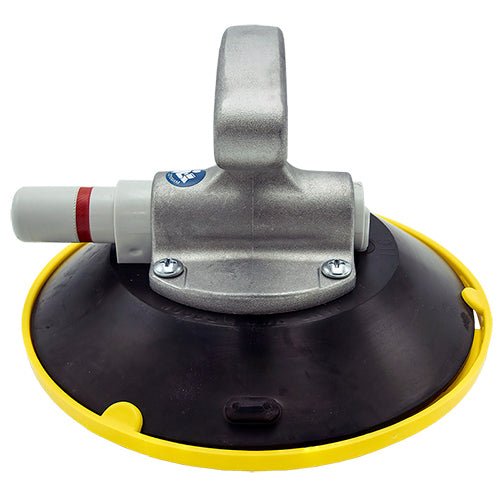

This aluminum-handle cup has a lifting capacity 70 lbs [32 kg] and is capable of easily lifting and positioning a wide variety of items, including windshields, stone tiles, and sheet materials.

Instructions

Specifications

Features:

  • Easily lifts and positions a wide variety of items, including windshields, stone tiles and sheet materials
  • Fast attach and release
  • Red-line indicator warns user of any significant vacuum loss
  • Supplied with vacuum pad protector



Model TL6HG
SKU 91316
Load Capacity 70 lbs [32 kg]
Surface Texture Smooth
Material Porosity Nonporous
Allowable Surface Curvature Flat or Curved
Minimum Radius for Curved Loads 12" [305 mm]
Maximum Elevation 5000 ft [1500 m]
Material and Ambient Temperature-Range 0°F [-18° C] up to 120° F [49° C]
Pad Diameter 6" [15 cm]
Pad Model TL6
Rubber Type Standard
Handle Type Aluminum
Plunger Type Industrial-Grade Plastic
