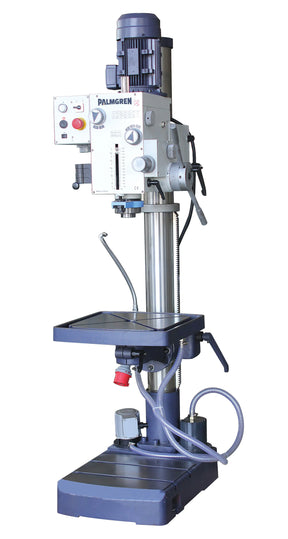

22" Gear Head Drill Press: 2 Horsepower (240V 3 Phase)

Ruggedly constructed Palmgren’s 22” gear head drill press delivers full power at any speed and has the operational features to withstand continuous industrial use.

This heavy duty drill press uses a mechanical clutch system for the power feed and is built to handle all you drilling, reaming, chamfering, tapping, spot facing and counter boring applications with ease.

• Spindle gear box is equipped with hardened and ground steel gears and shafts lubricated on a continuous oil bath for long term quite, smooth operation
• Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
• Front mounted control panel designed for operator convenience
• Forward & reverse spindle switch
• Mechanical clutch spindle power feed
• Fine feed wheel for small hole and finishing operations
• Rack and pinion head and table raiser system
• T-slotted production table and base
• Front mounted dial adjusted work stop
• 4 1/2" column provides maximum head, table and base support and stability
• Safety electrical package with emergency push button stop switch, 24 volts at the switch and interlocking chuck guard
• Flood coolant system
