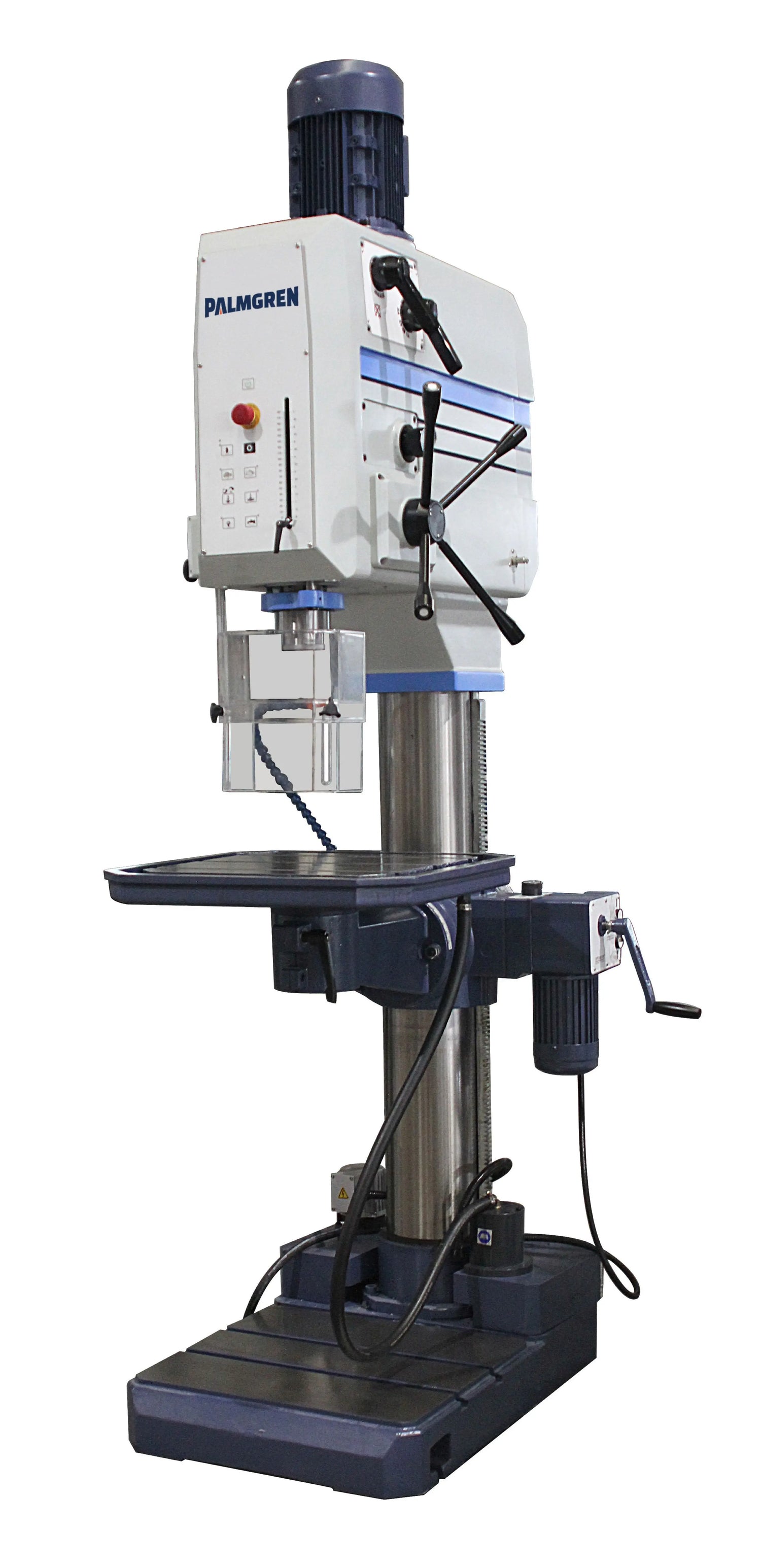

Gear Head Drill Machine 16-S 460V 32"

The Palmgren 32" Drill Presses use a gear driven transmission that is designed to deliver full power at any speed, driving the cutting tool at nearly 100% of the available motor horsepower.

• Extra wide speed range with 16 selectable speeds
• Spindle gear box is equipped with hardened and ground steel gears and shafts, lubricated by an internal oil pump for quiet, smooth operation
• Fully enclosed machine tool ground spindle with internal 4 MT mounted in precision bearings for maximum accuracy, minimizing deflection
• Front mounted control panel designed for operator convenience
• Rack and pinion table raiser system
• T-slotted production table and base
• Front mounted, dial adjusted, work stop
• 8" column provides maximum head, table and base support and stability
• Flood coolant system
• Maximum spindle runout of 0.0005"
• Motorized table
• Table tilts left & right 45°

Specification	Details
AMPS	8
Capacity Cast Iron	2-1/8"
Capacity Steel	2"
Chuck Size	1/32–5/8" / JT3 Keyed Chuck
Column Diameter	8"
Country of Origin	CN
Drill Press Model	Floor Model
Drill Press Type	Variable Speed
Max. Spindle To Base	51"
Motor HP	3 / 3.8
Number of Spindle Speeds	16
Phase	Three
Quill Diameter	88mm
Spindle Taper	MT4 / JT3
Spindle Travel	7-7/8"
Swing	33"
Table Dimensions	25" x 20.5"
Table Slots	3
Table Slot Size	14mm
Tilting Angle	0° to 90°
Voltage	460
Warranty	3 Year
UPC	726896801414
Unit of Measure	Each
Product Weight (lbs)	1300.7
