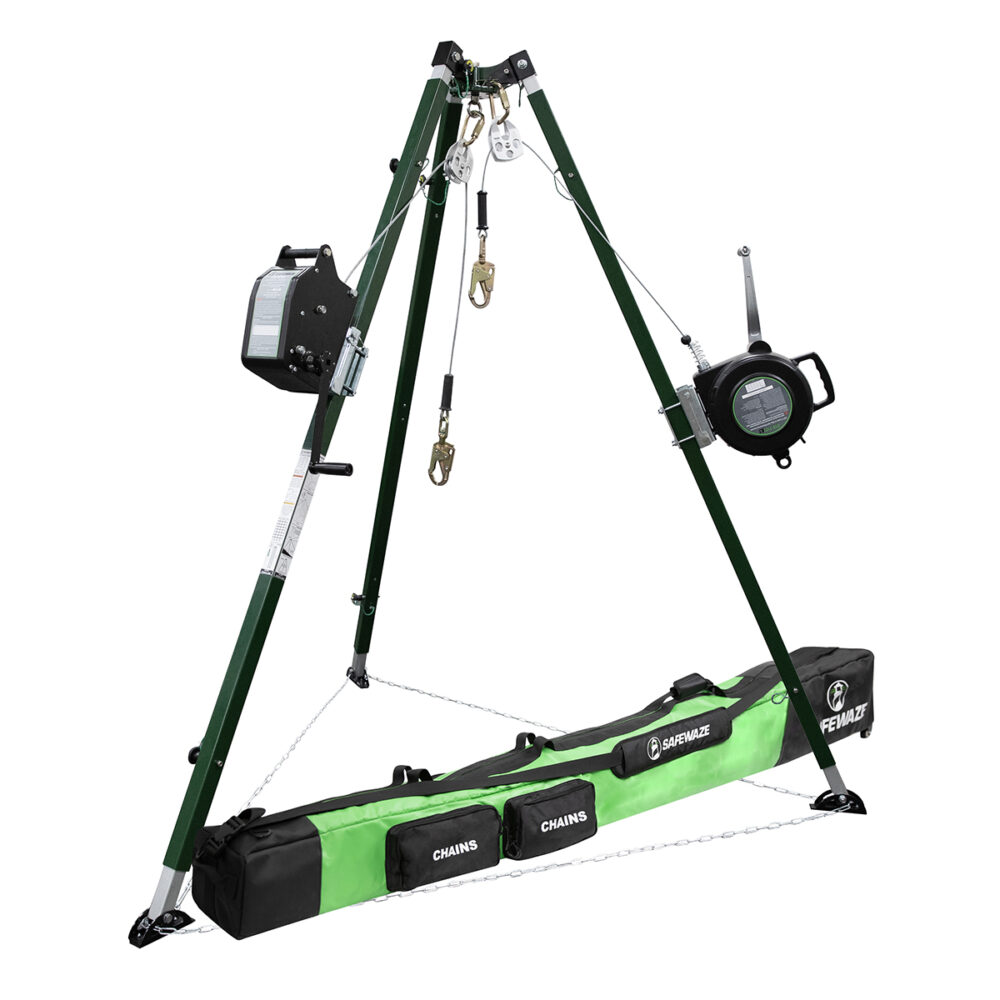

10′ Tech Tripod Kit: 65′ Personnel Winch, 65′ 3-Way
$5,04496
$5,93525
Unit price
/
Make a Selection
Tripod Kits
The 10′ Tech Tripod Kit: 65′ Personnel Winch, 65′ 3-Way is our premium tripod with multiple configurations to fit a wide variety of work zones. The massive stance adjusts up to 18′ to cover confined space, trenches, bridges, mines, rescue, inspections and more. The unique design allows use in over-edge scenarios such as cliffs or vertical walls. This system is lightweight with quick setup and adjustability and includes a multi-function fall protection device plus winch to raise and lower workers.
Features:
- Lightweight yet durable aluminum construction
- Quick setup with detent pins for easy height and diameter adjustment
- Multiple stance configurations fit a variety of work zones, including an over-edge scenario
- (7) Individual 5,000 lb. anchor points in head unit with a centered 360° captive eye
- Secure foundation with rubber pads on multi-surface steel feet
- Equipped with (included):
-65′ 3-Way system for fall protection

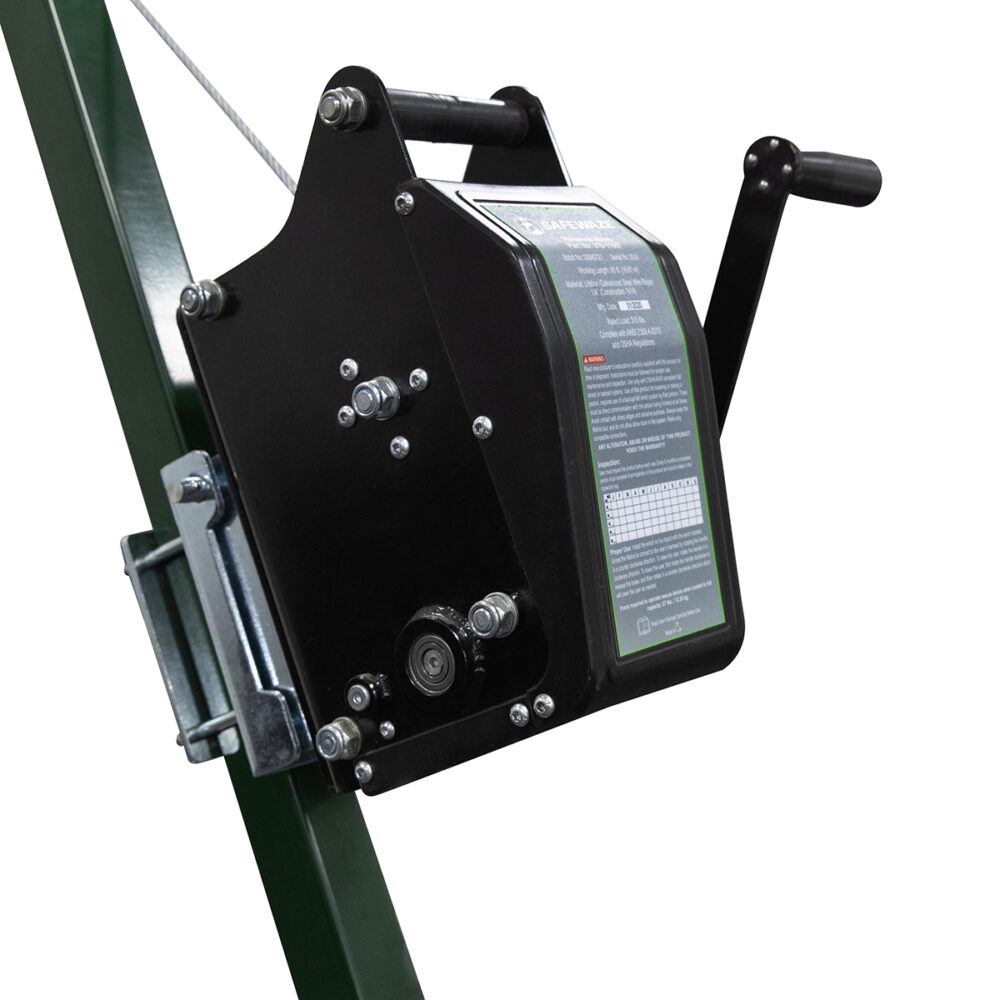

-65′ Personnel winch safely moves workers
-(2) Aluminum pulleys
-(2) Steel carabiners
-(2) Universal mounting brackets
-Safety chain and quick link
-Heavy-duty storage bag with wheels for easy transport, multiple handles, padded shoulder strap and labeled pockets for organization
Specifications:
| Materials: | Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins, aluminum pulleys, plated steel carabiners and mounting brackets |
| 3-Way System Materials: | Aluminum housing, plated steel and stainless steel components, galvanized steel cable, plastic handle |
| Personnel Winch Materials: | Powder coated steel device, plated steel components, galvanized steel cable, rubber handles, plastic cover |
| Packed Length: | 97.2" (247 cm) |
| Packed Width: | 12" (30.5 cm) |
| Working Height: | Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm) |
| Working Diameter: | Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm) |
| Weight: | 137.2 lbs. (62.2 kg) |
| Tripod Attachment Points: | 1 captive eye, 6 anchor points on tripod head |
| Minimum Breaking Strength: | 5,000 lbs. |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Weight Capacity: | Up to 420 lbs. (190 kg) |
| Maximum Material Capacity: | 620 lbs. (281 kg) |
| ANSI Standards: | Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021 |
| OSHA Standards: | 1910.140, 1926.502 |
